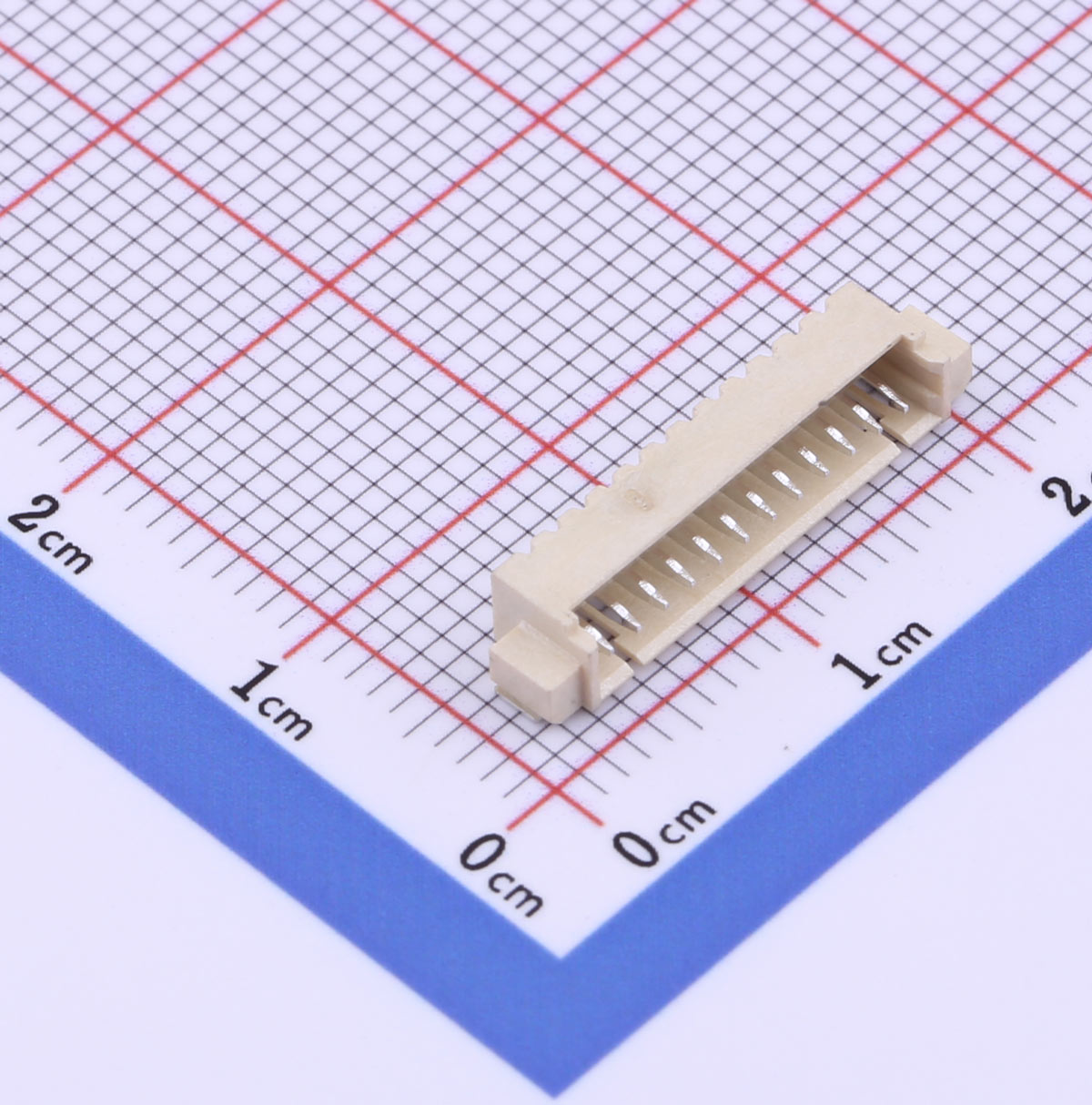

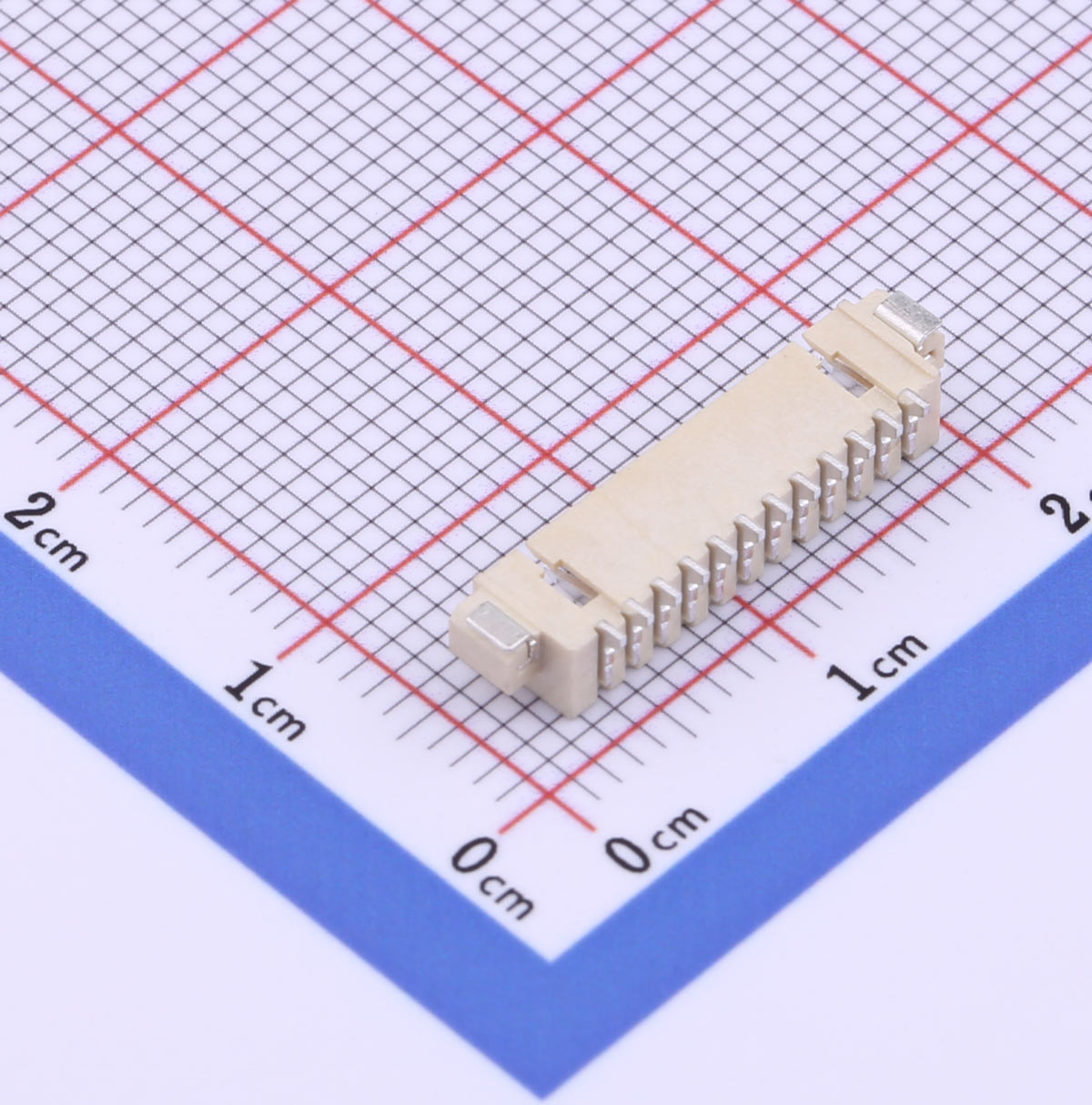

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-12A

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-12A

Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch compact design
● SMD surface mount horizontal type
● 12 pin configuration
● Phosphor bronze tin plated contacts
● Operating temperature range −25°C to +85°C

Product Benefits
● Efficient use of space in tight layouts
● Reliable electrical connection with low contact resistance
● Resistant to corrosion and wear
● Compatible with automated SMT processes
● Suitable for low power and signal applications

Product Applications
● Consumer electronics
● LED lighting circuits
● Communication devices
● Industrial control boards
● Home appliance systems
