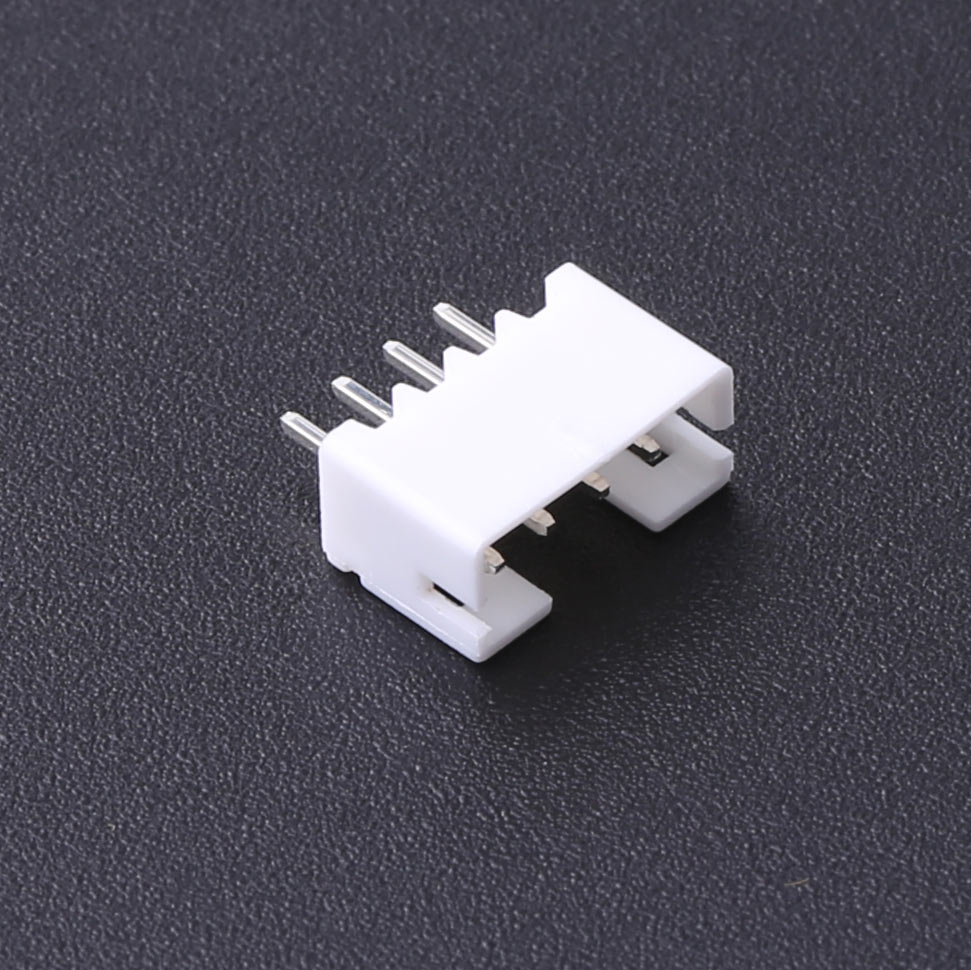

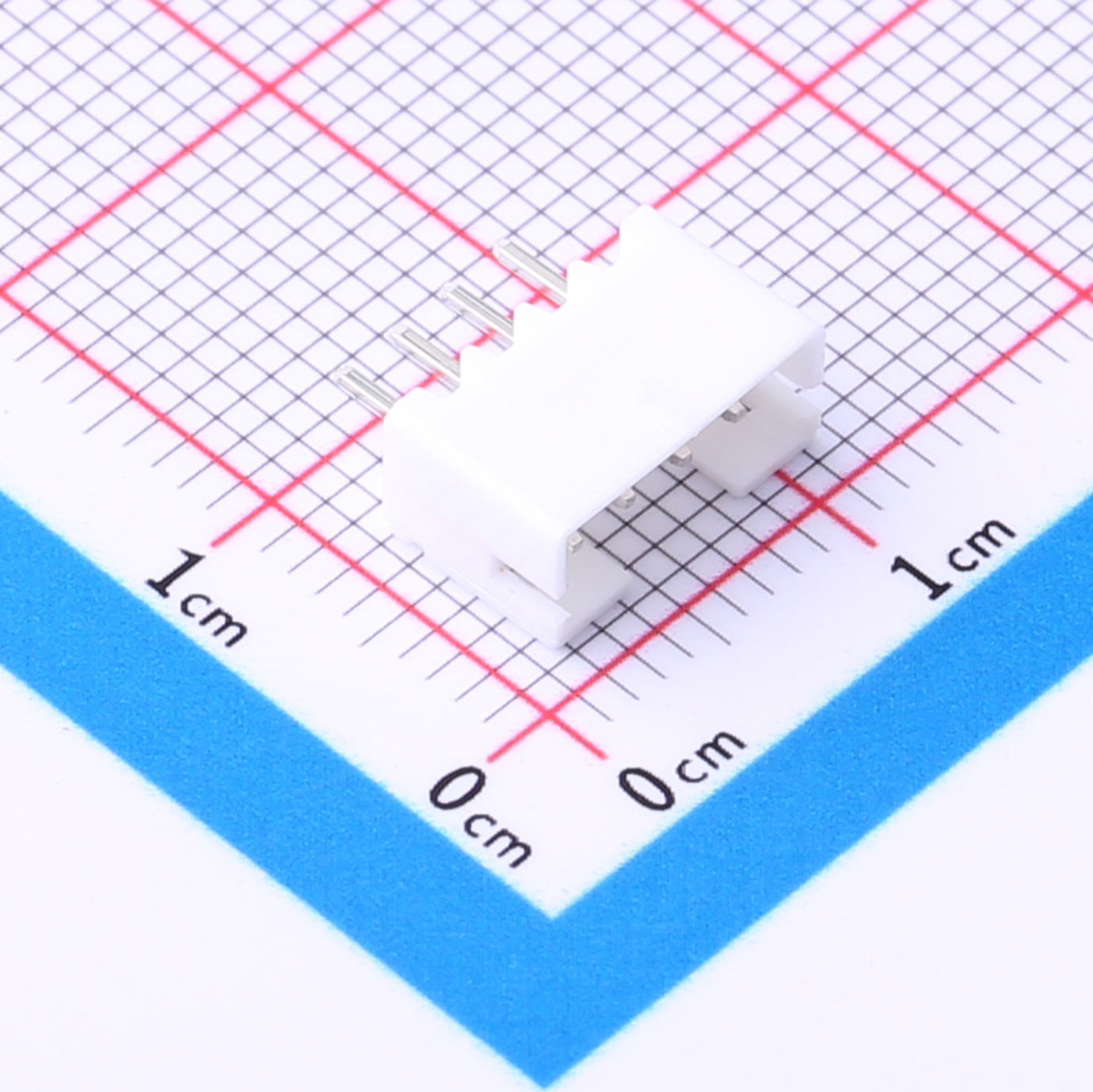

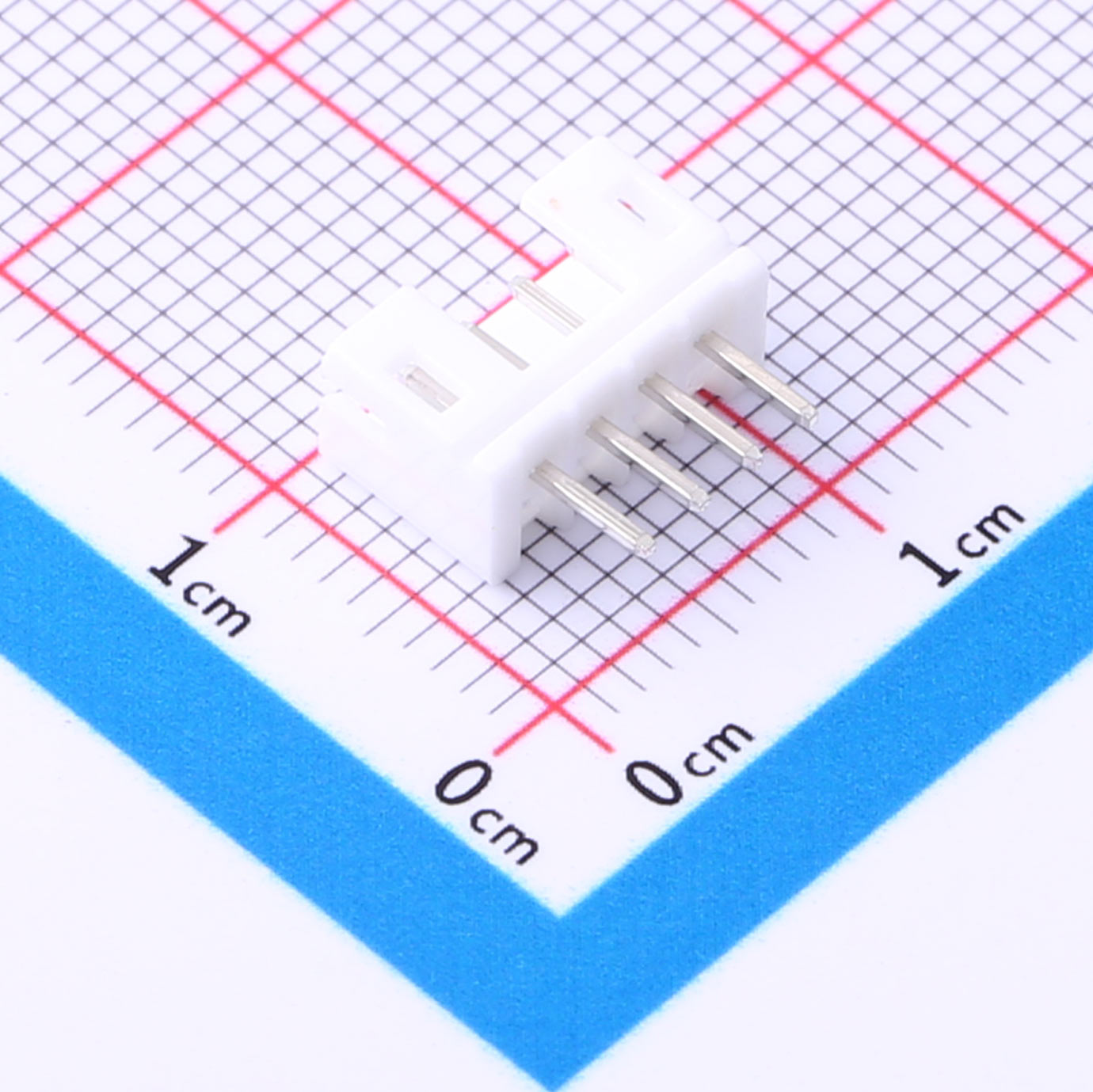

Wire-to-Board Connector, 2mm Pitch, 1x4P, KH-PH-4P-Z

Wire-to-Board Connector, 2mm Pitch, 1x4P, KH-PH-4P-Z

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

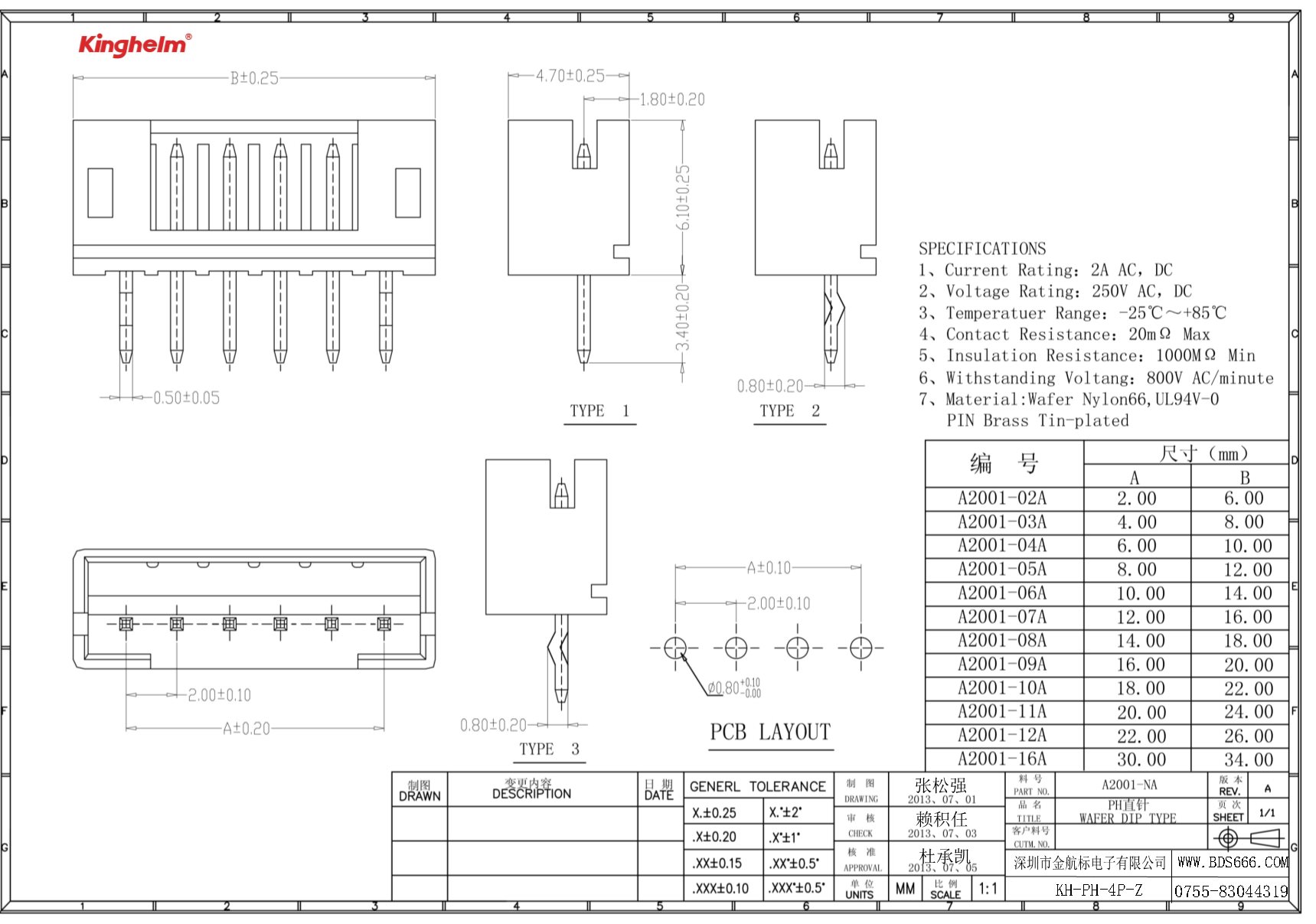

Inquiry Datasheet

Product Details

Product Features
● 2.0mm pitch, single-row 4-pin structure
● 2A current rating
● 250V voltage rating
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 1000MΩ
● -25℃ to +85℃ operating range
● Plug-in type connector
● Space-saving design

Product Benefits
● Stable connection
● High insulation for safety
● Minimal power loss
● Reliable in temperature extremes
● Quick PCB mounting
● Compact size

Product Applications
● Consumer electronics
● LED lighting systems
● Office equipment
● Small appliances
● Communication devices
● Industrial controls
