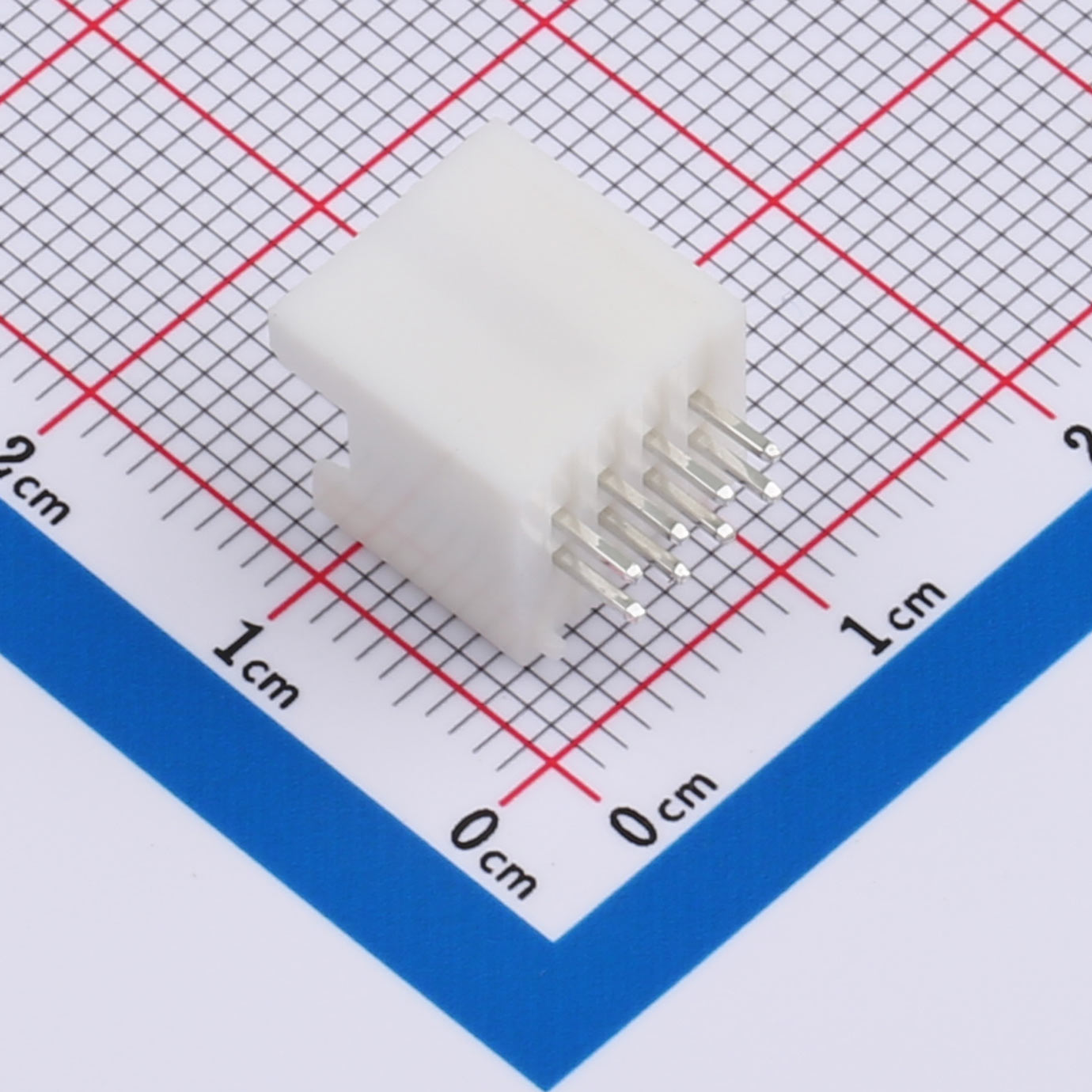

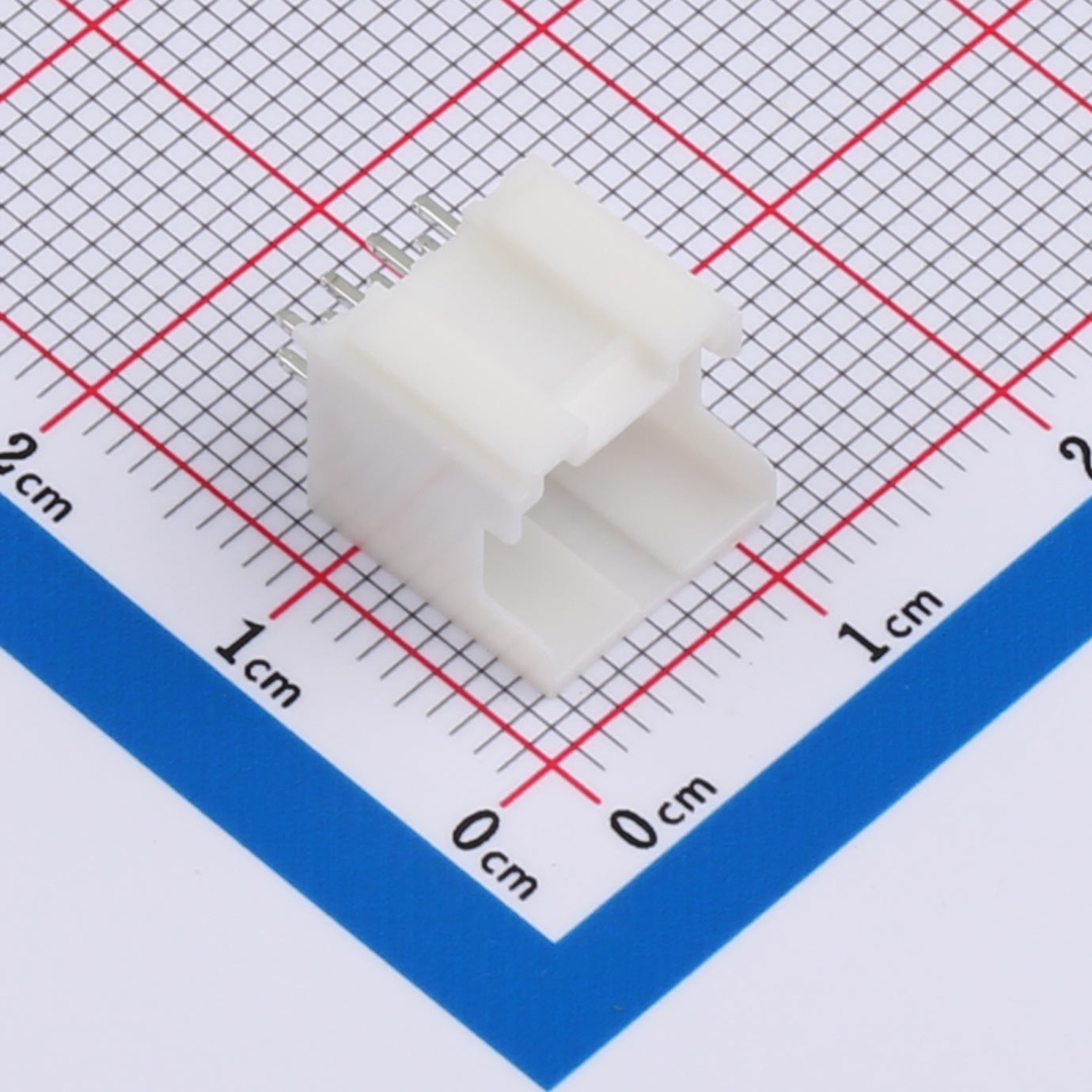

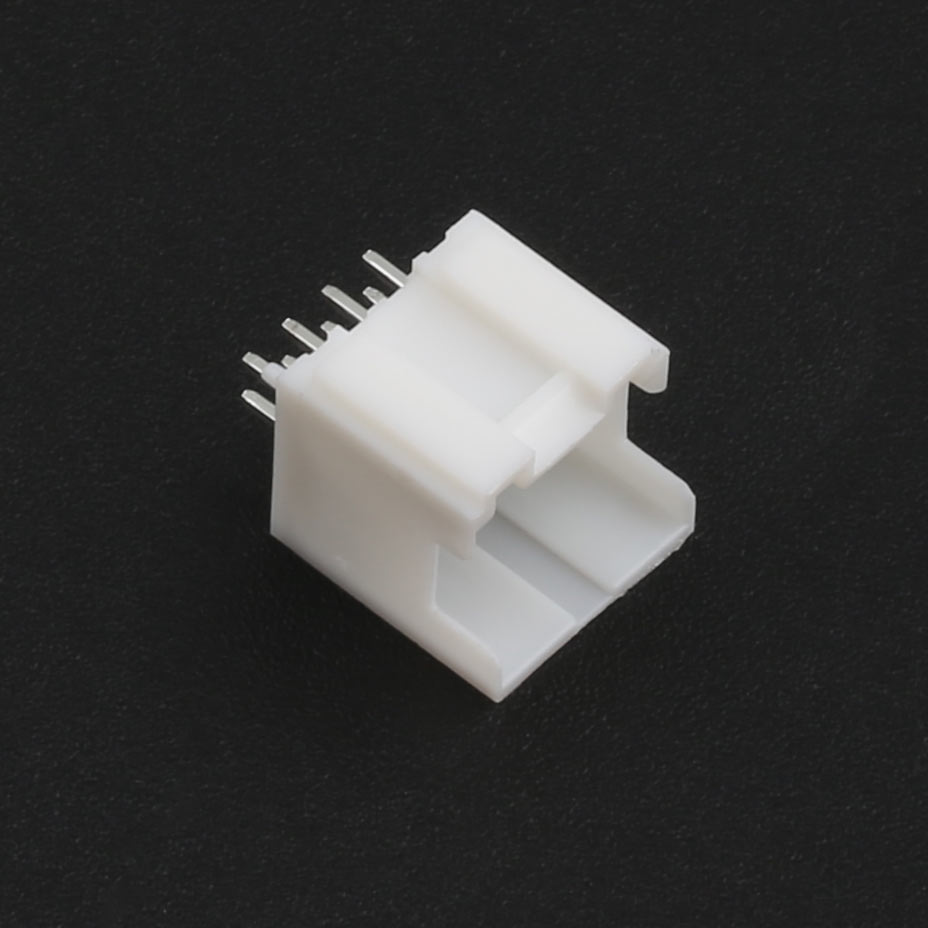

2mm Pitch Wire-to-Board Connector, 4-Pin 2-Row Straight Pin, KH-A2015-2X04A

2mm Pitch Wire-to-Board Connector, 4-Pin 2-Row Straight Pin, KH-A2015-2X04A

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 2x4P (8 pins)
● Straight, dual-row pin header
● Through-hole type with reliable retention
● Brass pins, tin plated for long-term use
● UL-rated flame-resistant housing

Product Benefits
● Optimized for low I/O connection needs
● Compact and cost-efficient
● Easy to assemble in automated processes
● Ideal for compact controllers
● Maintains low contact resistance over time

Product Applications
● LED lighting panels
● Accessory ports on PCBs
● Data transmission terminals
● Portable media systems
● Low-voltage adapters
