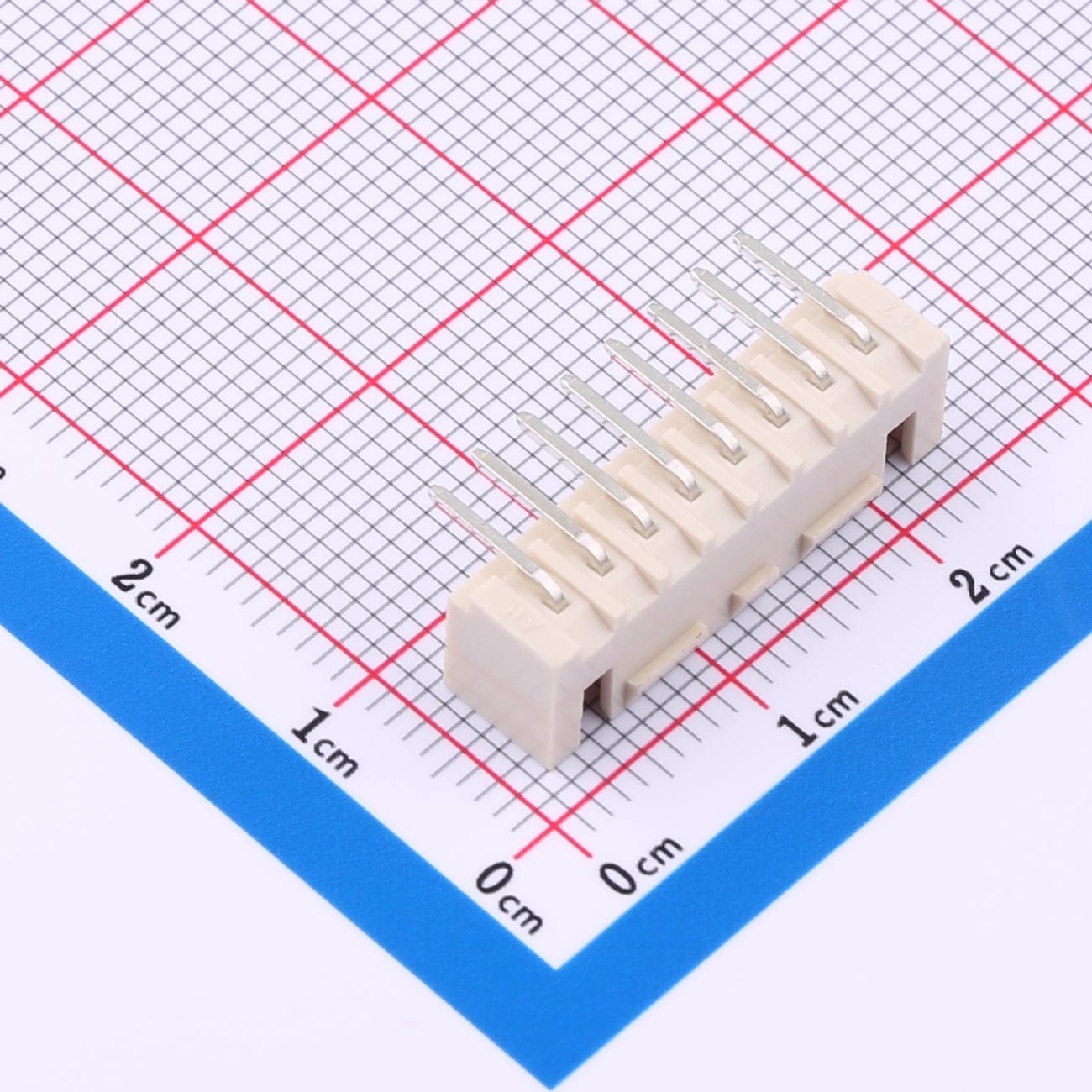

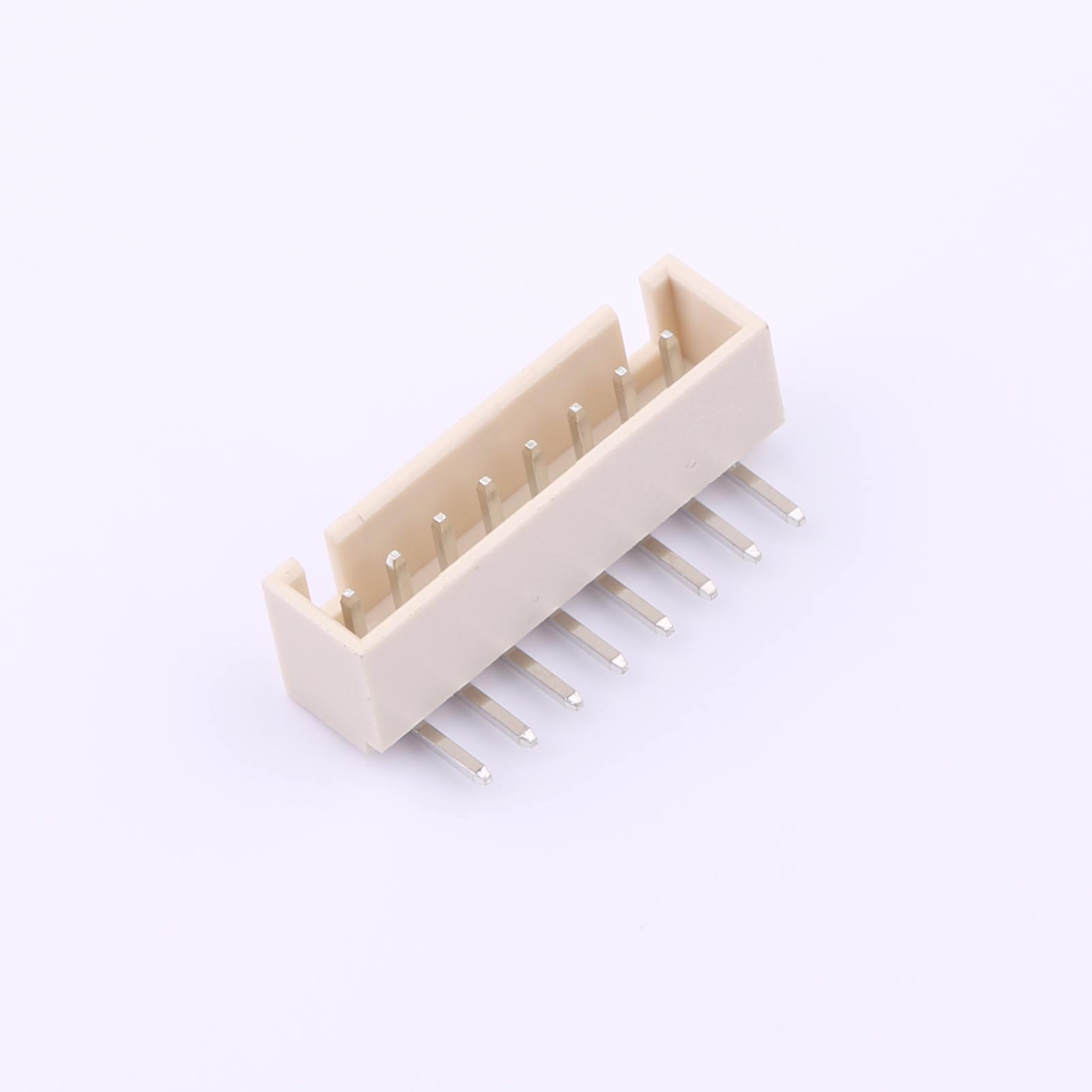

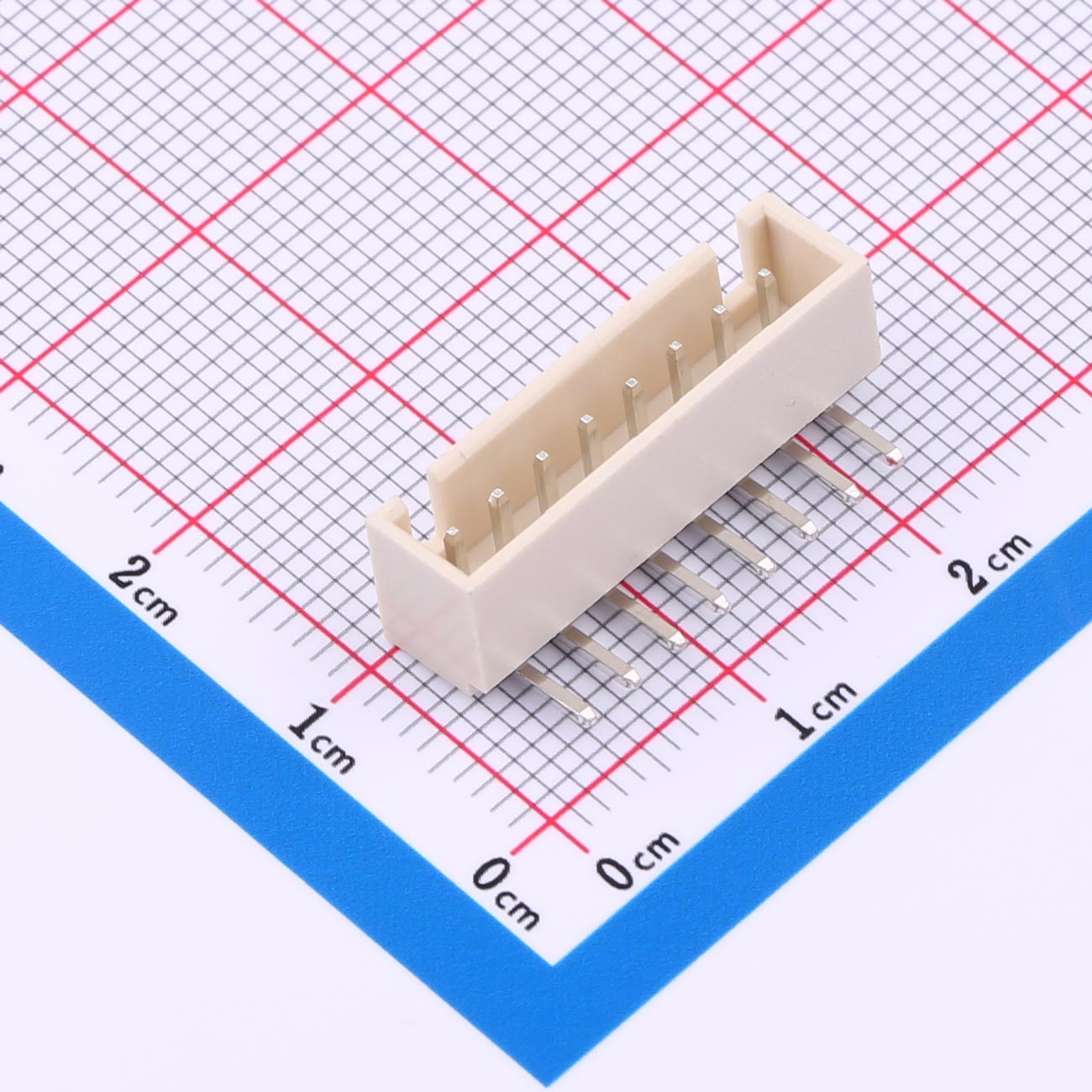

2.54mm Pitch Wire-to-Board Connector 1x8P--KH-A2504-08AW-M

2.54mm Pitch Wire-to-Board Connector 1x8P--KH-A2504-08AW-M

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

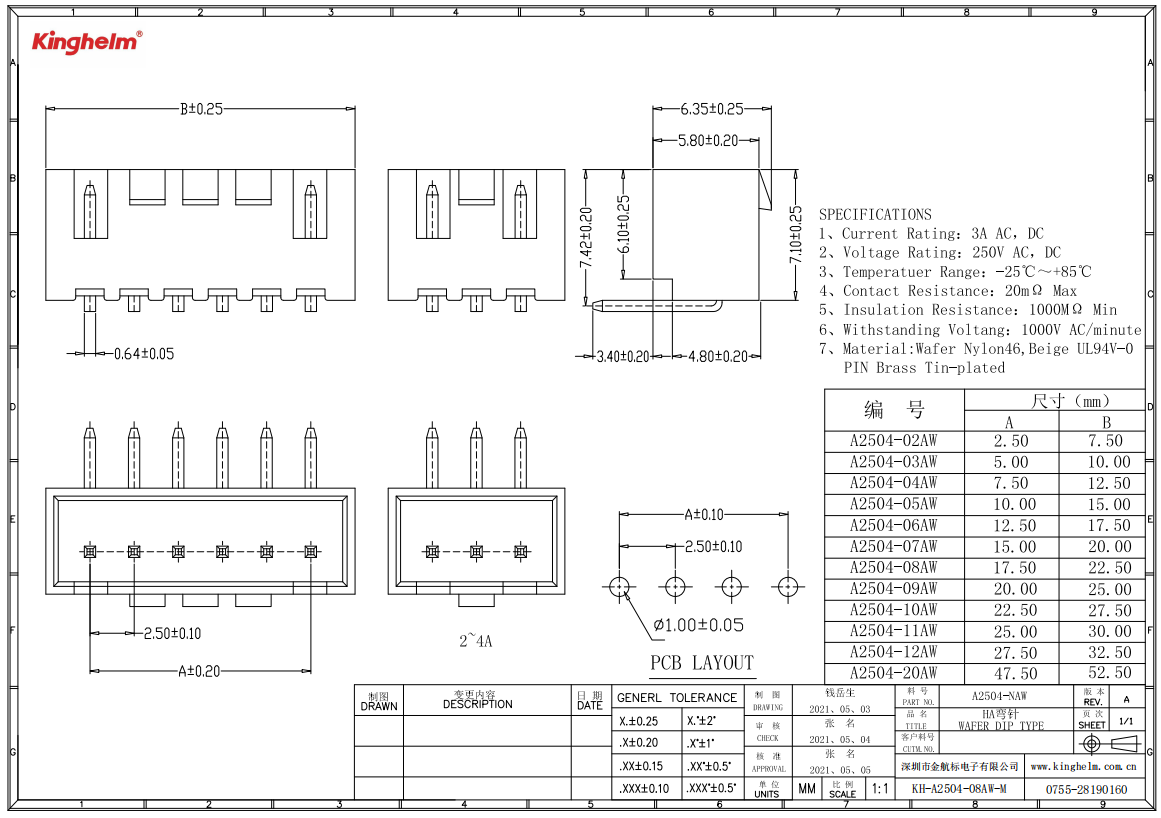

Inquiry Datasheet

Product Details

Product Features
● 3A current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ max contact resistance
● 1000MΩ min insulation resistance
● Right-angle mounting with locking latch

Product Benefits
● Reliable power transmission
● Wide voltage compatibility
● Operates in extreme temperatures
● Low contact resistance for durability
● Enhanced safety with high insulation resistance
● Secure and stable connections

Product Applications
● Consumer electronics
● Industrial control systems
● Automotive electronics
● Home appliances
● LED lighting
● Communication equipment
