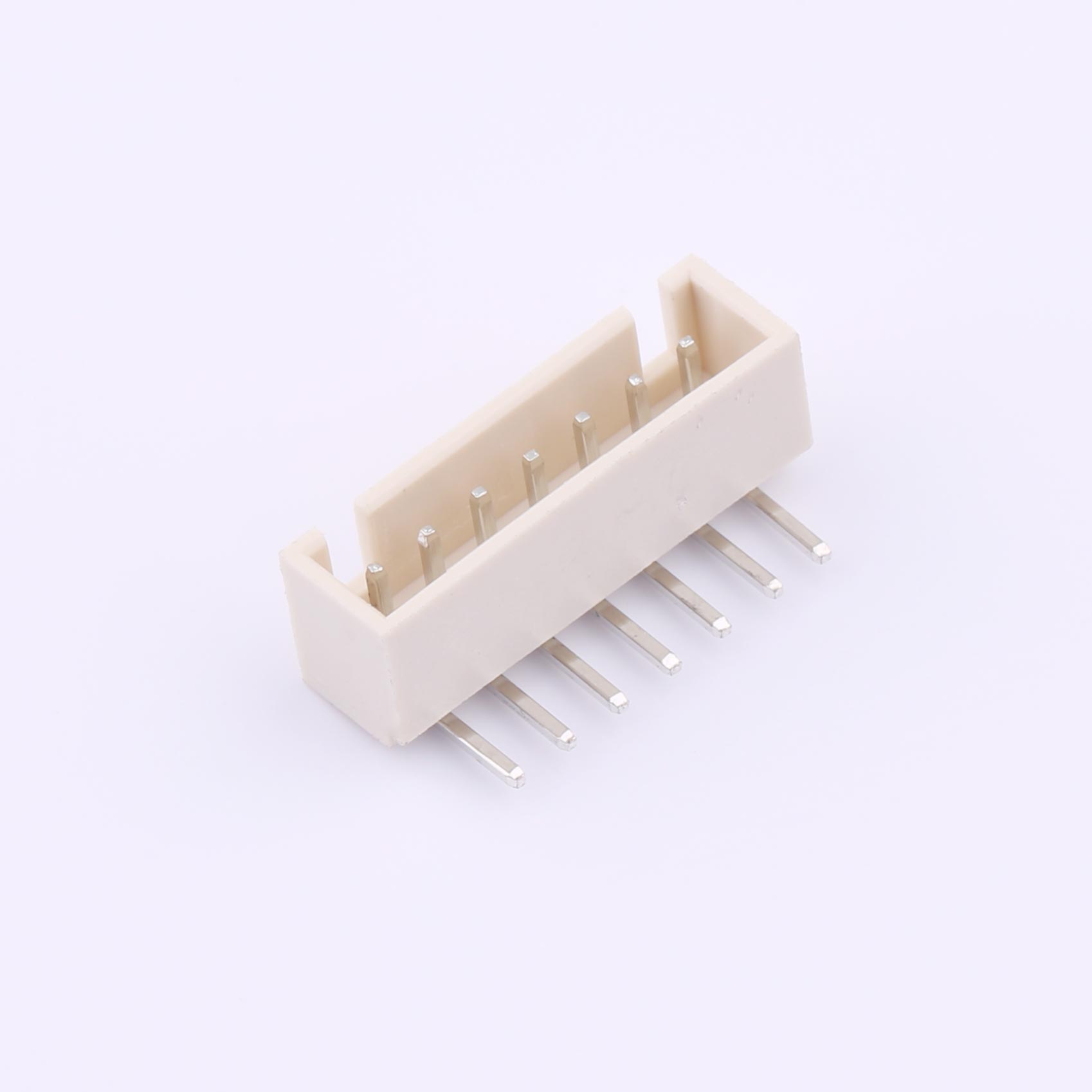

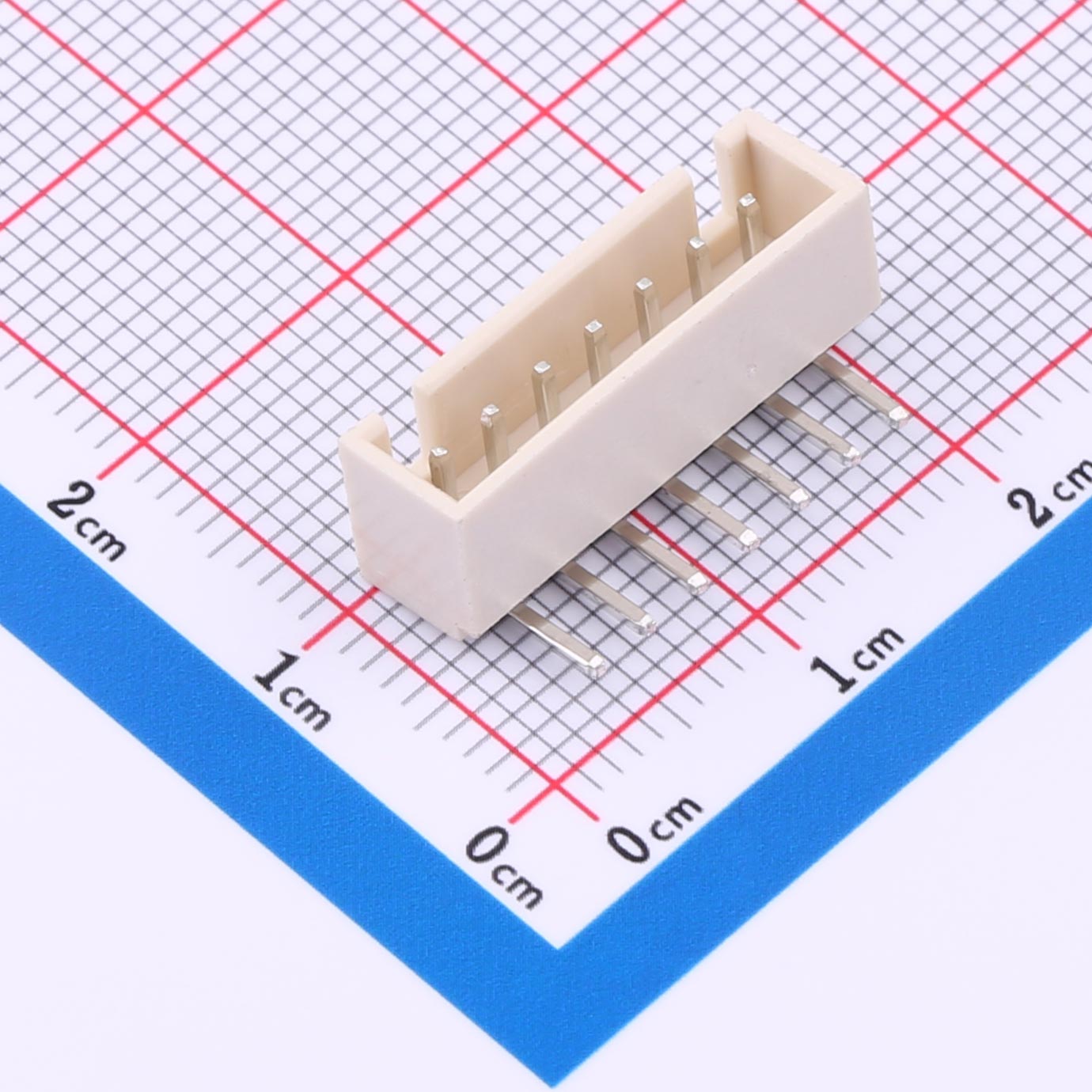

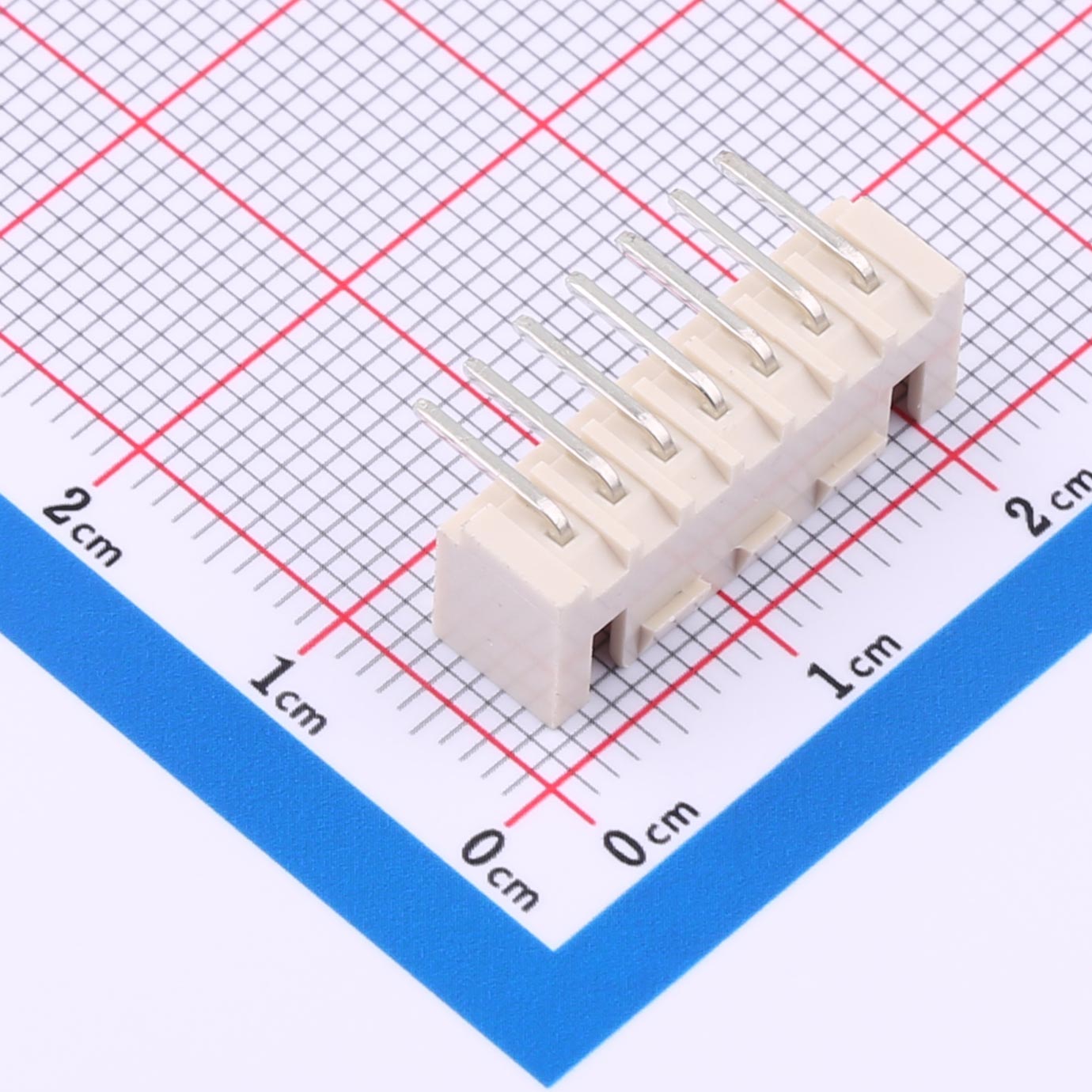

2.54mm Pitch Wire-to-Board Connector 1x7P--KH-A2504-07AW-M

2.54mm Pitch Wire-to-Board Connector 1x7P--KH-A2504-07AW-M

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 3A current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ max contact resistance
● 1000MΩ min insulation resistance
● Right-angle design with locking latch

Product Benefits
● Consistent and stable power flow
● Adaptable to high and low voltage
● Reliable performance in harsh environments
● Low resistance for efficient operation
● Strong insulation for improved safety
● Firm and dependable connection

Product Applications
● Consumer devices
● Industrial equipment
● Automotive systems
● Household appliances
● Lighting solutions
● Communication modules
