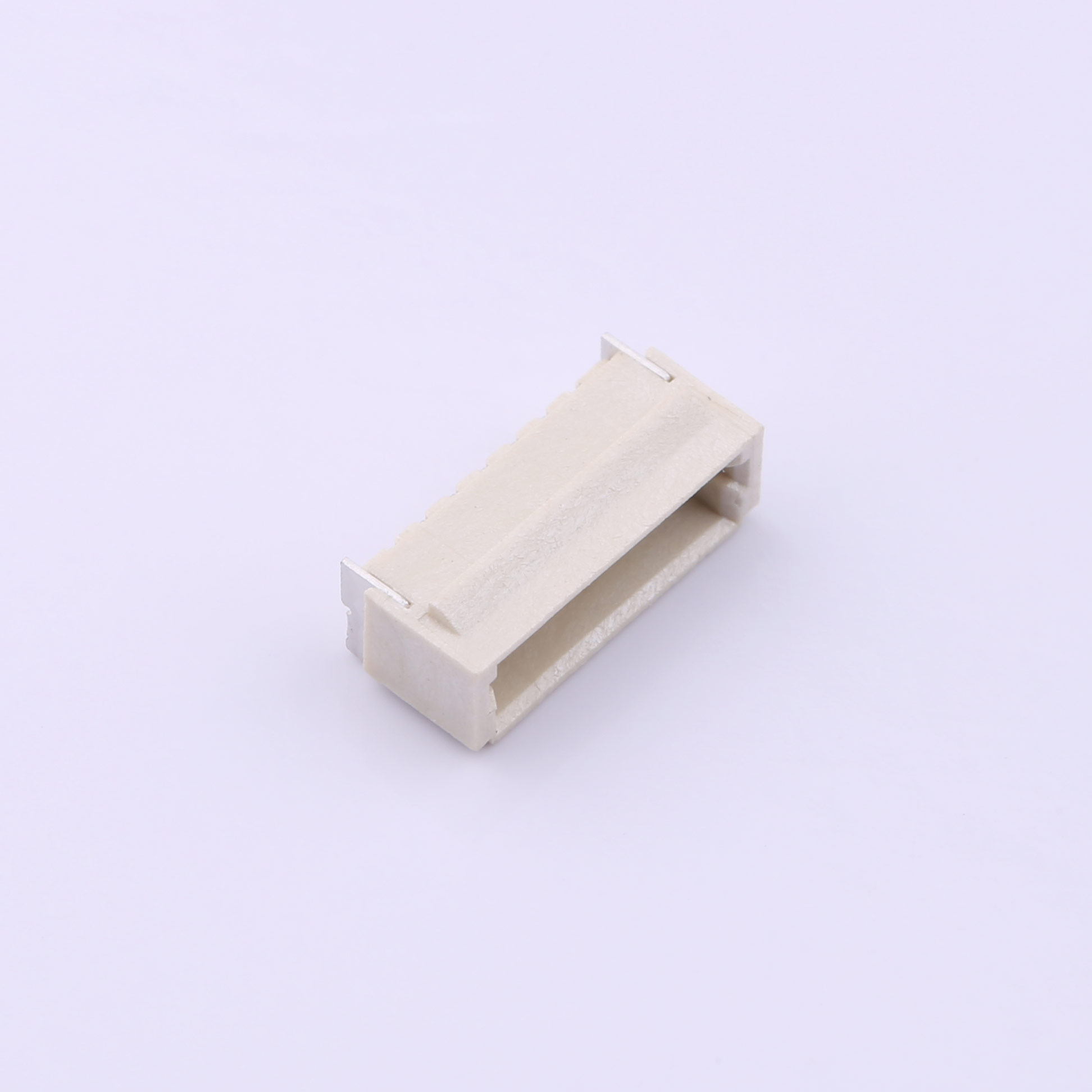

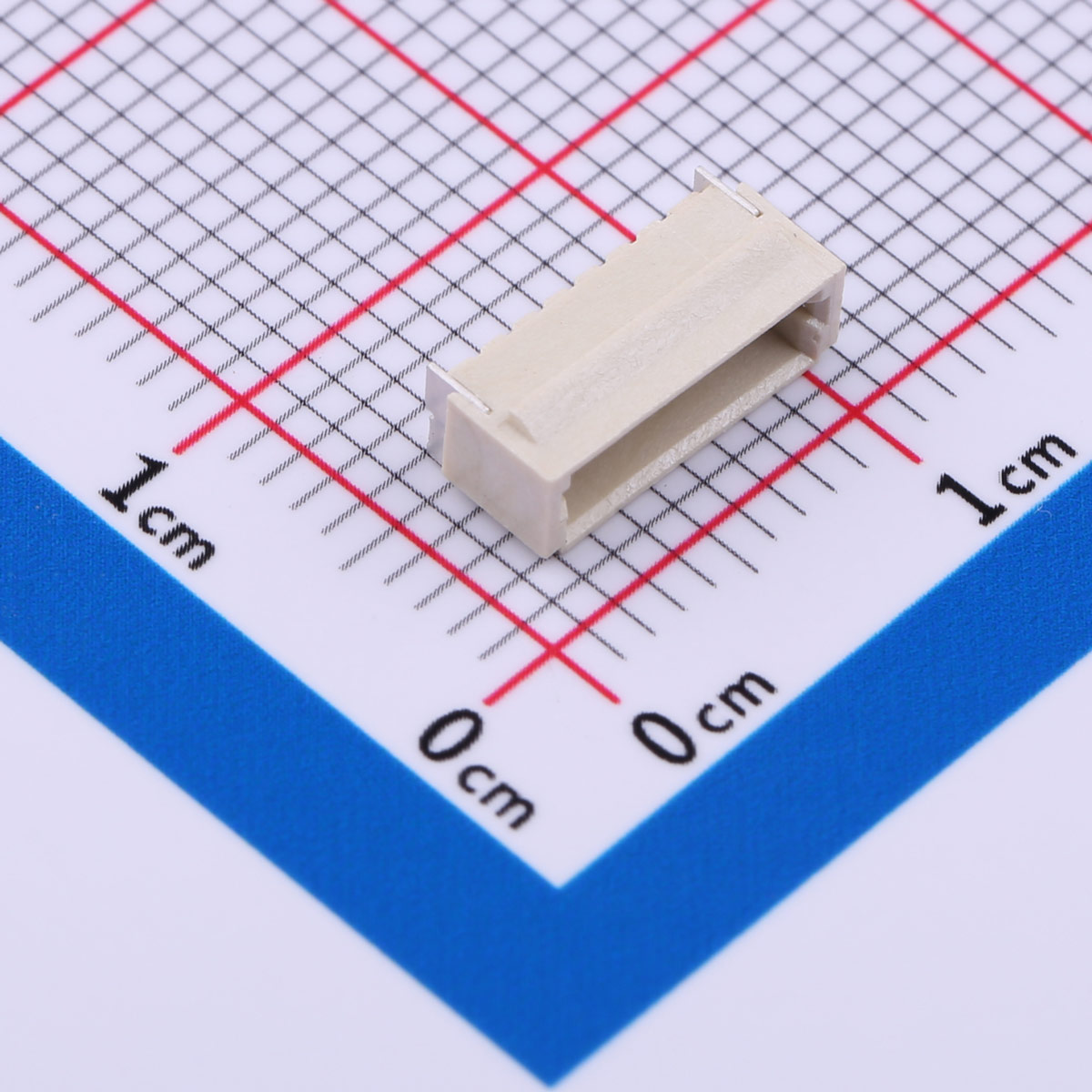

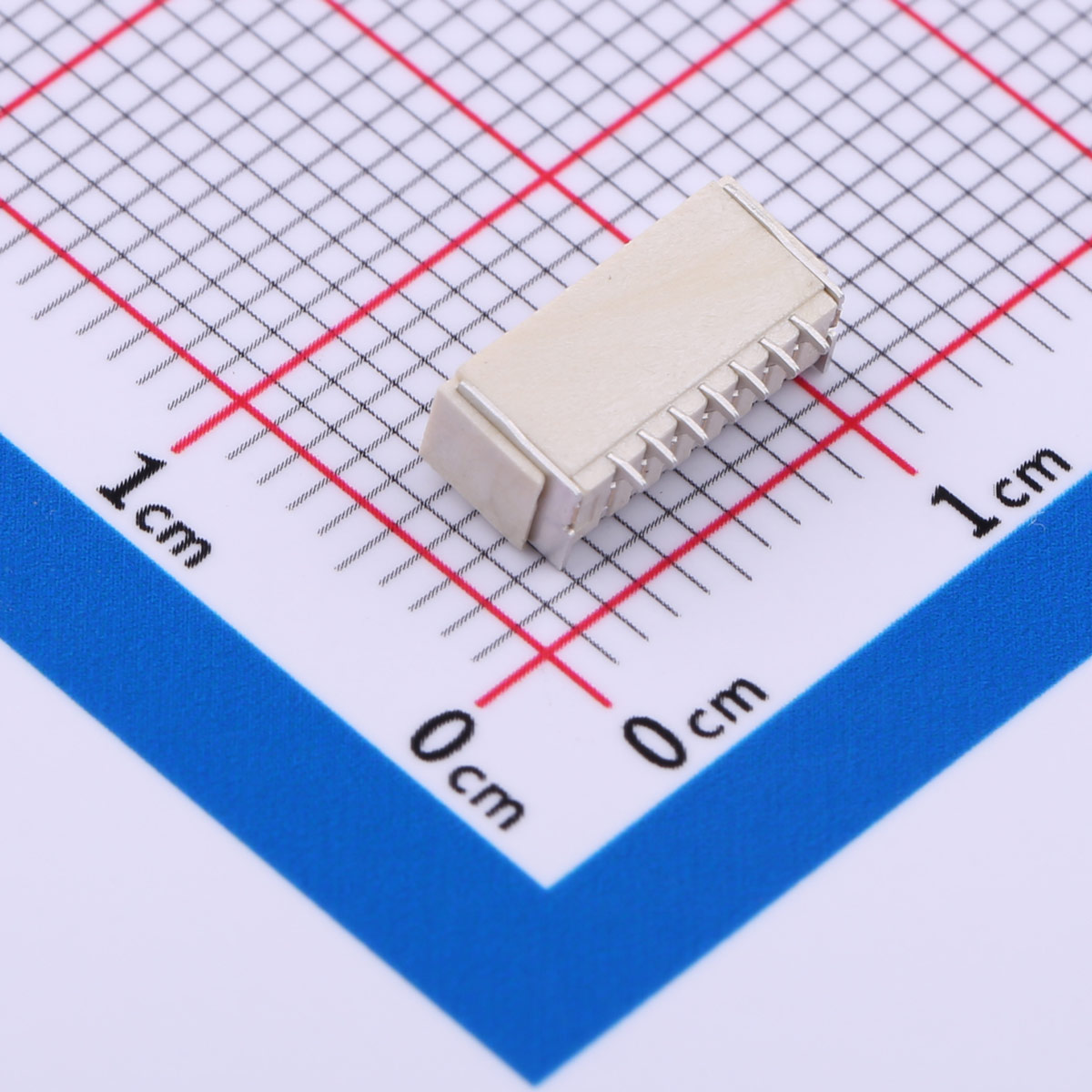

Wire-to-Board Connector, 1mm Pitch, 1x7P, SMD, KH-A1000RSL-7P

Wire-to-Board Connector, 1mm Pitch, 1x7P, SMD, KH-A1000RSL-7P

Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ

Inquiry Datasheet

Product Details

Product Features
● 1.00mm pitch, 1x7 positions
● Horizontal mount (right-angle) SMD design
● Compact and low-profile construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant

Product Benefits
● Ideal for space-constrained PCB layouts
● Suitable for slim and compact devices
● Reliable electrical connection with stable performance
● Compatible with high-speed SMT production
● Low-profile design perfect for height-sensitive applications
● Cost-effective for small pin count interconnect solutions
● Excellent for portable and battery-powered devices

Product Applications
● Consumer electronics
● Wearable technology
● Portable medical devices
● IoT applications
● Communication equipment
● Smart home devices
● Embedded systems
