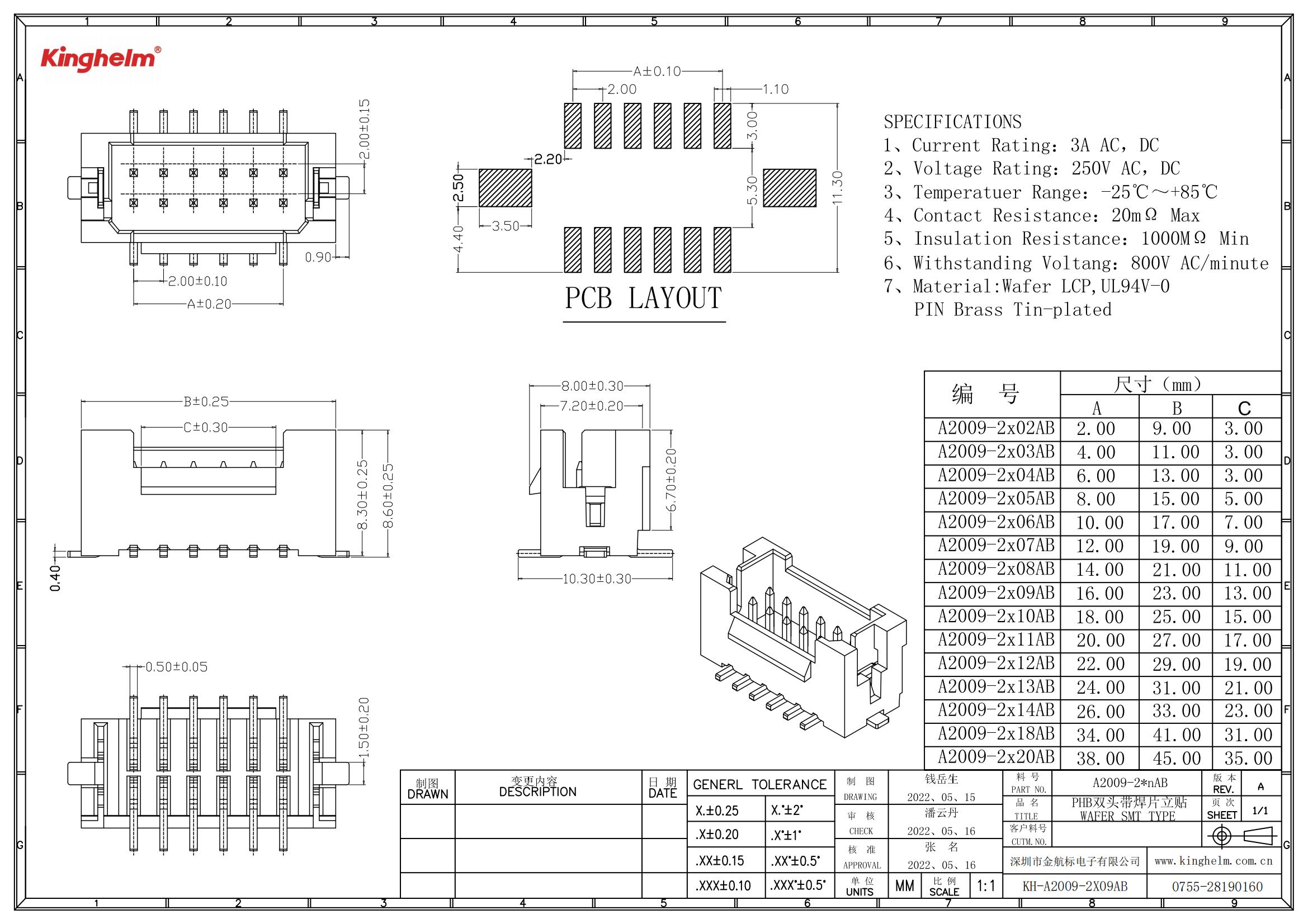

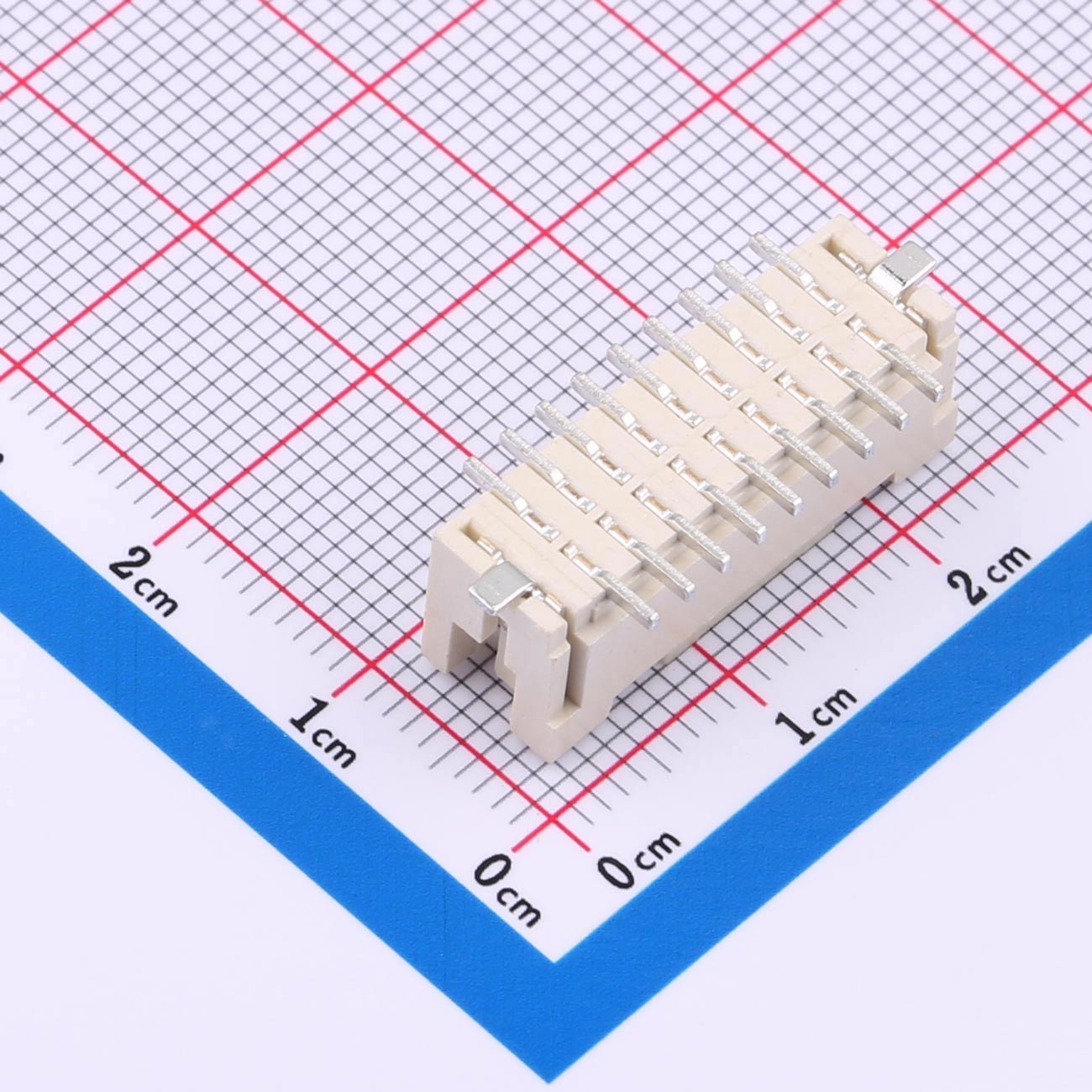

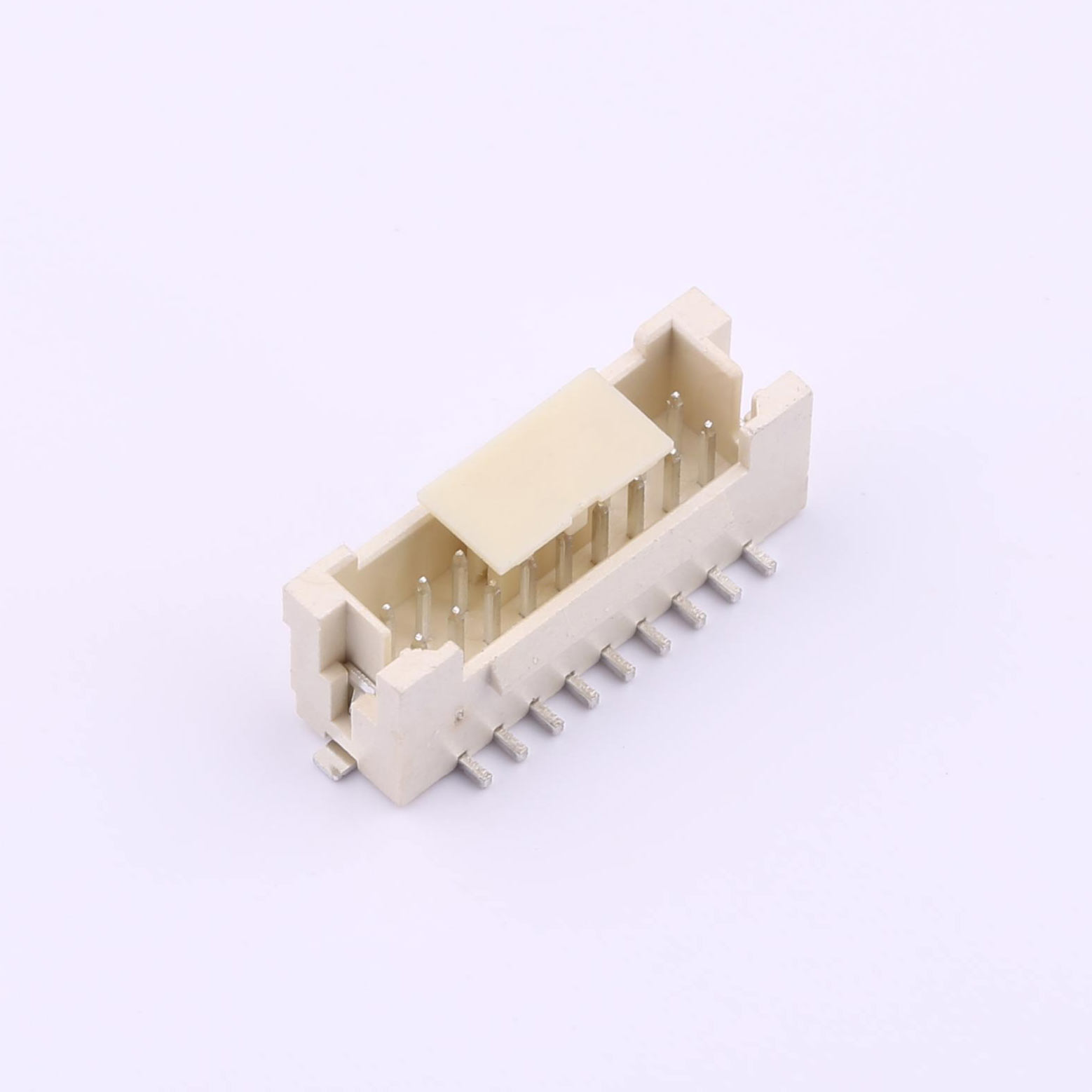

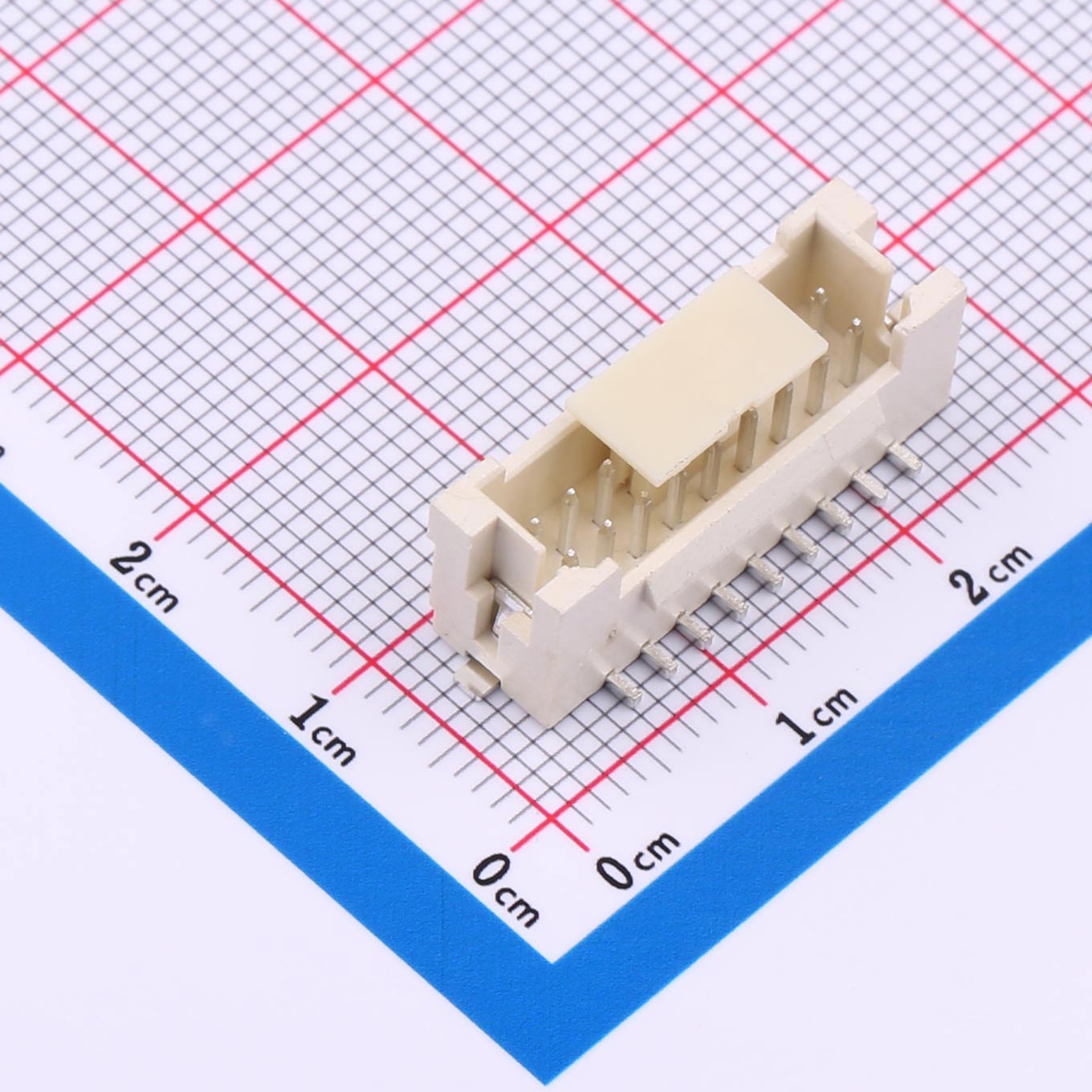

Wire-to-Board Connector, 2mm Pitch, 2x9P, Vertical SMT, KH-A2009-2X09AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x9 pin configuration
● 18 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Ideal for small-scale signal connections
● Dual-row ensures consistent alignment
● Compact SMT footprint saves PCB space
● Vertical design helps optimize board orientation
Product Applications
● Home automation nodes
● Miniature controllers
● Handheld instruments
