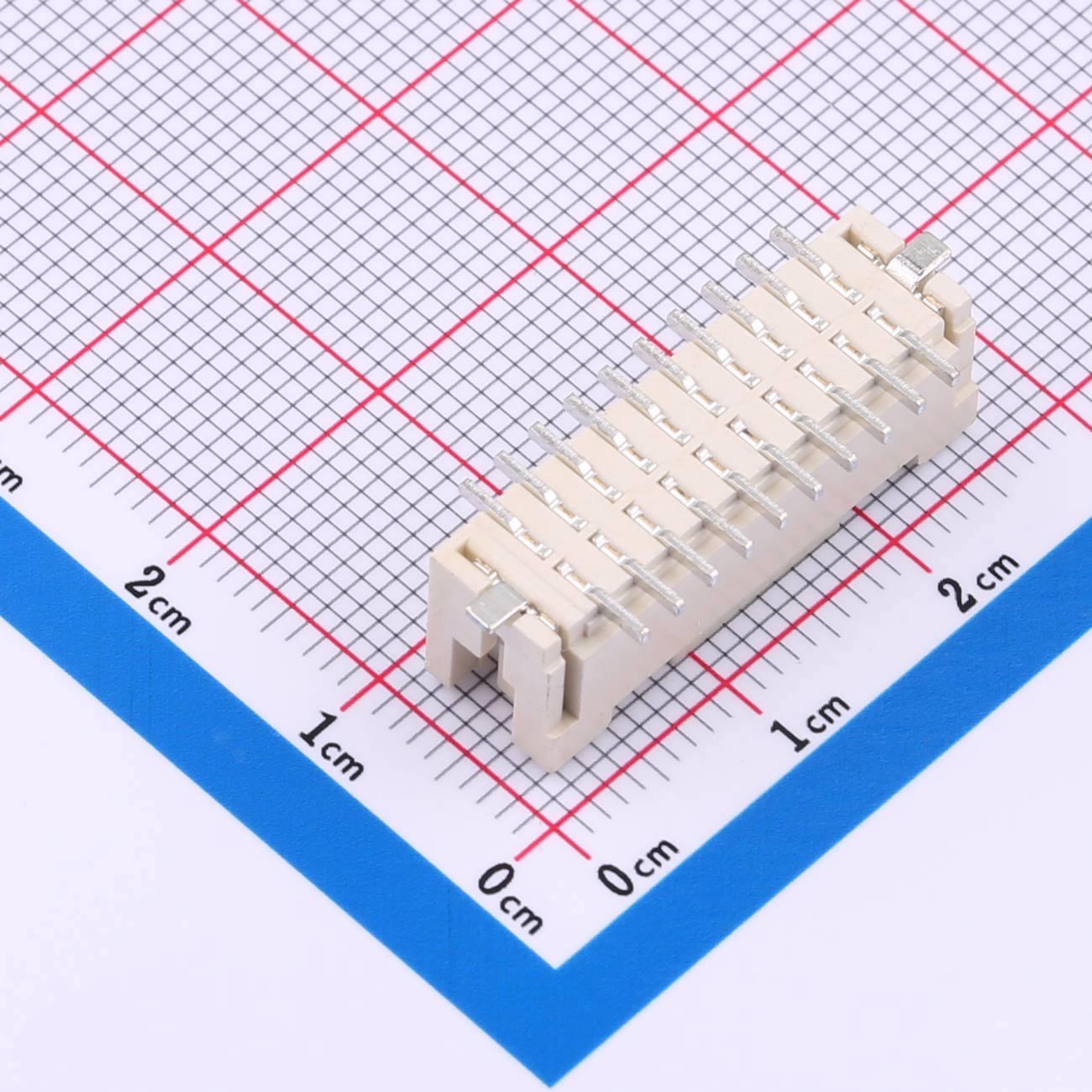

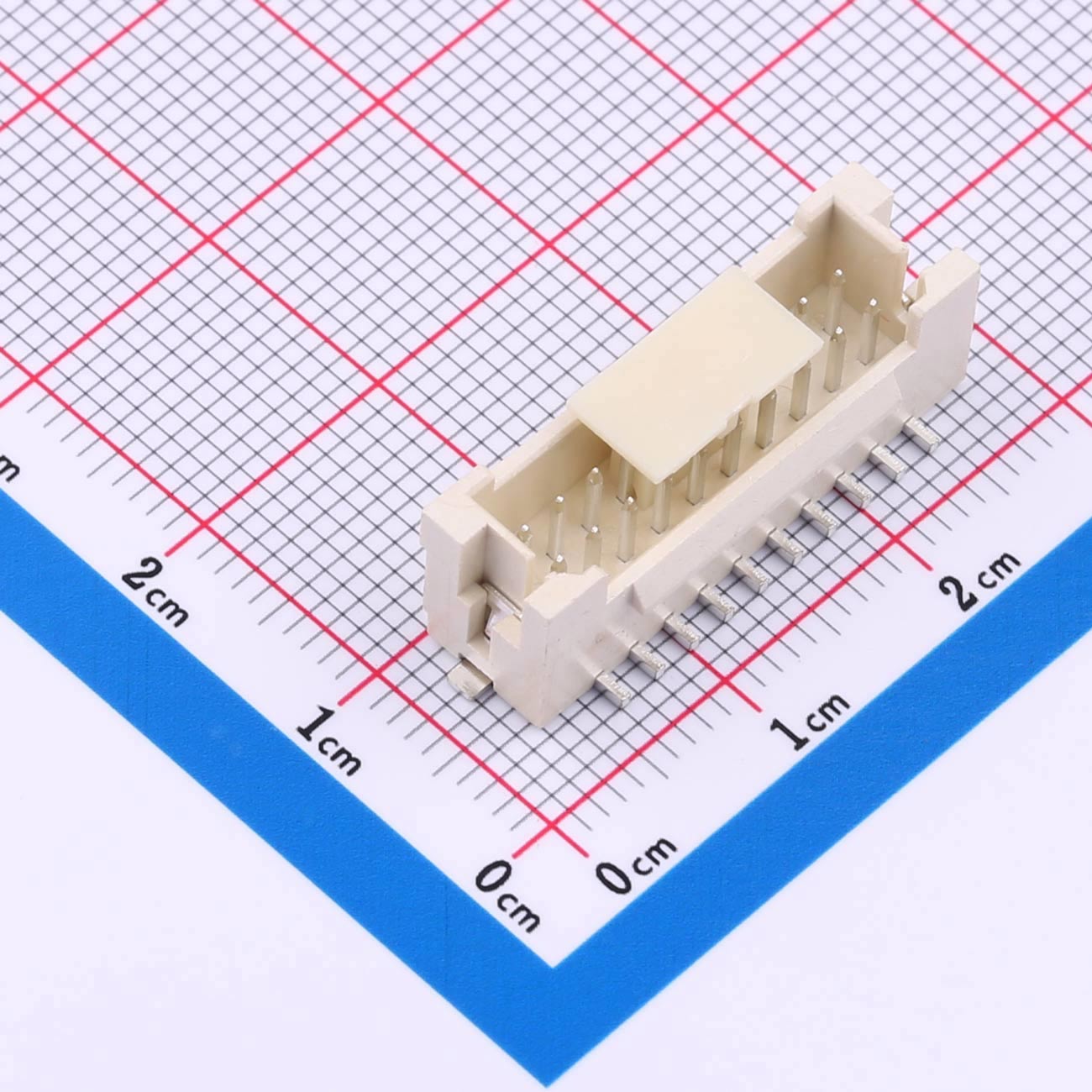

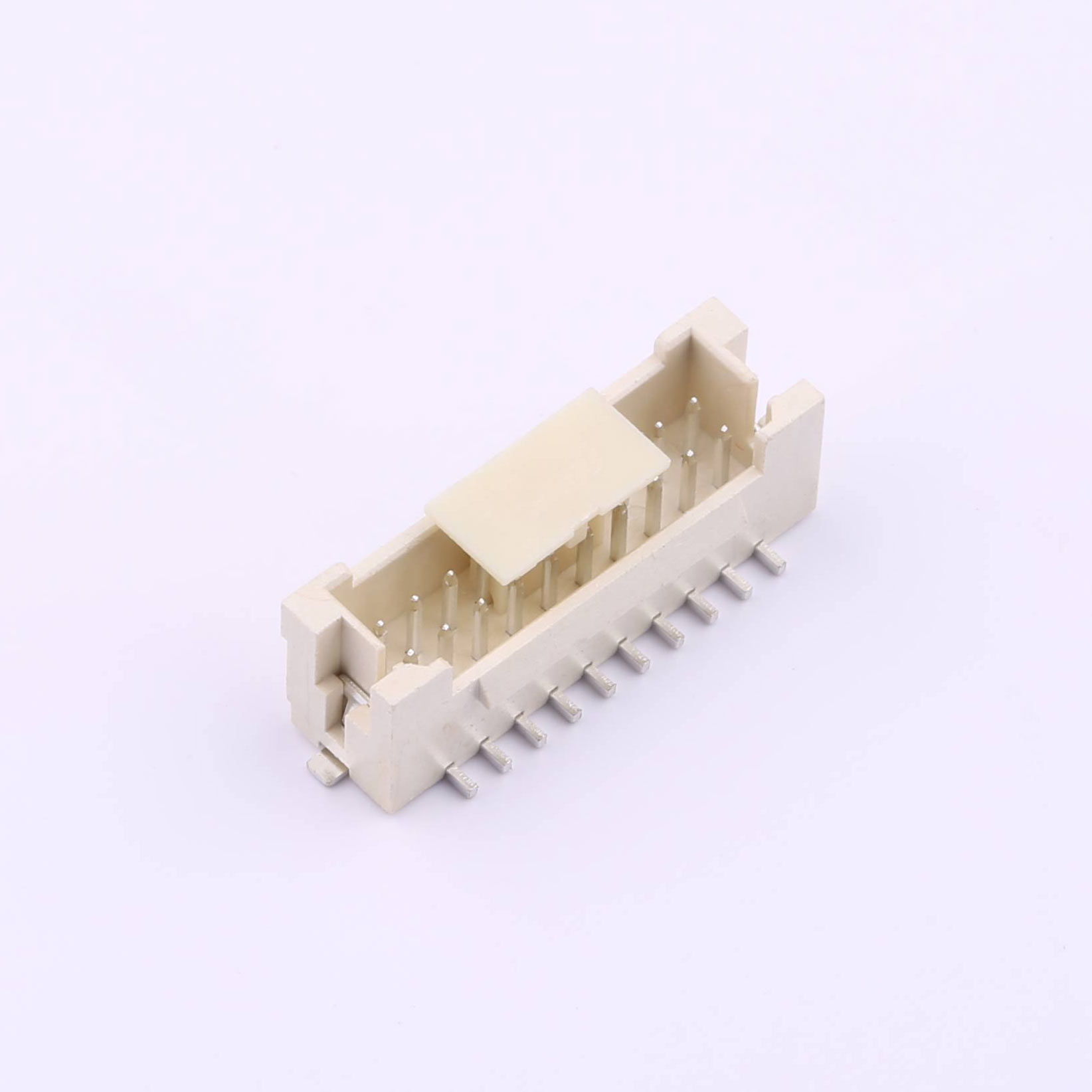

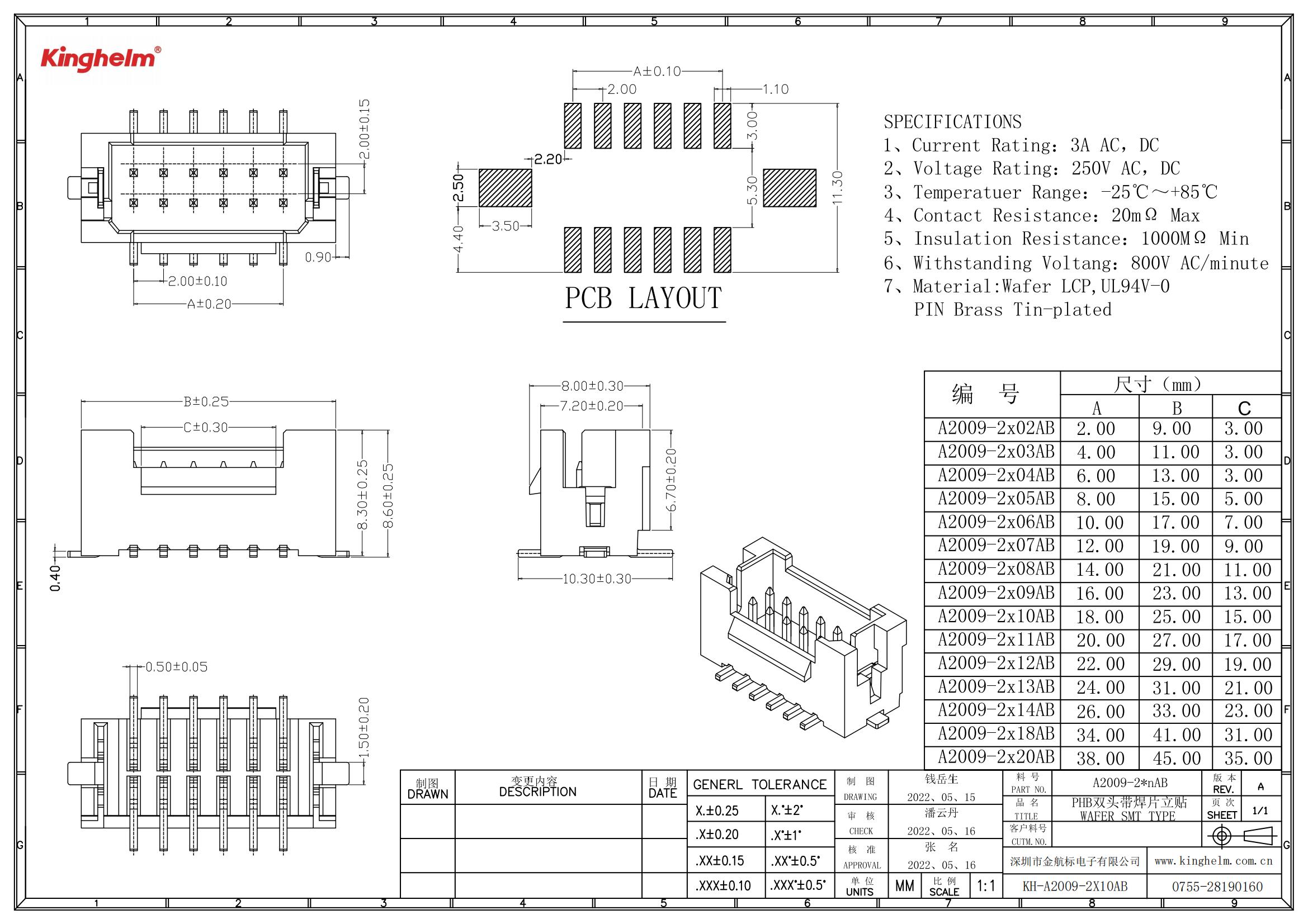

Wire-to-Board Connector, 2mm Pitch, 2x10P, Vertical SMT, KH-A2009-2X10AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x10 pin configuration
● 20 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● 20-pin layout suits data/control signal lines
● Vertical design fits stacked board setups
● SMD simplifies large-scale production
● Balanced row layout for stable insertion
Product Applications
● Data acquisition units
● Battery management systems
● IoT communication hubs
