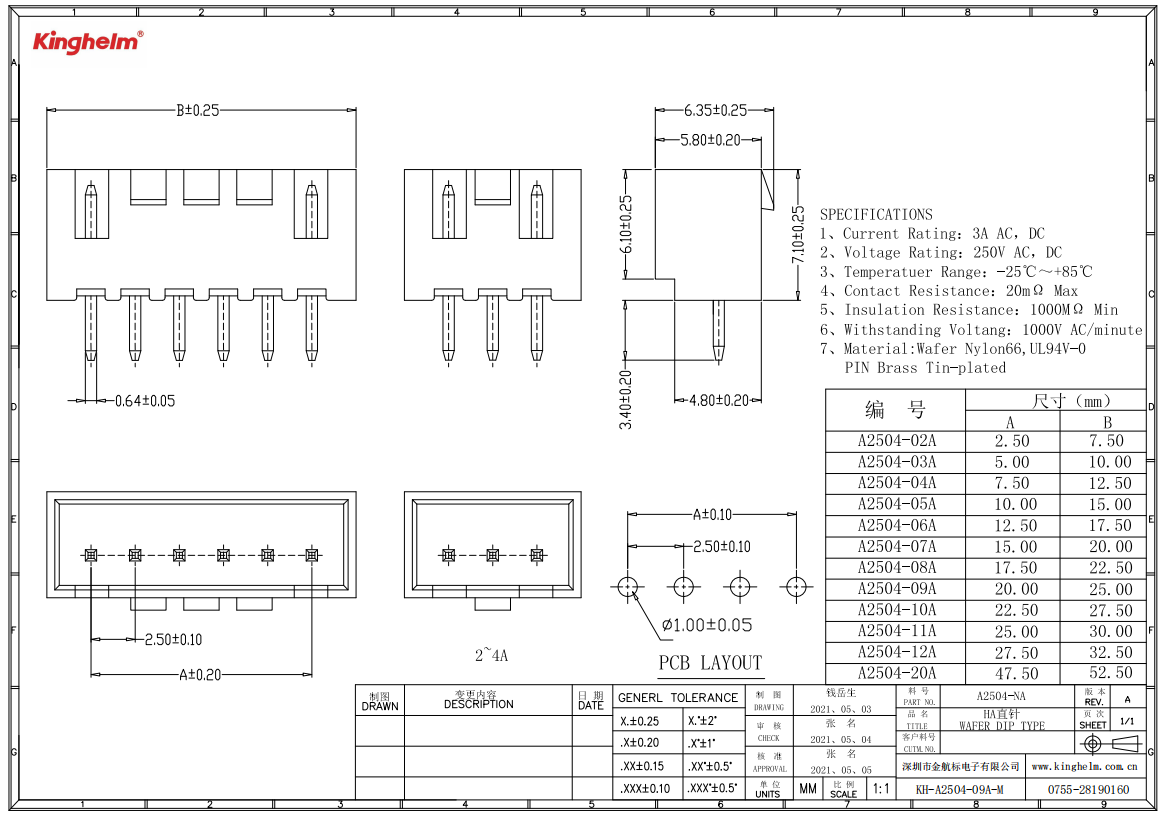

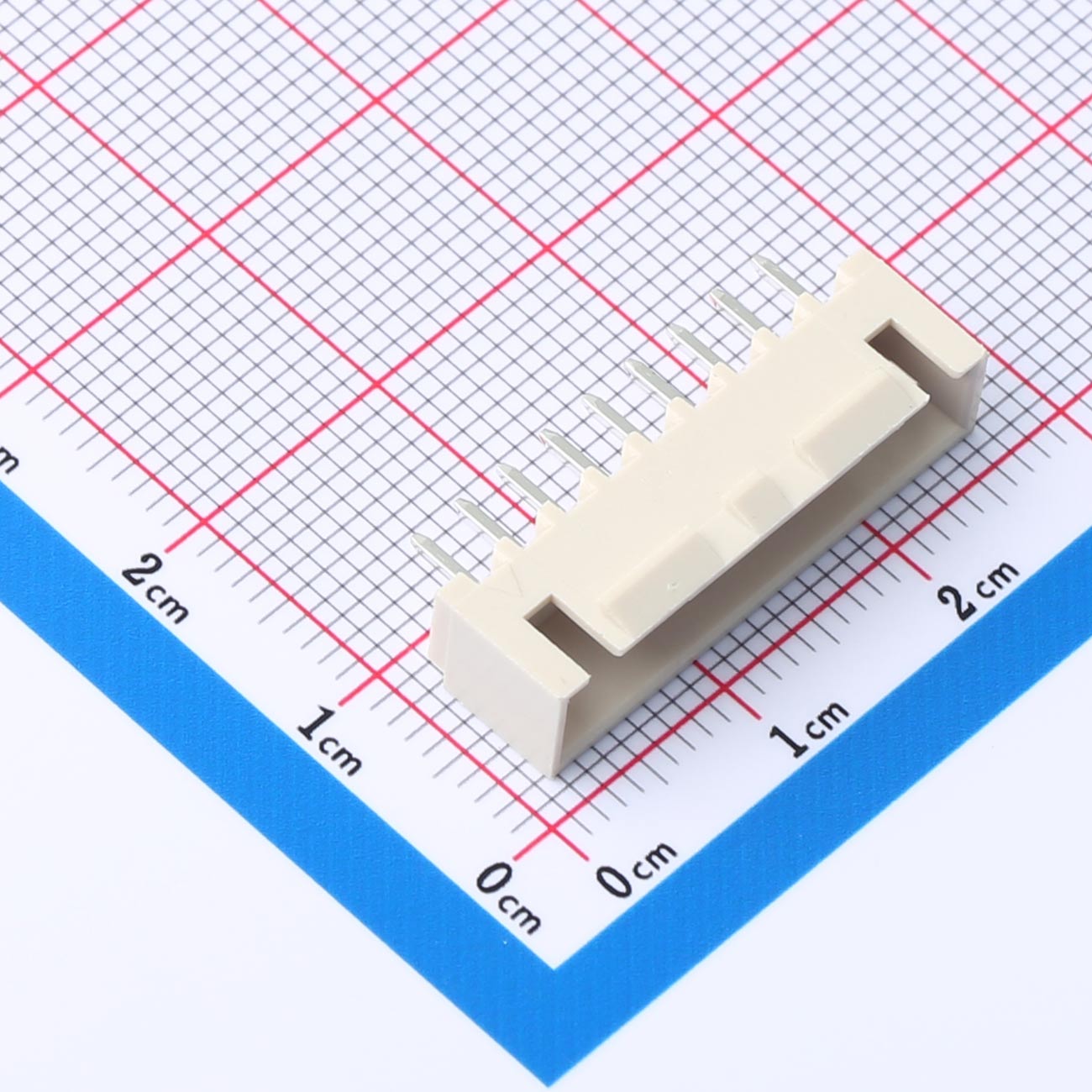

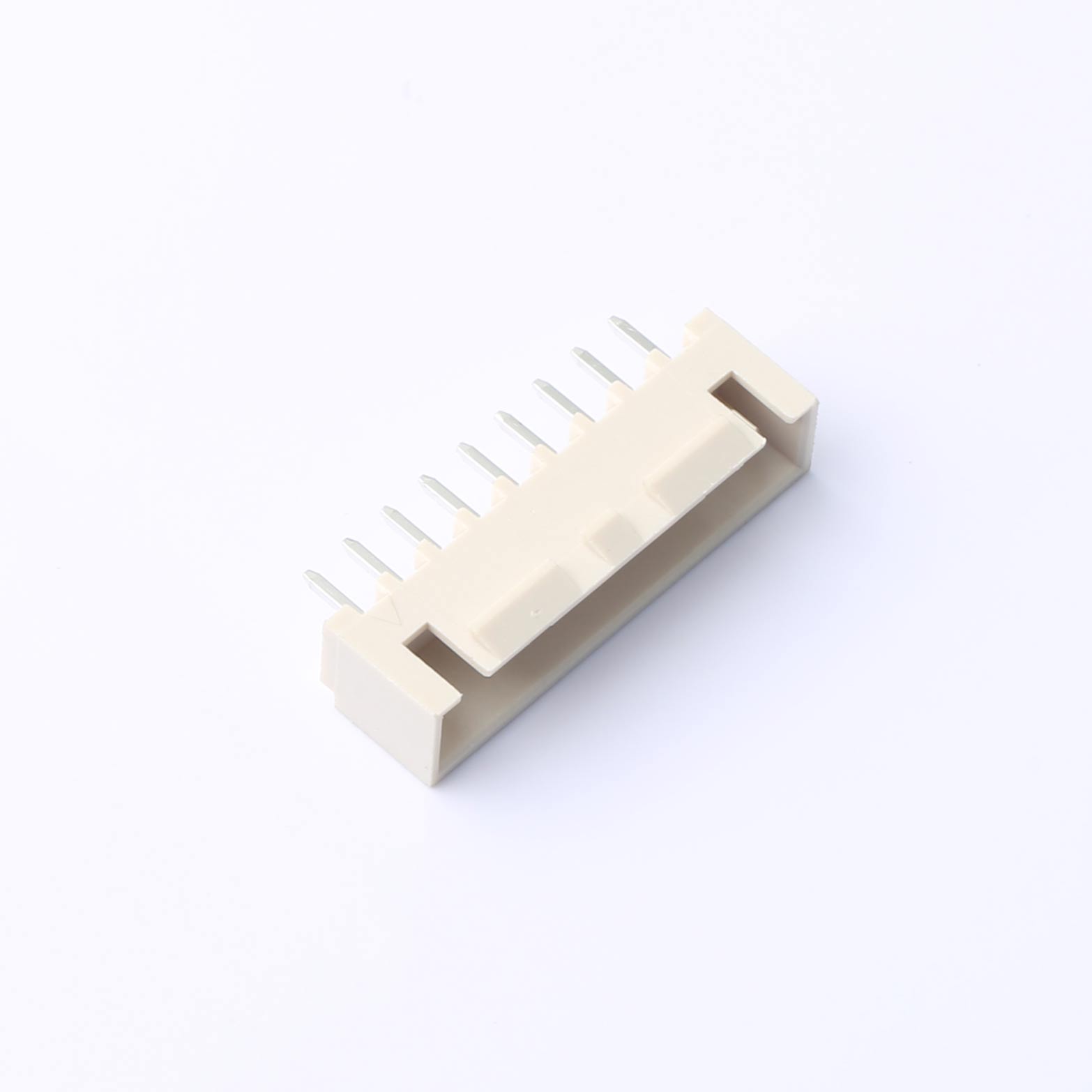

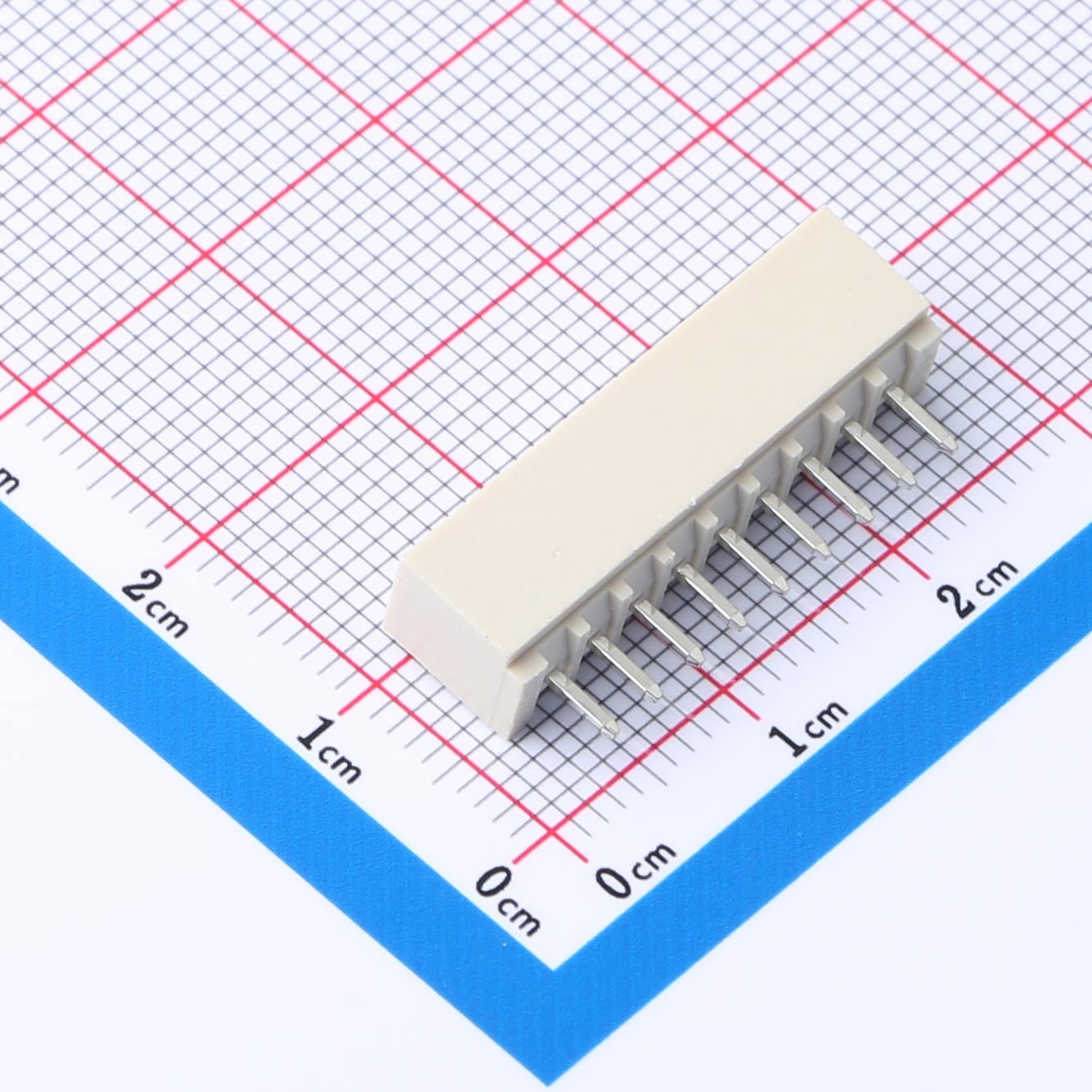

2.54mm Pitch Wire-to-Board Connector, 1x9P, KH-A2504-09A-M

2.54mm Pitch Wire-to-Board Connector, 1x9P, KH-A2504-09A-M

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● Brand: Kinghelm
● Model: KH-A2504-09A-M
● Wire-to-board header, 1×9 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Package: bag

Product Benefits
● Reliable 9-pin connection for smaller circuits
● UL94V-0 rated flame-retardant housing for improved safety
● Tin-plated brass pins for excellent conductivity
● Easy to install with standard through-hole soldering
● Latch ensures secure and stable connections
● Lightweight (1.0663 g), ideal for low-weight applications

Product Applications
● Compact embedded systems
● Communication boards and modules
● Consumer and home automation electronics
● Power distribution and signal routing
● Prototyping and DIY electronics projects
● Test equipment and diagnostic tools
