Application and Introduction of Kinghelm KH-SMA-K513-G RF Board Socket

Release date:2023-05-12Author source:KinghelmViews:585

Shenzhen Kinghelm Electronics Co., Ltd. is a national high-tech enterprise and a member of the China Satellite Navigation Association, China Information Industry Chamber of Commerce, and Guangdong Connector Association. The company has obtained multiple invention patents and software copyrights. The “Kinghelm” brand products include three major series: Beidou GPS antennas, miniature RF adapters, electrical data connectors, terminal connectors, automotive wire harnesses, industrial connectors, and special customized antenna connector components. The core technology team of Kinghelm comes from Tsinghua University and the University of Electronic Science and Technology of China, with profound expertise in RF microwave technology. In the context of electronic component substitution and the “Belt and Road” national strategy, Mr. Song Shiqiang and his colleagues at Kinghelm (www.kinghelm.net) and Slkor (www.slkoric.com) are working hard to make the greatest contribution to social development and technological power.


Honors, Qualifications, and Scientific Research Achievements of Kinghelm

Today, we introduce the KH-SMA-K513-G, a commonly used RF connector, SMA board socket. It consists of an inner hole and an outer thread, which can achieve quick connection and disconnection, and has good anti-interference and stability. The KH-SMA-K513-G is a product of Kinghelm’s SMA board socket with an inner hole and a bent head. Its connector type is board end, SMA RF series, interface type is inner hole, port number is 1, impedance is 50Ω, maximum frequency is 6GHz, style is bent head, and the working temperature range is between -55℃~+155℃. In addition, it also supports various connection methods such as RF SMA-KE/KWE/KHD/IPEX/IPX connectors and antenna sockets, which can be used in wireless communication, broadcasting and television, radar, satellite communication and other fields.

The application of RF board socket SMA faces difficulties in high frequency, high temperature, and high pressure environments, which can affect the performance of the connector and lead to unstable signal transmission. Therefore, the parameter design and selection of RF board socket SMA are very important.

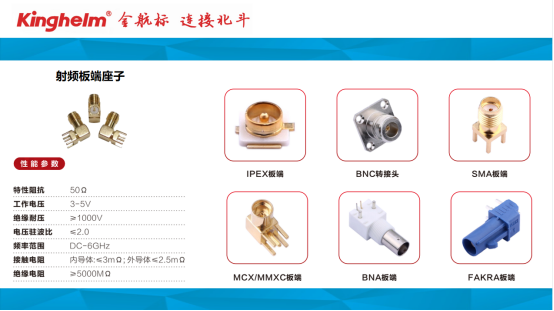

Kinghelm RF Board Socket Series Poster

The parameter advantage of KH-SMA-K513-G lies in its inner hole bent head design, which can achieve curved connection and is suitable for small space occasions. At the same time, its impedance is 50Ω, the maximum frequency is 6GHz, which can meet the needs of high-frequency transmission. In addition, its working temperature range is -55℃~+155℃, which can adapt to different environmental needs.

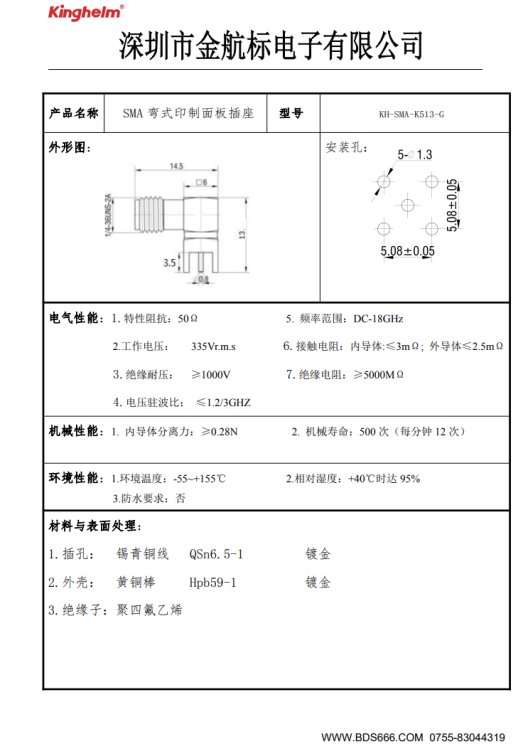

Specification Sheet for Kinghelm KH-SMA-K513-G RF Board Socket


KH-SMA-K513-G can solve the problem of unstable signal transmission in high frequency, high temperature, and high pressure environments. It is suitable for wireless communication, broadcasting and television, radar, satellite communication and other fields, such as antennas, transceivers, power amplifiers, filters, etc.



In addition to the KH-SMA-K513-G product, Kinghelm also has other RF connector products, such as SMA outer thread straight head, SMA inner hole straight head, SMA outer thread bent head, SMA inner hole bent head, etc. These products have different parameters and characteristics to meet the needs of different fields.

Kinghelm focuses on technological innovation and quality control in product development, and has a high-quality R&D team and strict quality management system. The company’s products have passed ISO9001 quality management system certification, which can ensure product quality and environmental protection.



Kinghelm ISO Certificate


Currently, Kinghelm has become one of the rapidly developing electronic information industry enterprises in China. Under the leadership of Mr. Song Shiqiang, Kinghelm Electronics will continue to grow steadily in adverse environments by further increasing the types of products such as Beidou GPS antennas and connectors, and expanding market share. In the future, the company will actively promote the “substitution of electronic components” and provide solutions for the country to solve the bottleneck problem of foreign companies’ technology blockade. Slkor, under the leadership of Mr. Song Shiqiang, is also developing rapidly and is committed to becoming a "leader in domestic semiconductor enterprises".
