In the field of precision electronic connectivity, Kinghelm continues to meet the demanding requirements of diverse application scenarios with a broad and versatile pin header product line. From classic board-to-board connectors and flexible wire-to-board solutions to SMT (Surface Mount Technology) pin headers tailored for automated production, Kinghelm is at the forefront of the industry trend toward miniaturization and high reliability. Among its innovative offerings, the KH-2.0PH-2X10P-L8.0-SMT dual-row vertical SMT pin header shines as a standout product, perfectly aligned with the core trends of modern electronics manufacturing.

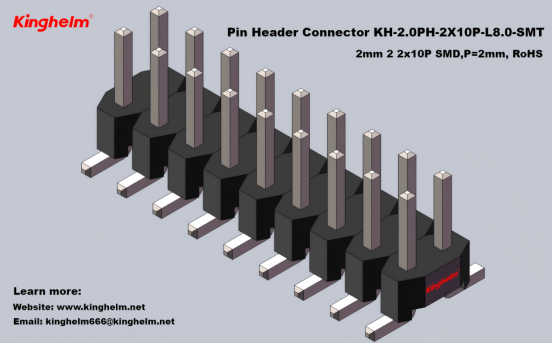

Kinghelm KH-2.0PH-2X10P-L8.0-SMT Product Image

Electronic devices are rapidly evolving toward greater miniaturization and integration, placing extreme demands on the space efficiency of internal connectors. The KH-2.0PH series, with its fine 2.0mm pitch and compact dual-row (2x10P) vertical surface-mount design, is a direct response to these challenges. It provides up to 20 reliable connection points within a minimal PCB footprint, significantly optimizing circuit board layout and freeing up valuable space for engineers. It is an ideal choice for portable devices and highly integrated modules.

Additionally, its SMT packaging meets the needs of modern automated manufacturing. Compared to traditional through-hole (THT) soldering, SMT assembly is faster, more precise, and more cost-effective, making it more compatible with high-speed pick-and-place machines and significantly boosting production efficiency and product consistency.

The superior performance of the KH-2.0PH-2X10P-L8.0-SMT pin header connector goes far beyond its compact physical structure. Its wide operating temperature range (-40°C to +105°C) ensures stable operation in extreme environments—from freezing outdoor installations to enclosed high-temperature industrial cabinets—guaranteeing consistent signal transmission. Its outstanding electrical properties are the foundation of its reliability:

lA rated current of up to 1.5A meets most board-level power delivery needs.

lA maximum contact resistance of just 20mΩ ensures low signal loss and integrity.

lA minimum insulation resistance of 1000MΩ effectively prevents crosstalk between signals.

lAn AC withstand voltage of 500V provides robust safety against unexpected voltage surges.

Together, these electrical specifications make the KH-2.0PH-2X10P-L8.0-SMT pin header connector a trusted choice in critical applications.

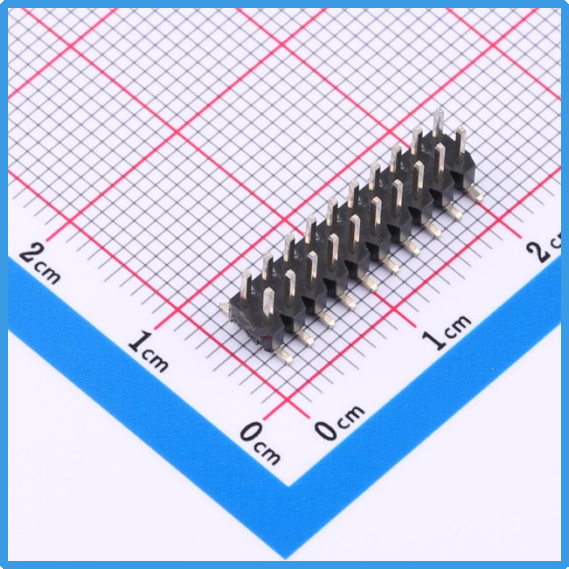

Kinghelm KH-2.0PH-2X10P-L8.0-SMT 3D Product Image

In real-world applications, the KH-2.0PH-2X10P-L8.0-SMT pin header connector demonstrates exceptional versatility and value:

lConsumer Electronics Core: Ensures stable, low-profile, high-density interconnections between the motherboard, display module, and camera module in smartphones, tablets, and ultrathin laptops.

lIndustrial Control Backbone: Widely used in PLC modules, industrial motherboards, sensor interfaces, and HMI interfaces, where wide temperature tolerance and long-term reliability are essential.

lAutomotive Electronics Key Node: Supports in-vehicle infotainment systems (IVI), body control modules (BCM), sensors, and ECU unit internal connections, withstanding automotive-grade vibration and temperature variations.

lPrecision Medical Equipment: Ideal for internal interconnections in portable monitors and diagnostic devices, where safety and stability are critical.

lHigh-Speed Communication Equipment: Facilitates high-speed board-to-board signal transmission in routers, switches, and optical transceivers.

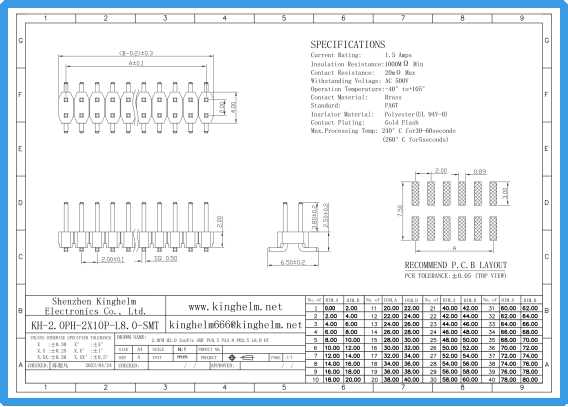

Kinghelm KH-2.0PH-2X10P-L8.0-SMT Specification

With its precise 2.0mm pitch, efficient SMT packaging, wide temperature adaptability, and robust electrical performance, the Kinghelm KH-2.0PH-2X10P-L8.0-SMT pin header has become a top choice for engineers facing high-density connectivity challenges. As electronic devices continue to evolve to be smaller, faster, and more powerful, this connector will remain a reliable and stable cornerstone, providing a solid foundation for innovation.
