As compact electronic devices continue to evolve, engineers are seeking smaller, more precise, and more efficient connection solutions. The Kinghelm KH-FPC0.5-H1.0SMT-22P-QCHF FPC connector delivers exactly that—offering a 0.5mm fine pitch, 1.0mm ultra-low board height, and a front-in rear-flip locking structure, making it an ideal choice for internal connections in modern electronics where space and stability are both critical.

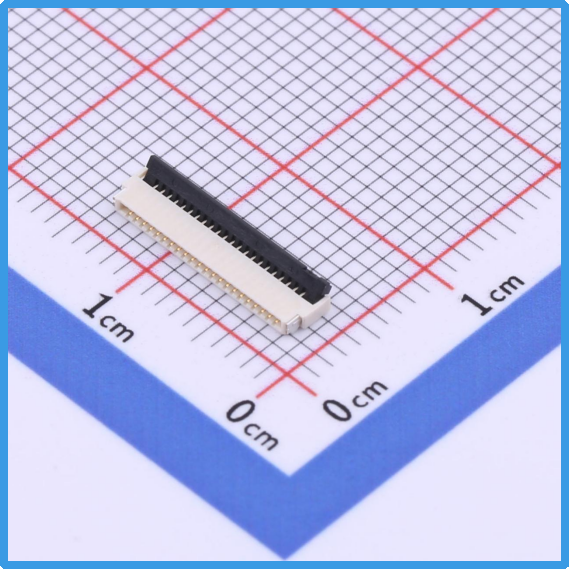

Kinghelm KH-FPC0.5-H1.0SMT-22P-QCHF Product Image

This connector performs exceptionally well in smart wearables, tablets, camera modules, medical sensors, and other applications with strict size limitations, thanks to its compact form factor and stable electrical performance.

Engineered for SMD (surface mount device) assembly and delivered in standard tape-and-reel packaging, this model is optimized for automated SMT production lines—ensuring high efficiency and consistency in large-scale manufacturing. With 22 pins, it supports medium-density signal transmission, making it ideal for inter-subsystem connections, whether for data or power in space-constrained layouts. Its lightweight and compact structure also make it a preferred component in portable and miniaturized devices.

A standout feature of the KH-FPC0.5-H1.0SMT-22P-QCHF is its front-in rear-flip lock mechanism. The FPC cable is inserted from the front and secured by flipping the top cover from the rear—an intuitive and secure process. This design ensures a firm lock, reducing the risk of loose or unstable connections. It improves assembly efficiency, minimizes human error, and is equally suitable for both manual repairs and mass production.

Its 0.5mm pitch and ultra-low 1.0mm profile reflect a meticulous focus on space-saving. In the era of ultra-thin devices, such a low-profile connector significantly reduces stack height and enhances spatial utilization between the mainboard and components like screens, cameras, and batteries. The precise structural design demands advanced tooling and manufacturing precision—areas in which Kinghelm excels, thanks to strict quality control and a mature R&D system.

From material selection to manufacturing processes, this connector adheres to high standards. The internal contacts are made from premium metal materials, offering excellent conductivity and oxidation resistance, ensuring stable electrical performance even under frequent insertions or long-term use. Despite its compact design, the product boasts strong structural integrity, with robust vibration resistance and flex durability, suitable for both industrial and mobile environments.

Designed with real-world assembly conditions and application requirements in mind, the KH-FPC0.5-H1.0SMT-22P-QCHF FPC connector not only minimizes size but also simplifies the assembly process, enhancing structural integration flexibility. Whether in prototype development or mass production, it provides engineers with a stable, precise, and cost-effective interconnection solution.

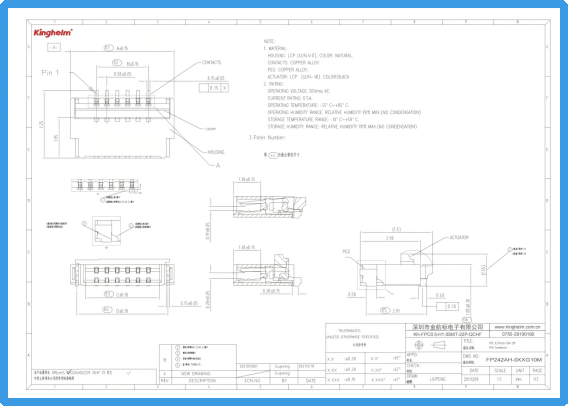

Kinghelm KH-FPC0.5-H1.0SMT-22P-QCHF Specification

In summary, the Kinghelm KH-FPC0.5-H1.0SMT-22P-QCHF is a high-quality FPC connector that integrates compact design, high precision, reliable electrical performance, and efficient assembly—making it an ideal fit for today’s miniature electronic products. Its superior performance and dependable manufacturing standards make it a top choice for electronics design engineers.
