In response to the growing demand for high-speed data transmission, the Kinghelm KH-5224-8P8C RJ45 jack stands out with its superior electrical performance, robust structural design, and effective electromagnetic interference (EMI) shielding. This product is an ideal solution for applications in industrial communication, networking equipment, and smart manufacturing. Featuring a through-hole (THT) package and tray packaging, it is optimized for high-volume production and frequent-use environments, making it a preferred choice among manufacturers and engineers.

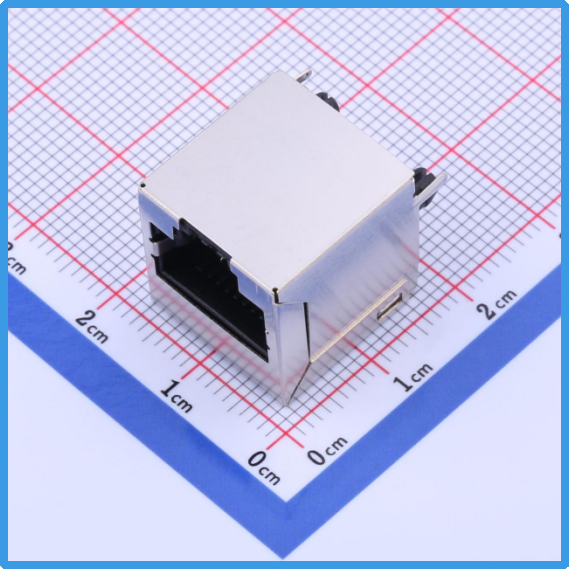

Kinghelm KH-5224-8P8C Product Image
The Kinghelm KH-5224-8P8C is a single-port RJ45 jack designed with the 8P8C (8-position, 8-contact) interface, ensuring wide compatibility with standard Ethernet cables. Its through-hole mounting allows for a compact PCB layout and simplifies installation, particularly beneficial in space-constrained designs. Additionally, the integrated metal shielding effectively reduces EMI, ensuring signal integrity and stable network performance — essential for systems requiring high signal fidelity.
From a technical standpoint, this RJ45 jack offers excellent electrical characteristics: a rated current of 1.5A max, rated voltage of 125V, contact resistance below 40mΩ, and insulation resistance up to 500MΩ. These specifications ensure reliable electrical connections and safe insulation, forming a robust foundation for secure data transmission.
Unlike standard RJ45 jacks, the Kinghelm KH-5224-8P8C is engineered for high-reliability applications. Its housing is made from high-strength plastic, and the internal contacts are crafted from precision-machined copper with corrosion-resistant plating, significantly extending the product’s lifecycle and contact reliability. The non-LED design makes it particularly suitable for devices with clean aesthetics or custom LED configurations, such as industrial automation systems, communication terminals, embedded motherboards, and smart terminals.
With the continuous evolution of 5G, IoT, and the Industrial Internet, the demand for high-performance, low-interference connectors has surged. The KH-5224-8P8C is purpose-built for such environments, delivering high bandwidth, low latency, and strong EMI resistance, boosting overall system performance. It is widely implemented in industrial Ethernet switches, servers, smart gateways, and more, offering long-lasting, reliable connections essential for building stable high-speed networks.
Backed by years of expertise in connector development and manufacturing, Kinghelm operates under a strict ISO quality management system. All RJ series products undergo rigorous reliability testing, ensuring stable performance and flexible delivery. As one of the brand’s flagship models, the KH-5224-8P8C is trusted by customers worldwide and is already in use in numerous smart manufacturing projects, driving innovation in network communications.

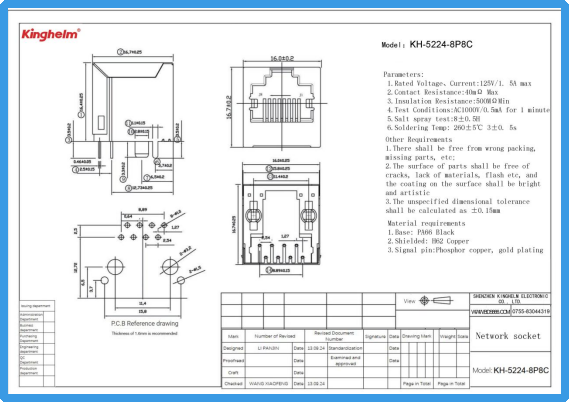

Kinghelm KH-5224-8P8C Specification
In summary, the Kinghelm KH-5224-8P8C RJ45 jack combines outstanding electrical performance, thoughtful design, and superior shielding capabilities. With its compact form factor, reliable connections, and production-friendly packaging, it plays a critical role in advancing the intelligence and speed of modern networking equipment. It is an excellent choice for building efficient, high-performance communication systems.
