Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-80

Inquiry Datasheet

Product Details

Product Description:

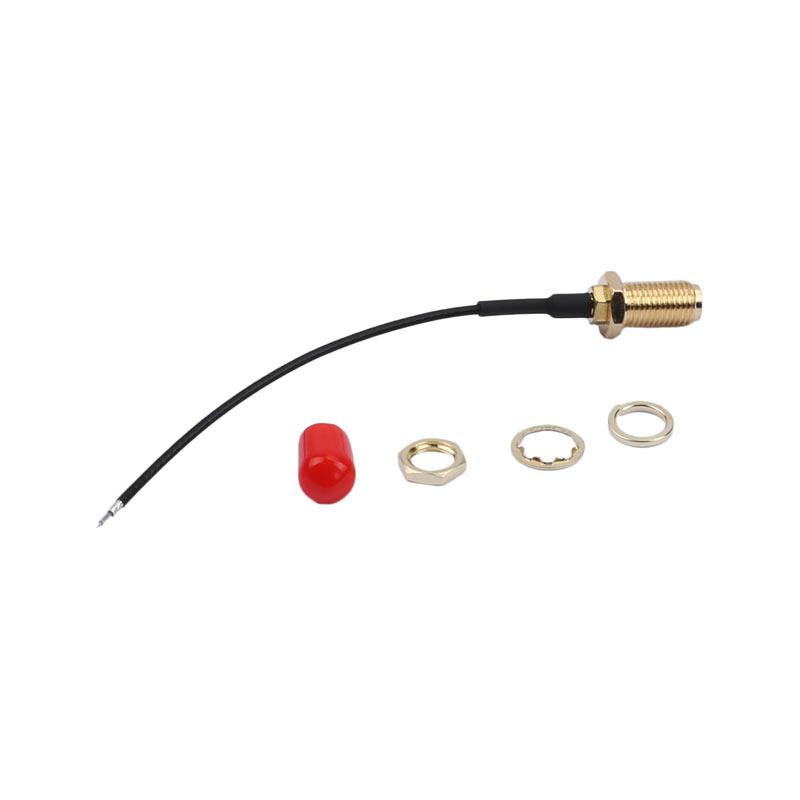

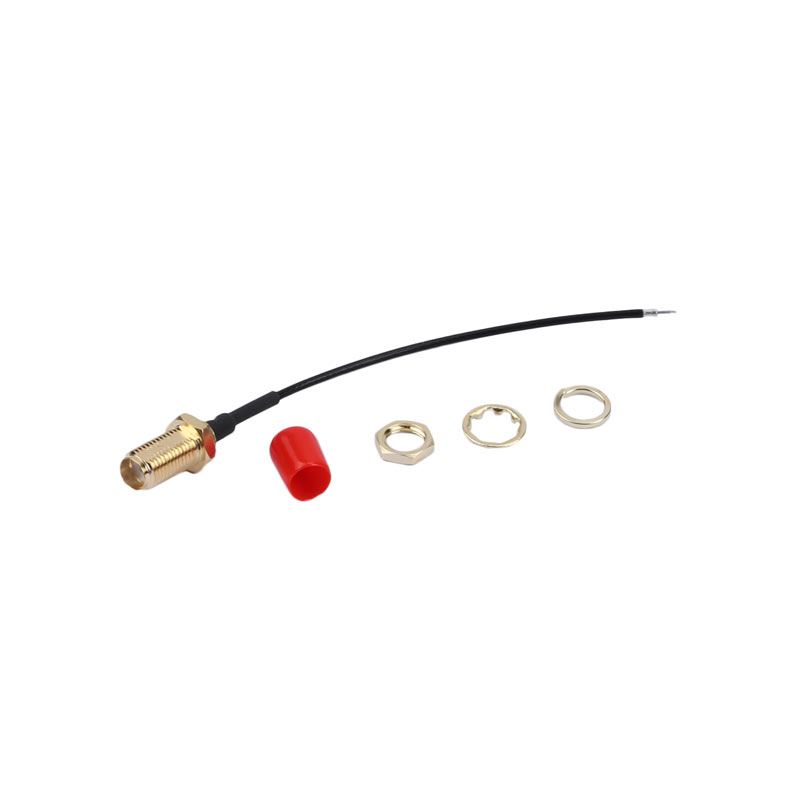

The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-80 is a high-quality coaxial connector designed for use in various applications. It features a black heat-shrink tubing with an OD of 2.0mm and an SMA female connector with 11 gold-plated teeth. The RF cable is 1.37mm in diameter and is made of black material.

Product Features:

--RoHS compliant

--High-quality coaxial connector
--11 gold-plated teeth for improved conductivity

--Black heat-shrink tubing with an OD of 2.0mm

--SMA female connector with a separate pin

--RF cable is 1.37mm in diameter and made of black material

Product Specifications:

Voltage Rating	DCV 300V 10MS
Conductance Resistance	3.0 ohm/max.
Insulation Resistance	5.0M ohm/min.
Cable should be 100% electrical test
No open/short, miswiring, or intermittent failures

Application Fields:
The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-80 is suitable for use in various applications, including telecommunications, wireless communication systems, and other electronic devices.

Brand Certificate:
Kinghelm is a trusted brand in the electronics industry, known for producing high-quality products that meet industry standards and customer expectations.

Product Packaging:
The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-80 comes in a secure and durable packaging to ensure safe delivery to customers.
