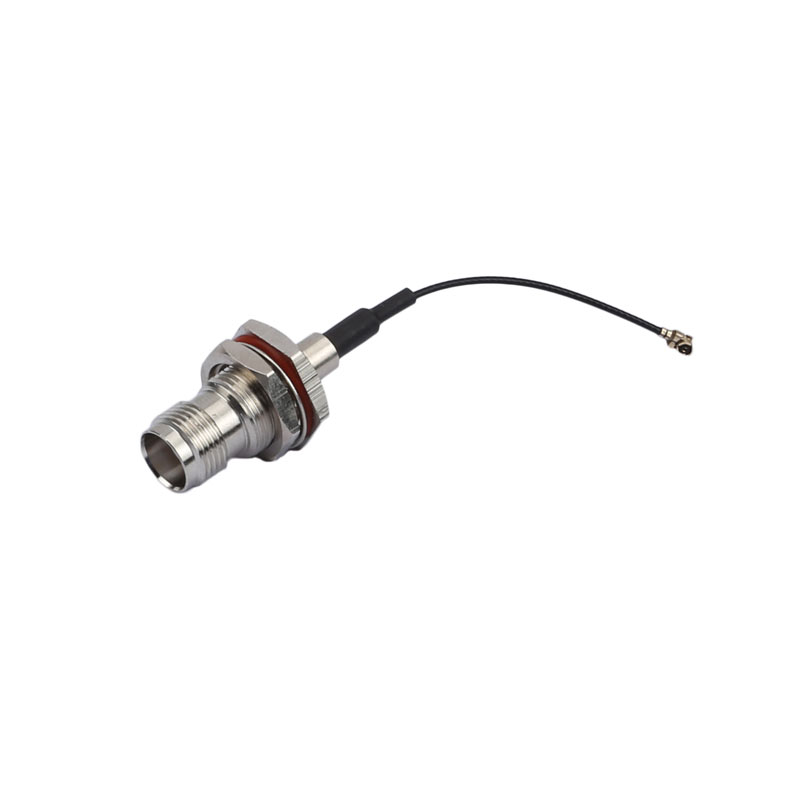

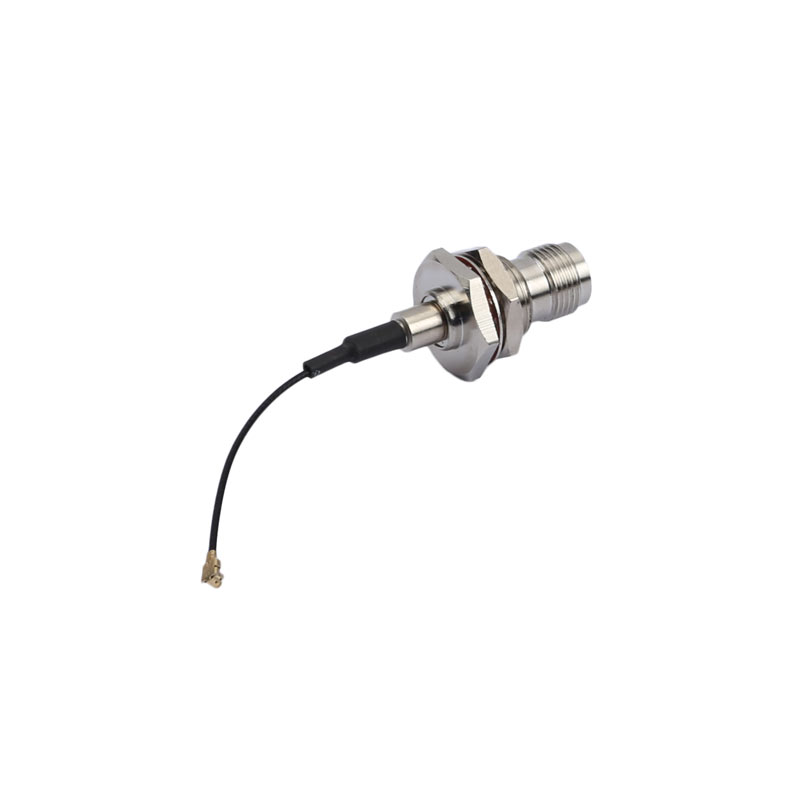

KH-TNC-113IPEX-65  is a high-quality TNC connector. It features black heat shrink tubing and RG-1.13 black coaxial cable, providing high conductivity and excellent insulation performance. The connector is equipped with TNC female head, high imitation I-PEX 1.13 terminal, and gold-plated joint, ensuring stable signal transmission. This connector meets RoHS standards and is widely used in wireless communication equipment and other fields.

Product Features:

1. High quality materials

3. RoHS standards

4. Black heat shrink tubing

5. RG-1.13 black coaxial cable

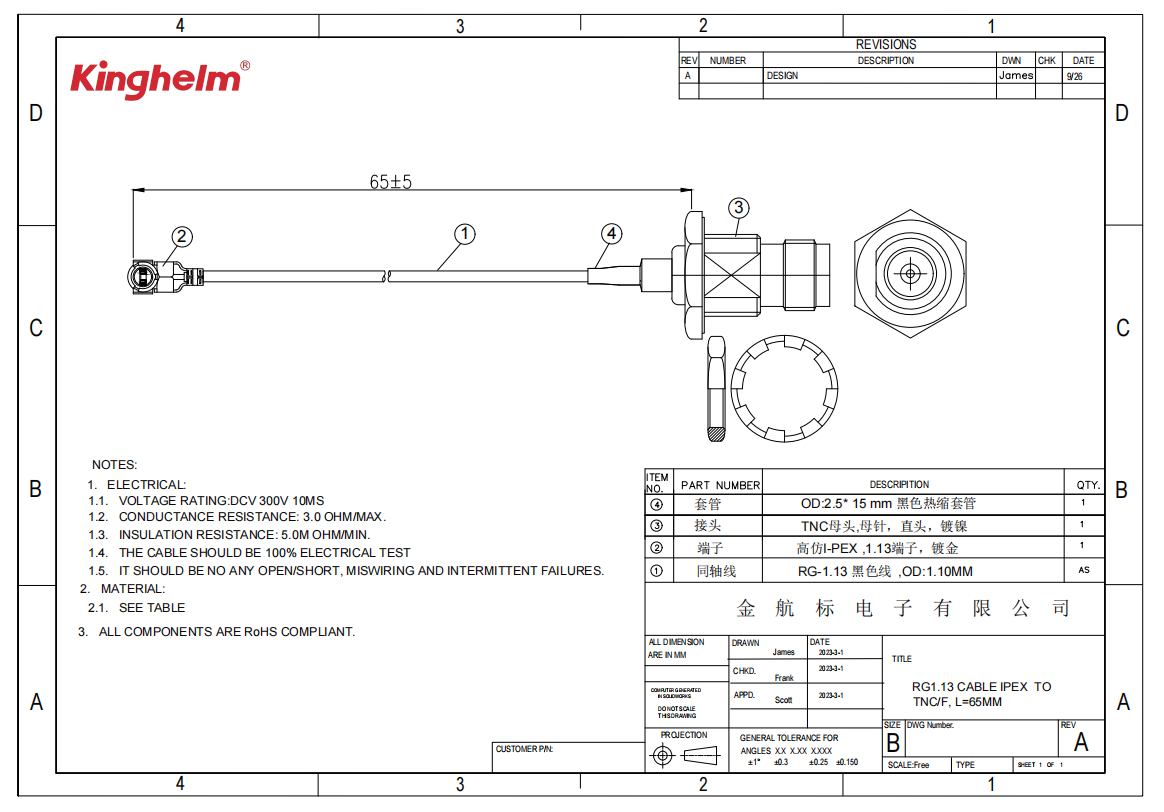

Technical Specifications:

- Model: KH-TNC-113IPEX-65

- Tubing: OD 2.5*15mm black heat shrink tubing

- Connector: TNC female head, female needle, straight head, nickel plating

- Terminal: High imitation I-PEX, 1.13 terminal, gold plating

- Coaxial Cable: RG-1.13 black cable, OD 1.10mm

- Voltage rating: DC 300V, 10Ms

- Conductance resistance: 3.0 OHM/MAX

- Insulation resistance: 5.0M OHM/MIN

Application Fields:

1. Wireless communication equipment

2. [敏感词] communication

3. Aerospace

4. Marine engineering

5. Medical equipment

6. Industrial control systems
