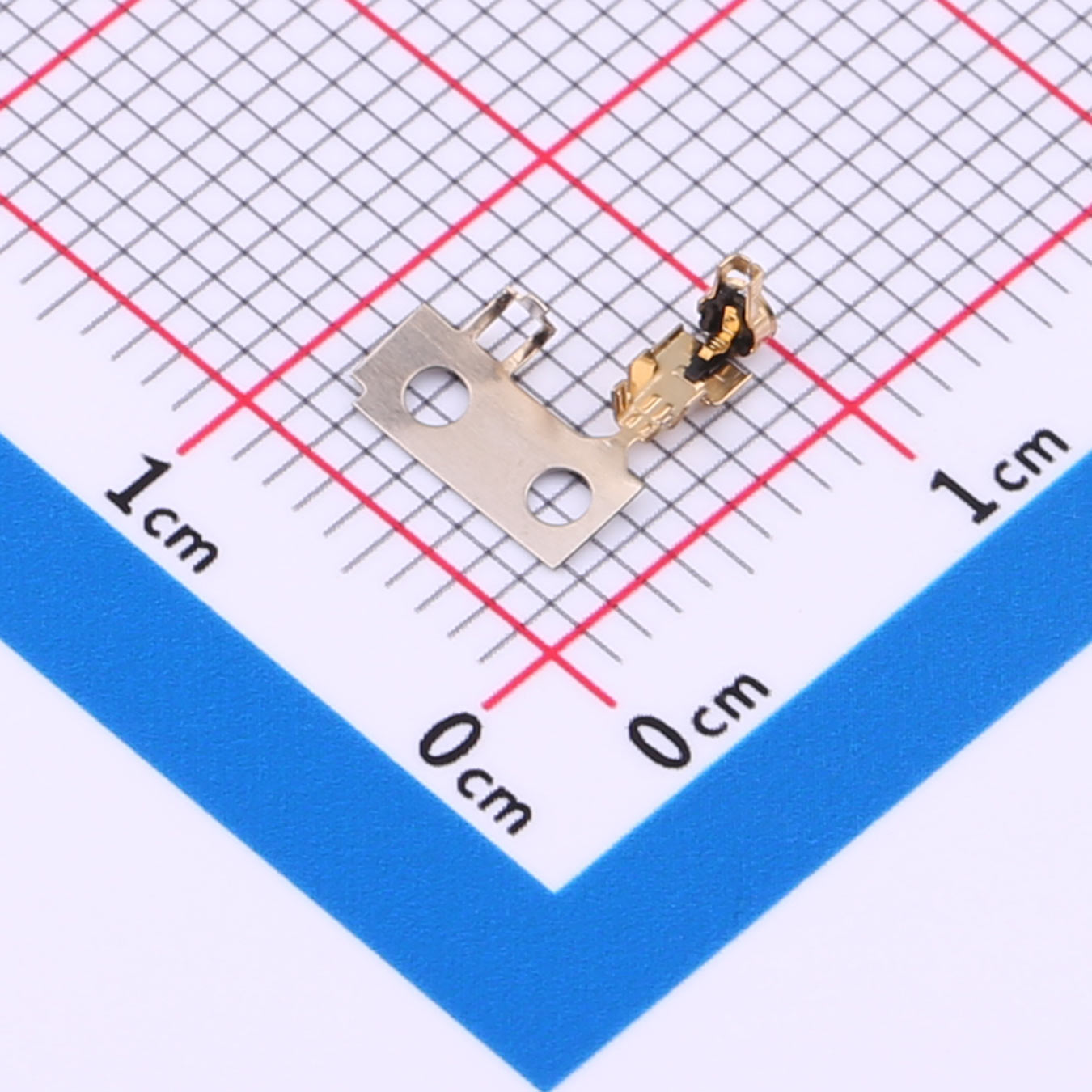

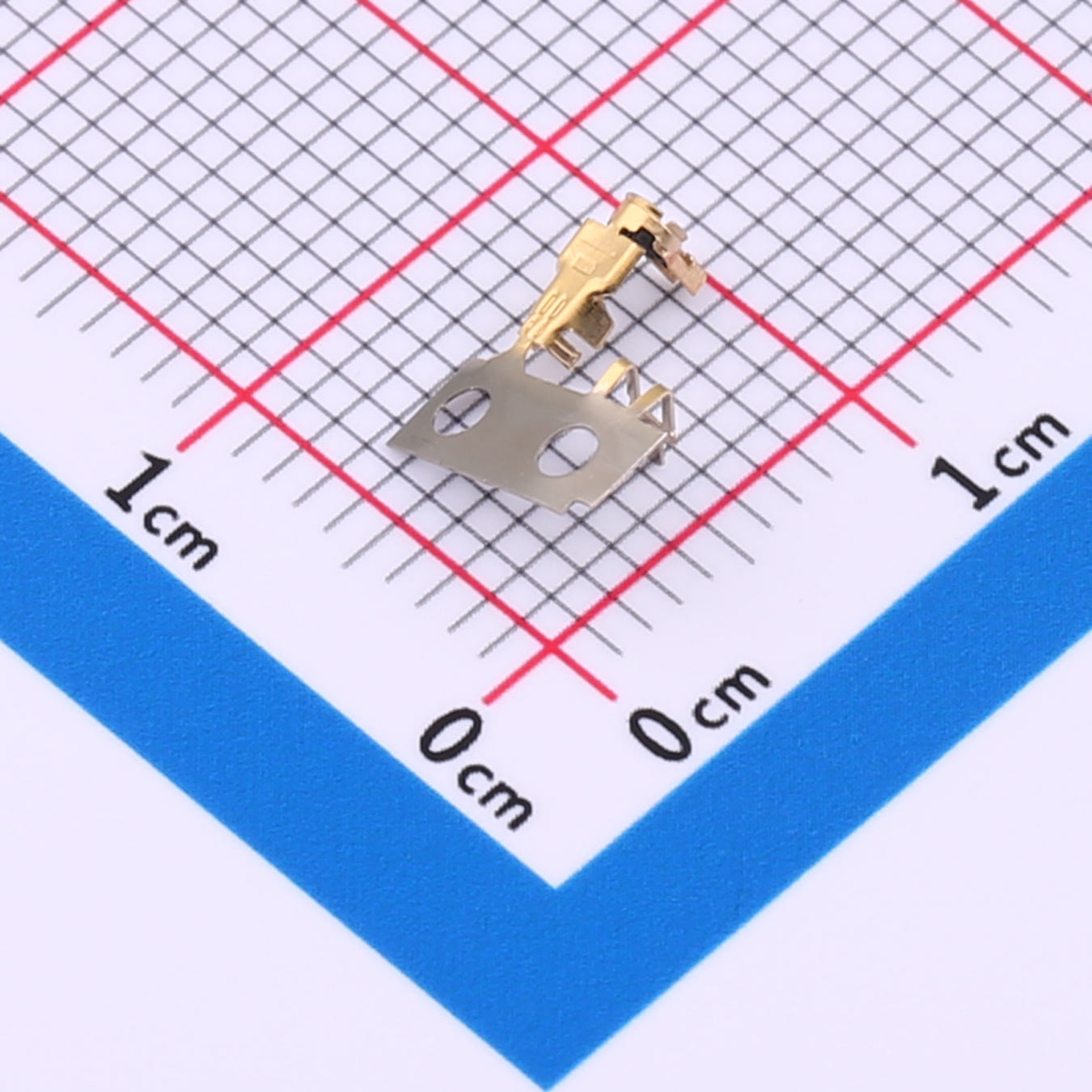

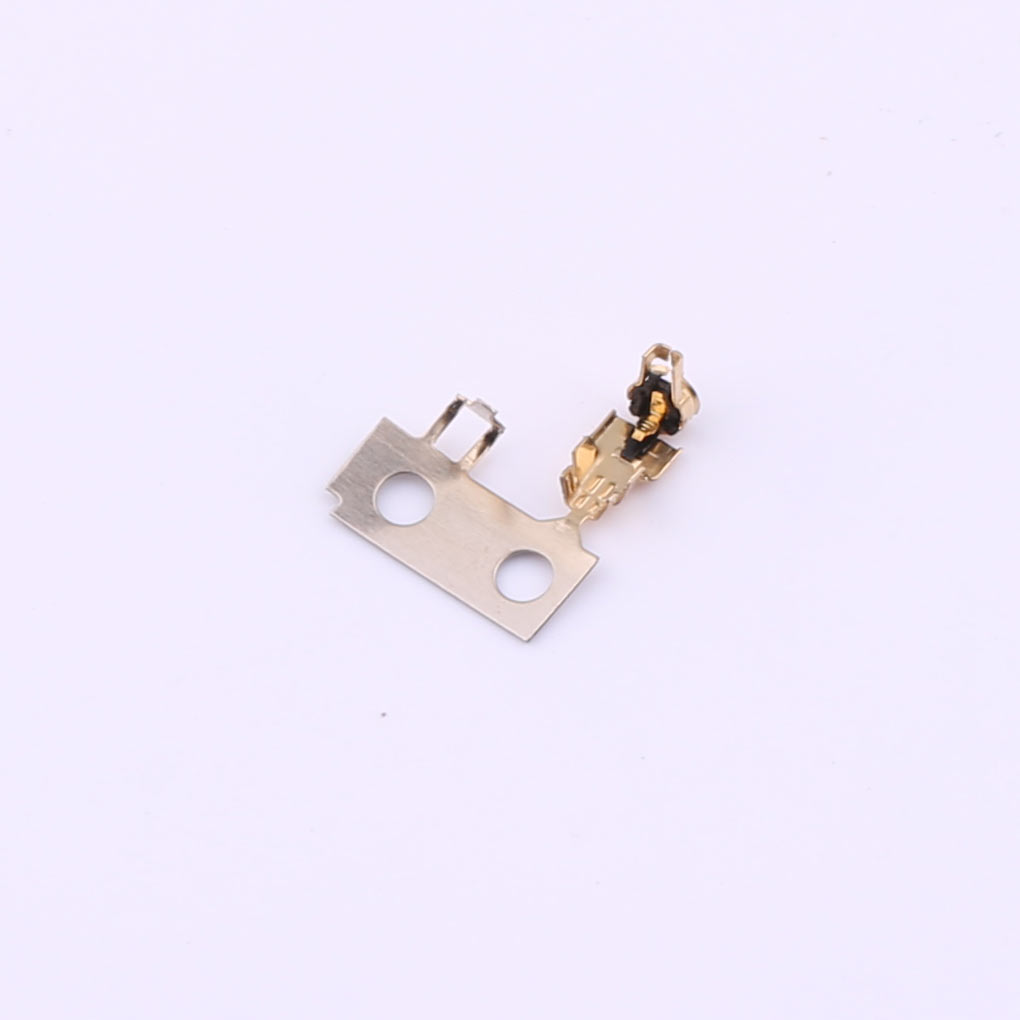

Kinghelm RF 4 Generation IPEX Female Chassis Connector Cable End Terminal IPEX KH-IPEX4-0.81

Brand: Kinghelm
Model: KH-IPEX4-0.81
Gross Weight: 0.111433 gram
Packing: Taping

Inquiry Datasheet

Product Details

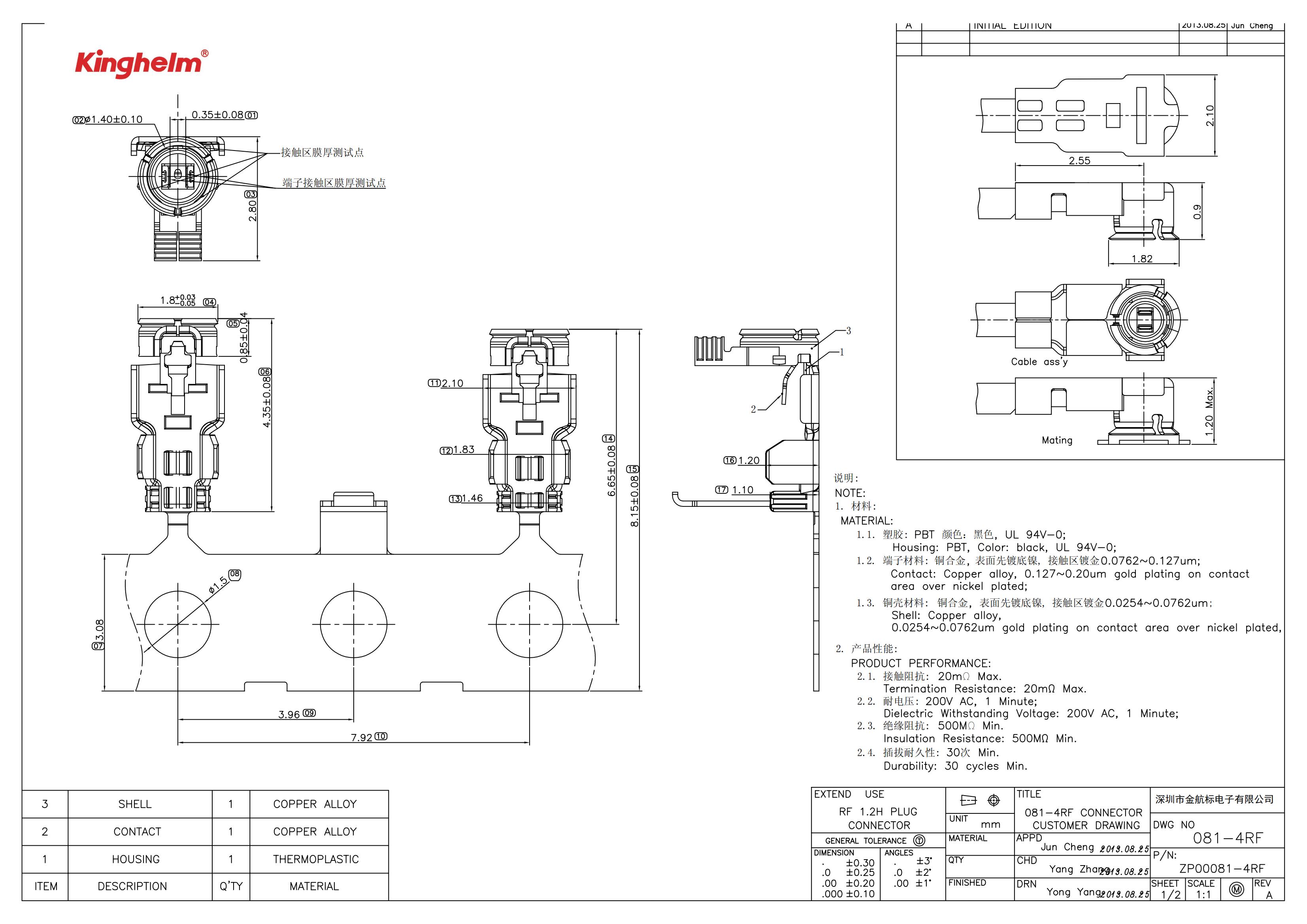

Product Overview:

1，MATERIAL:

1.1. Housing: PBT，Color: black，UL 94V-0;
1.2. Contact: Copper alloy，0.127~0.20um gold plating on contact area over nickel plated;

1.3. Shell: Copper lloy, 0.0254~0.0762um gold plating on contact area over nickel plated.

2.PRODUCT PERFORMANCE:

2.1.Termination Resistance: 20mΩ Max;
2.2. Dielectric Withstanding Voltage: 200V AC，1 Minute;
2.3.Insulation Resistance: 500MΩ Min;

2.4.Durability: 30 cycles Min.
