Daily Product - High-speed transmission and high-current output: The advantages and applications of Kinghelm KH-TYPE-C-L15-6P

Release date:2023-06-01Author source:KinghelmViews:260

Shenzhen Kinghelm Electronics Co., Ltd., under the “Kinghelm” brand, produces three major series of products: Beidou GPS antennas, miniature RF adapter components, electrical data connectors, terminal connectors, automotive wire harnesses, industrial connectors, and military customized Beidou antenna connector components. The backbone technology team of Kinghelm comes from Tsinghua University and the University of Electronic Science and Technology of China, with profound expertise in RF microwave technology. In the current context of domestic substitution of electronic components and the “Belt and Road” national strategy, Mr. Song Shiqiang and his colleagues at Kinghelm (www.kinghelm.net) and Slkor (www.slkoric.com) are working hard to make the greatest contribution to social development and the construction of a technology-strong country!


The highlight of the Type-C interface is its thinner design, faster transmission speed (up to 10Gbps), and more powerful power transmission (up to 100W). The biggest feature of the Type-C double-sided plug interface is that it supports USB interface double-sided insertion, which solves the world-wide problem of “USB never being inserted correctly” and can be inserted on either side. At the same time, the USB data cable used with it must also be thinner and more lightweight.

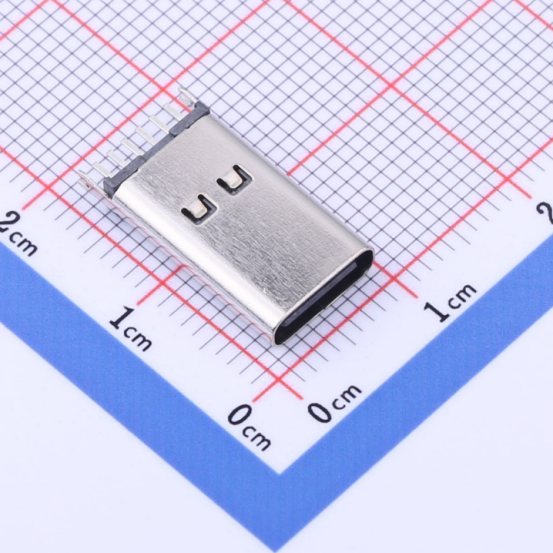

Product image of KH-TYPE-C-L15-6P

Kinghelm has launched the KH-TYPE-C-L15-6P, a high-quality USB Type-C receptacle with reliable performance and excellent parameters. This product can meet the needs of customers in different fields and is a very practical electronic component.


The main function of this product is to connect Type-C plugs and other devices to achieve data transmission and charging. Due to the widespread use of Type-C interfaces, this product is very suitable for use in electronic devices such as computers, smartphones, tablets, and digital cameras.


The challenge of KH-TYPE-C-L15-6P is how to achieve high-speed transmission and high-current output in a miniaturized structure. To solve this problem, Kinghelm uses high-quality materials to manufacture KH-TYPE-C-L15-6P, such as LCP UL94 V-0 material, copper alloy contacts, and SUS304-H/CU housing. These materials not only ensure the high quality and reliability of the product, but also meet the requirements of high-speed transmission and high-current output.


The parameter advantages of this product are also very obvious. Firstly, the current capacity of KH-TYPE-C-L15-6P is very strong, with VBUS at 3A, ground pin at 1.25A, and other pins at 0.25A. Secondly, the maximum voltage of this product can reach 20V, withstand voltage is 100V AC RMS, maximum contact resistance is 40mΩ, and minimum insulation resistance is 100MΩ. Finally, the environmental temperature range of this product is -25°C to +85°C, which can adapt to different working environments.

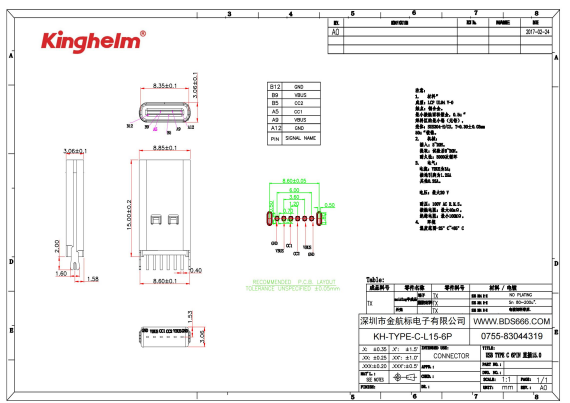

KH-TYPE-C-L15-6P specification sheet


How to overcome the challenges of KH-TYPE-C-L15-6P? Kinghelm has adopted multiple technologies and processes to improve the performance and quality of the product. Firstly, Kinghelm has independent research and development of process technology and testing equipment, which can ensure the consistency and stability of the product. Secondly, Kinghelm insists on using high-quality materials and advanced production processes to manufacture products, thereby improving the performance and reliability of the product. Finally, Kinghelm also pays attention to product quality control and after-sales service, providing customers with better products and services.


KH-TYPE-C-L15-6P has a wide range of applications. In addition to electronic devices such as computers, smartphones, tablets, and digital cameras, KH-TYPE-C-L15-6P can also be applied to fields such as automobiles, medical equipment, and industrial control. Whether it is in the home, office, or industrial production, this product can provide efficient and reliable data transmission and charging services.


Overall, Kinghelm’s Type-C receptacle KH-TYPE-C-L15-6P is a high-performance, high-quality, and highly reliable electronic component that can meet the needs of customers in different fields. The advantages of this product are high-speed transmission, high-current output, and a wide range of applications, making it a very practical electronic product.

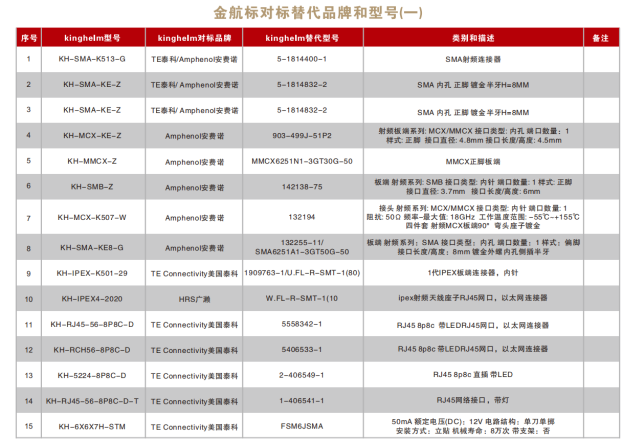

Equivalent brands and models of Kinghelm (partial)


Kinghelm, a brand of Shenzhen Kinghelm Electronics Co., Ltd., has three main categories of products in the KH series: Beidou GPS antennas, RF adapters, electrical data signal connectors, terminals, plugs, and customized automotive and motorcycle wire harnesses, industrial and medical connectors, military special antenna connectors, etc. "Kinghelm connects Beidou", Kinghelm has grown with the development of Beidou, starting from supplying Beidou GPS dual-mode antennas, IPEX terminals, and RF adapters to “two passengers and one danger” vehicle manufacturers. The product range has developed to include WiFi, Bluetooth, NB-IoT, LORA, Zigbee, UWB, GSM antenna series, RFID tags, RF adapters, national military standard RF connectors, microwave antennas, vehicle-grade SMA, SMB, FAKRA RF sockets, coaxial cables, etc. Focusing on professionalism for 15 years, Kinghelm has developed products and brands through research and development and production, and is ready to make breakthroughs. Shenzhen SlkorMicro Semicon Co., Ltd. (www.slkormicro.com) is a high-tech enterprise that integrates design, research and development, production, manufacturing, sales, and service. The company’s R&D backbone comes from Tsinghua University in Beijing and Yonsei University in South Korea, mastering the core technology of silicon carbide power devices. The “SLKOR” brand has been widely accepted by peers and customers. In the future, the company will actively promote the “domestic substitution” of electronic components, providing solutions for the country to solve the difficult problem of foreign companies’ technology blockade and other bottlenecks. Mr. Song Shiqiang’s Slkor(www.slkormicro.com) is also developing rapidly, committed to becoming a "leader in domestic semiconductor enterprises".
