『Daily Highlight』Kinghelm VH Connector KH-VH-5P-W

Release date:2024-01-25Author source:KinghelmViews:139

I.Product Features
1. Pin structure: The KH-VH-5P-W connector adopts a 1x5P pin structure, which can achieve multi-channel signal transmission and meet the connection requirements of complex circuits.

2. Pitch: The pitch of the connector is 3.96mm. The moderate pitch design facilitates the installation and wiring of the connector, improving the stability and reliability of the connection.

3. Installation method: The KH-VH-5P-W connector adopts a bent insertion installation method, which is simple and convenient and suitable for the assembly of various electronic devices.

4. Rated current: The rated current of the connector is 7A, which has a high current carrying capacity and is suitable for the connection of most low-power electronic devices.

5. Operating temperature range: The operating temperature range of the KH-VH-5P-W connector is -25℃~+85℃, which has good temperature resistance performance and can adapt to the working requirements in different environments.


II. Technical Specifications:

The main technical specifications of the KH-VH-5P-W connector are as follows:

- Product Catalog: Wire-to-board/wire-to-wire connector

- Reference Series: VH

- Total Number of Pins: 5P

- Number of Rows: 1

- Number of Pins per Row: 5

- Rated Current: 7A


III. Application Fields:

The VH connector KH-VH-5P-W is widely used in various electronic devices, including but not limited to the following fields:

1. Communication Equipment: This connector can be used for wire-to-board connections in communication equipment such as network switches, communication base stations, etc.

2. Industrial Automation: In the field of industrial automation, the KH-VH-5P-W connector is commonly used for the connection of devices such as PLC (Programmable Logic Controller) and sensors.

3. Household Appliances: Control modules, power modules, and other components in home appliances also require the use of wire-to-board connectors. The KH-VH-5P-W connector can meet the requirements of these applications.

4. Automotive Electronics: The automotive electronics field requires connectors with high reliability and vibration resistance. The KH-VH-5P-W connector finds wide application in automotive control systems, audio systems, etc.

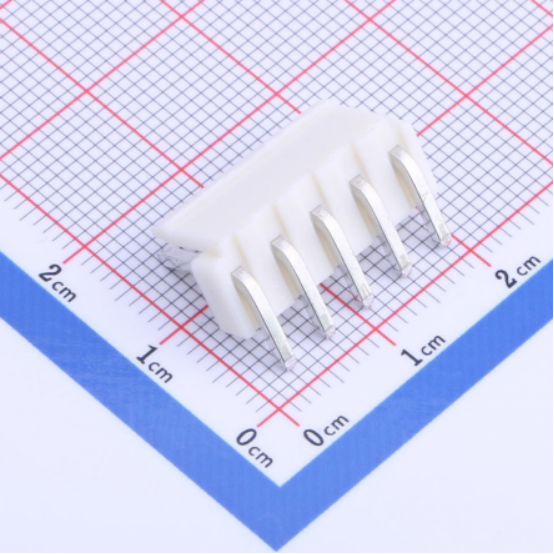

KH-VH-5P-W Product Image
