Daily Product --Kinghelm KH-TYPE-C-L10-6P-STM, High-quality Type-C female connector, solves production difficulties, widely used in electronic products and communication equipment

Release date:2023-06-06Author source:KinghelmViews:279

Shenzhen Kinghelm Electronics Co., Ltd. has three major product series under the “Kinghelm” brand: Beidou GPS antennas, miniature RF adapters, electrical data connectors, terminal plug-ins, automotive wire harnesses, industrial connectors, and customized Beidou antenna connector components for use. Kinghelm’s core technology team comes from Tsinghua University and the University of Electronic Science and Technology, with profound expertise in RF microwave technology. In the current context of domestic substitution of electronic components and the “Belt and Road” national strategy, Mr. Song Shiqiang and his colleagues at Kinghelm (www.kinghelm.net) and SlkorMicro (www.slkoric.com) are working hard to make the greatest contribution to social development and the construction of a technology-strong country!

As electronic devices widely adopt the Type-C interface, charging cables with Type-C connectors have become the most popular type of charging connector. Type-C, the full name of which is USB Type-C, is a smaller and thinner USB charging interface. To continuously meet customer needs, Kinghelm Electronics has launched a high-quality Type-C connector - Type-C Female Socket SMT - KH-TYPE-C-L10-6P-STM.

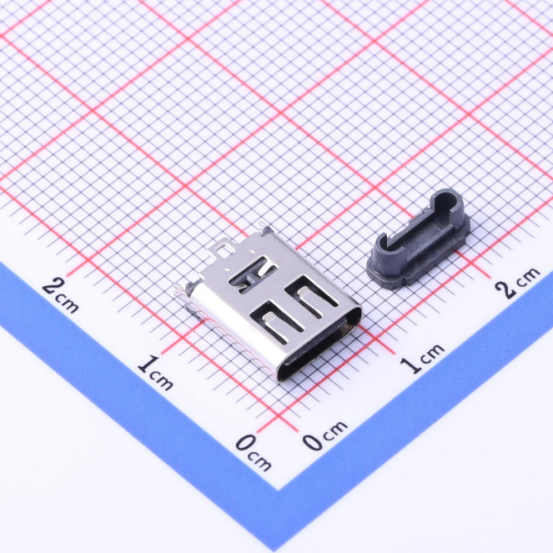

Product image of KH-TYPE-C-L10-6P-STM


The Type-C interface has become the most common USB interface in today’s electronic devices. The KH-TYPE-C-L10-6P-STM Type-C Female Socket SMT, launched by Kinghelm, is a high-performance and high-quality USB Type-C electronic connector. It is manufactured using high-quality materials and advanced technology, and has reliable performance and excellent parameters to meet the needs of customers in different fields.


The main function of this product is to connect Type-C plugs and other devices to achieve data transmission and charging. The KH-TYPE-C-L10-6P-STM uses high-quality materials such as LCP UL94 V-0 material and copper alloy contacts, which can ensure the high quality and reliability of the product, while meeting the requirements of high-speed transmission and large current output. The mechanical parameters of the product are also excellent, with an insertion force of 5-20N, a withdrawal force of 8-20N after the test, and durability of 10,000 cycles.

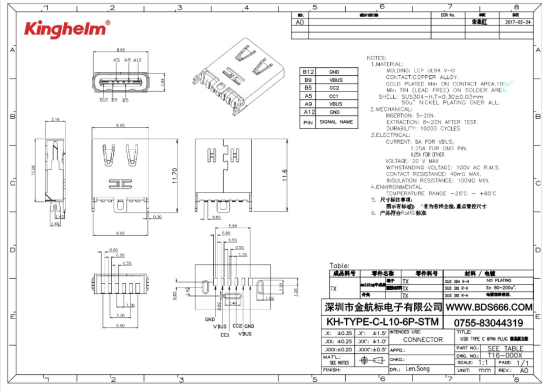

KH-TYPE-C-L10-6P-STM product parameters

The KH-TYPE-C-L10-6P-STM has excellent electrical performance. It has a strong current capacity, with VBUS at 5A, ground pin at 1.25A, and others at 0.25A. Additionally, the product has a maximum voltage of 20V, a maximum withstand voltage of 100V AC R.M.S., a maximum contact resistance of 40mΩ, and a minimum insulation resistance of 100MΩ. The product’s operating temperature range is -25C~+85C, making it suitable for different working environments.


The Type-C interface has certain challenges in application, and the KH-TYPE-C-L10-6P-STM is Kinghelm’s effort to solve this problem. The product uses high-quality materials and advanced technology to meet the requirements of high-speed transmission and large current output. In addition, the product’s quality control and after-sales service are also a focus of Kinghelm, providing customers with better products and services.


The product has a wide range of applications, not only in electronic devices such as computers, smartphones, tablets, and digital cameras, but also in fields such as automotive, medical equipment, and industrial control. Whether at home, in the office, or in industrial production, the product can provide efficient and reliable data transmission and charging services.


In summary, the KH-TYPE-C-L10-6P-STM Type-C Female Socket SMT is a high-performance, high-quality, and highly reliable electronic component that can meet the needs of customers in different fields. It has high heat resistance, corrosion resistance, and durability, and can withstand large currents and voltages, widely used in electronic products, communication equipment, automotive electronics, and other fields.
