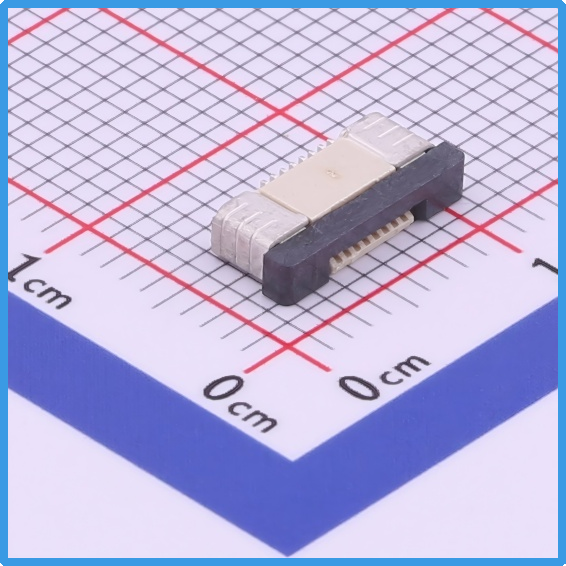

Kinghelm KH-CL0.5-H2.0-8PIN Product Image

Precise Design for Miniaturization

One of the standout features of the Kinghelm KH-CL0.5-H2.0-8PIN FFC/FPC Connector is its precise design. With a pin pitch of 0.5mm and 8 pins, it can achieve efficient connections in extremely limited space, meeting the high-density connection requirements of complex electronic devices. Meanwhile, the overall height design of 2.0mm means that the connector does not occupy too much vertical space when installed on a circuit board, providing more flexibility for the layout of other components. This design makes the KH-CL0.5-H2.0-8PIN an ideal choice for many electronic device manufacturers when designing compact devices.

Slide-In Design for Convenience and Reliability

The connector features an advanced surface-mount slide-in design. This design not only facilitates quick and reliable connections and disconnections but also enhances the stability and reliability of the connection. The slide-in structure makes the connector more convenient to use, maintaining good contact performance even with frequent plugging and unplugging operations, ensuring the stability of signal transmission. This design not only improves production efficiency but also reduces maintenance costs and is particularly suitable for electronic devices that require frequent disassembly and maintenance.

High-Quality Materials and Precision Manufacturing for Long-Term Stable Use

The Kinghelm KH-CL0.5-H2.0-8PIN FFC/FPC Connector compromises nothing in material selection and manufacturing processes. Its main body is made of high-quality plastic, which has good insulation and high-temperature resistance properties, ensuring stability in various working environments. Meanwhile, the contact points of the connector are specially treated to ensure low contact resistance and high conductivity. Even with frequent plugging and unplugging operations, the stability and reliability of signal transmission can be guaranteed. This high-quality material and precision manufacturing make the KH-CL0.5-H2.0-8PIN a trusted choice for many electronic device manufacturers.

Lying-Down Packaging for Optimized Space Layout

The connector uses a lying-down packaging method, which further optimizes the space layout. Inside compact electronic devices, this packaging can effectively reduce the height of the connector, minimize space occupation, and maintain good electrical performance. This packaging method is not only suitable for ultra-thin devices but also enhances the overall design's aesthetics and reliability.

Wide Range of Applications to Boost Device Upgrades

Thanks to its precise design, slide-in structure, high-quality materials, and precision manufacturing, the Kinghelm KH-CL0.5-H2.0-8PIN FFC/FPC Connector has been widely used in various fields. In the consumer electronics field, such as smartphones, tablets, and smart wearable devices, it can meet the dual demands of miniaturization and high performance, providing users with a smoother experience. In the industrial automation field, complex control systems require a large number of reliable connections. This connector, with its stability and durability, has become an important part of ensuring the normal operation of equipment. In the automotive electronics field, where the reliability and temperature resistance of components are extremely high, the connector can work stably in the harsh environment inside a car, providing support for the normal operation of the automotive electronic system.

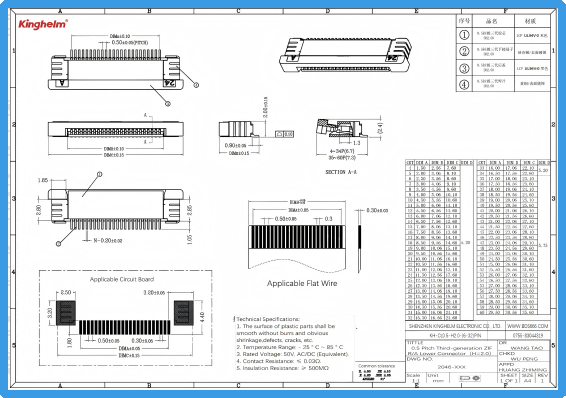

Kinghelm KH-CL0.5-H2.0-8PIN Specification

The Kinghelm KH-CL0.5-H2.0-8PIN FFC/FPC Connector, with its precise design, slide-in structure, high-quality materials, and precision manufacturing processes, has become a trusted choice for many electronic device manufacturers. In today's world of continuously developing and innovating electronic devices, it will continue to play an important role in enhancing the performance and stable operation of various electronic products. Whether it is for electronic engineers designing new products or maintenance personnel repairing old devices, the Kinghelm KH-CL0.5-H2.0-8PIN FFC/FPC Connector is a reliable choice. It not only meets the current demands of electronic devices for connectors but also provides strong support for the future development of electronic technology, setting a new benchmark in the connector field.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
