In the realm of electronic components, pin headers serve as fundamental yet essential connectors, enabling signal and power transmission between circuit boards. Whether in industrial control systems, communication devices, or consumer electronics, pin headers consistently perform critical roles in connectivity and interface conversion. Choosing a reliable pin header not only enhances assembly efficiency but also ensures the overall system's operational stability.

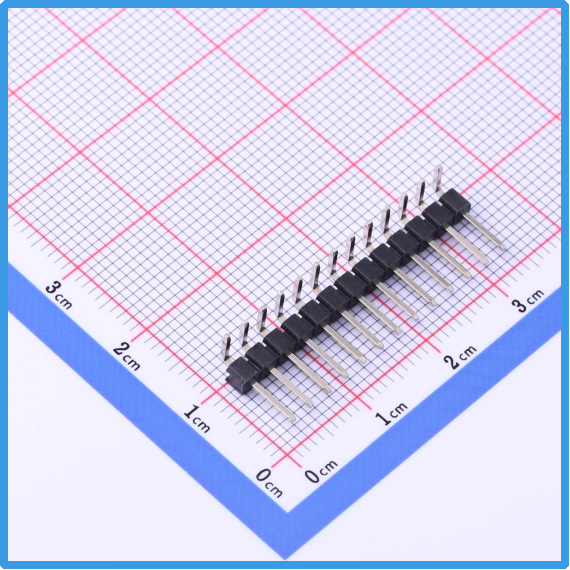

Kinghelm KH-2.54PH90-1X13P-L13.8 Product Image

The KH-2.54PH90-1X13P-L13.8, developed by Kinghelm, is a high-performance, precisely engineered single-row right-angle pin header, ideal for electronic applications with specific space constraints, interface requirements, or demanding environmental conditions.

This model features:

lStandard 2.54mm pitch

lSingle-row 13-pin configuration

l90-degree right-angle design

lTotal pin length of 13.8mm with a mating length of 6mm

lnsulator height (plastic height): 2.5mm

The compact layout is particularly suited for space-limited PCBs or situations requiring vertical routing of connections. The square pin design enhances mating stability and contact surface area, ensuring smooth and efficient signal transmission across various applications.

With a rated current of 3A and an operating temperature range of -40°C to +105°C, this pin header performs reliably even in harsh environments. Such versatile compatibility makes the KH-2.54PH90-1X13P-L13.8 an ideal solution for:

lEmbedded development boards

lBluetooth modules

lRF wireless devices

lSmart home products

lIndustrial control motherboards

lDurable Packaging & Manufacturing Quality

Kinghelm places great emphasis on packaging and product handling. The KH-2.54PH90-1X13P-L13.8 comes in bag packaging, which ensures ease of transportation and warehousing. Each unit weighs approximately 0.858 grams, facilitating batch processing and streamlined installation.

As a trusted domestic Chinese brand, Kinghelm has been deeply involved in the connector and RF antenna industries for years, prioritizing technical innovation and product reliability. Their pin headers are widely recognized for precise tooling, stable performance, and broad compatibility with industrial standards.

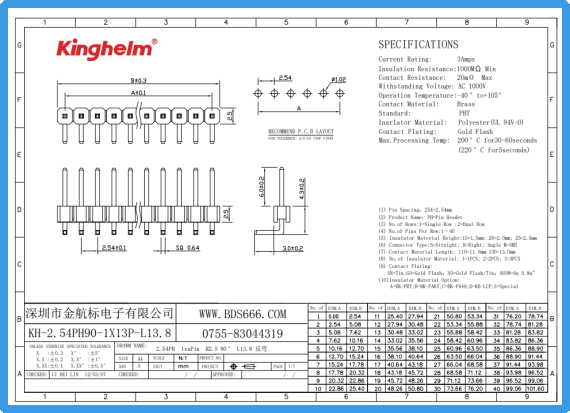

Kinghelm KH-2.54PH90-1X13P-L13 Specification

Why Choose KH-2.54PH90-1X13P-L13.8?

In a market increasingly demanding high-reliability connectivity, pin headers play an irreplaceable role as the "fundamental link" in electronic systems. The KH-2.54PH90-1X13P-L13.8 by Kinghelm exemplifies what a durable and performance-oriented pin header should be—offering stable connectivity, consistent quality, and integration flexibility.

Choosing Kinghelm means more than just selecting a compliant electronic component—it’s a commitment to quality and a long-term partnership.
