In cutting-edge fields such as 5G communications, IoT devices, aerospace, and automotive electronics, stable transmission of high-frequency signals has become a core guarantee of system performance. As a critical component of RF connectors, the SMA cable end—thanks to its compact threaded structure, excellent electrical performance, and superior environmental adaptability—has been widely adopted to create high-frequency pathways between antennas, RF modules, and transmission cables. This article focuses on the technical advantages of the Kinghelm KH-FSSMAK-L-RG113 SMA cable end and explores its practical value in complex application scenarios, offering engineers, procurement professionals, and industry practitioners an efficient product selection reference.

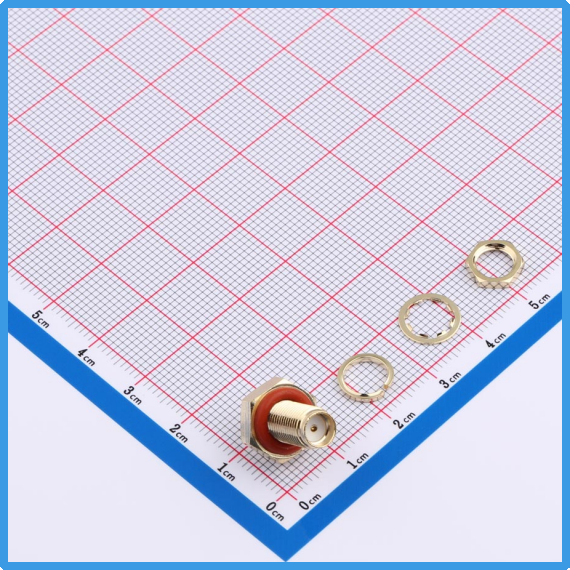

Kinghelm KH-FSSMAK-L-RG113 Product Image

Since its introduction in the 1960s, the SMA (Sub-Miniature-A) connector has been a core component in RF and microwave communications due to its standardized interface, low insertion loss, and high reliability. Particularly effective in the 0–6 GHz frequency range, the 50Ω impedance-matching design significantly reduces signal reflection and energy loss, ensuring signal integrity. Its threaded locking mechanism enhances mechanical stability and enables reliable performance even in extreme environments ranging from -40°C to +80°C, making it an ideal choice for 5G base stations, satellite communications, and in-vehicle devices.

As a technology-driven brand in China’s RF connector industry, Kinghelm continuously innovates and upgrades its products. The KH-FSSMAK-L-RG113 model features multidimensional improvements in cable-end design. For instance, it meets IP67 waterproof standards and remains operational after short-term submersion in 1 meter of water, adapting well to harsh outdoor environments. It also passes a 48-hour salt spray test with no signs of corrosion on the metal surface, making it especially suitable for marine and chemical industry applications. The product features an 11-thread precision gold-plated female interface with a plating thickness of 1.27 μm, reducing contact resistance to as low as 5 mΩ. At 6 GHz, insertion loss is less than 0.2 dB, significantly enhancing signal transmission efficiency.

To achieve high-quality long-distance transmission, the KH-FSSMAK-L-RG113 is specially designed to fit RG113 low-loss coaxial cables. Its customized interface ensures impedance continuity, and when combined with RG113's excellent attenuation performance (0.66 dB/m @ 2.4 GHz), it maintains stable RF performance even across communication paths exceeding 10 meters. This makes it ideal for applications such as vehicle-mounted terminals and IoT gateways that require high bandwidth and long-distance connectivity. Furthermore, the product uses phosphor bronze contacts and a copper alloy shell, supporting more than 500 insertion/extraction cycles with no significant degradation in electrical performance—making it well-suited for demanding applications like industrial automation and medical equipment.

In terms of technical specifications, the KH-FSSMAK-L-RG113 supports a 50Ω impedance, 0–6 GHz frequency range, and is applicable to high-frequency systems such as 5G NR, mmWave radar, and satellite communications. Its design balances temperature stability and mechanical durability, operating reliably within a -40°C to +80°C range and passing multiple thermal shock tests. The threaded locking structure provides a stable torque of 0.6 N·m to prevent loosening due to vibration or impact. The connector is available in both right-angle and straight versions, optimizing PCB layout space. Weighing only 4.792 grams, it meets the lightweight requirements of drones and portable communication devices.

In real-world applications, the KH-FSSMAK-L-RG113 is widely used in 5G communication infrastructure—such as low-loss connections between RRU and antennas, small cell deployments, and distributed antenna system (DAS) networks. In vehicle networking and autonomous driving, the product reliably connects T-Box and V2X modules while supporting high-precision BeiDou/GPS positioning. It also performs exceptionally well in the industrial IoT, enabling data return for wireless sensors and reliable operation in explosion-proof environments. In the aerospace and satellite communication sectors, its lightweight, high-temperature resistance, and vibration resistance make it ideal for satellite payloads and ground station equipment. In medical imaging systems, the KH-FSSMAK-L-RG113 serves as a key RF connector between RF coils and signal processing units in MRI and CT devices.

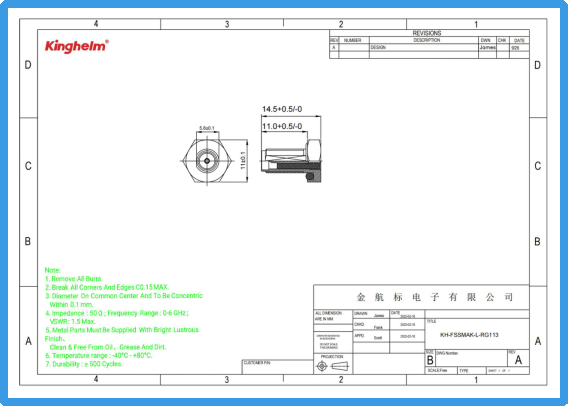

Kinghelm KH-FSSMAK-L-RG113 Specification

In summary, the Kinghelm KH-FSSMAK-L-RG113 is more than just a high-frequency SMA cable end connector—it is a professional RF solution that integrates protection, precision, and top-tier electrical performance. Its compatibility, durability, and transmission quality have been validated across numerous high-standard industries, making it a reliable choice for engineering projects requiring high-performance communication links. Choosing Kinghelm means choosing a stable and efficient RF pathway.
