As consumer electronics relentlessly pursue thinner profiles, Shenzhen Kinghelm's KH-6X6X9.5H-SMT tact switch masters spatial economy with its 6×6×9.5mm footprint. This surface-mount switch with circular actuator sets new reliability benchmarks through automated manufacturing compatibility and precision engineering.

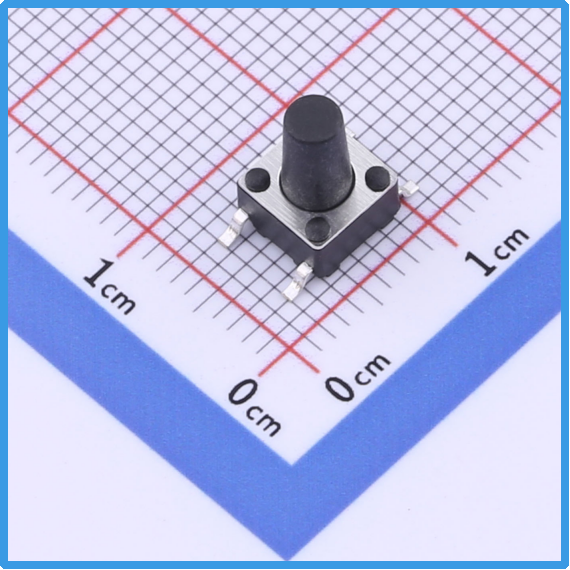

Kinghelm KH-6X6X9.5H-SMT Product Image

The 0.5mm Advantage

In PCB layouts where every millimeter counts, the switch's 9.5mm height enables breakthrough industrial designs. Its 6mm-diameter button features a 15° conical profile for reliable gloved-finger operation, with actuation travel tolerance controlled within ±0.03mm. Optimized for high-speed SMT assembly, gull-wing leads with 1.6mm pitch align perfectly with 0402 component feeders, achieving 18,000 CPH placement efficiency.

Engineering Behind Consistent Clicks

Kinghelm lab tests confirm: After 500,000 cycles at 2.3N operating force, contact resistance remains below 50mΩ. This endurance stems from:

AgNi alloy contacts (≥65MS/m conductivity, 3× arc resistance vs silver)

Nano-coated stainless steel dome (0.12 friction coefficient)

PBT housing (passes 85°C/85%RH testing, 210°C deformation temp

Manufacturing Revolution

The tape-and-reel packaging (180mm reel diameter) eliminates manual soldering. Gold-plated leads achieve zero cold joints in nitrogen reflow. One Shenzhen ODM reported 87% productivity gain and 0.02% defect rate after adoption - transforming keyboard manufacturing economics.

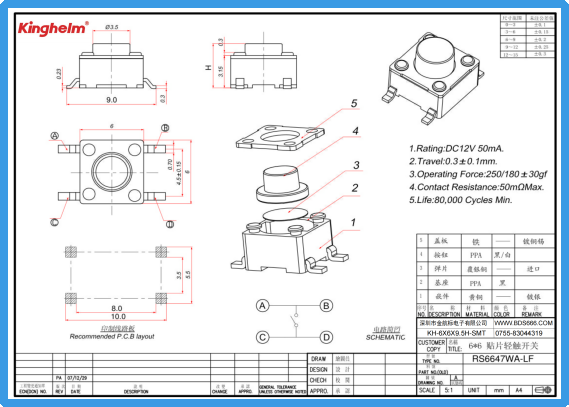

Kinghelm KH-6X6X9.5H-SMT Specification

Kinghelm's Microscopic Promise

We recognize that in 7.6mm-thick foldable phones, every component battles for space. The KH-6X6X9.5H-SMT creates 0.3mm stacking margins - the critical difference enabling battery upgrades or enhanced cooling. We'll continue pushing micro-switch boundaries because every millimeter conquered fuels electronics evolution.
