Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB105-F40E-04L Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB105-F40E-04L Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB105-F40E-04L

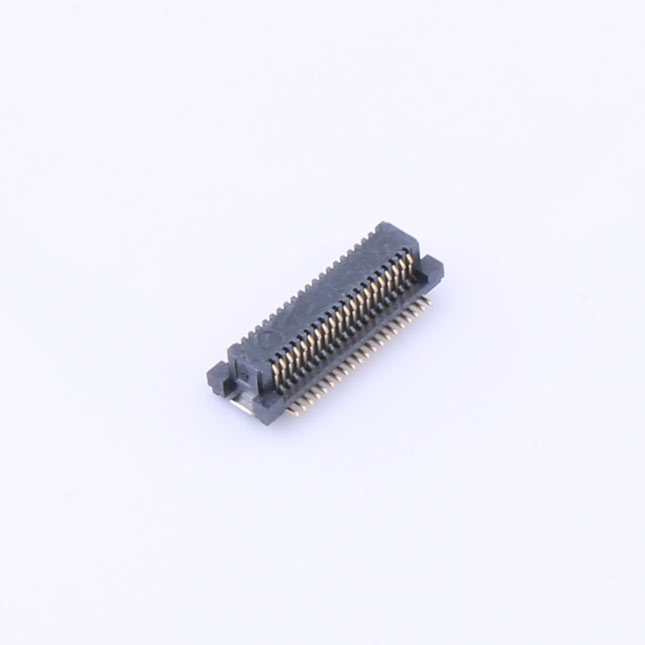

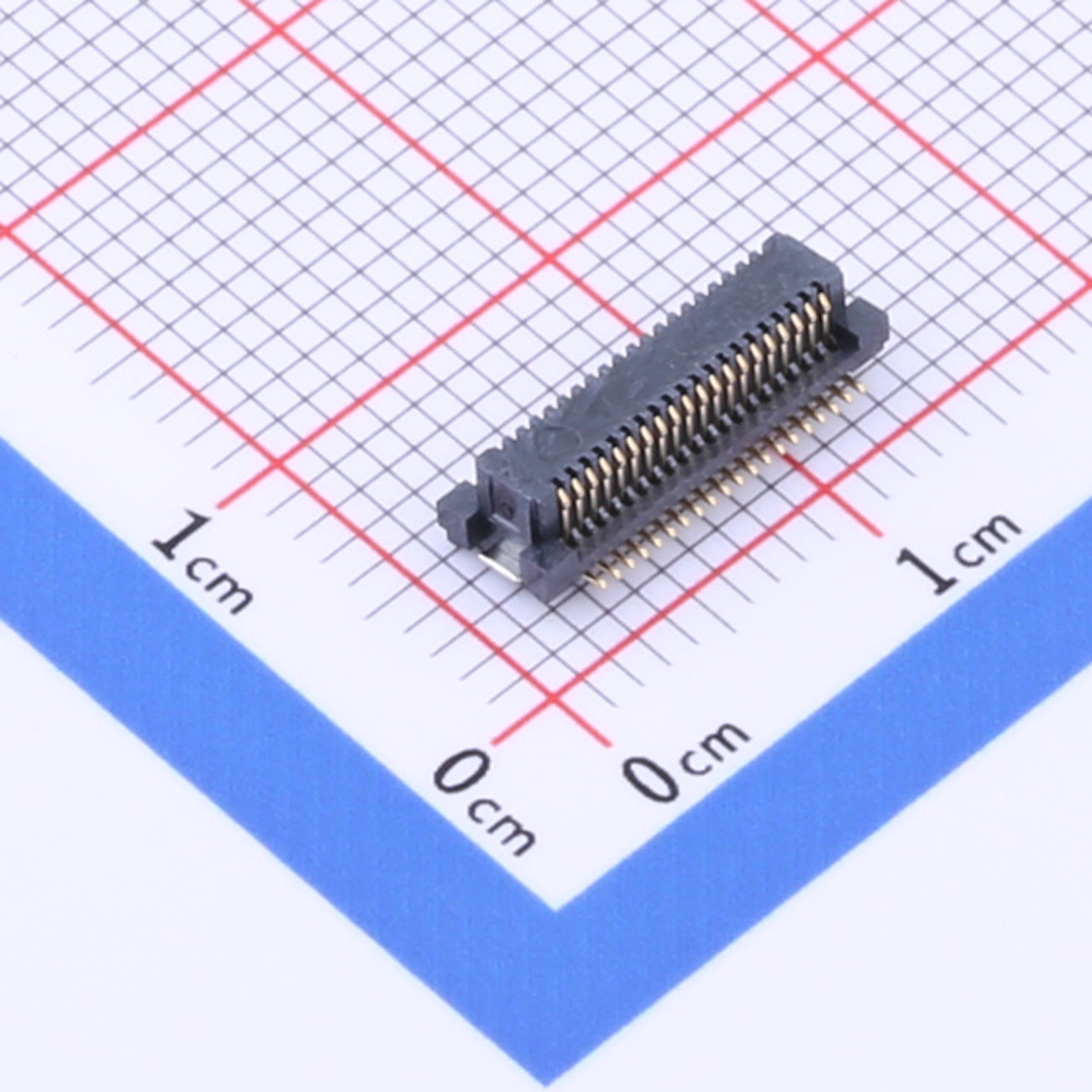

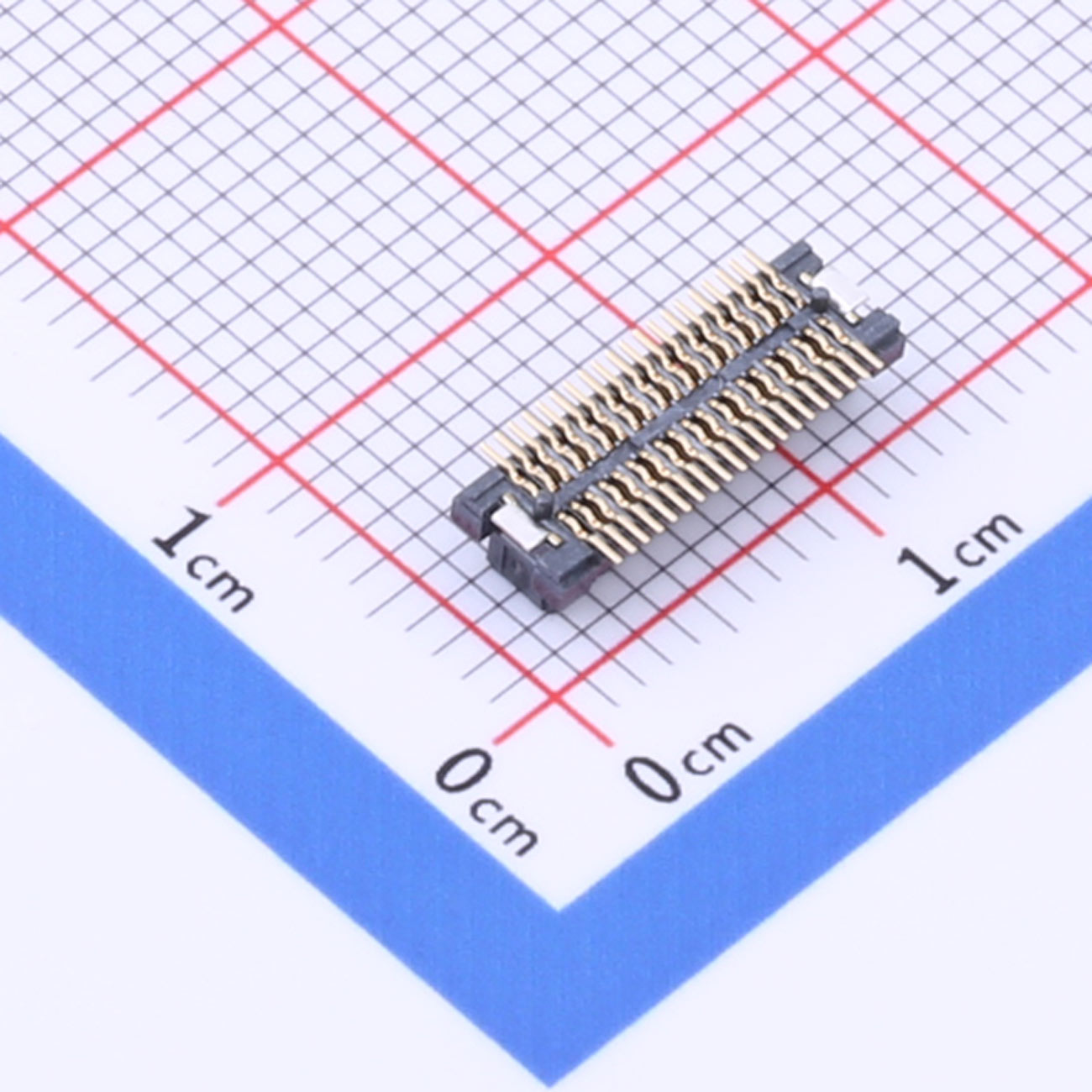

Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB105-F40E-04L
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 40P
Mounting Type: Vertical welding
Inquiry Datasheet

Product Details

Product Benefits
● 0.5mm fine pitch
● 40-pin high signal density
● Dual-row contact stability
● Vertical SMT design
● Compact and reliable
● Easy for automated assembly
● Saves PCB space

Product Applications
● Smartphones
● AR/VR devices
● Mini industrial controllers
● GPS modules
● Medical monitoring tools
● Ultra-compact PCs
● IoT sensor hubs
