Home -Product -Connector/Plug-in Unit -Onboard Connector -Board-to-Board Connector -Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L
Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L

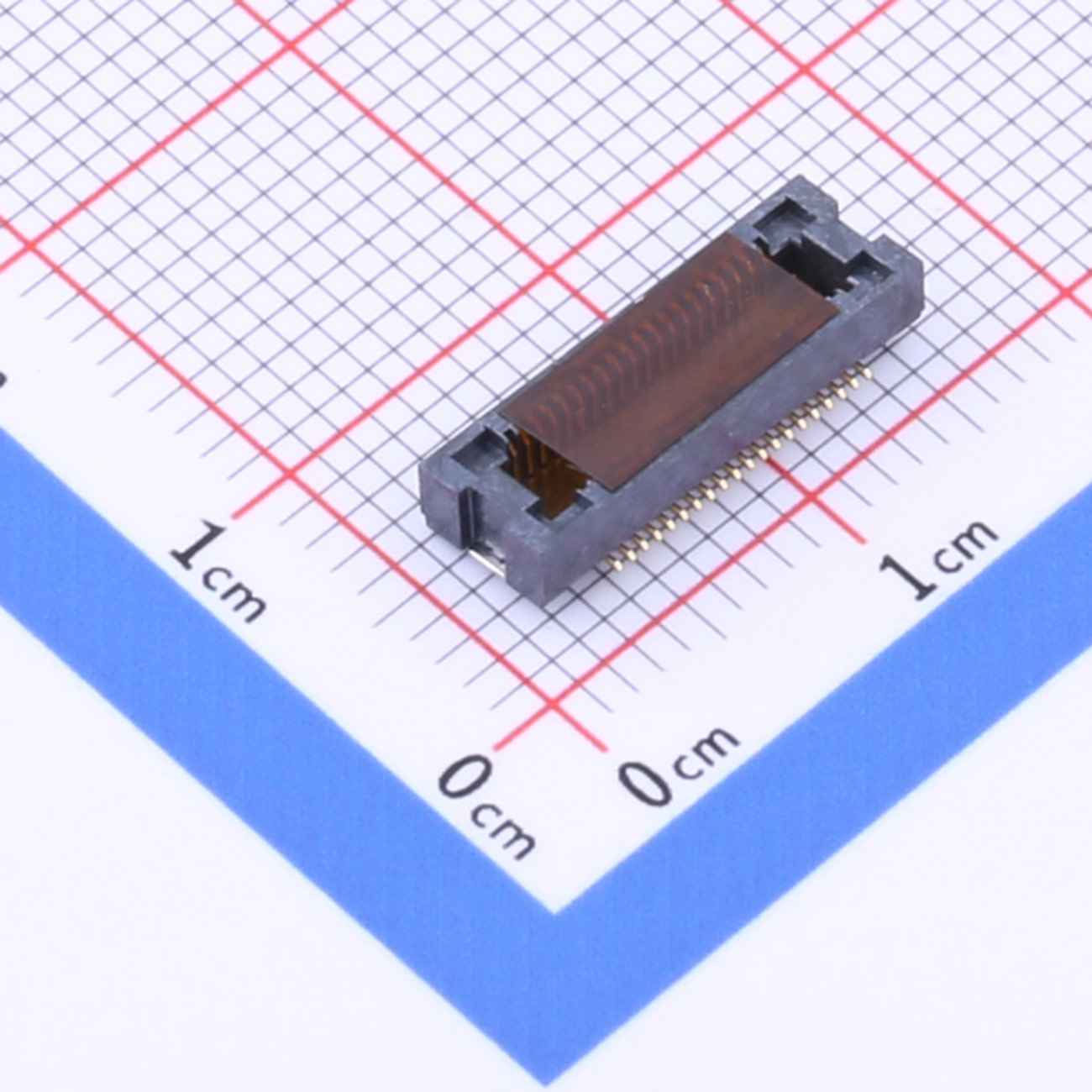

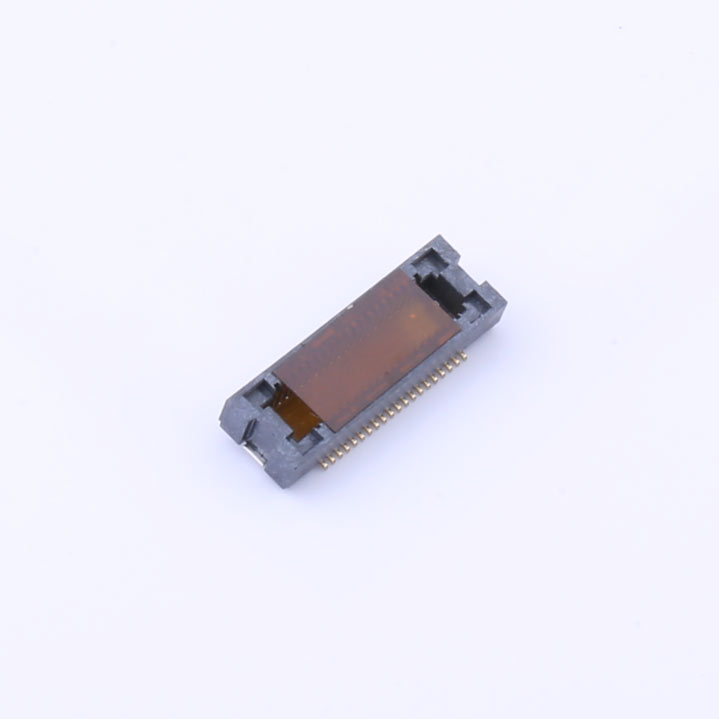

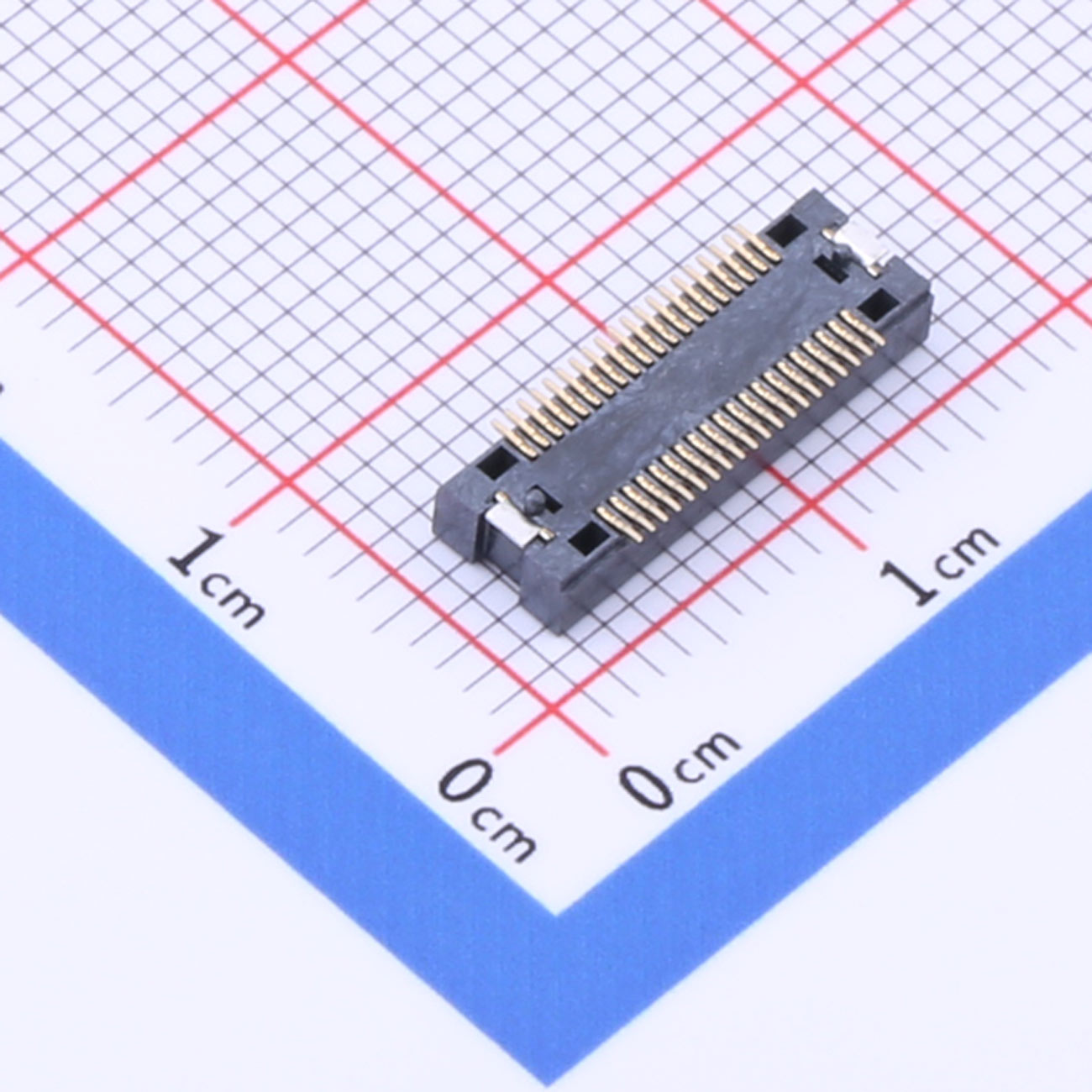

Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 40P
Mounting Type: Vertical welding
Inquiry Datasheet

Product Details

Product Benefits
● 0.5mm ultra-fine pitch
● 40-pin dense interface
● Dual-row stable connection
● Vertical SMT mounting
● Compact layout
● SMD for reflow soldering
● Efficient PCB space use

Product Applications
● Compact embedded systems
● High-resolution cameras
● Smart medical devices
● AI modules
● Industrial handhelds
● Thin client terminals
● Wireless communication units
