Board-to-Board Connector, 0.5mm Pitch, 30p, Vertical SMT, KH-WB205-F30M-03L Board-to-Board Connector, 0.5mm Pitch, 30p, Vertical SMT, KH-WB205-F30M-03L Board-to-Board Connector, 0.5mm Pitch, 30p, Vertical SMT, KH-WB205-F30M-03L

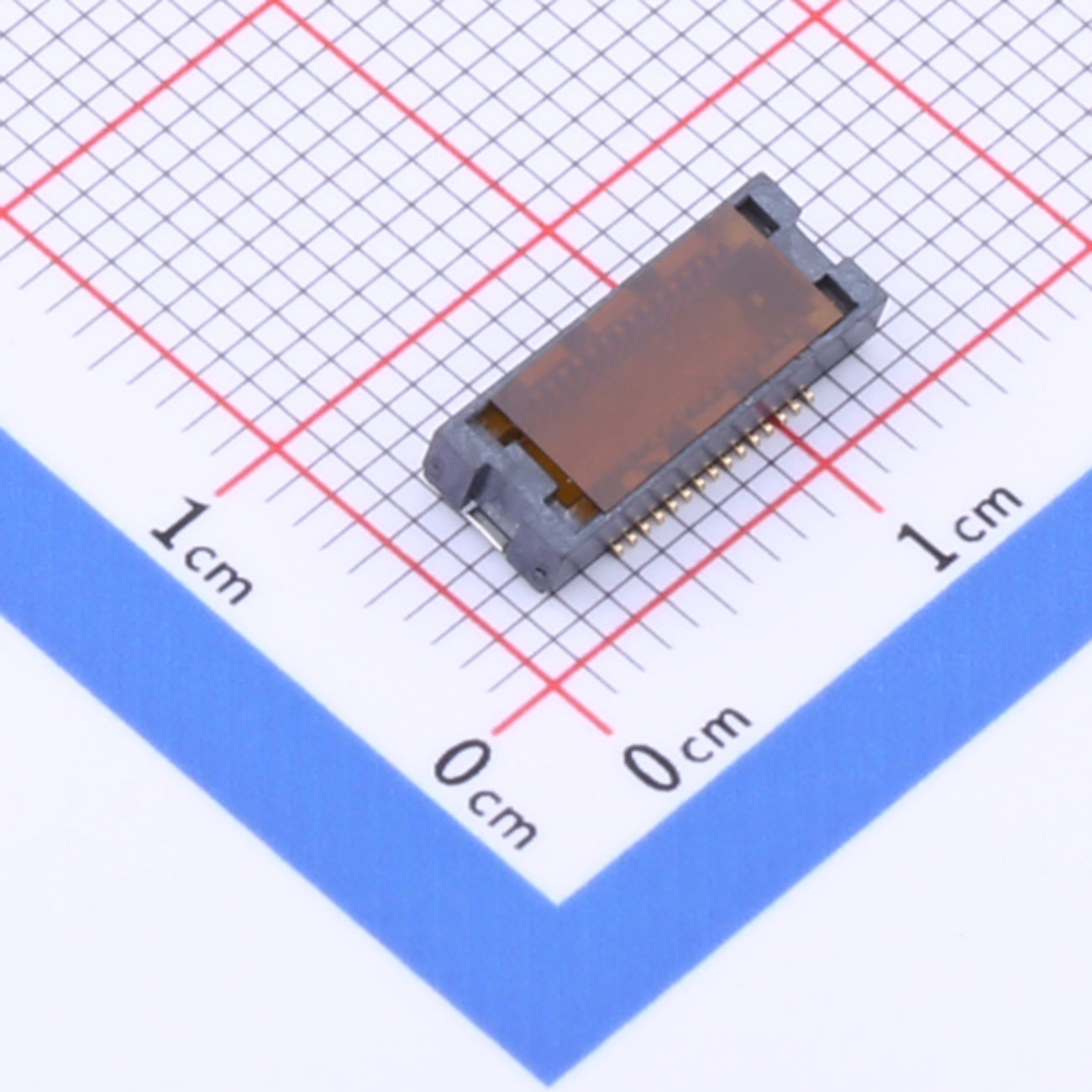

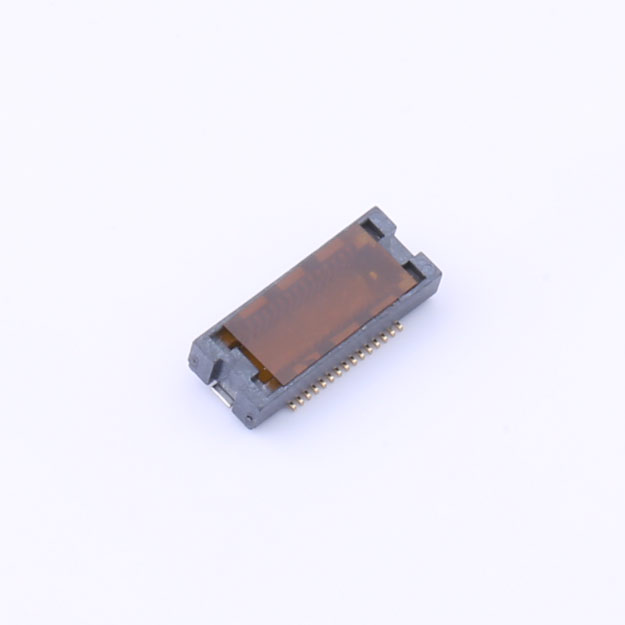

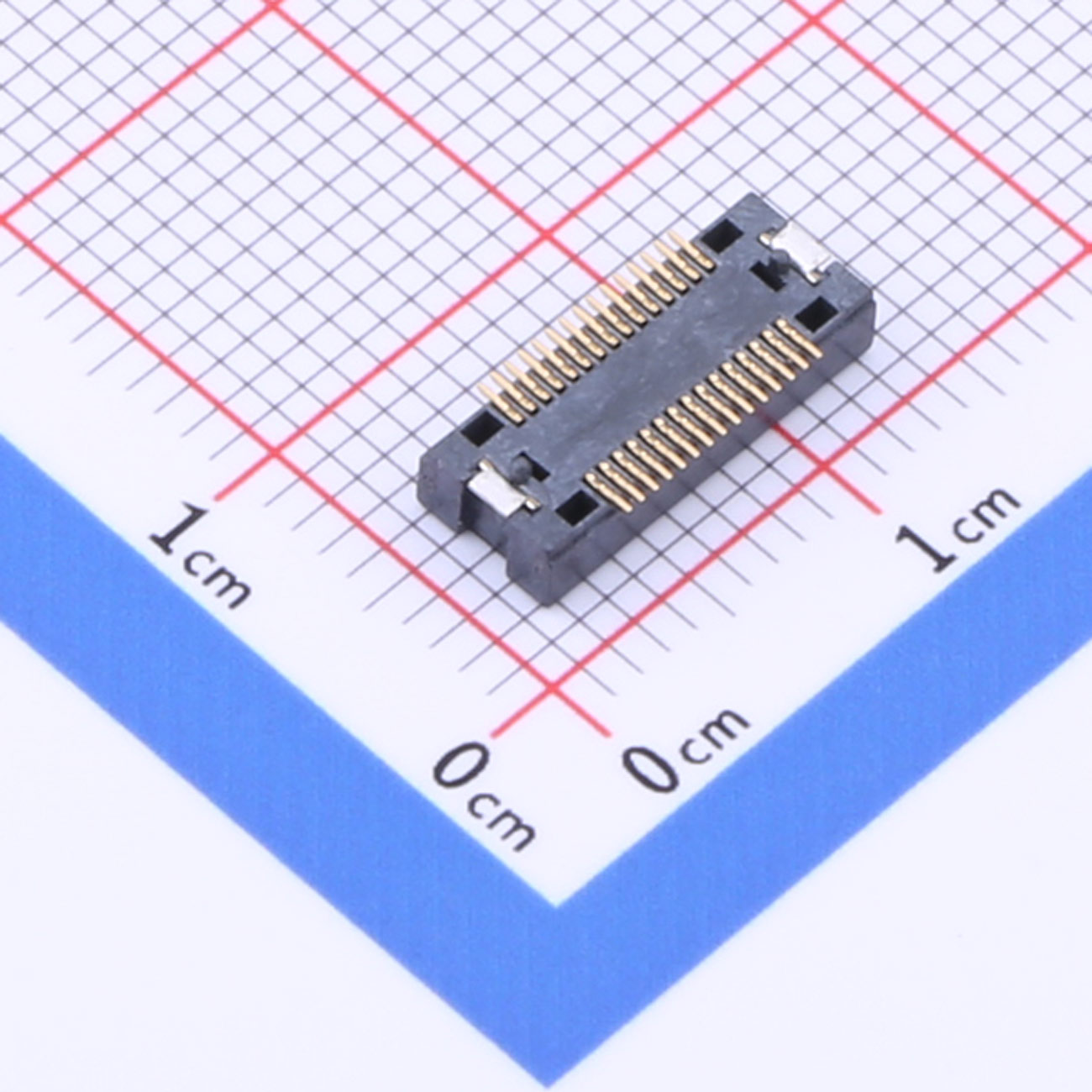

Board-to-Board Connector, 0.5mm Pitch, 30p, Vertical SMT, KH-WB205-F30M-03L
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 30P
Mounting Type: Vertical welding
Inquiry Datasheet

Product Details

Product Benefits
● 0.5mm fine pitch
● 30-pin compact layout
● Dual-row stable contact
● Vertical SMT mounting
● Reliable signal integrity
● Suitable for automated assembly
● Space-saving design

Product Applications
● Wearable tech
● Compact medical instruments
● Smart sensors
● Portable testing devices
● Miniature control boards
● Consumer IoT products
● Compact data loggers
