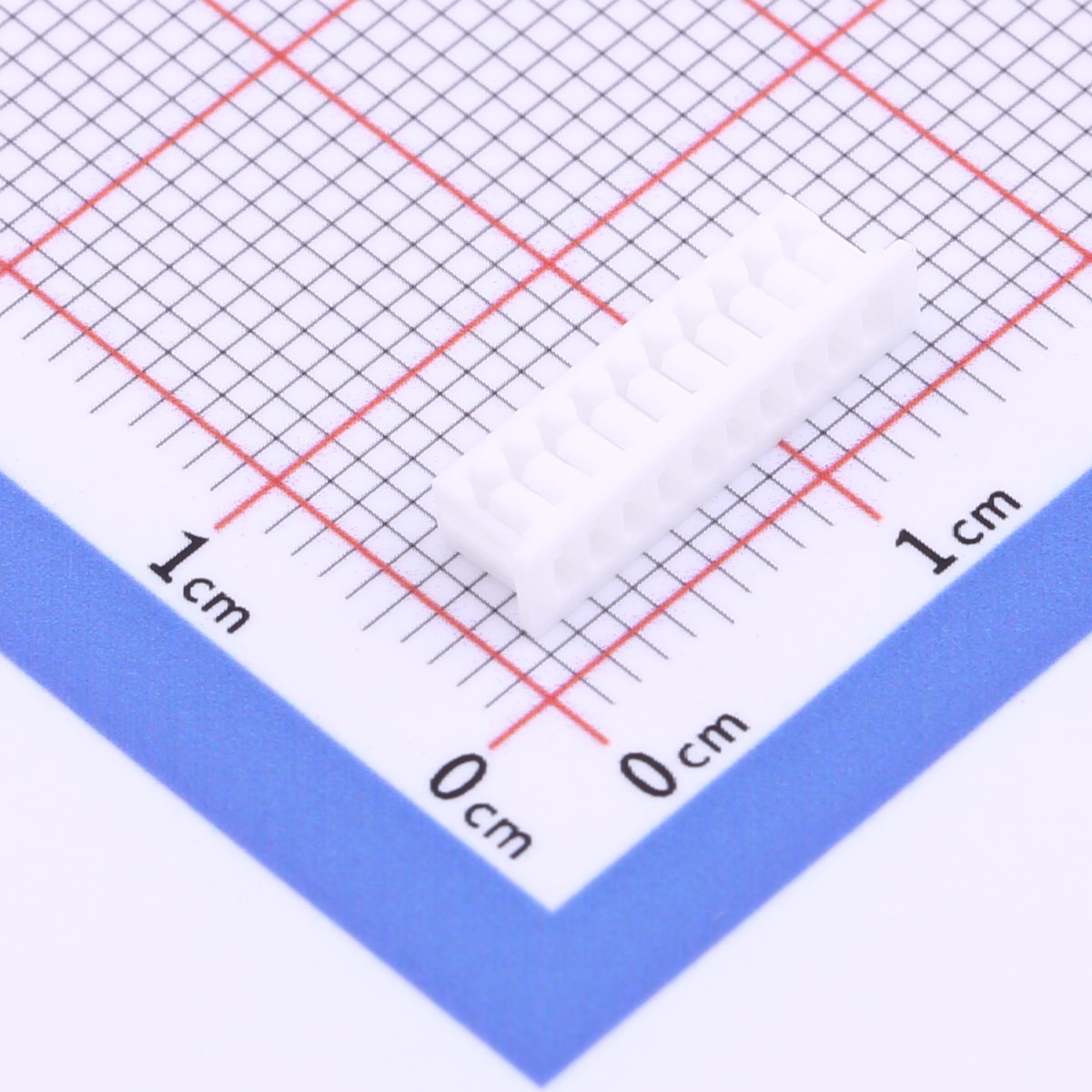

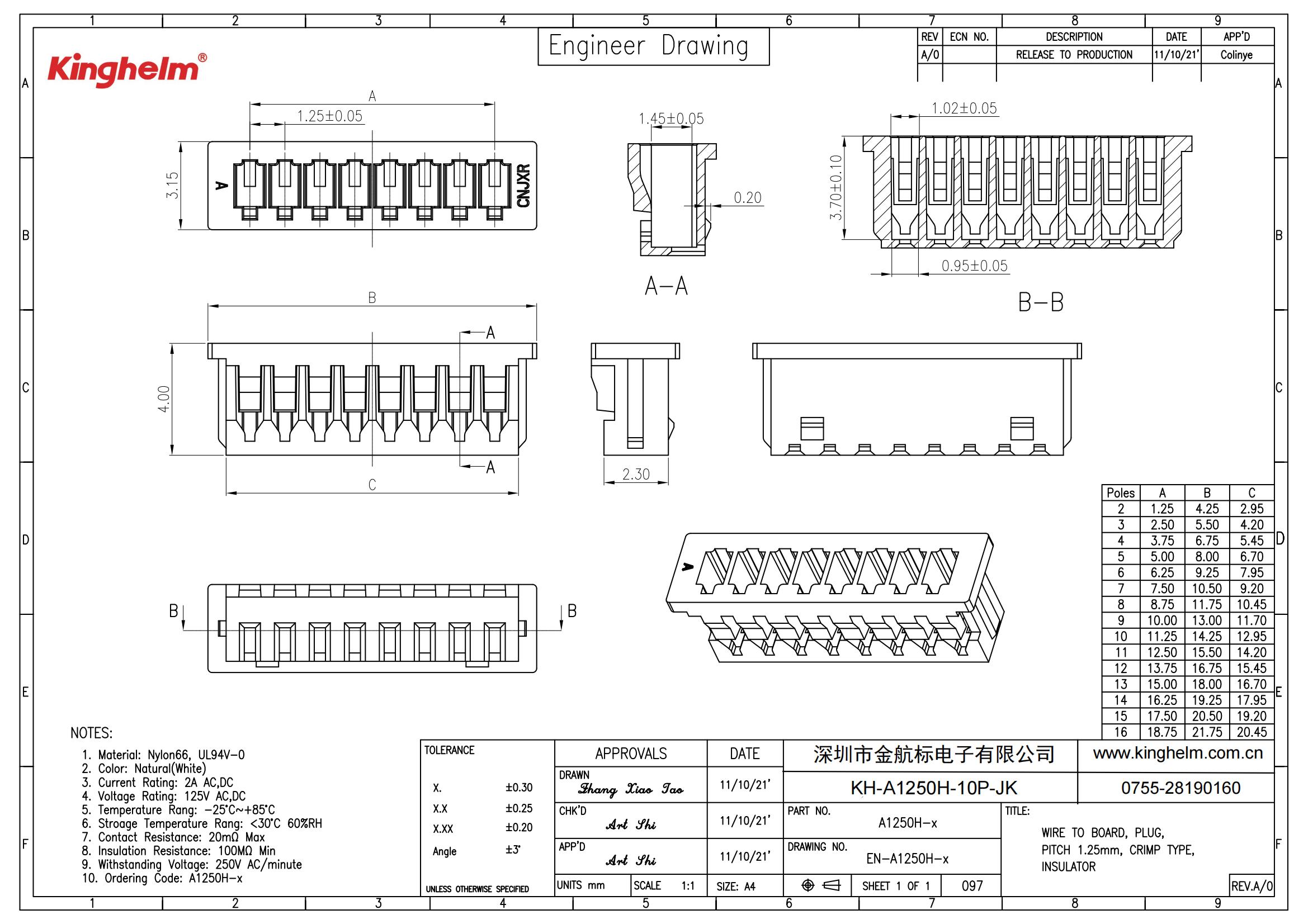

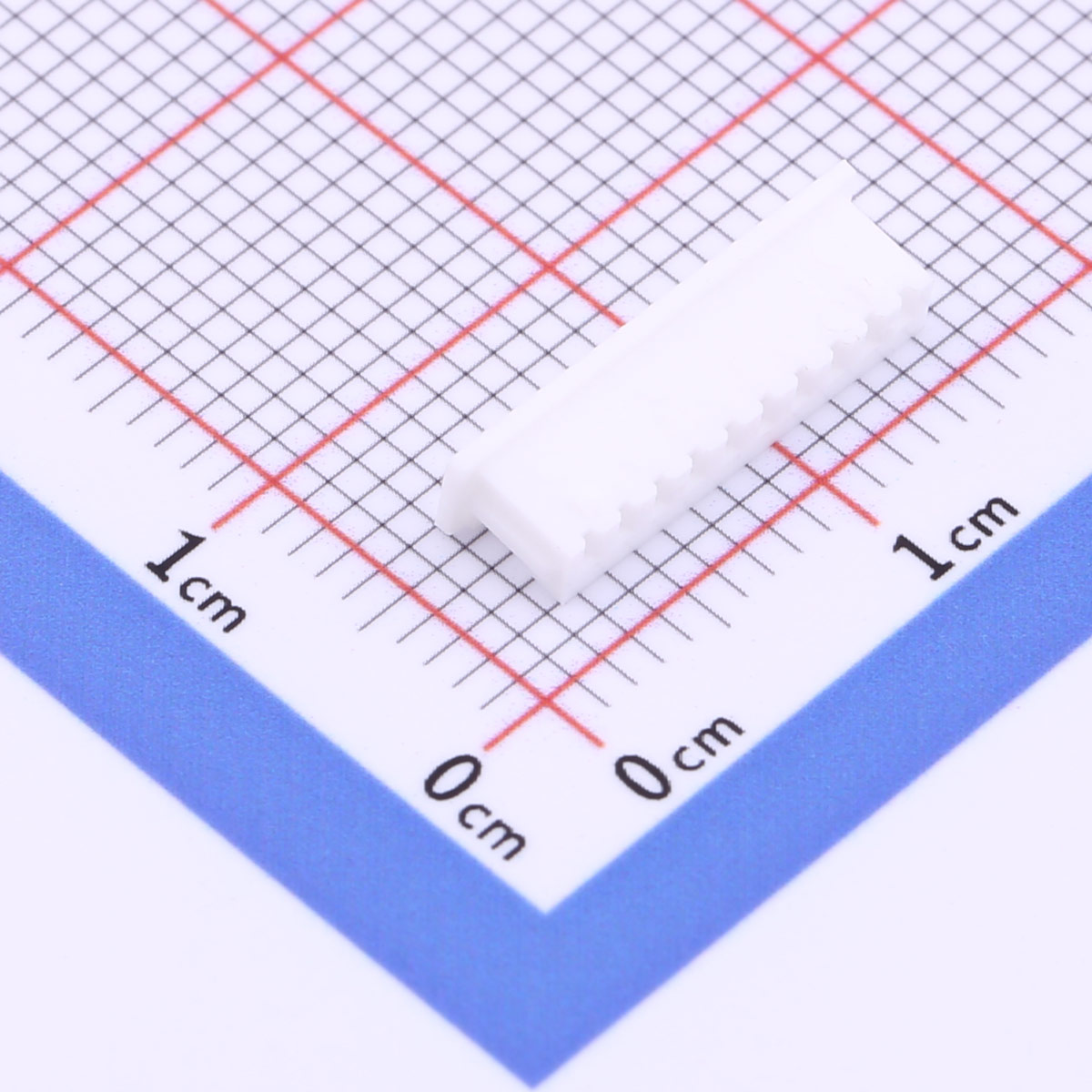

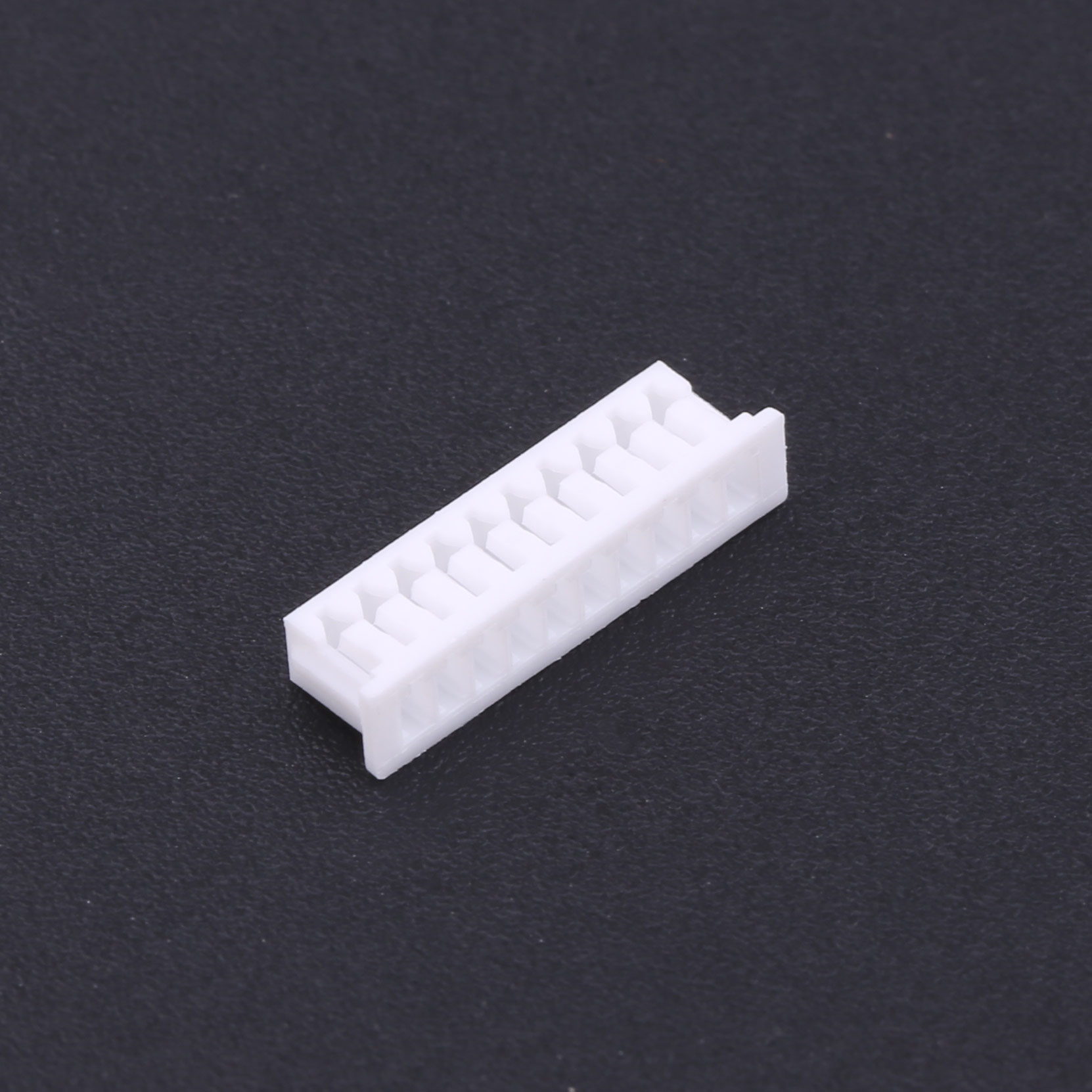

Crimp Terminal Shell 1.25mm Pitch 1x10p Connector Housing,KH-A1250H-10P-JK
Current Rating: 2A AC/DC
Voltage Rating: 125V AC/DC
Operating Temperature Range: -25°C to +85°C
Contact Resistance: ≤20 mΩ
Insulation Resistance: ≥100 MΩ
Withstanding Voltage: 250V AC / 1 minute
Product Benefits
● 10 pin compact design for streamlined setups
● High precision fit for secure terminal mating
● Low resistance path enhances power flow
● Resilient housing supports daily operations
● Easy to handle and assemble in tight layouts
● Well suited for light current applications
Product Applications
● Consumer tech accessories
● Bluetooth module connectors
● Indoor environmental sensors
● Portable testing equipment
● Entry level embedded boards
● Smart control panels
