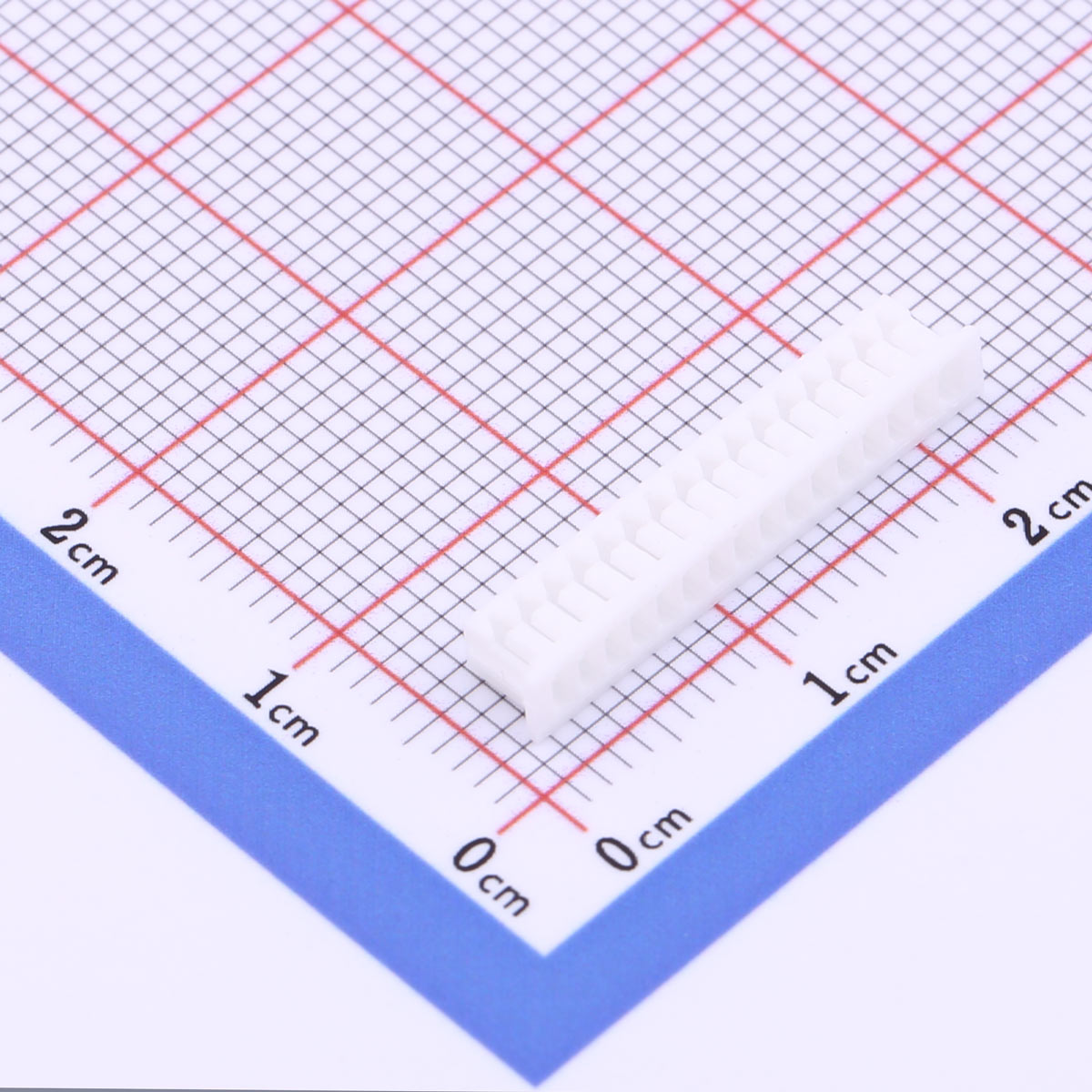

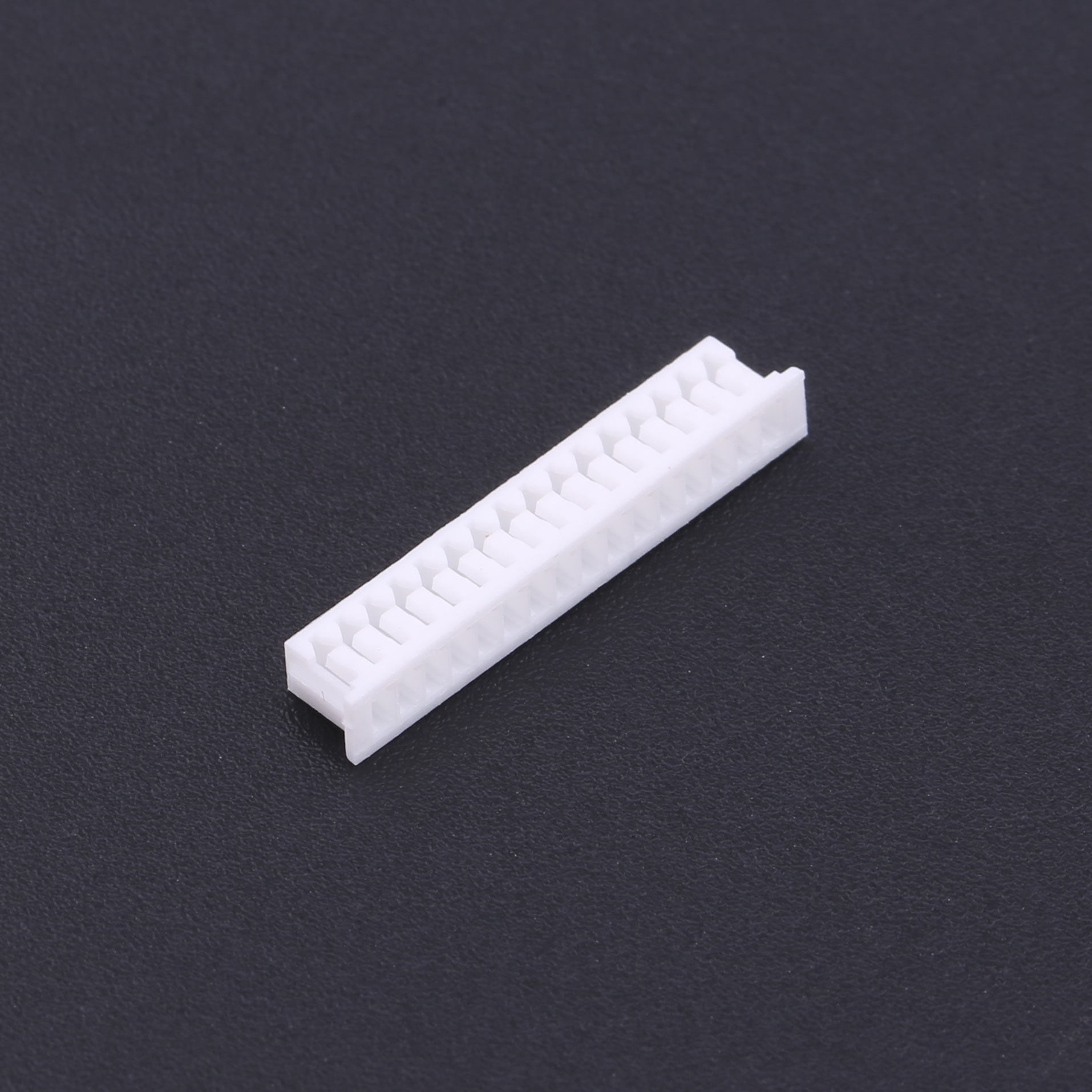

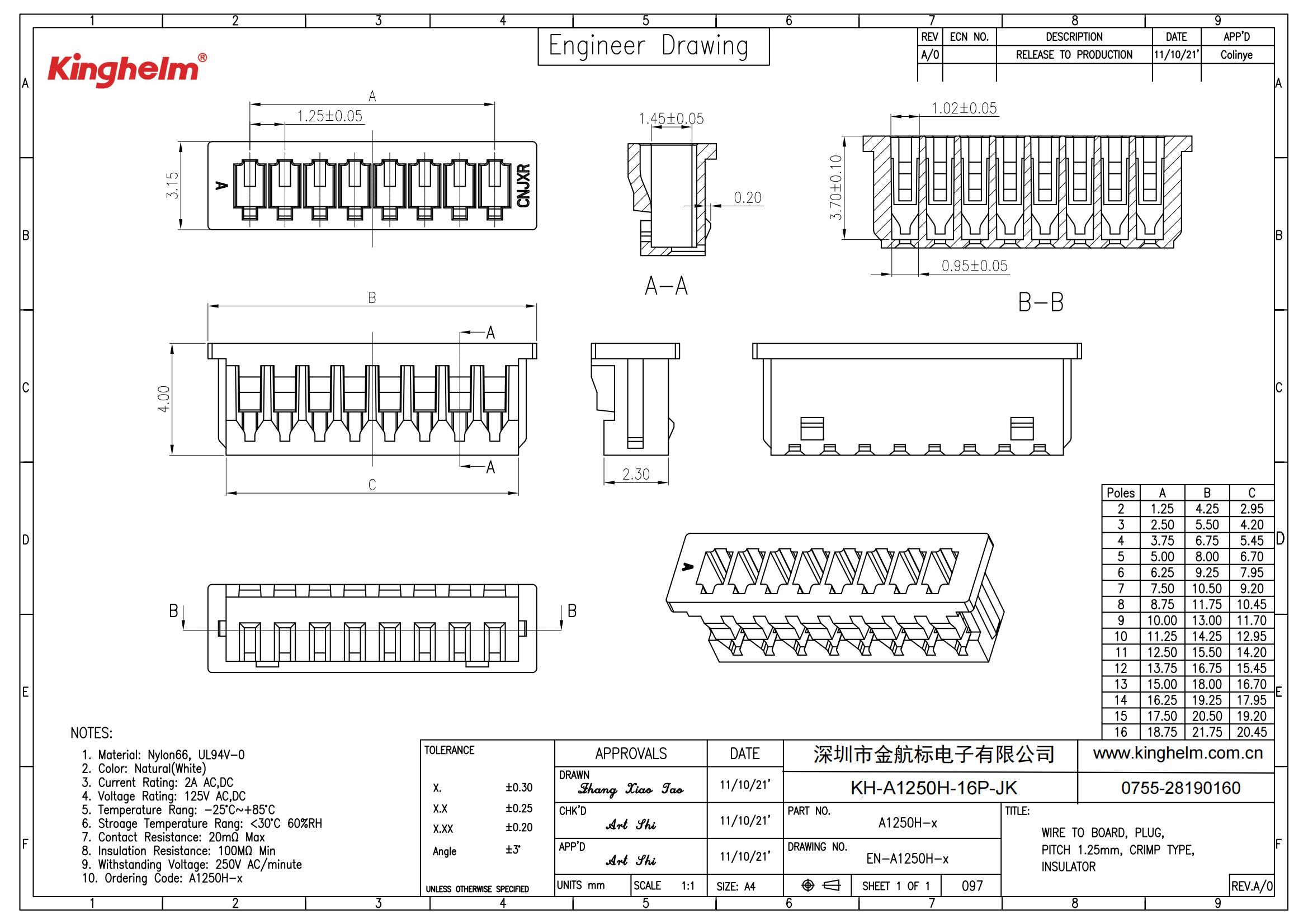

Crimp Terminal Shell 1.25mm Pitch 1x16p Connector Housing, KH-A1250H-16P-JK
Current Rating: 2A AC/DC
Voltage Rating: 125V AC/DC
Operating Temperature Range: -25°C to +85°C
Contact Resistance: ≤20 mΩ
Insulation Resistance: ≥100 MΩ
Withstanding Voltage: 250V AC / 1 minute
Product Benefits
● Compact 1.25mm pitch design
● Reliable signal and power transmission
● Secure 16-pin connection housing
● High insulation resistance for safety
● Low contact resistance for stable conductivity
● Withstands voltage surges up to 250V AC
Product Applications
● Consumer electronics
● Office automation equipment
● LED lighting systems
● Industrial control devices
● Communication equipment
● Automotive electronic modules
