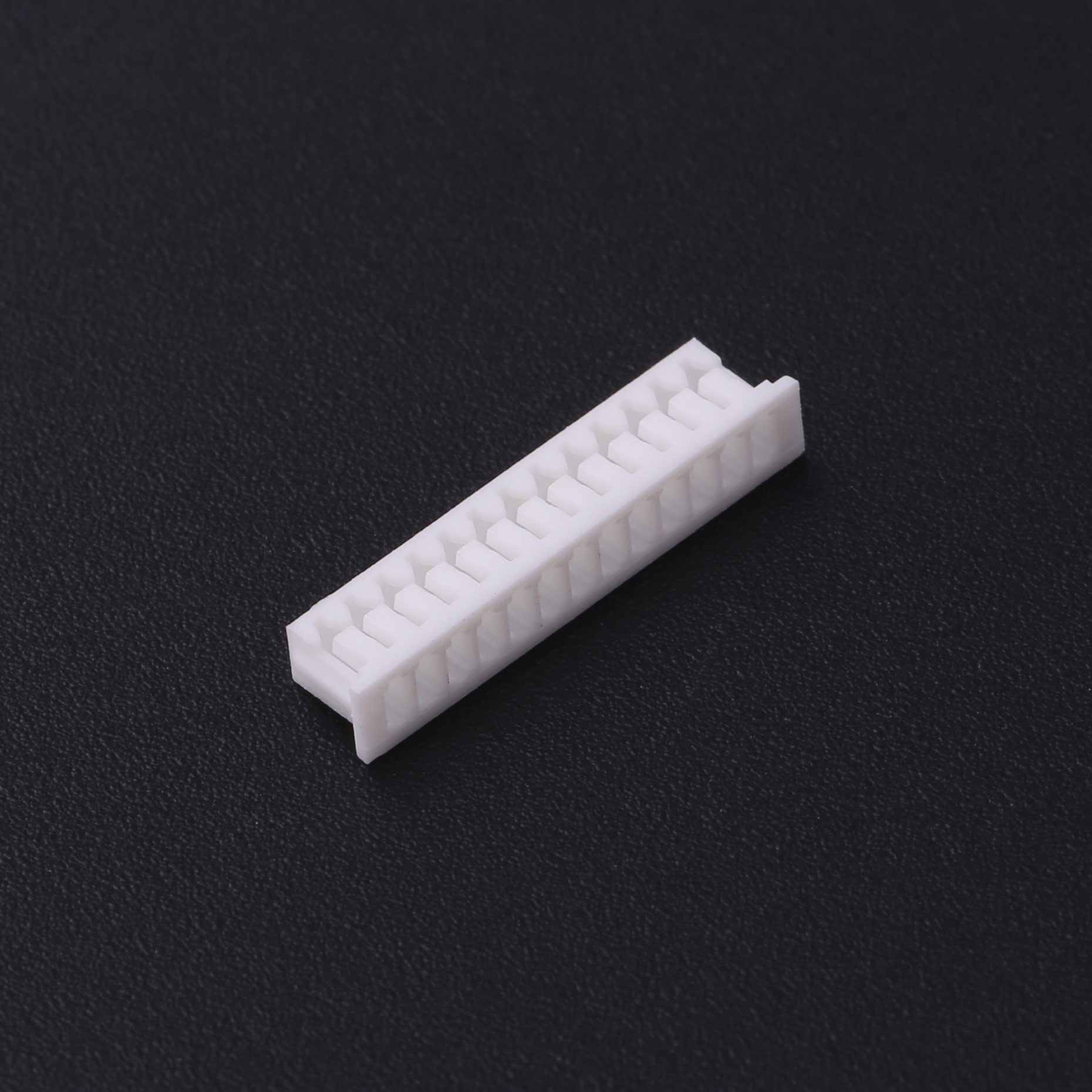

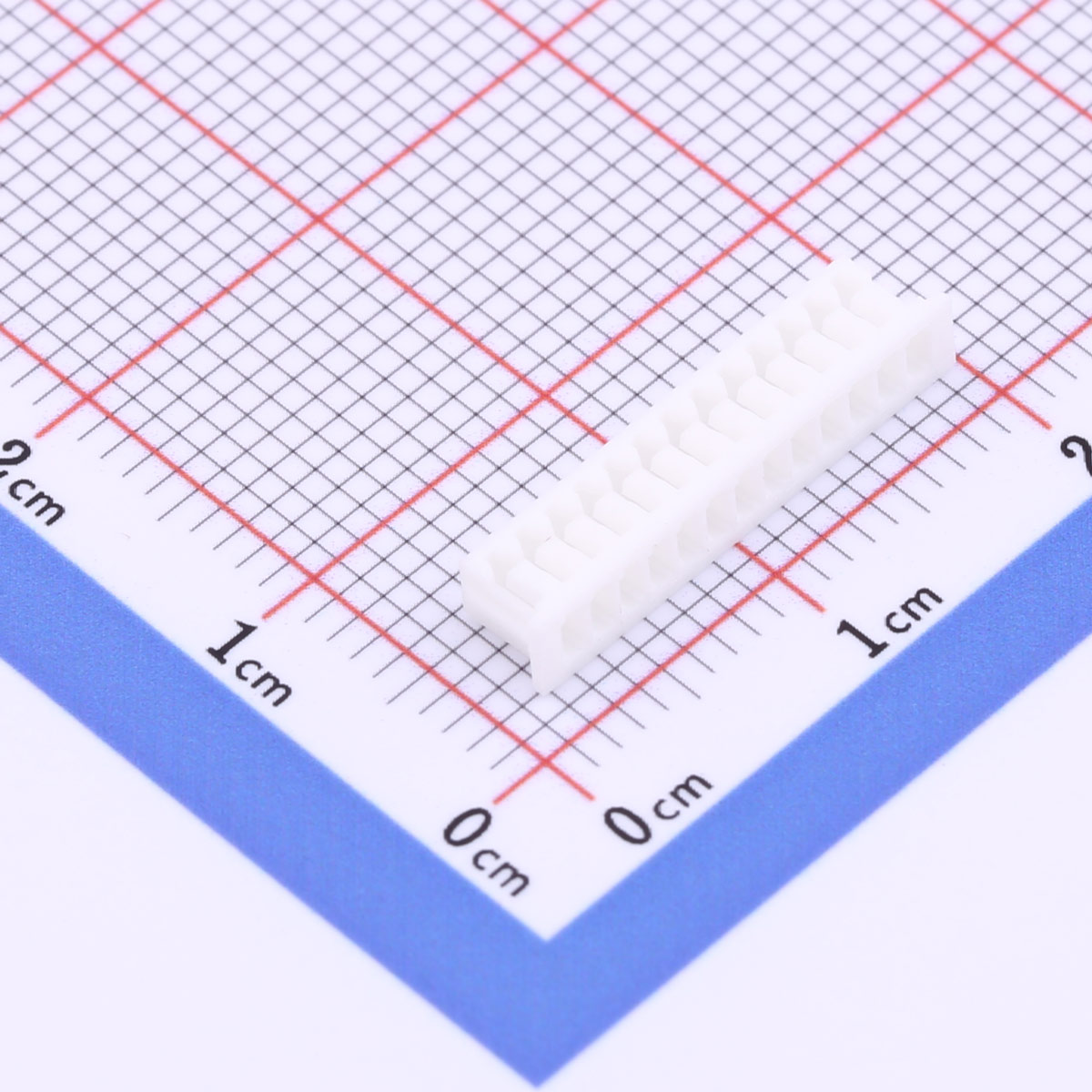

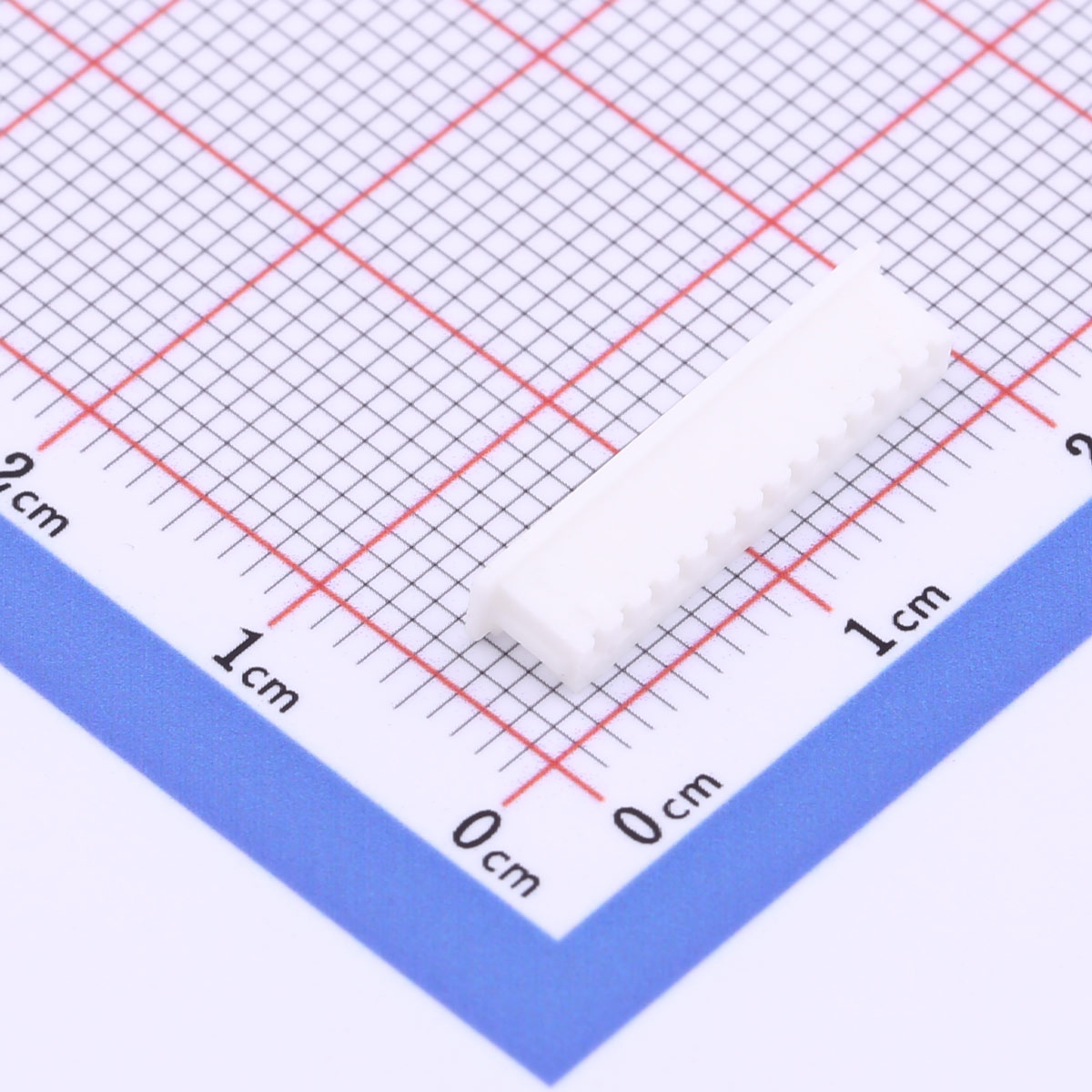

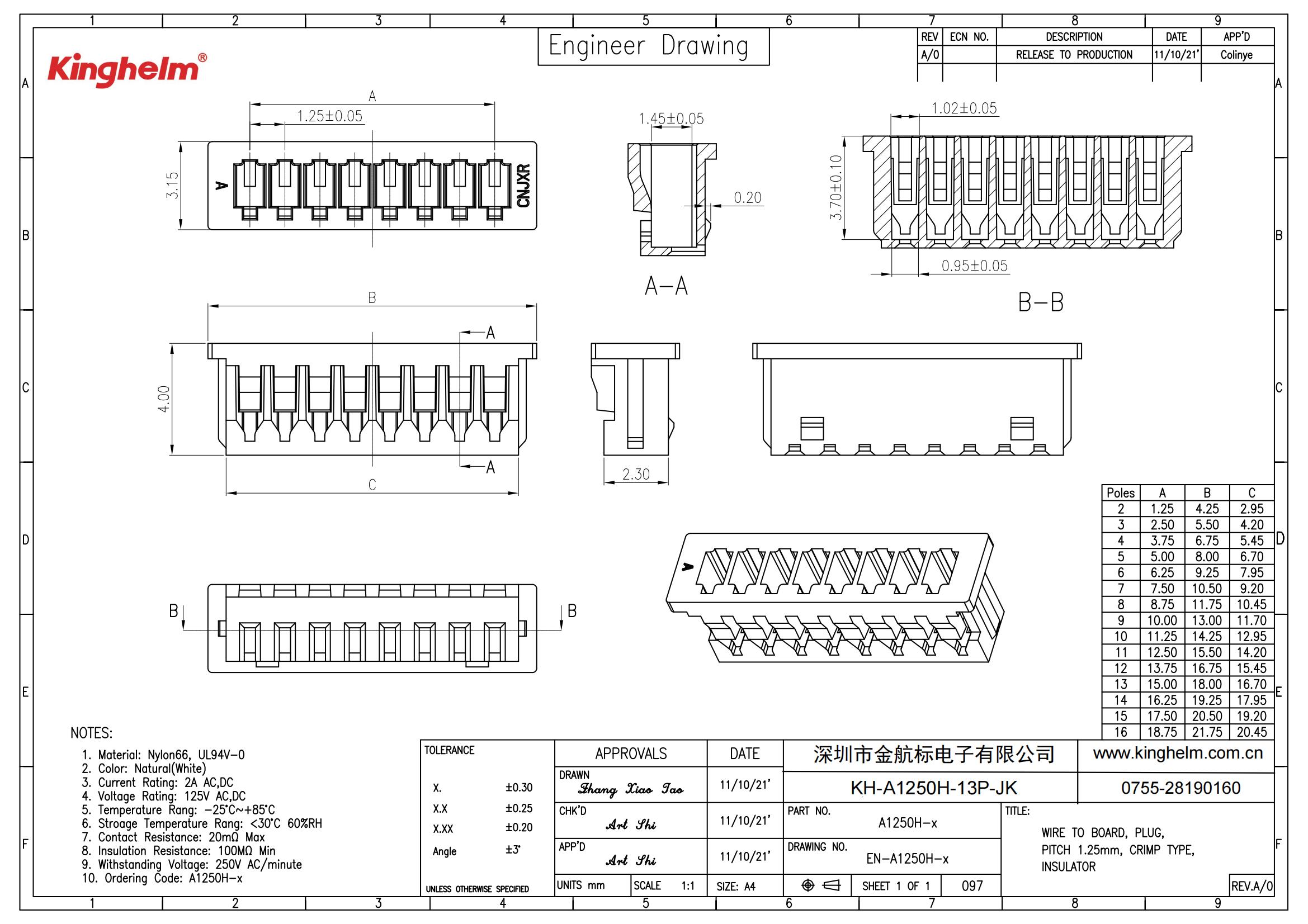

Crimp Terminal Shell 1.25mm Pitch 1x13p Connector Housing, KH-A1250H-13P-JK
Current Rating: 2A AC/DC
Voltage Rating: 125V AC/DC
Operating Temperature Range: -25°C to +85°C
Contact Resistance: ≤20 mΩ
Insulation Resistance: ≥100 MΩ
Withstanding Voltage: 250V AC / 1 minute
Product Benefits
● Compact 13 pin layout for streamlined designs
● Secure housing structure for firm wire hold
● Excellent electrical insulation performance
● Heat resistant plastic for stable operation
● Easy assembly for faster production
● Designed for light duty AC DC power systems
Product Applications
● Handheld electronic devices
● LED controller units
● Small robotics systems
● Network interface hardware
● Educational electronic kits
● Lightweight communication terminals
