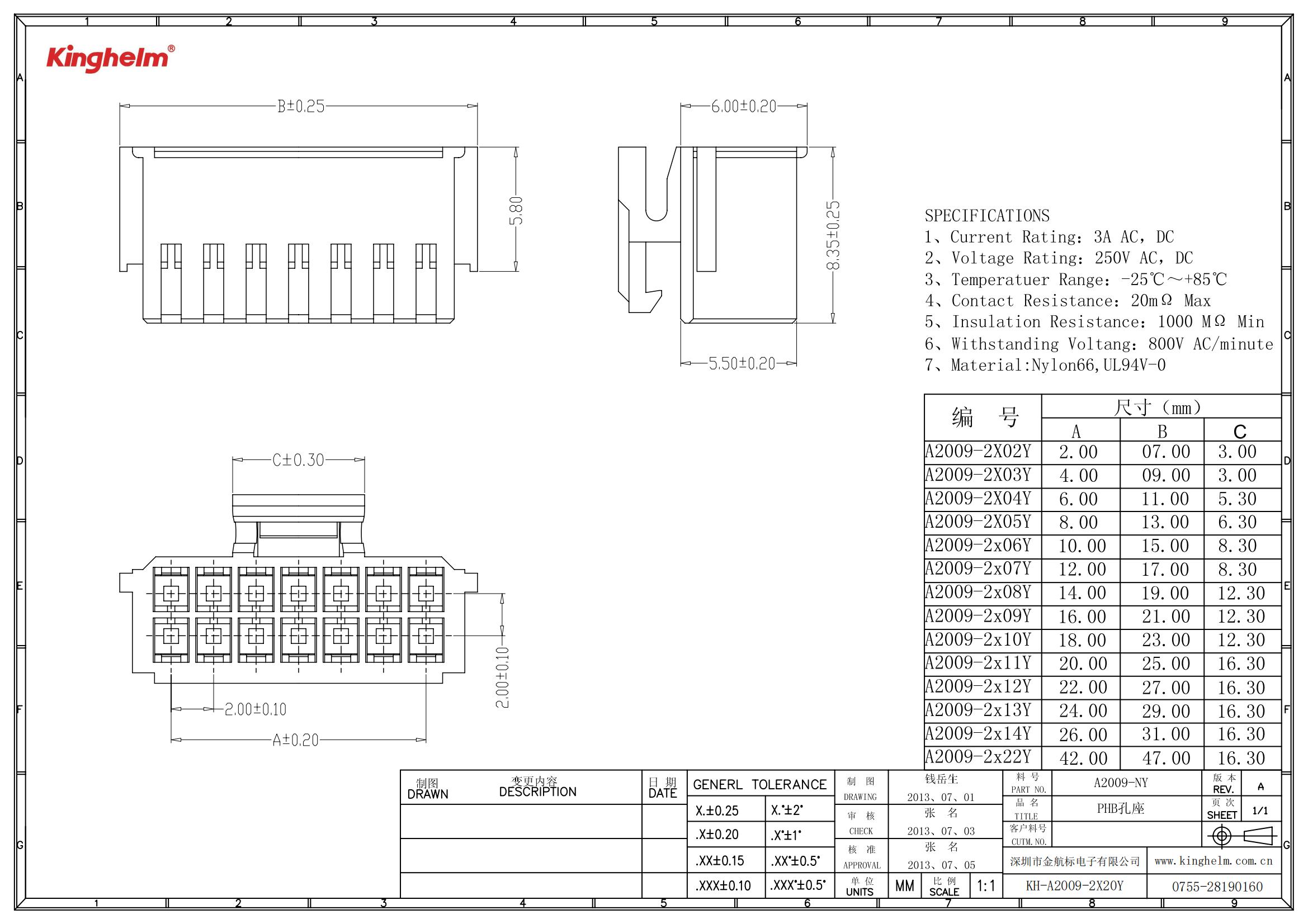

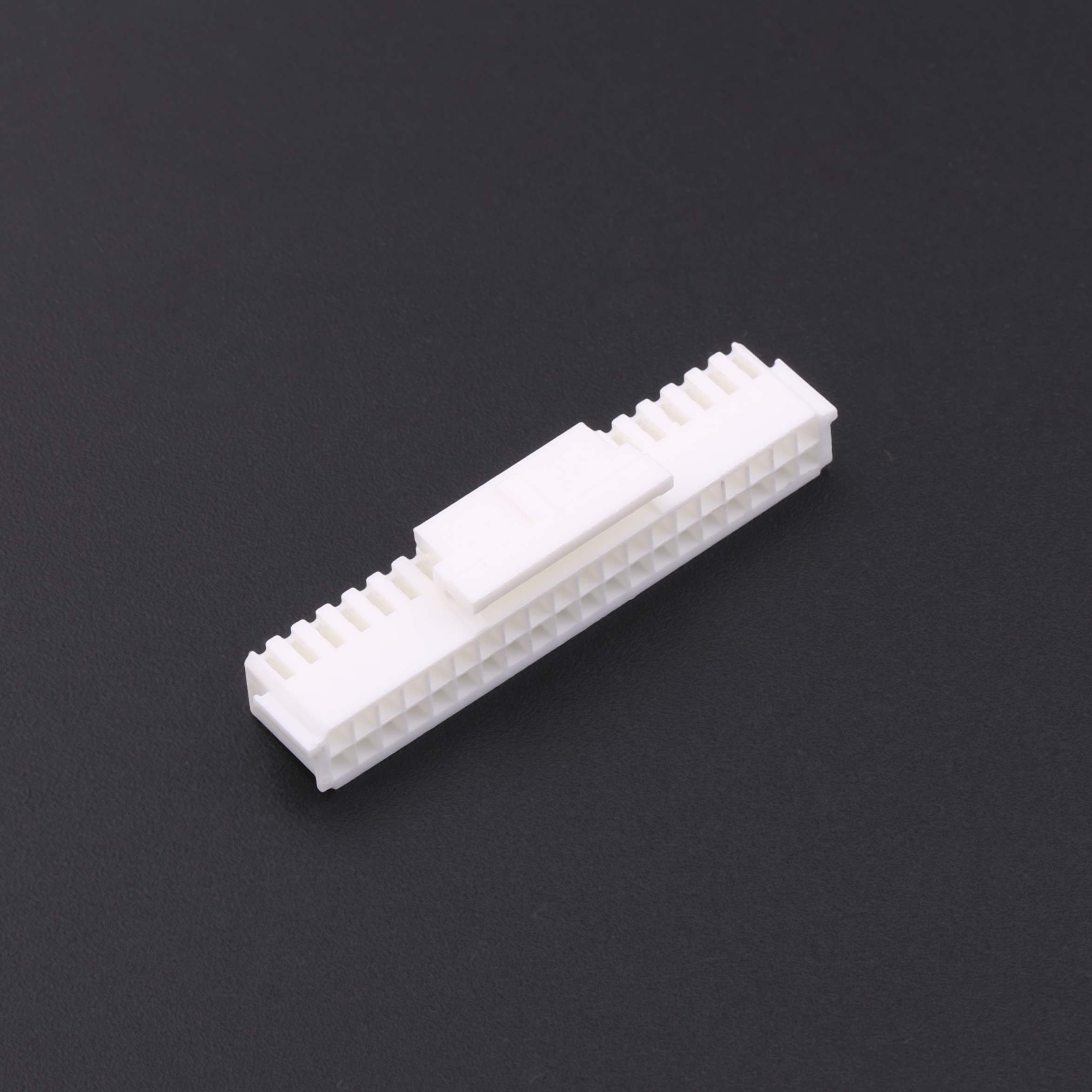

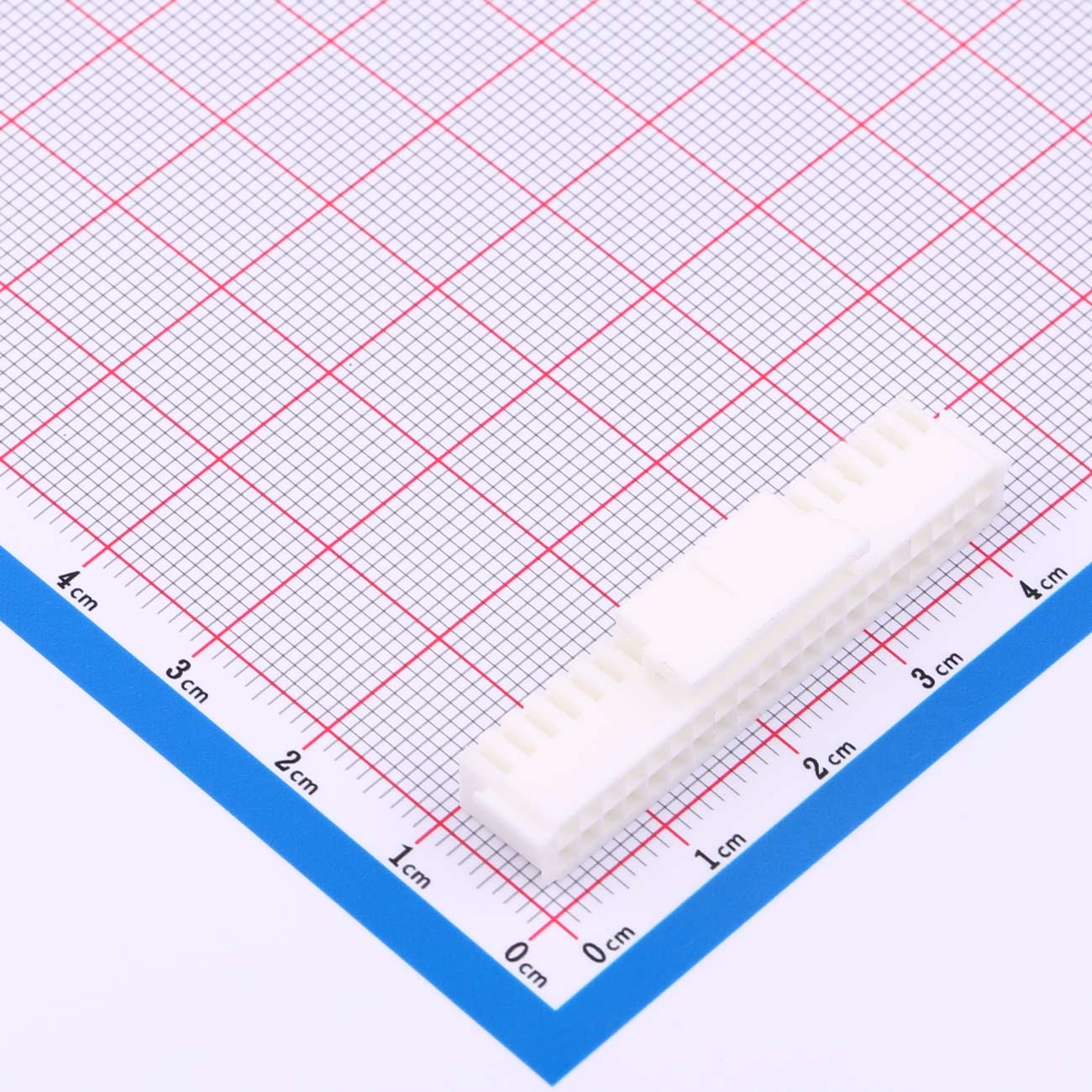

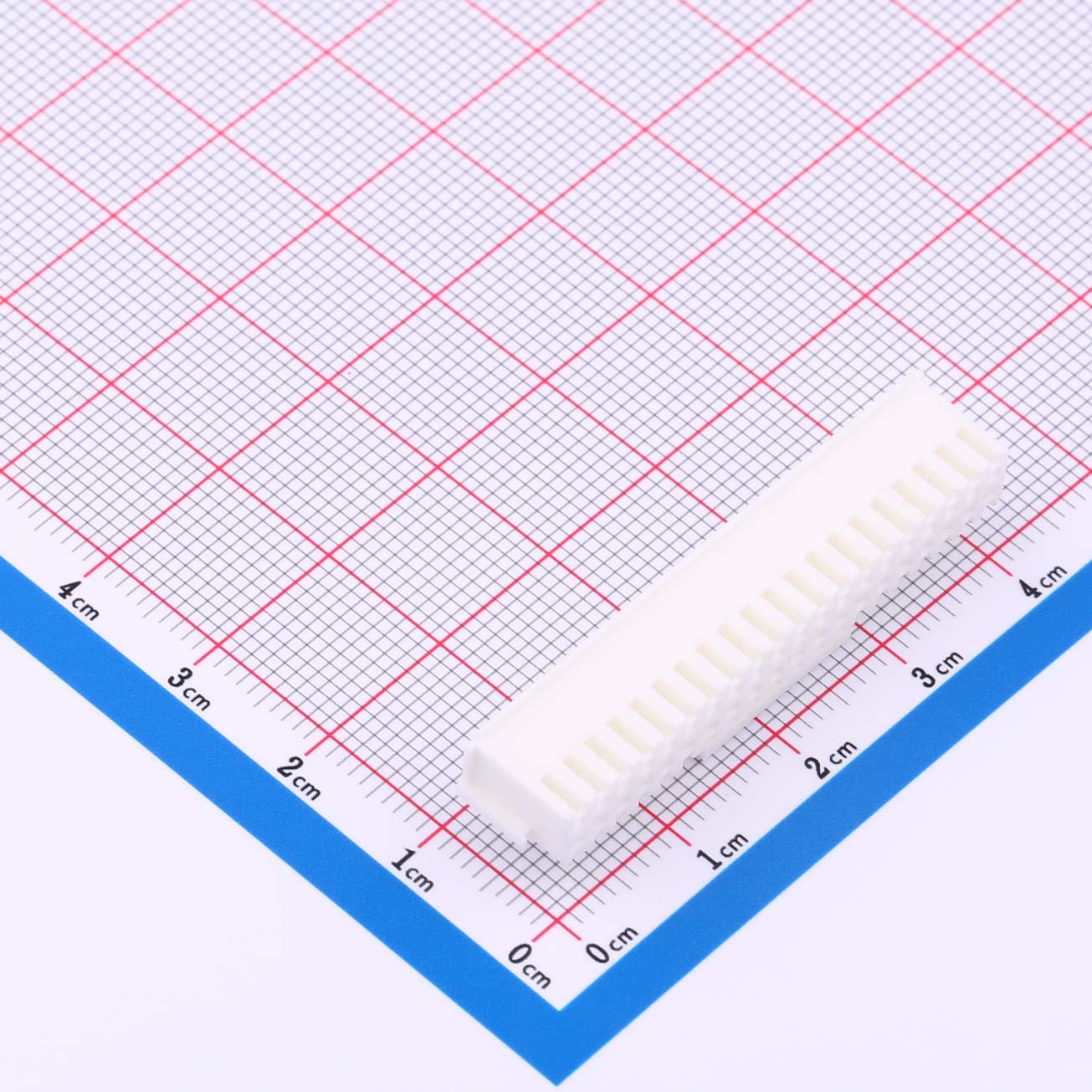

Crimp Terminal Shell, 2mm Pitch, 2x20P, KH-A2009-2X20Y

Crimp Terminal Shell, 2mm Pitch, 2x20P, KH-A2009-2X20Y

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 800V AC/minute

Inquiry Datasheet

Product Details

Product Benefits
● Strong connection
● Good insulation
● High reliability
● Easy installation
● Standard design

Product Application
● Electronics
● Industrial control
● Automotive
● Communication
● Home appliances
● LED lighting
● DIY projects
