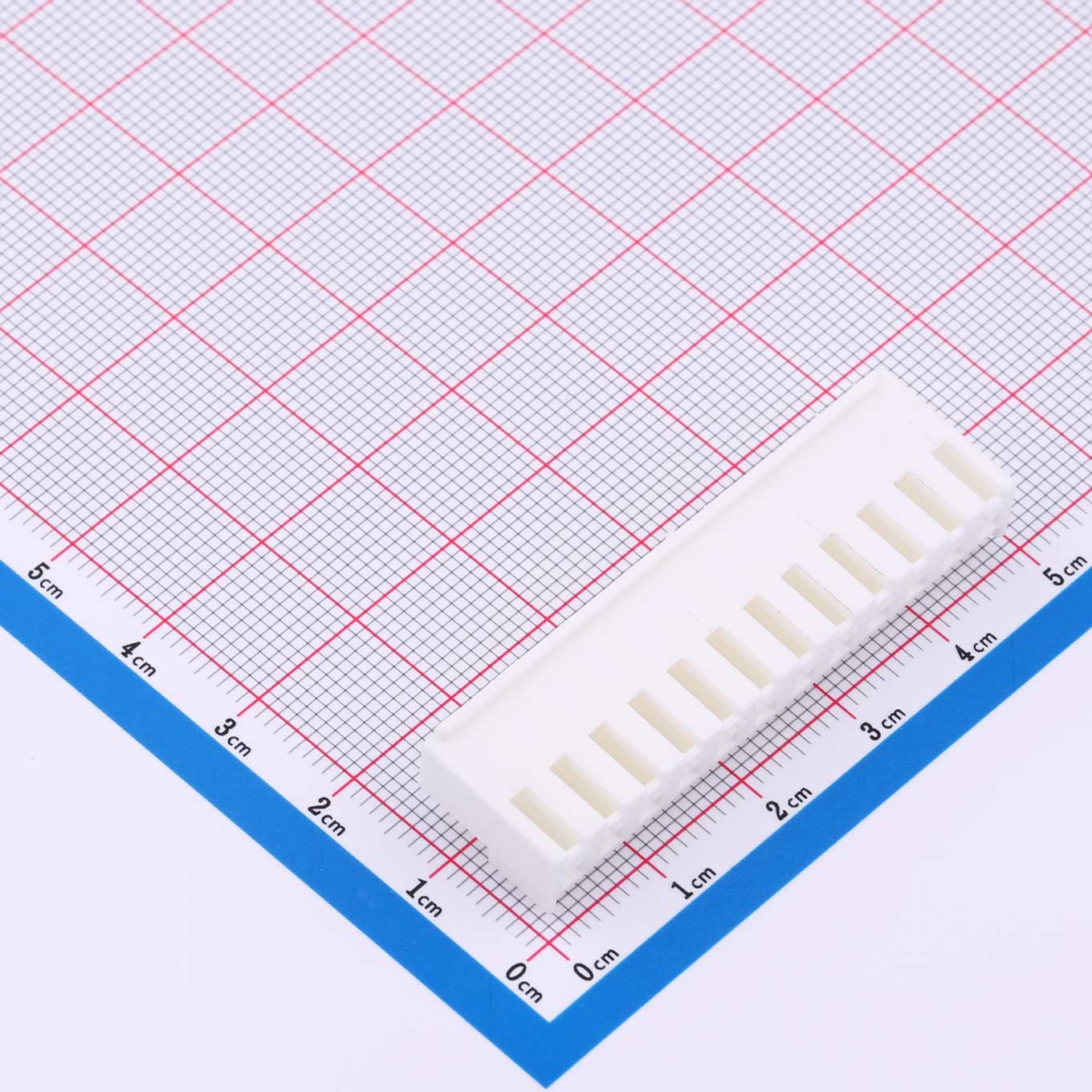

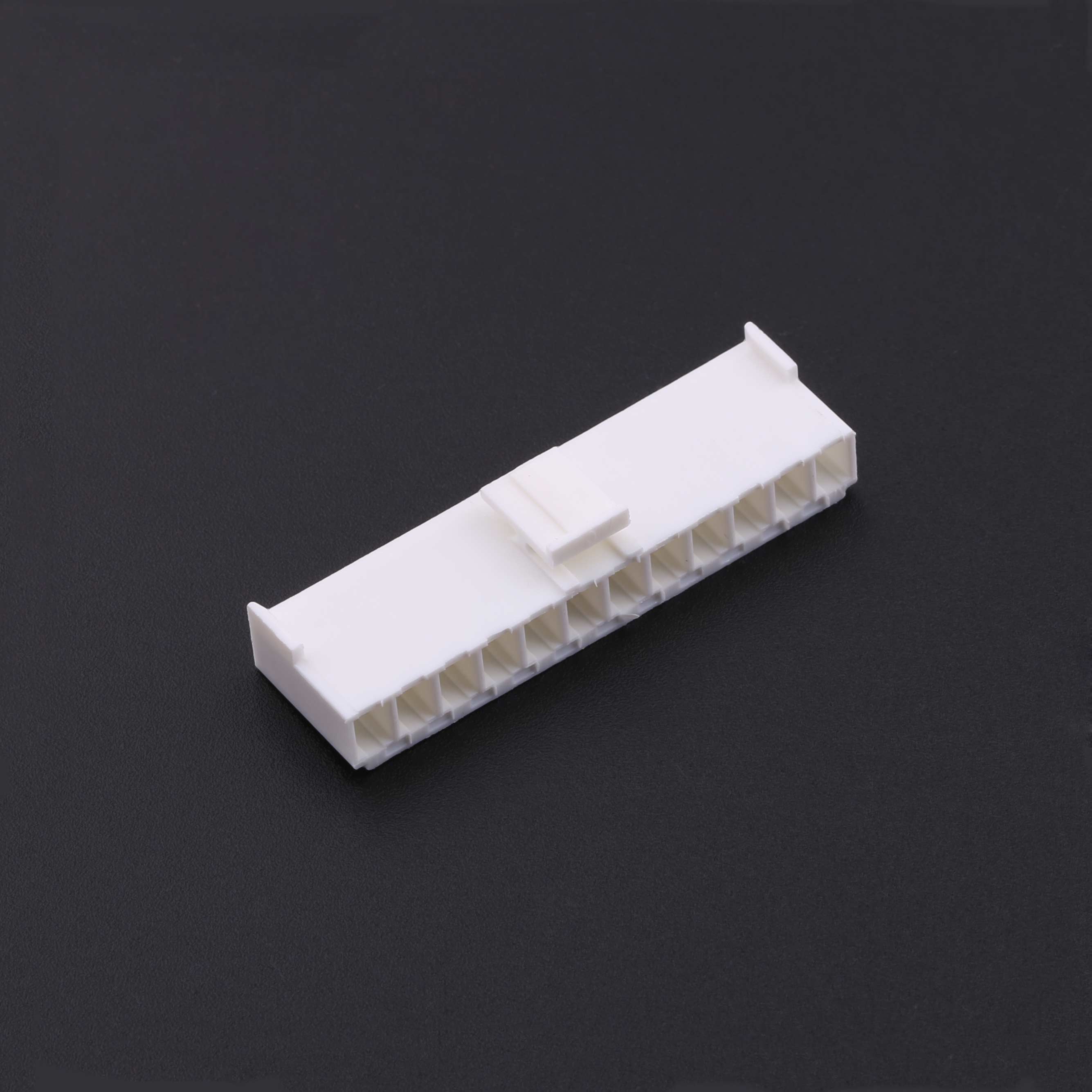

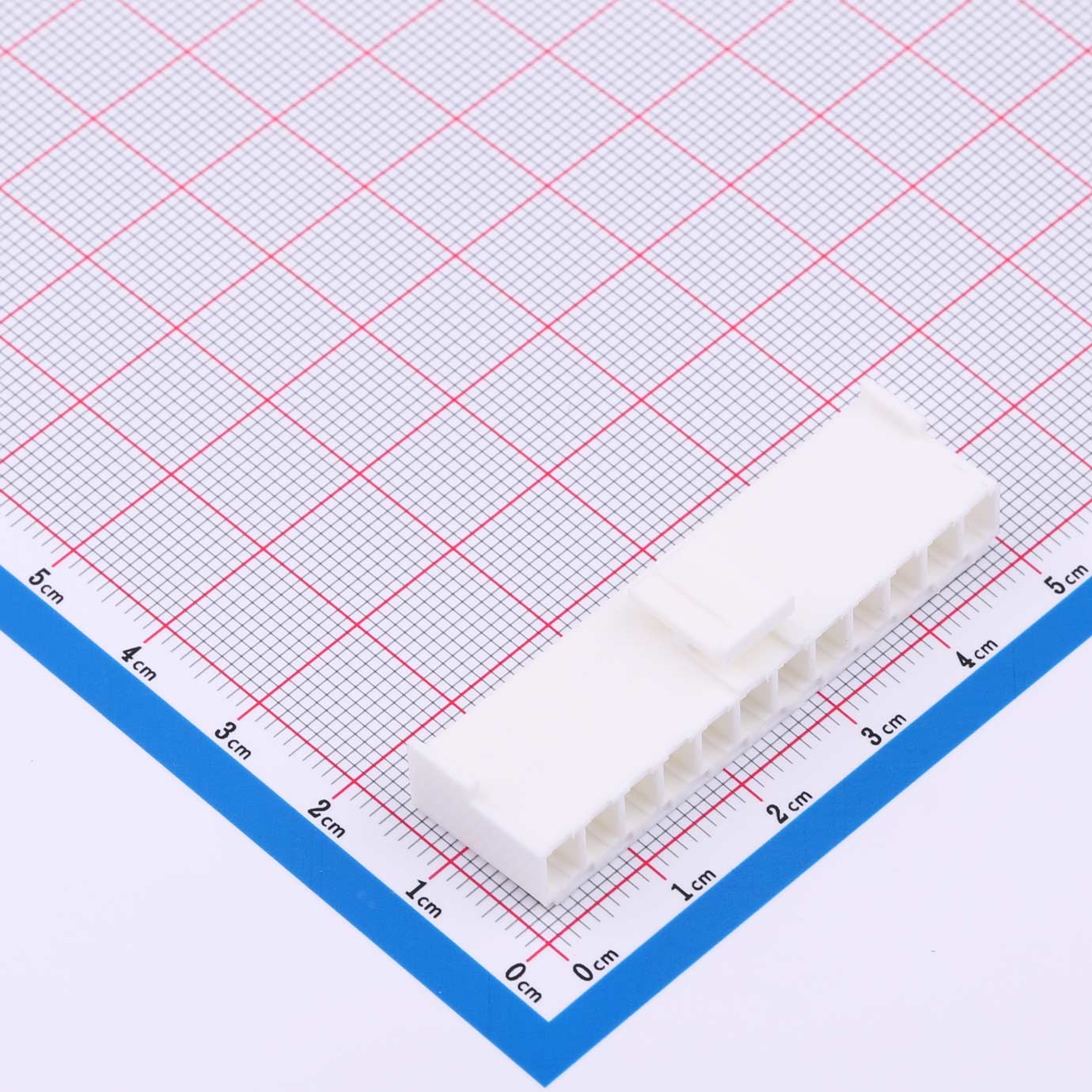

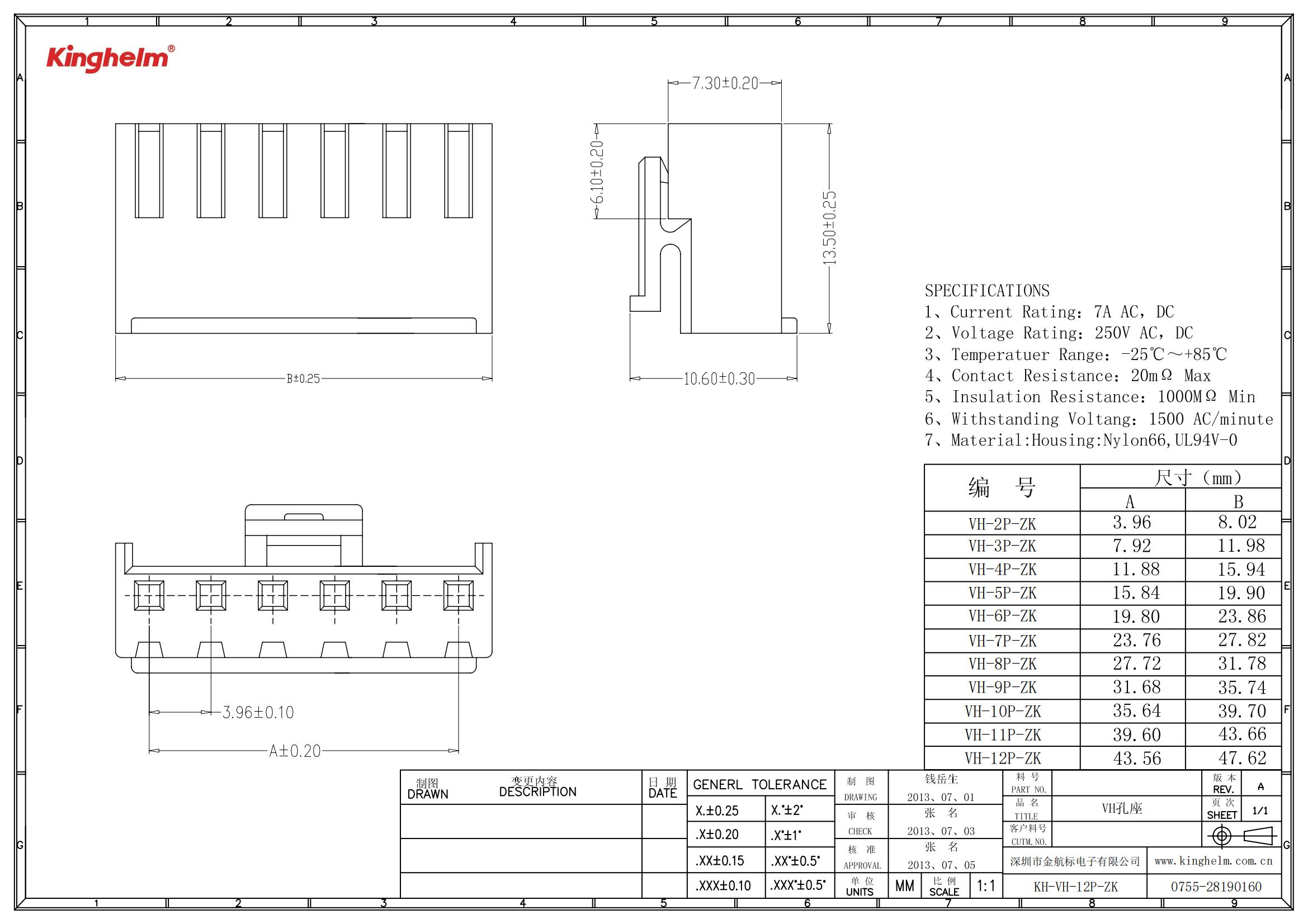

Crimp Terminal Shell, 3.96mm Pitch, 1x12P, KH-VH-12P-ZK
Current Rating: 7A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 1500V AC/ minute
Product Benefits
● High current capacity up to 7A
● Sturdy Nylon66 housing material
● Flame-retardant UL94V-0 rating
● 3.96mm pitch for secure connections
● 1x12P layout for multi-line wiring
● Compatible with VH series connectors
Product Application
● Power control units
● Heavy-duty industrial equipment
● Large household appliances
● Electric vehicle components
● Motor driver circuits
