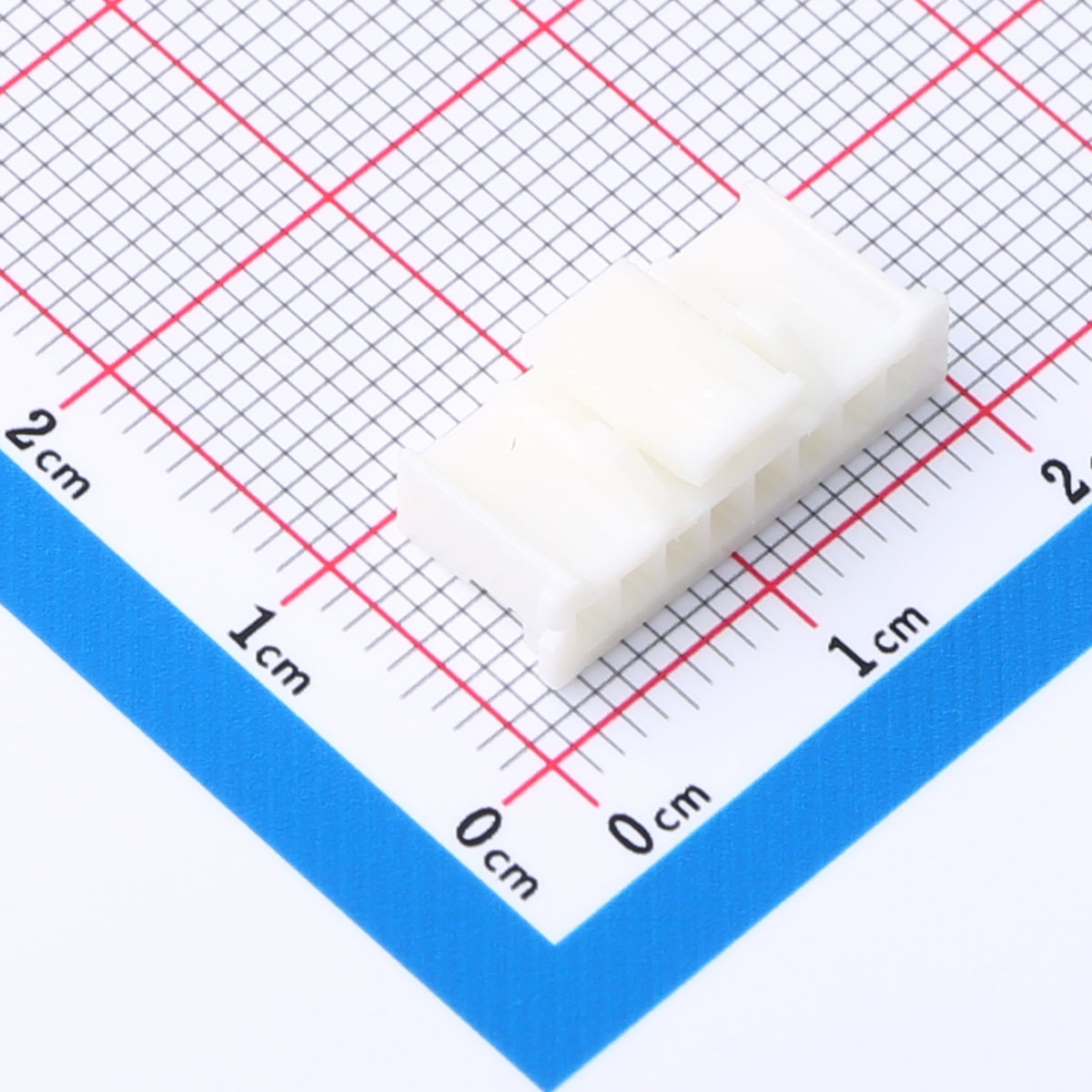

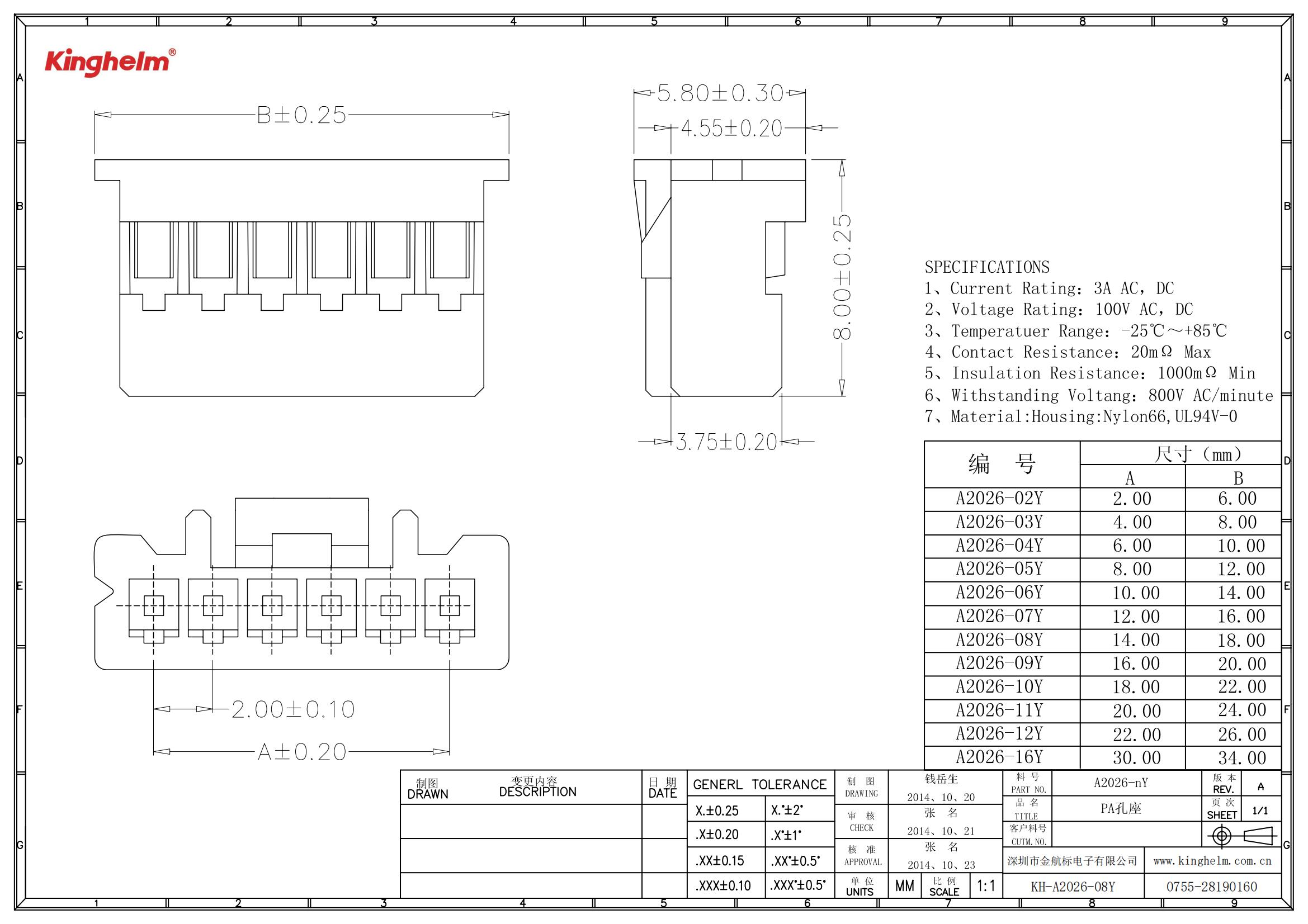

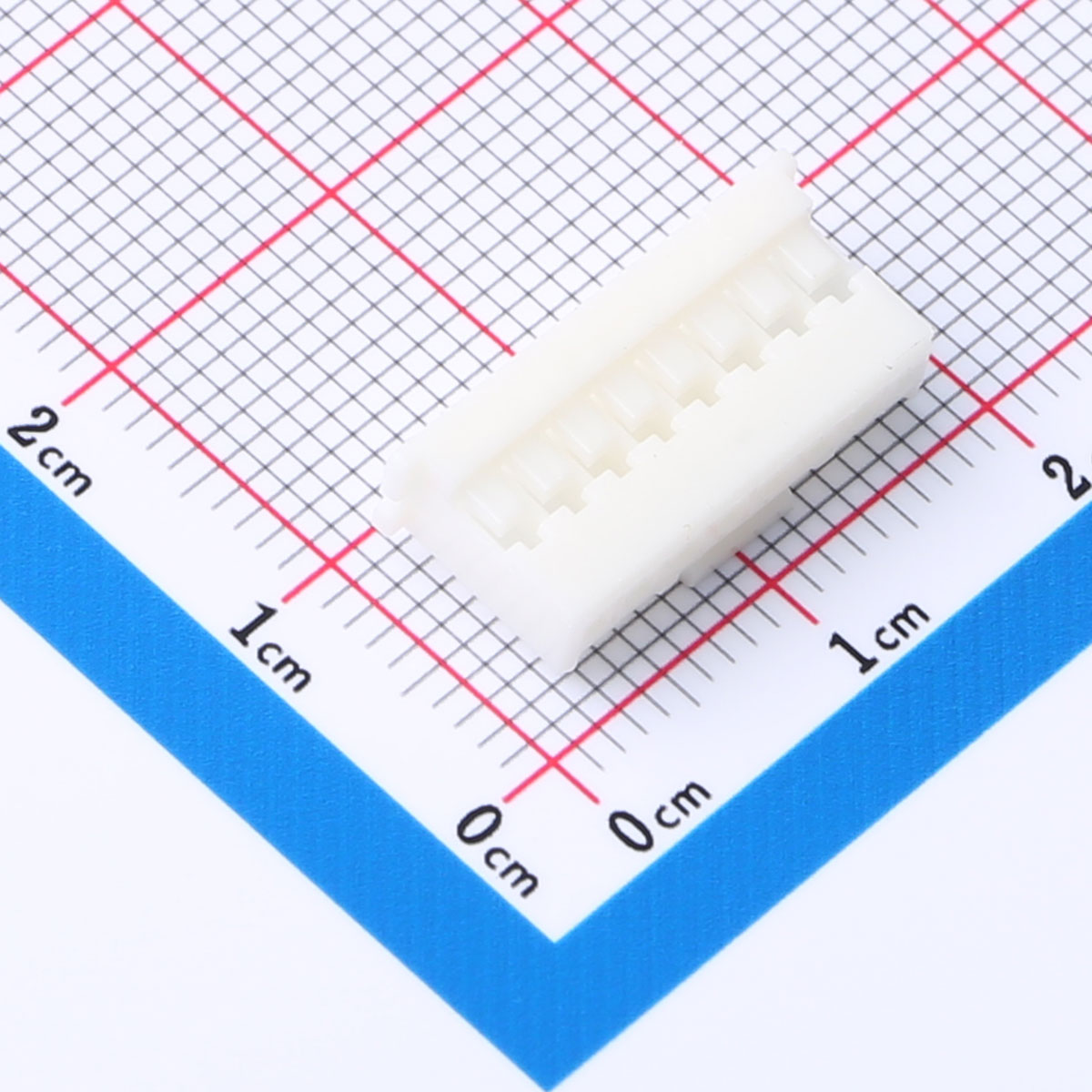

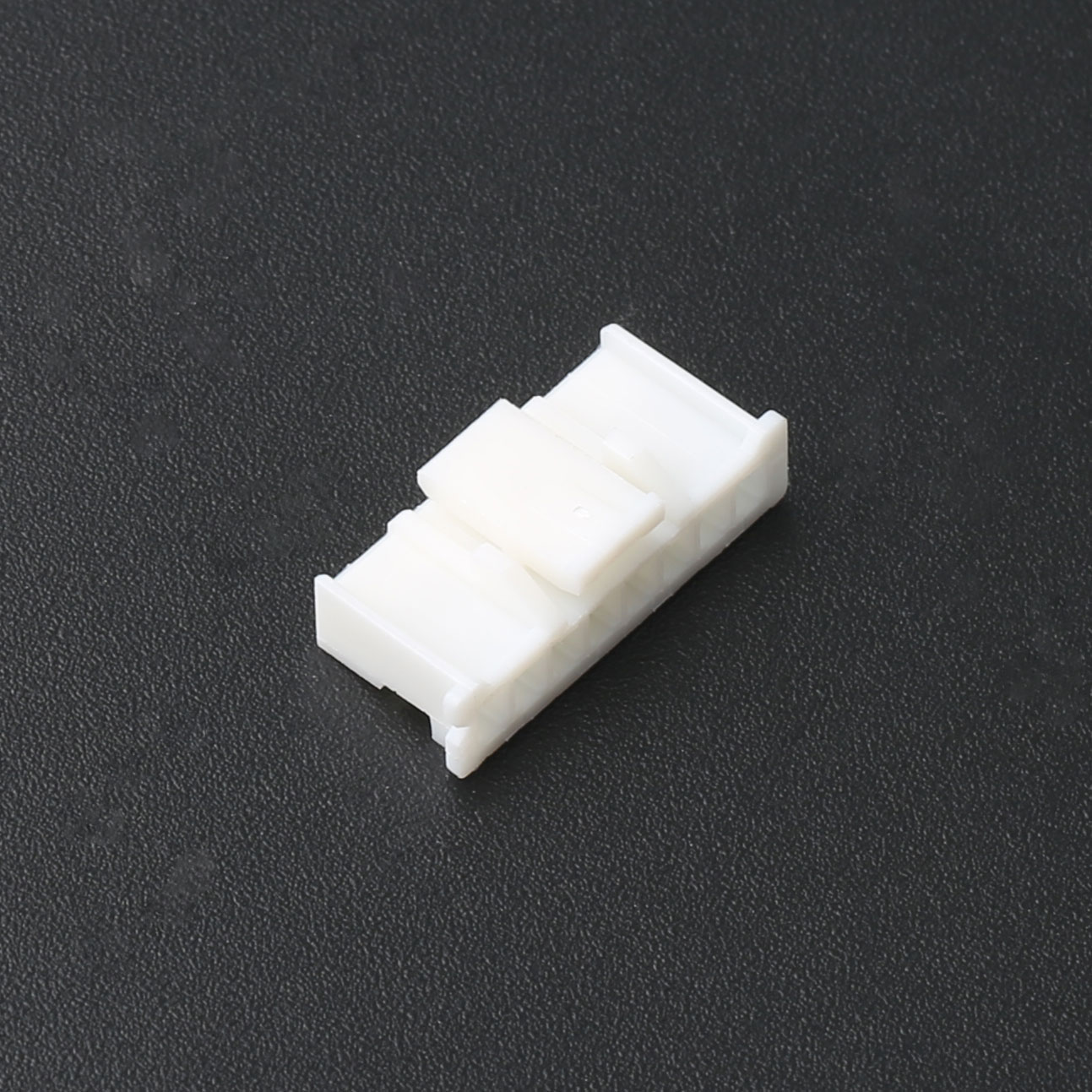

Crimp Terminal Shell 2mm Pitch 1x8p Connector Housing, KH-A2026-08Y
Rated Current: 3A (AC/DC)
Rated Voltage: 100V (AC/DC)
Operating Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Dielectric Withstanding Voltage: 800V AC / minute
Product Benefits
● Single row 8 pin layout for compact design
● 2mm pitch for tight space installations
● Rated 3A 100V for AC or DC use
● Stable and reliable connectivity
● Lightweight housing with strong structure
● Fast and simple assembly process
Product Application
● Vehicle electrical systems
● Portable electronic devices
● Factory automation equipment
● Network and telecom units
● Power control modules
● Household electric products
