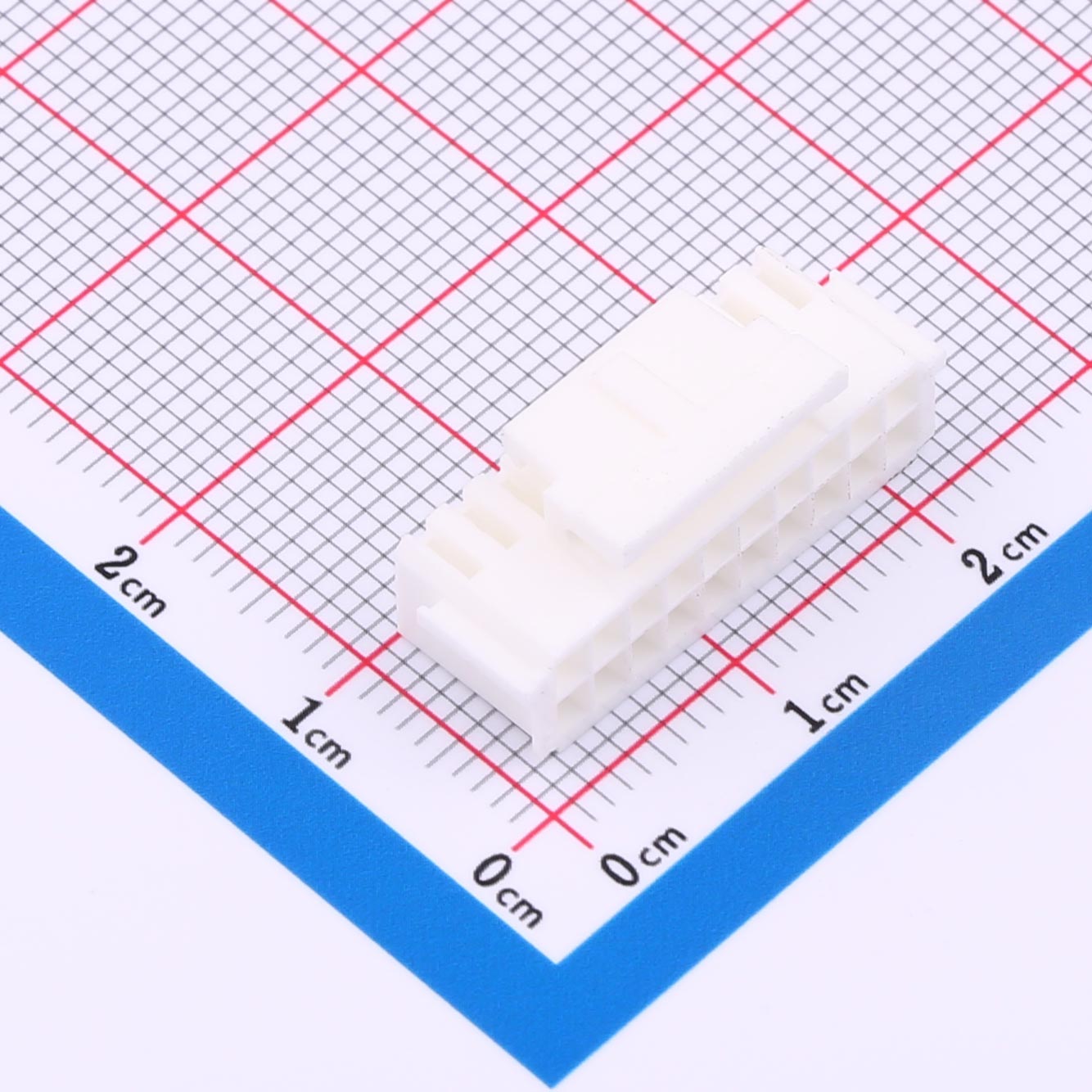

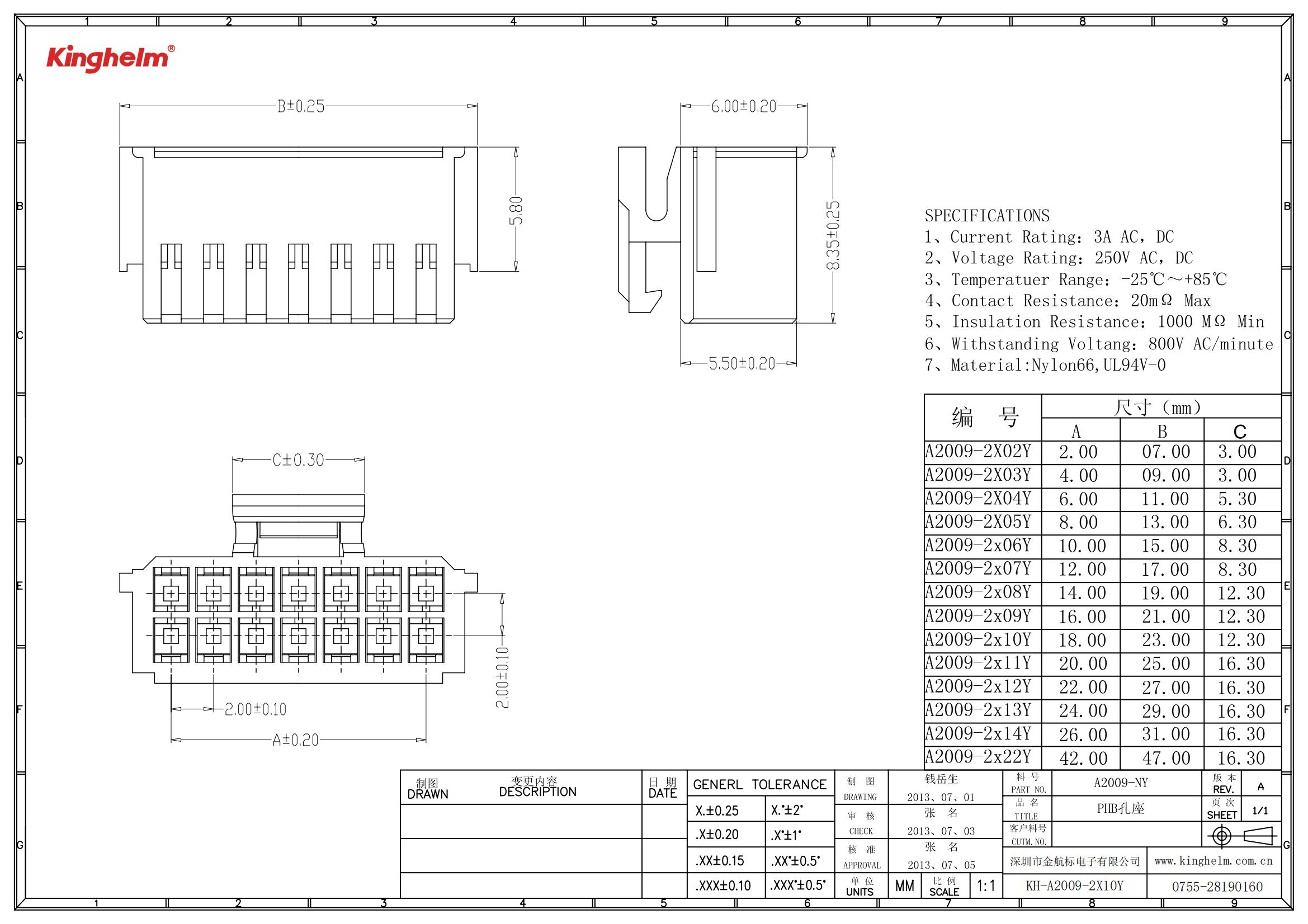

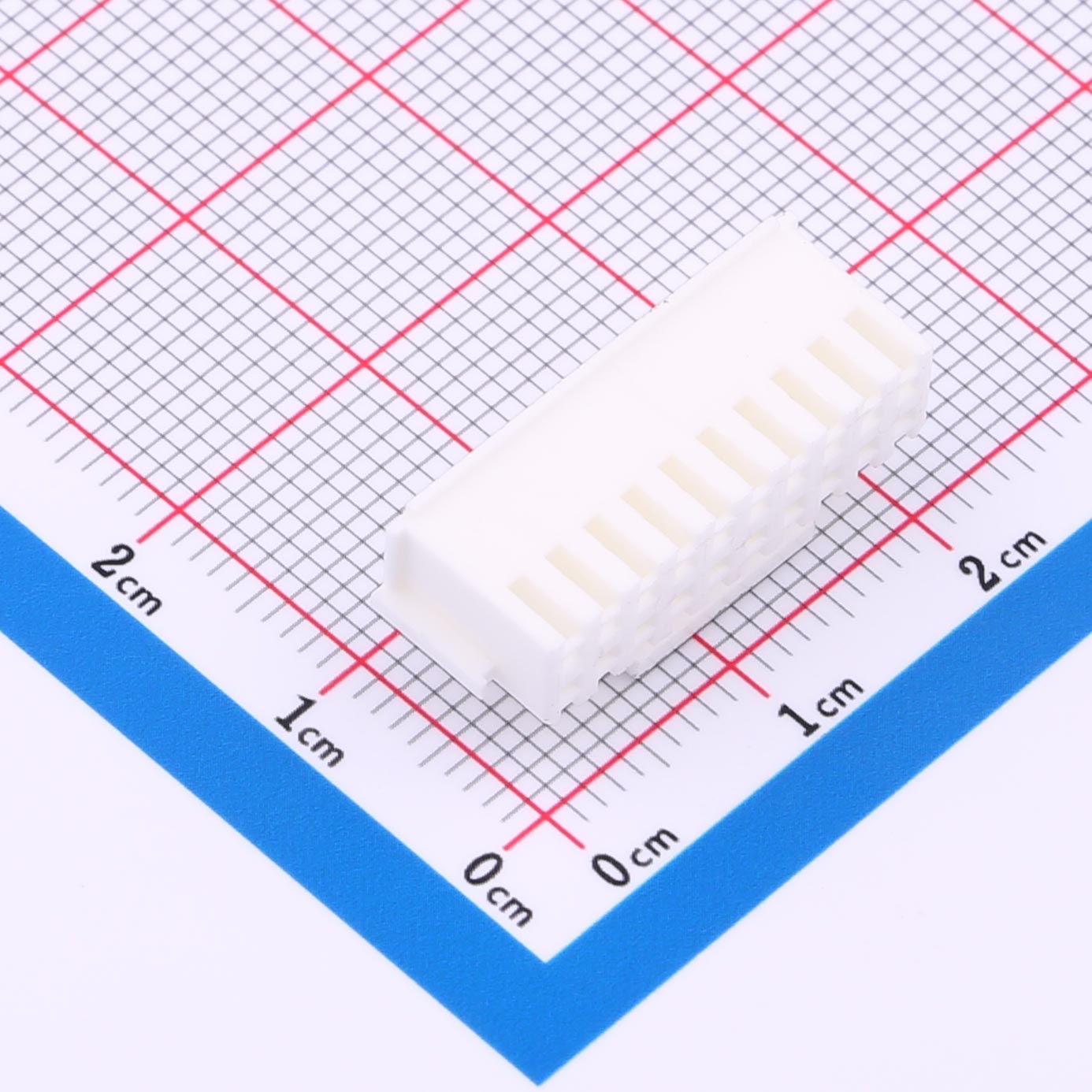

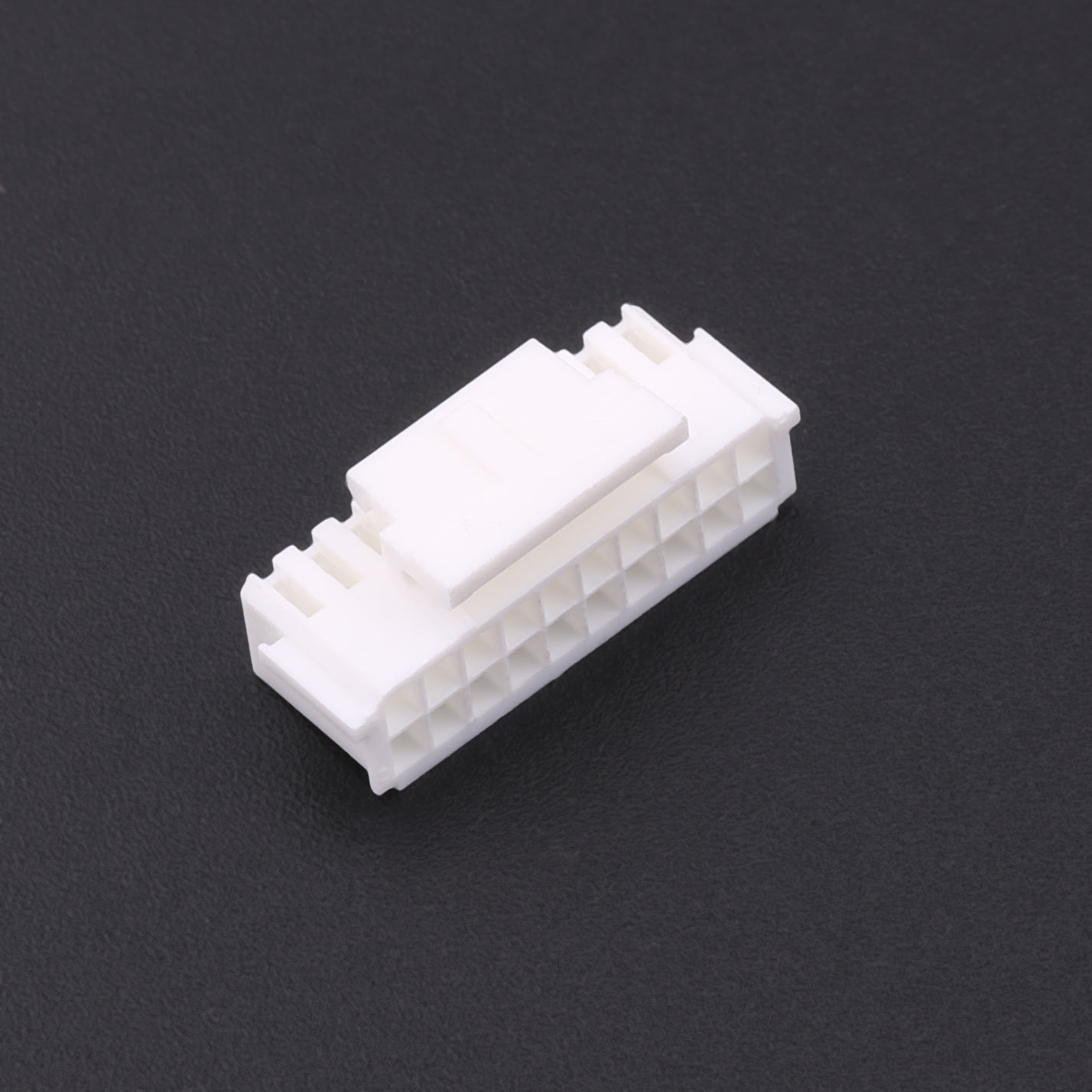

Crimp Terminal Shell, 2mm Pitch, 2x10P, KH-A2009-2X10Y

Crimp Terminal Shell, 2mm Pitch, 2x10P, KH-A2009-2X10Y

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 800V AC/minute

Inquiry Datasheet

Product Details

Product Benefits
● High dielectric strength
● Easy crimping compatibility
● Stable under vibration
● Anti-aging material
● Clear pin alignment

Product Application
● 3D printers
● Alarm systems
● HVAC control boards
● Electric toys
● POS terminals
