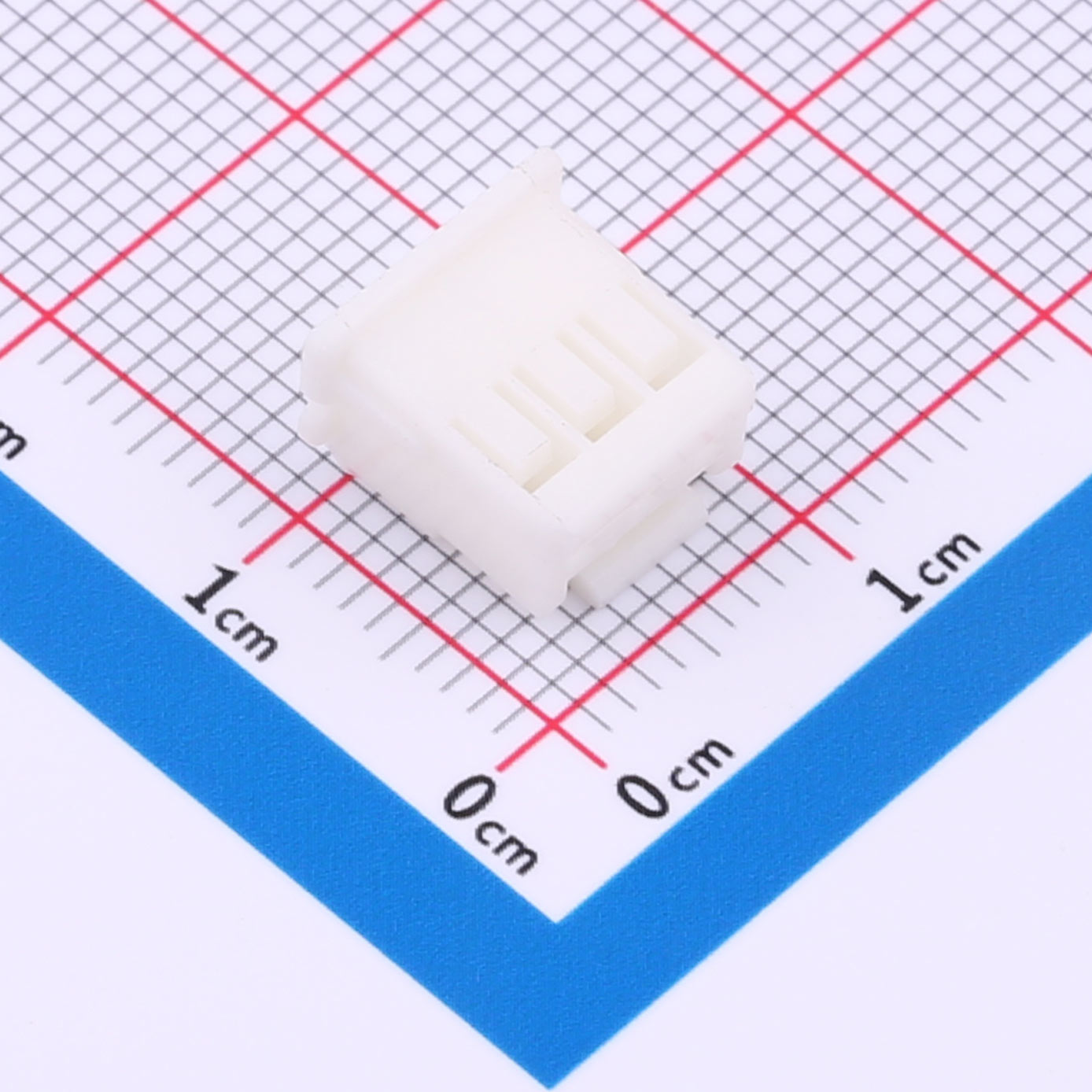

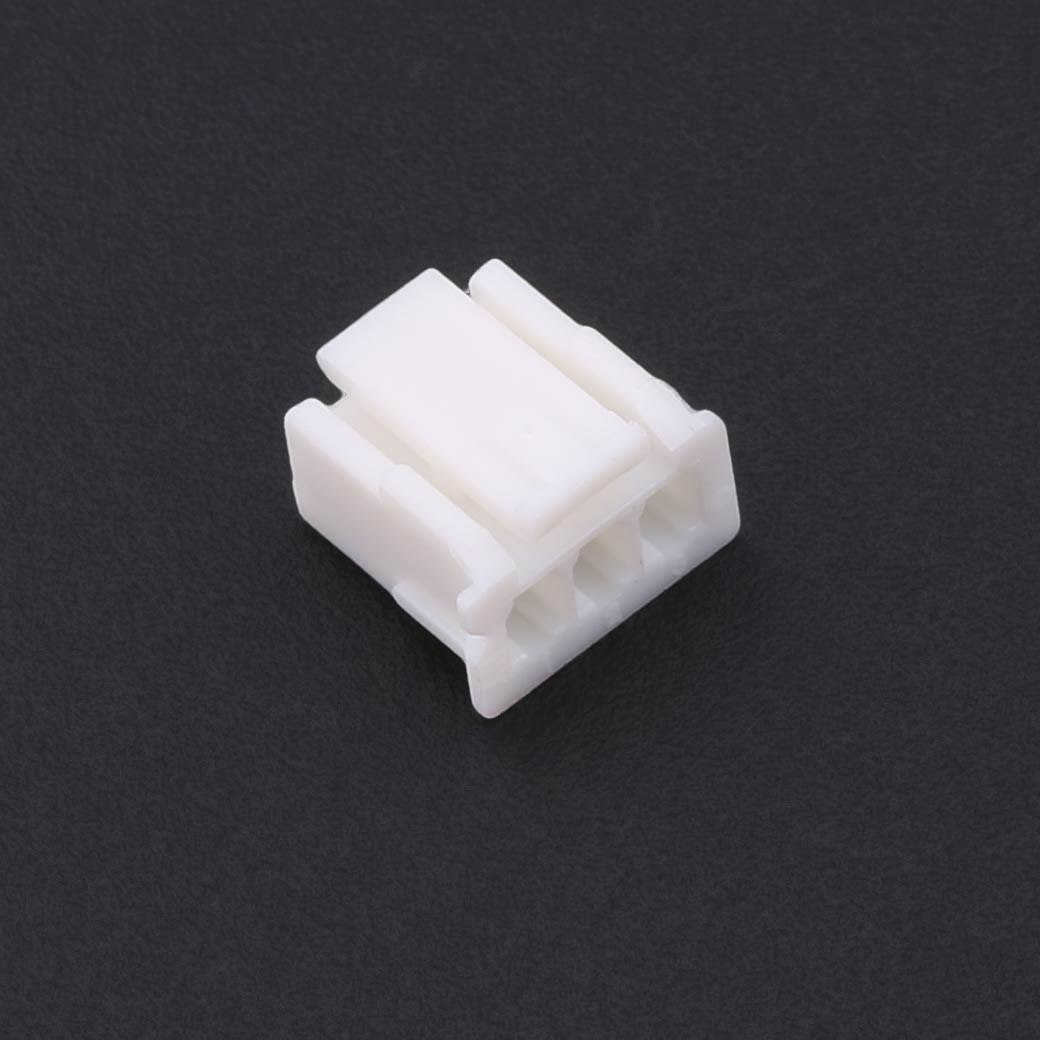

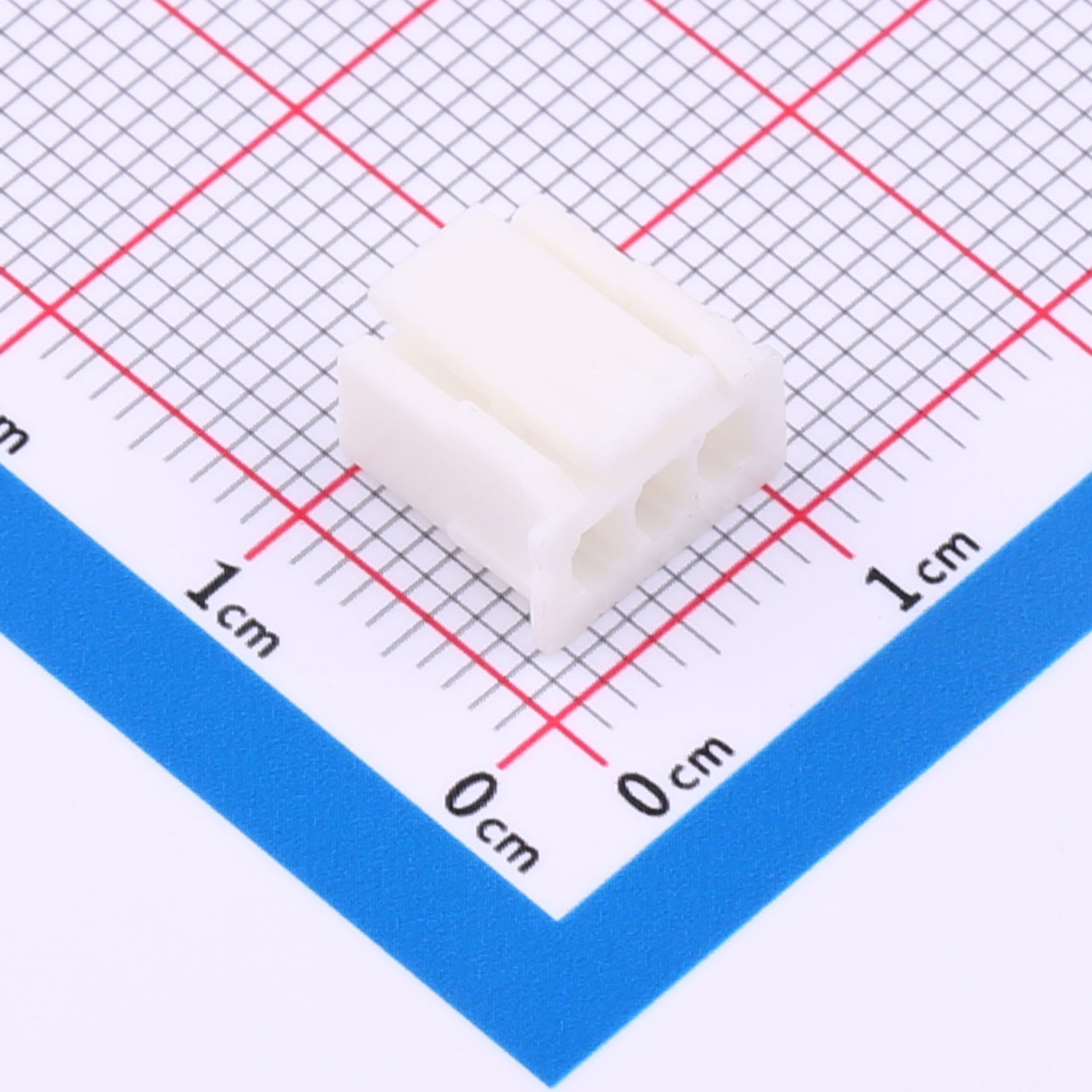

Crimp Terminal Shell, 2.5mm Pitch, 1x3P, KH-A2508-03Y
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 1000V AC/minute
Product Benefits
● Minimalist design for micro applications
● High-performance Nylon66 housing
● UL94V-0 flame-retardant certification
● 3A current handling for AC/DC power
● Wide temperature tolerance from -25°C to +85°C
● 1x3P configuration for quick installation
Product Application
● Smart sensors
● Mini control boards
● Low-power modules
● Compact LED units
● Handheld electronic devices
