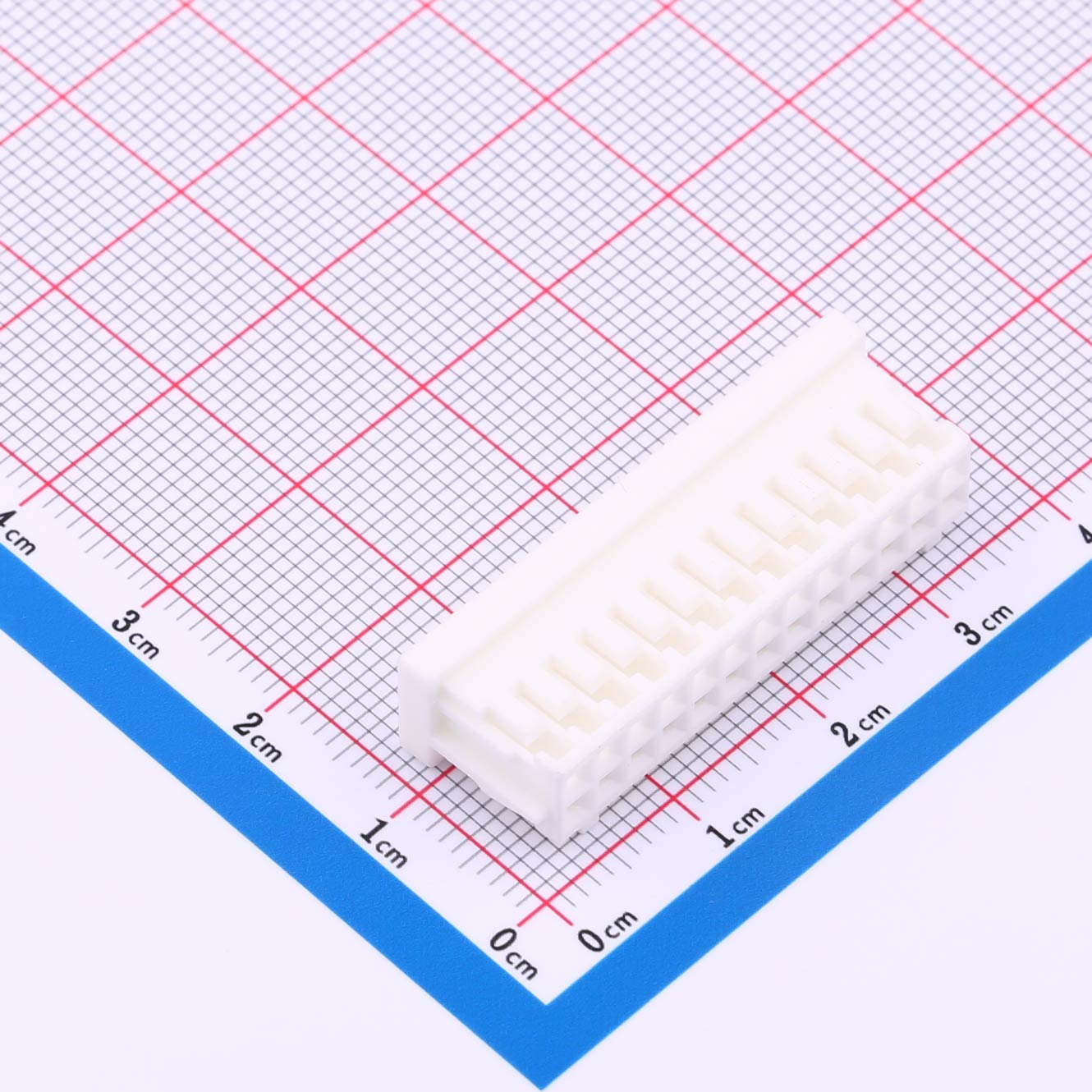

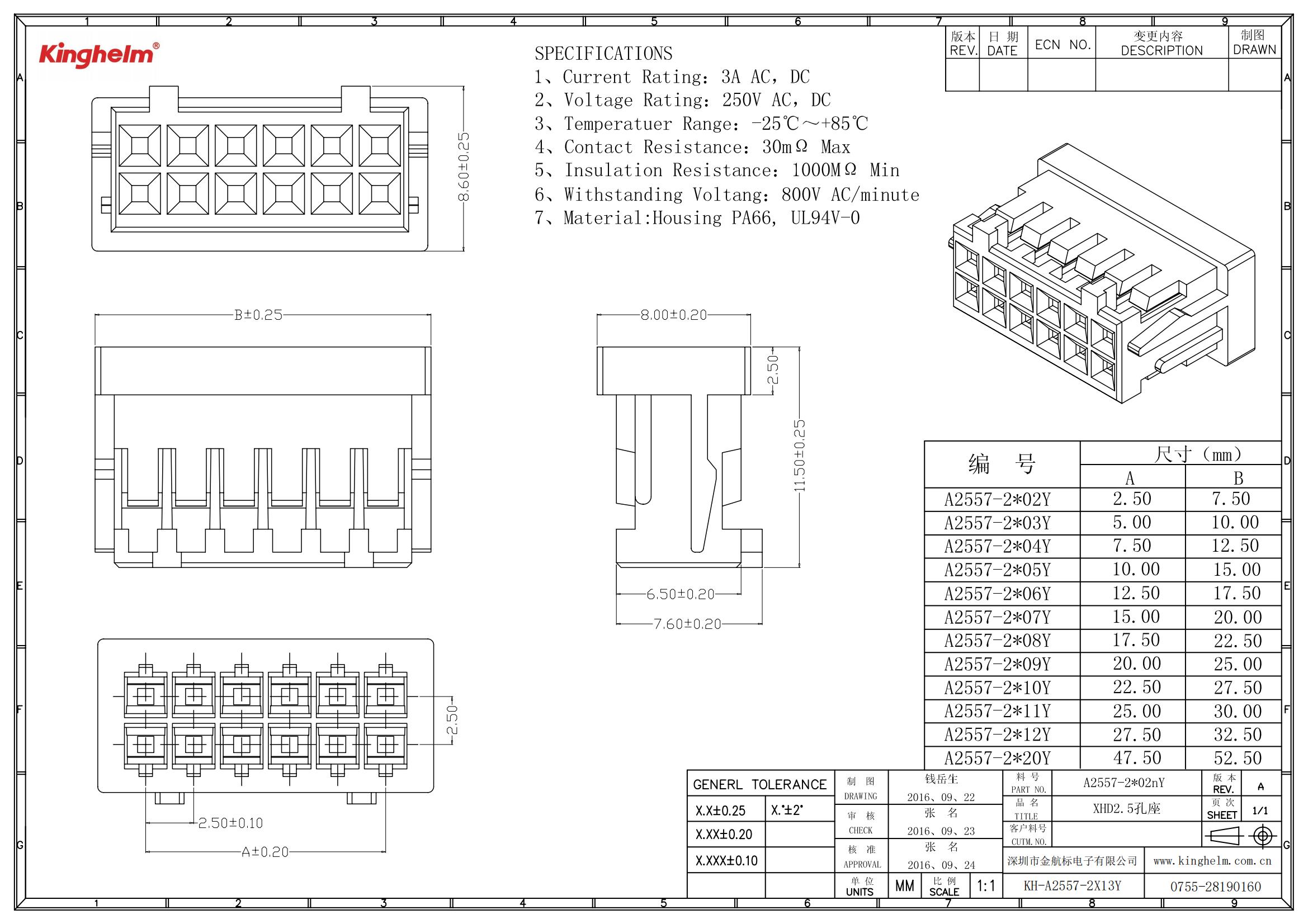

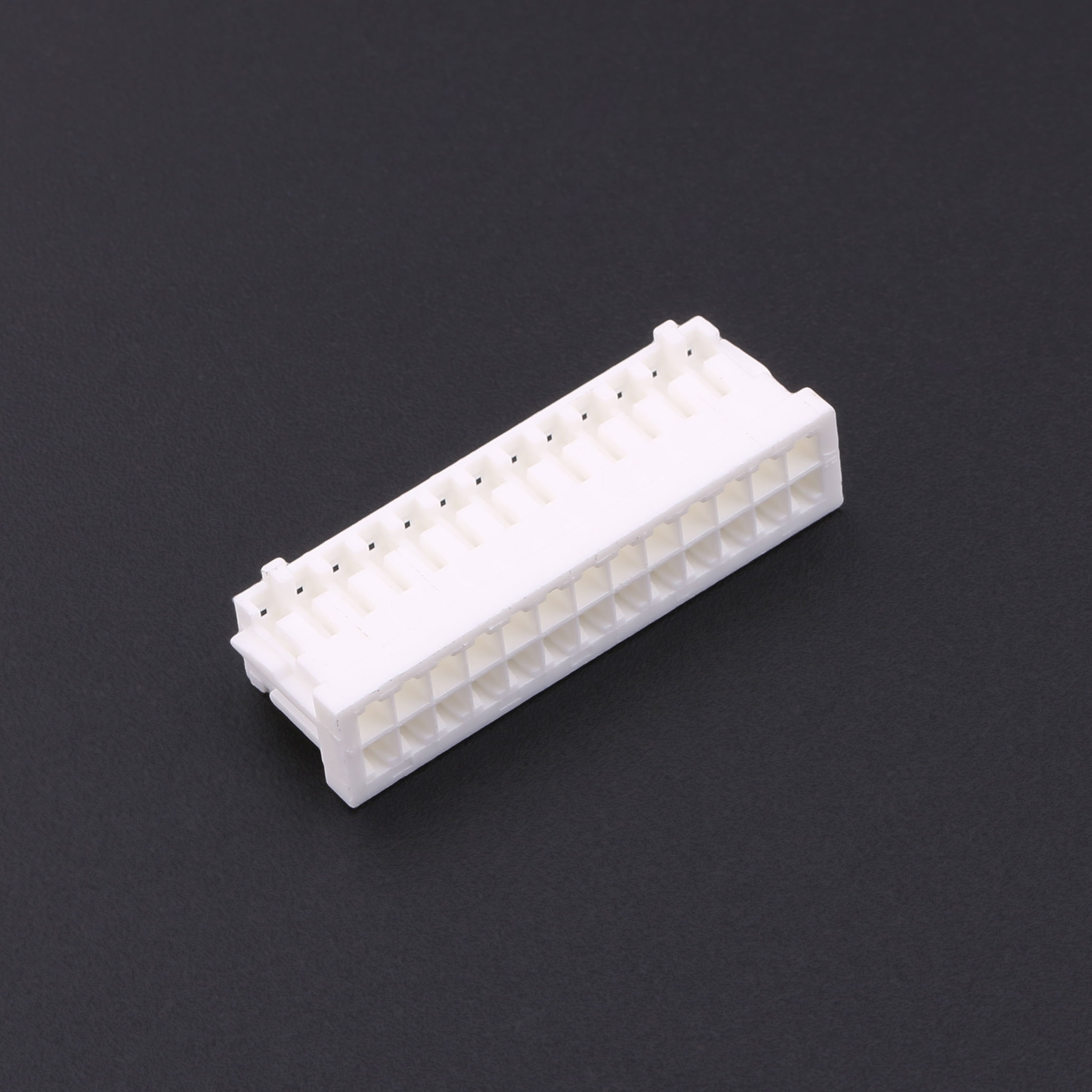

Crimp Terminal Shell, 2.5mm Pitch, 2x13P, KH-A2557-2X13Y
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25°C ~ +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 800V AC/minute
roduct Benefits
● Reliable connection for power distribution
● Compact 2.5mm pitch design saves space
● High-quality PA66 housing for durability
● UL94V-0 rated material for flame resistance
● Suitable for both AC and DC applications
● Supports 3A current for efficient power flow
Product Application
● Used in power supply systems
● Ideal for electrical appliances
● Suitable for consumer electronics
● Applications in industrial automation
● Used in control panels and circuit boards
