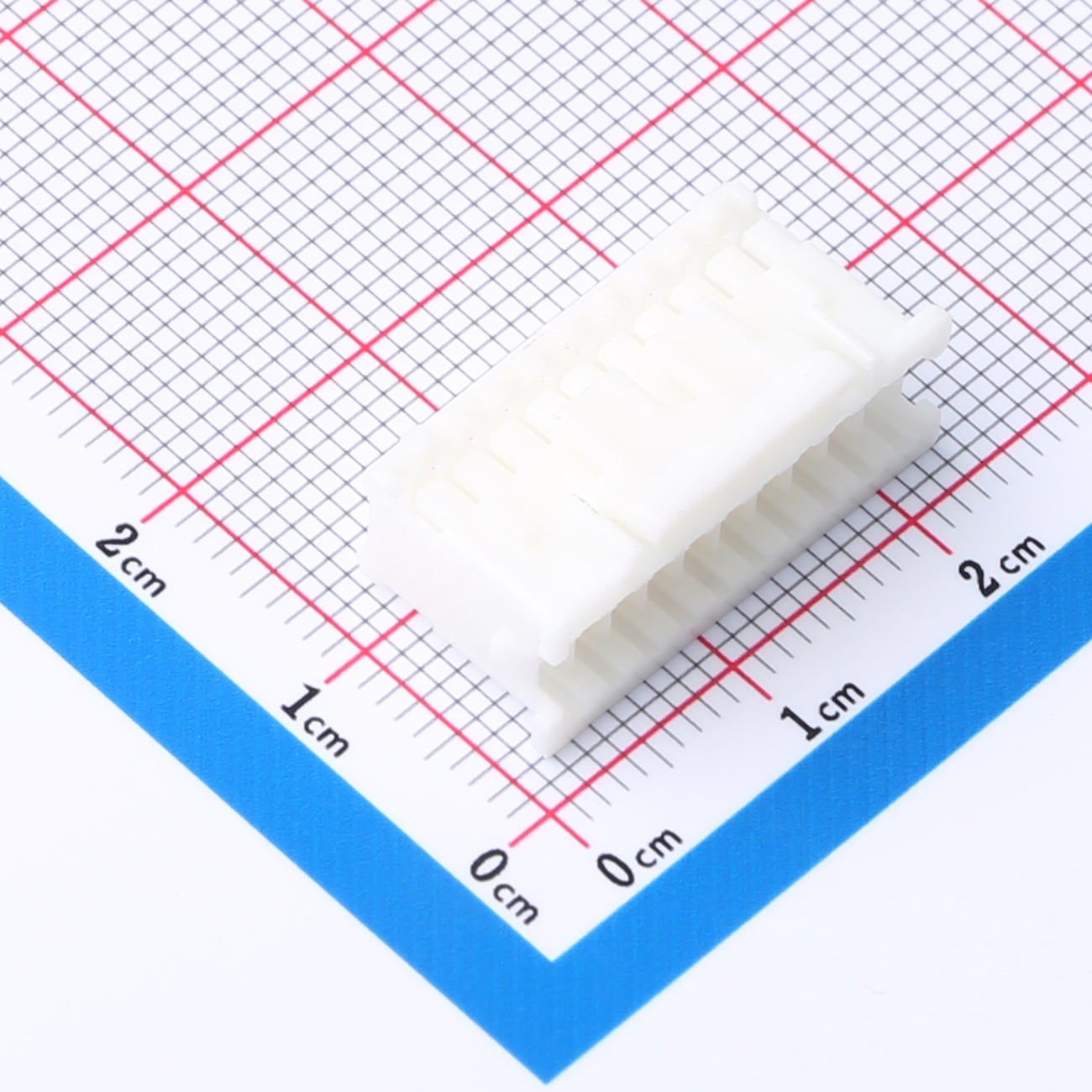

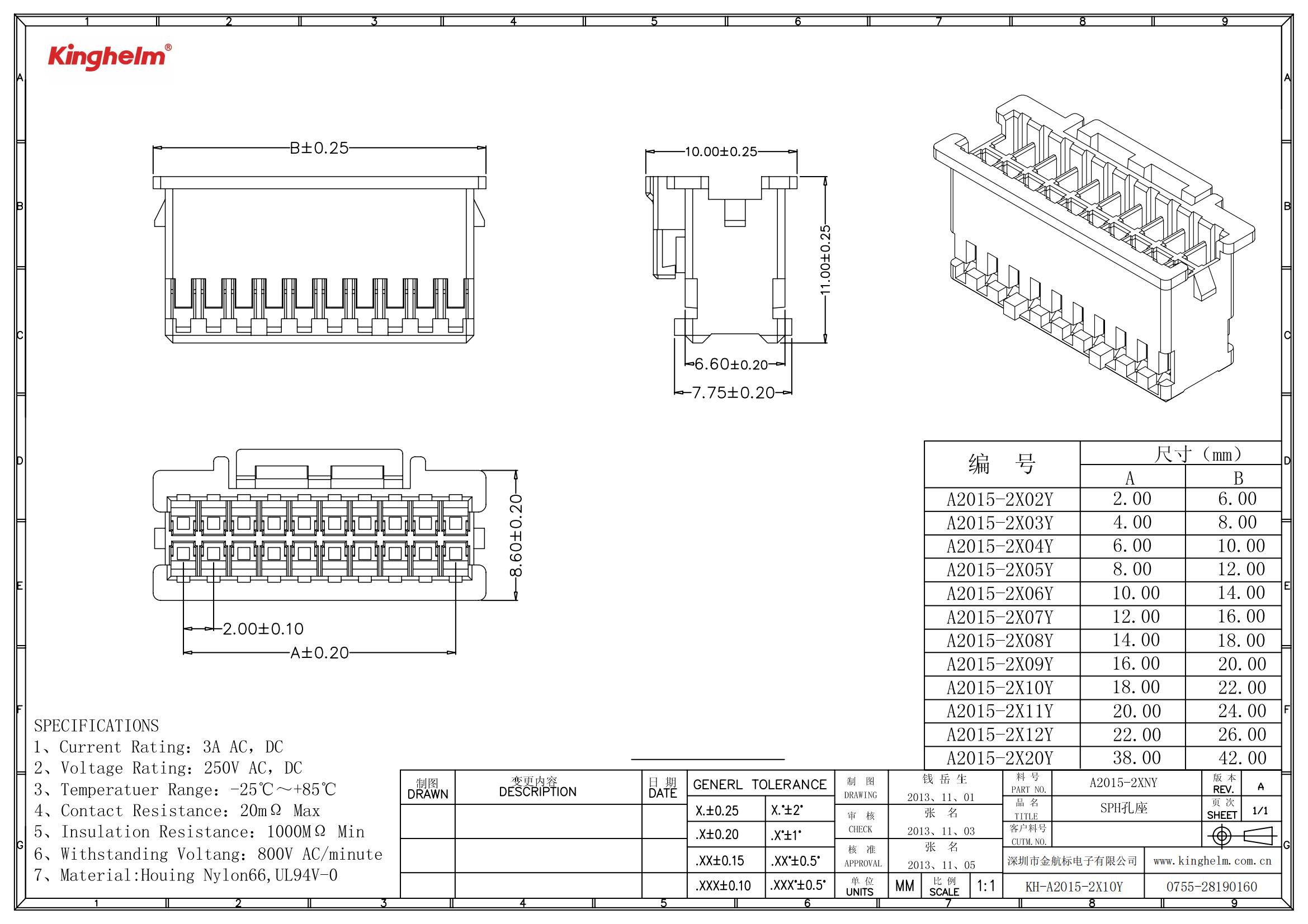

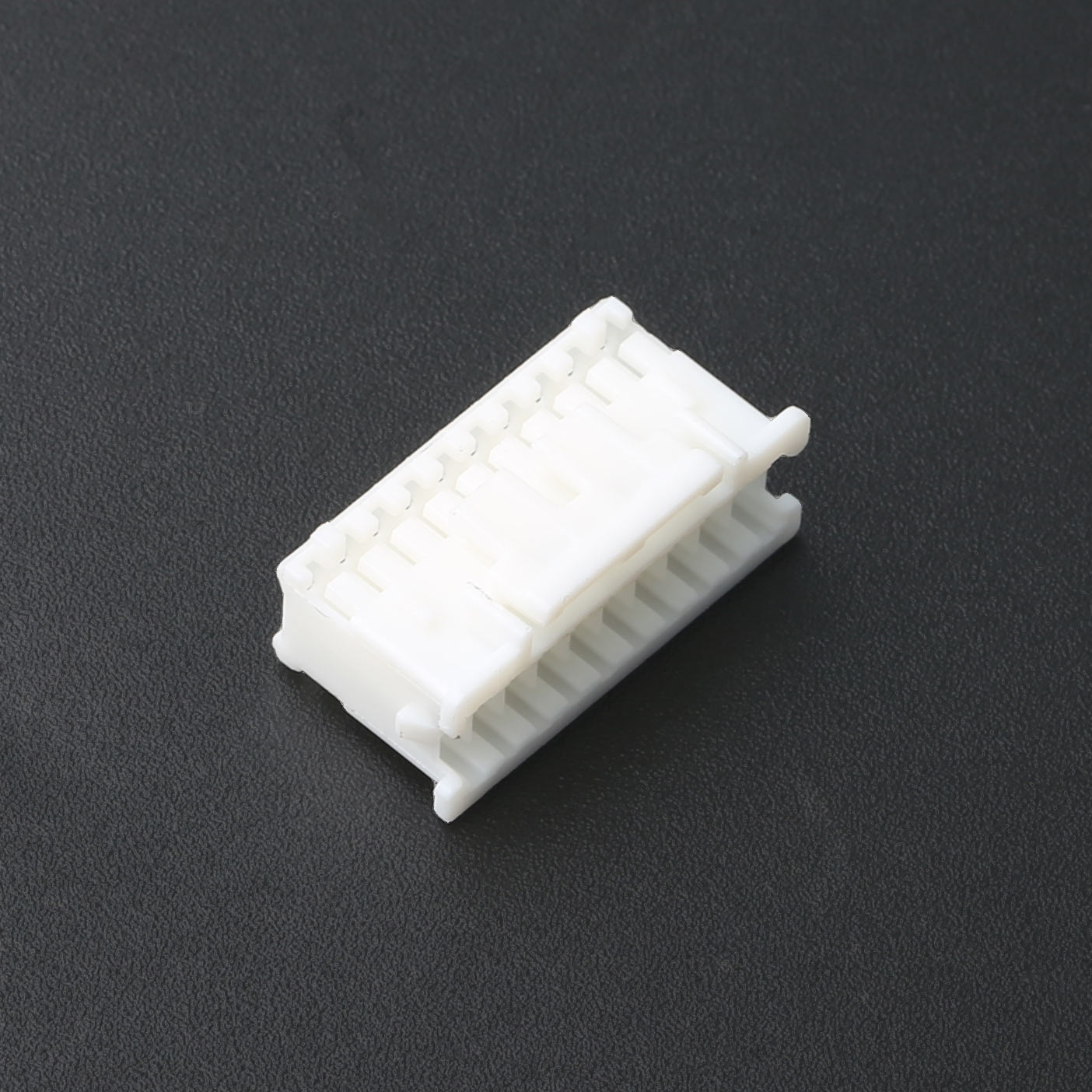

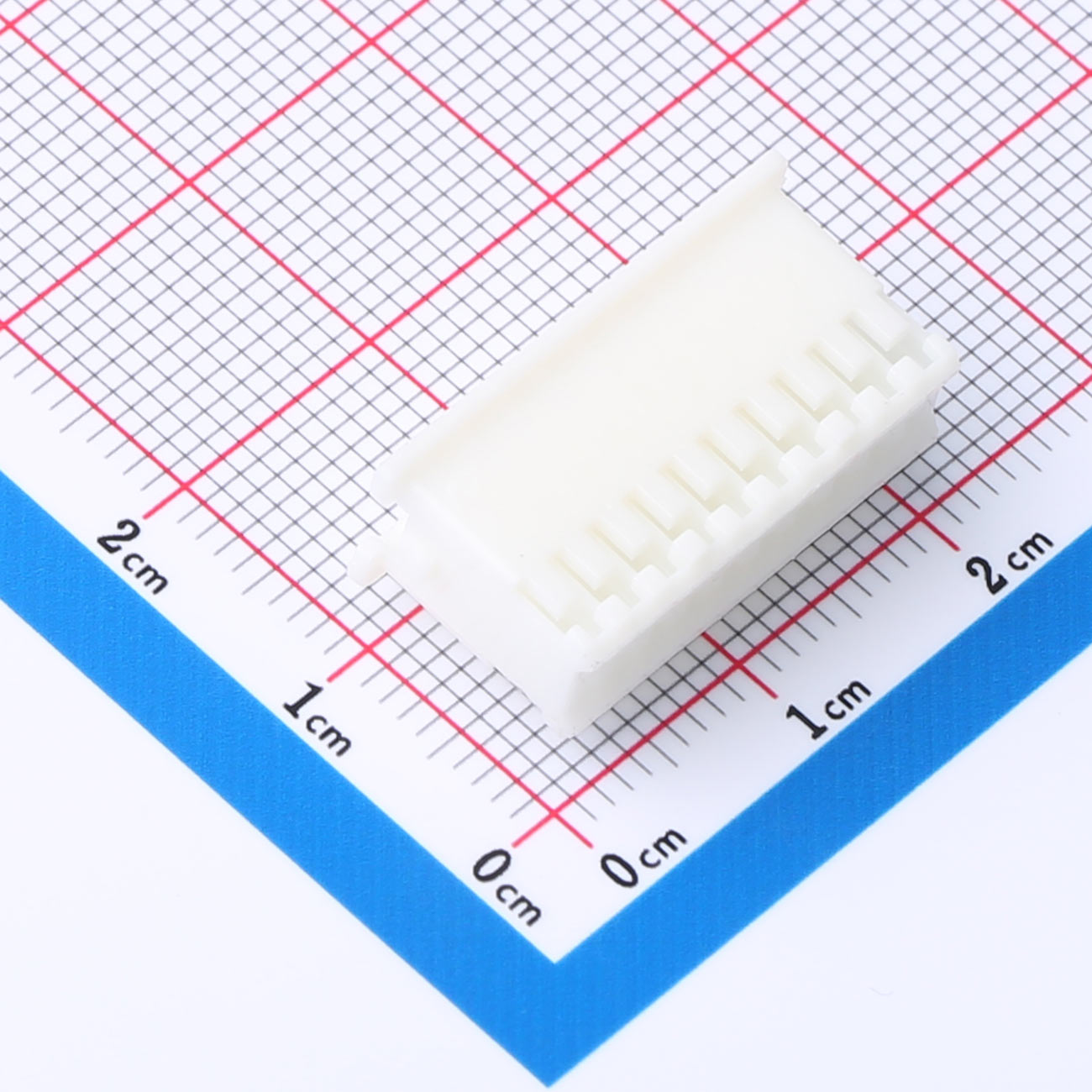

Crimp Terminal Shell 2mm Pitch 2x10P Connector Housing, KH-A2015-2X10Y

Crimp Terminal Shell 2mm Pitch 2x10P Connector Housing, KH-A2015-2X10Y

Rated Current: 3A (AC/DC)
Rated Voltage: 250V (AC/DC)
Operating Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Dielectric Withstanding Voltage: 800V AC/minute

Inquiry Datasheet

Product Details

Product Benefits
● Neat cable-to-board connection
● Optimized layout for 20-pin setups
● Consistent mating performance
● Enhanced insulation for safe operation
● Minimal signal loss design
● Strong resistance to vibration
● Fast assembly with standard tools
● Adaptable to multiple configurations

Product Applications
● Embedded controllers
● Smart meter systems
● 3D printers and CNC machines
● Audio/visual interfaces
● Digital control units
● Compact power modules
● Environmental monitoring equipment
● Educational electronics kits
