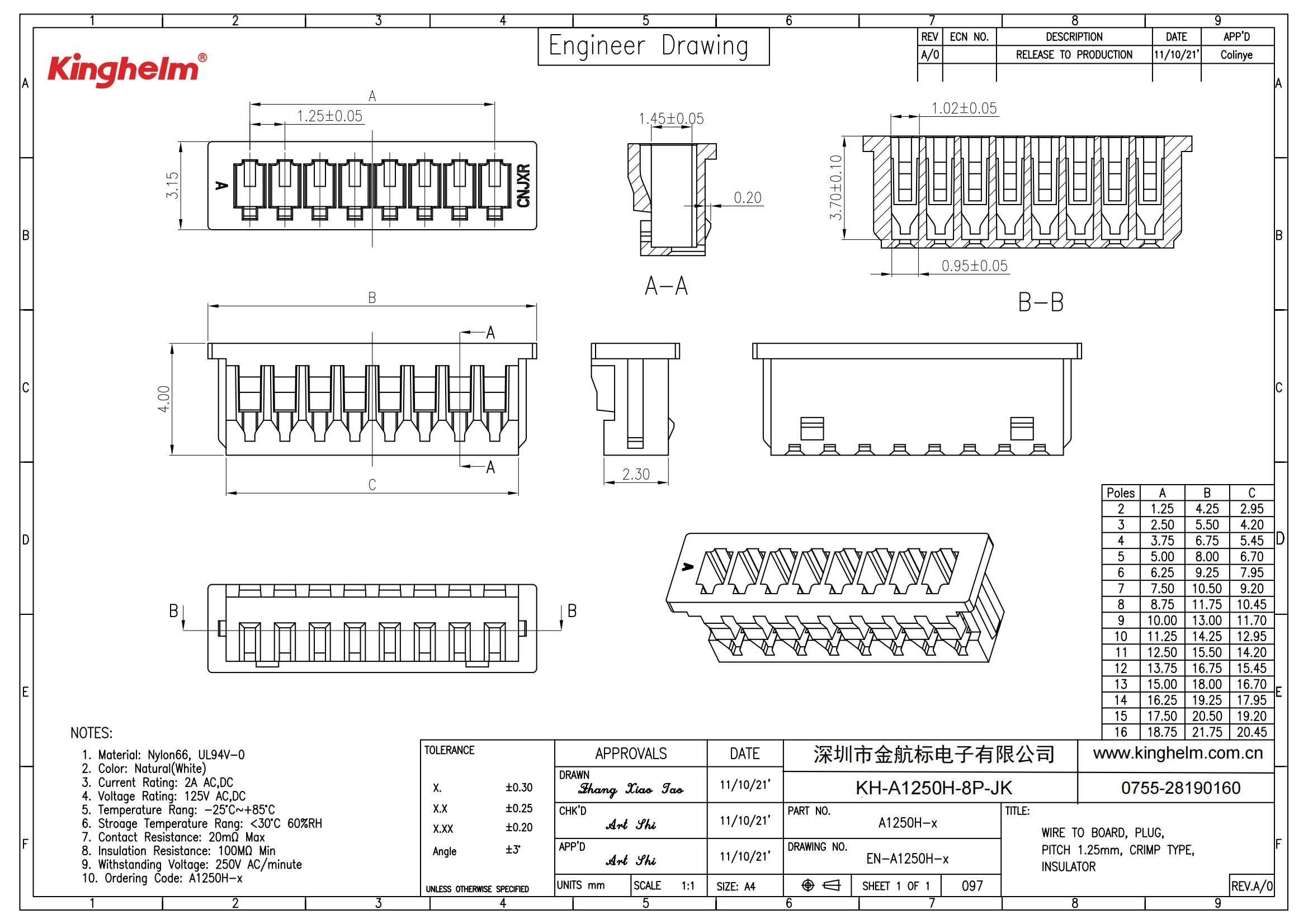

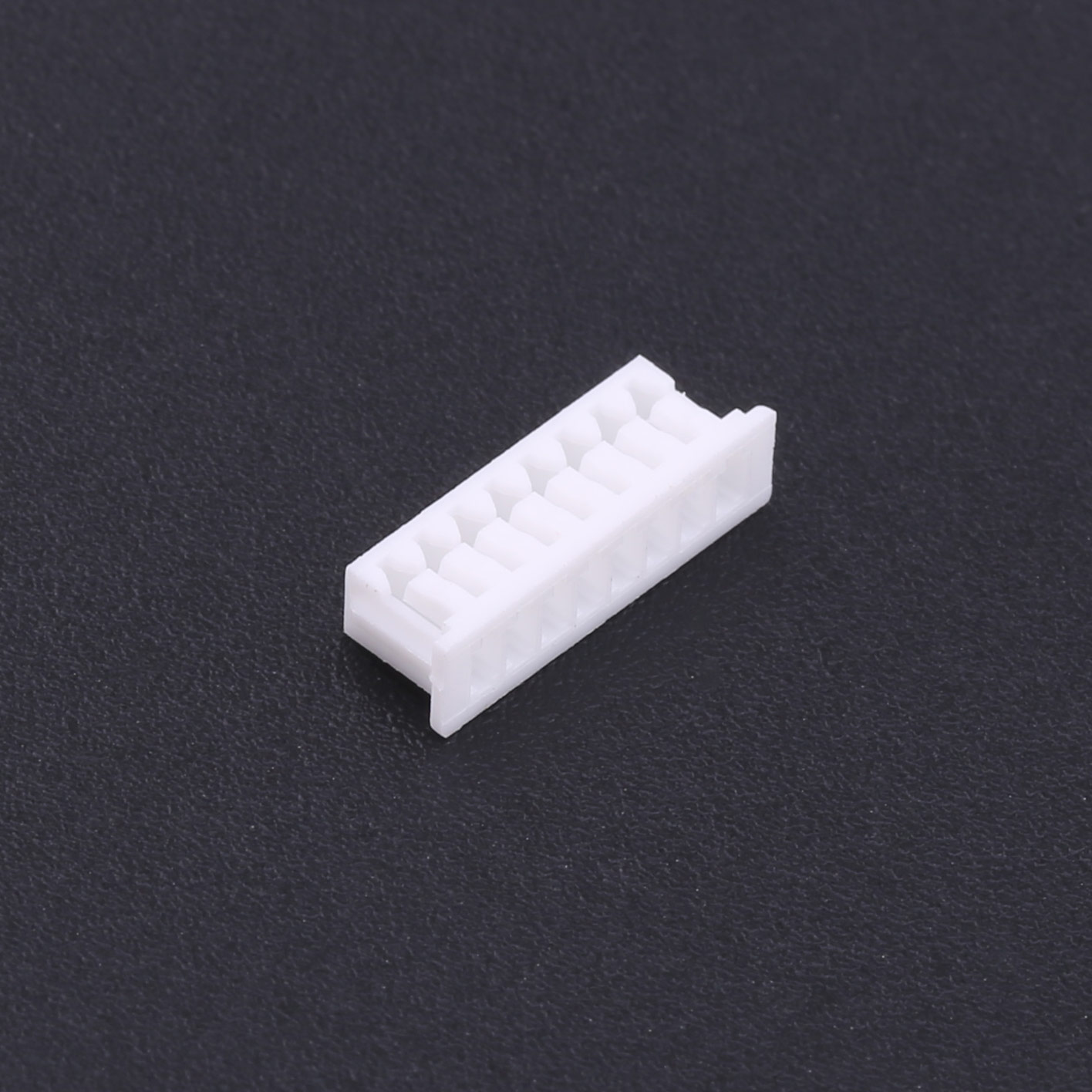

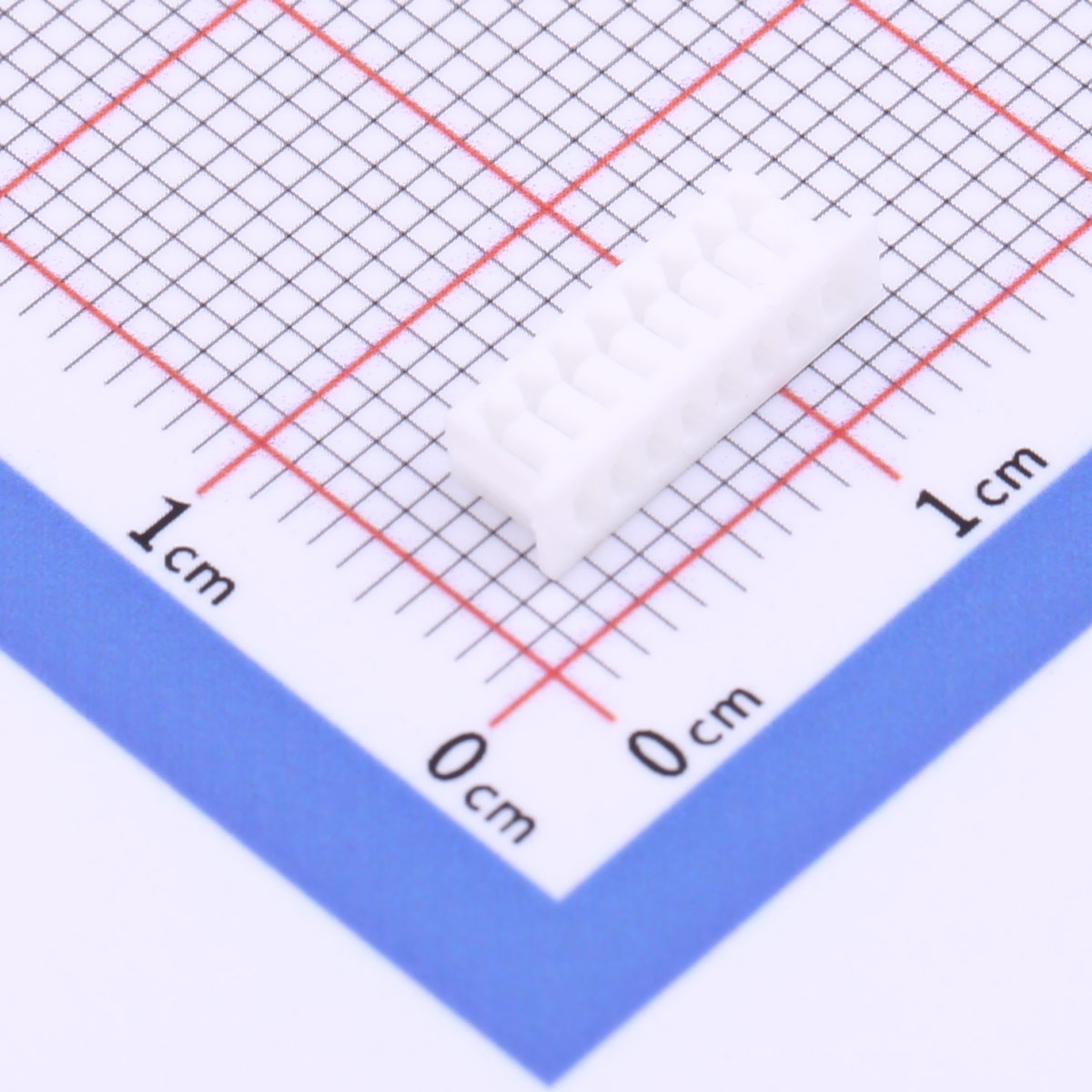

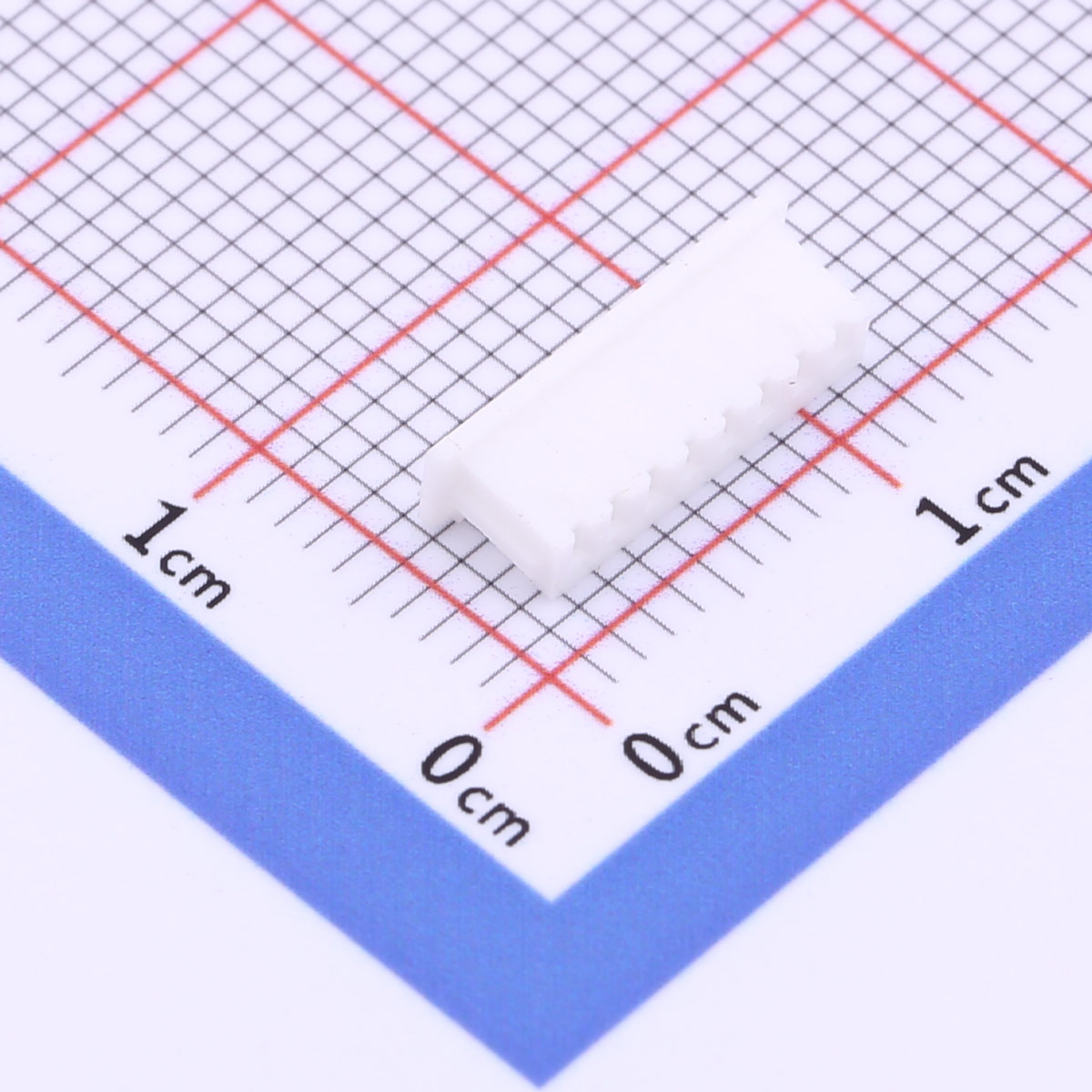

Crimp Terminal Shell 1.25mm Pitch 1x8p Connector Housing, KH-A1250H-8P-JK
Current Rating: 2A AC/DC
Voltage Rating: 125V AC/DC
Operating Temperature Range: -25°C to +85°C
Contact Resistance: ≤20 mΩ
Insulation Resistance: ≥100 MΩ
Withstanding Voltage: 250V AC / 1 minute
Product Benefits
● Space saving mini connector design
● Stable electrical connection
● High resistance to heat and wear
● Easy crimp terminal assembly
● Long service life under standard conditions
● RoHS compliant material options available
Product Application
● Consumer electronics
● LED lighting systems
● Office equipment
● Automotive electronics
● Communication devices
● Medical instruments
● Industrial control systems
● Home appliances
