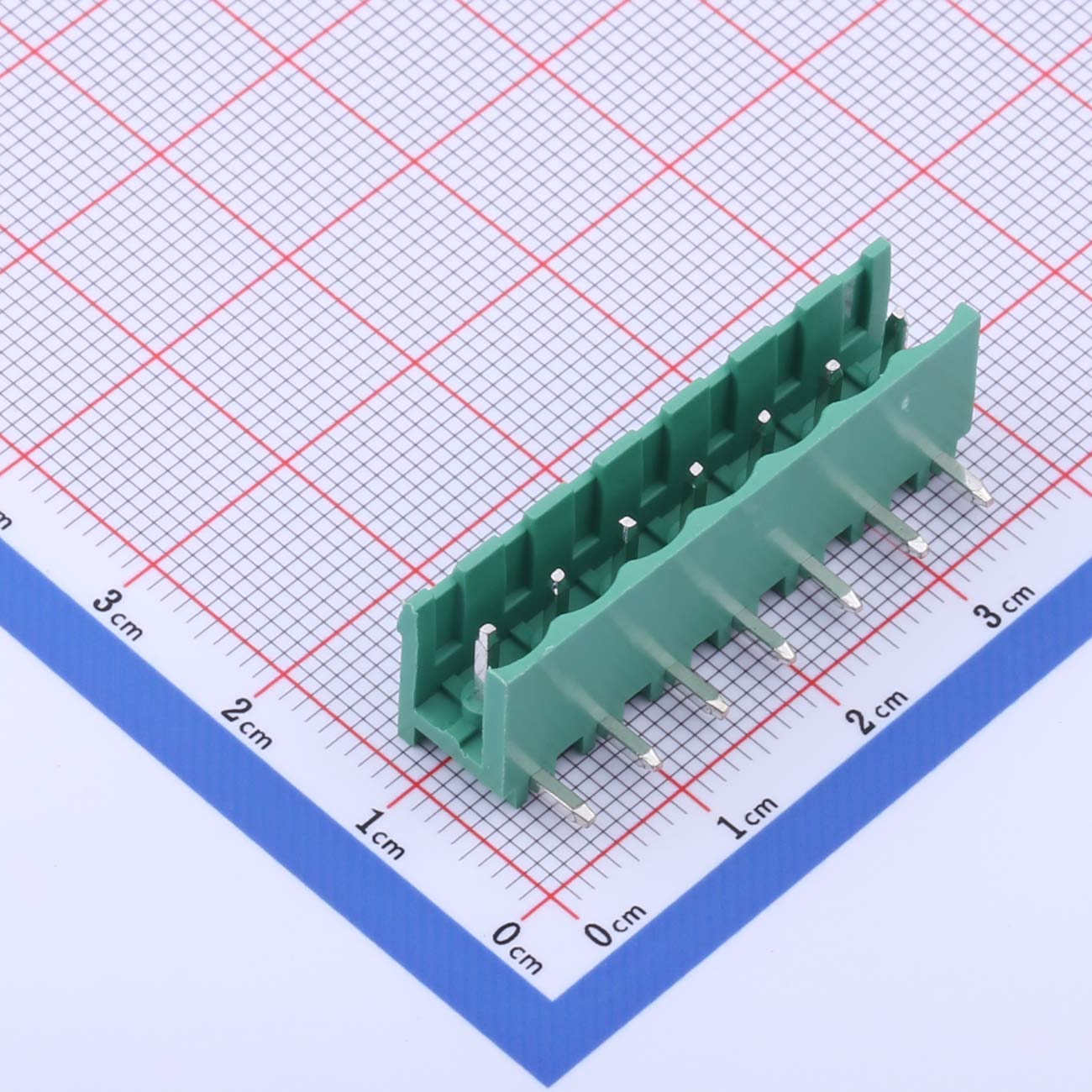

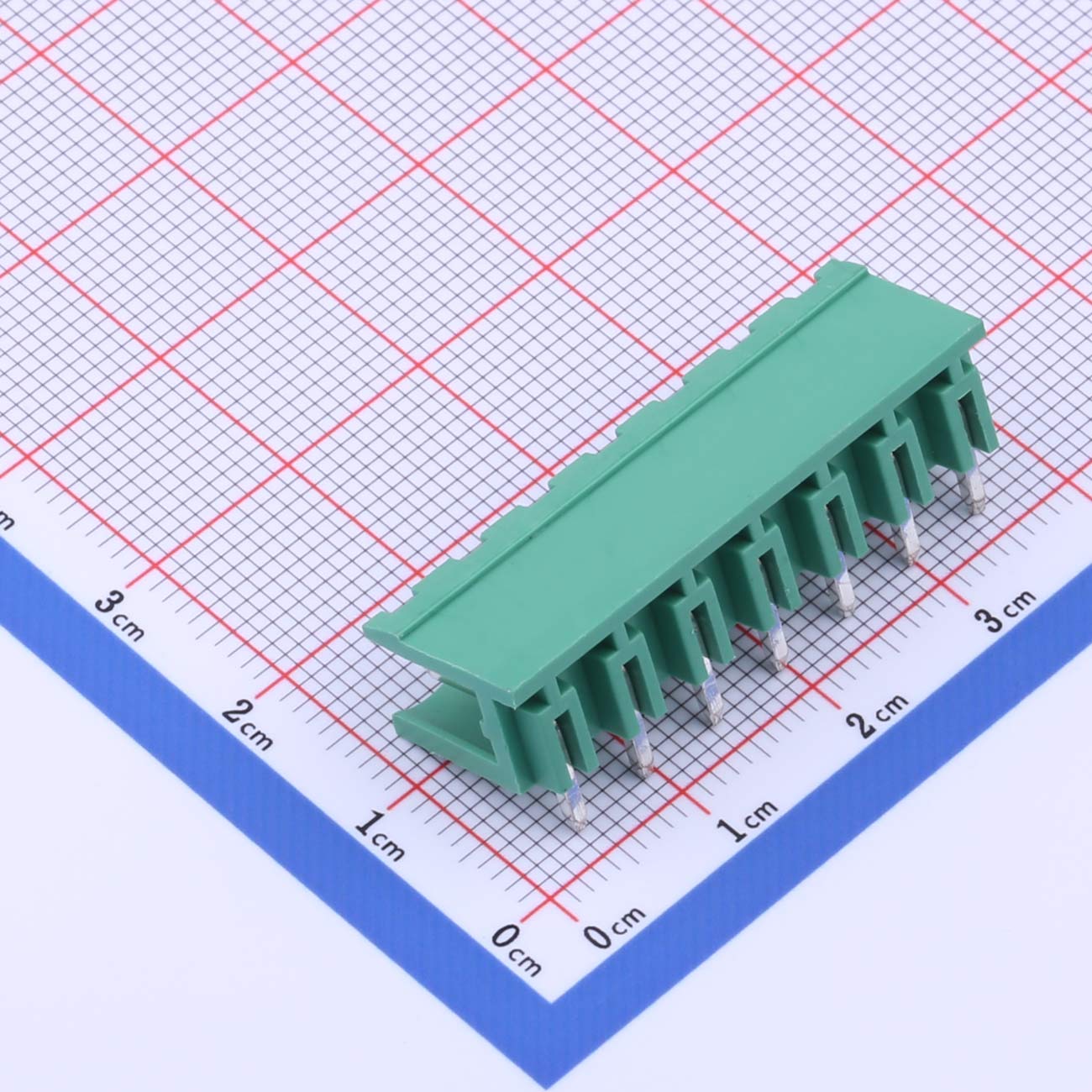

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 12A 300V, KH-ZBF4000R-7P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 12A 300V, KH-ZBF4000R-7P-5.08G

Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C

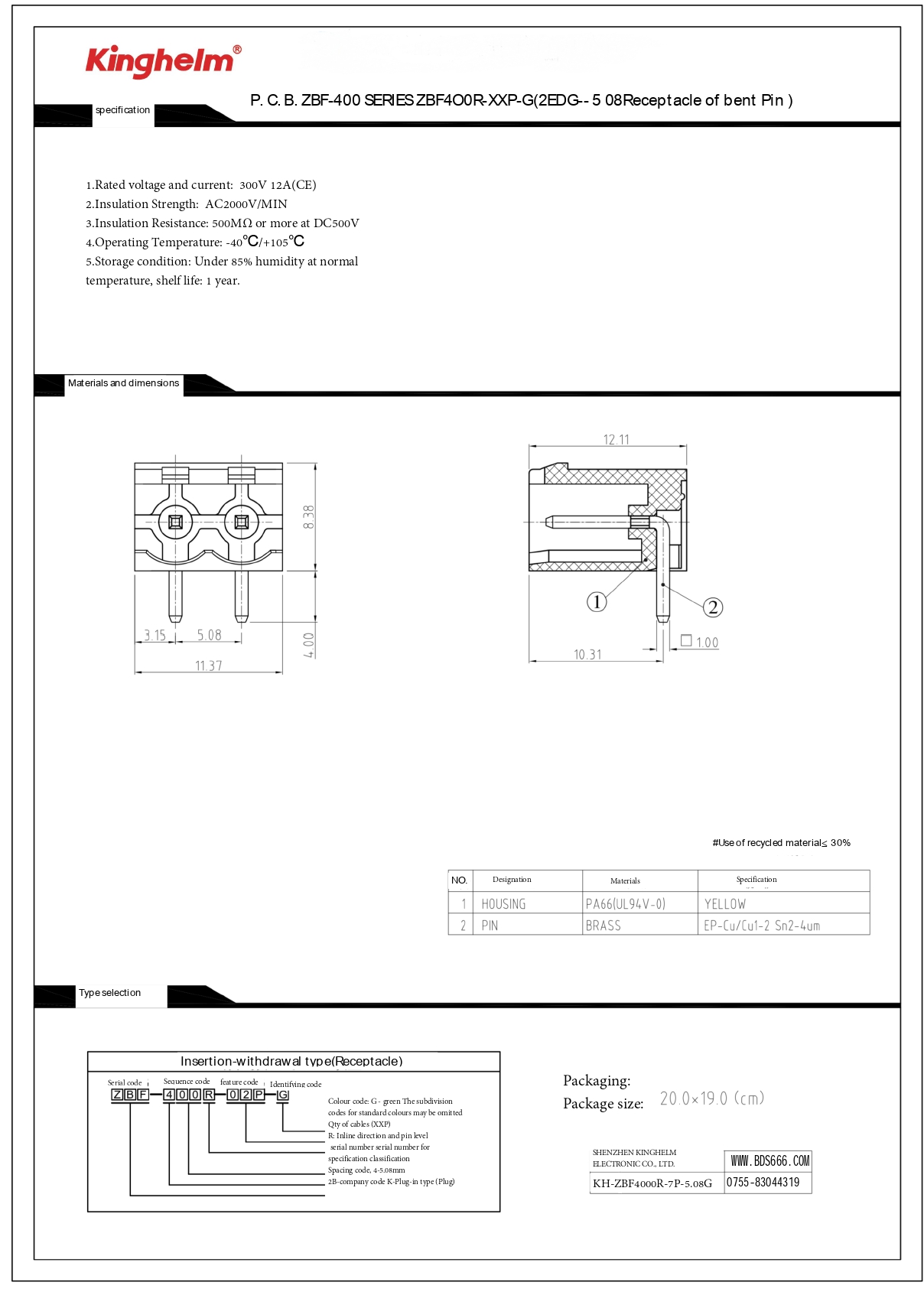

Inquiry Datasheet

Product Details

Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 7-pin single row configuration
● Board mount socket open end
● Green flame-retardant thermoplastic housing
● Rated current 12A per contact
● Rated voltage 300V
● Operating temperature -40℃ to +105℃

Product Benefits
● Versatile for medium-density applications
● Supports multi-channel power or signal distribution
● Reliable and stable connections in varying conditions
● Suitable for a wide range of electronic projects
● Simplifies interconnection in modular systems
● Enhanced design flexibility for medium-scale systems

Product Applications
● Multi-channel sensor and monitoring systems
● Automation controllers and terminals
● Power management in robotics
● Industrial control and data logging devices
● Audio-visual equipment connections
● Building and security system integration
