Home -Product -Connector/Plug-in Unit -Connector -IDC Connector -IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9
IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9 IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9 IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9

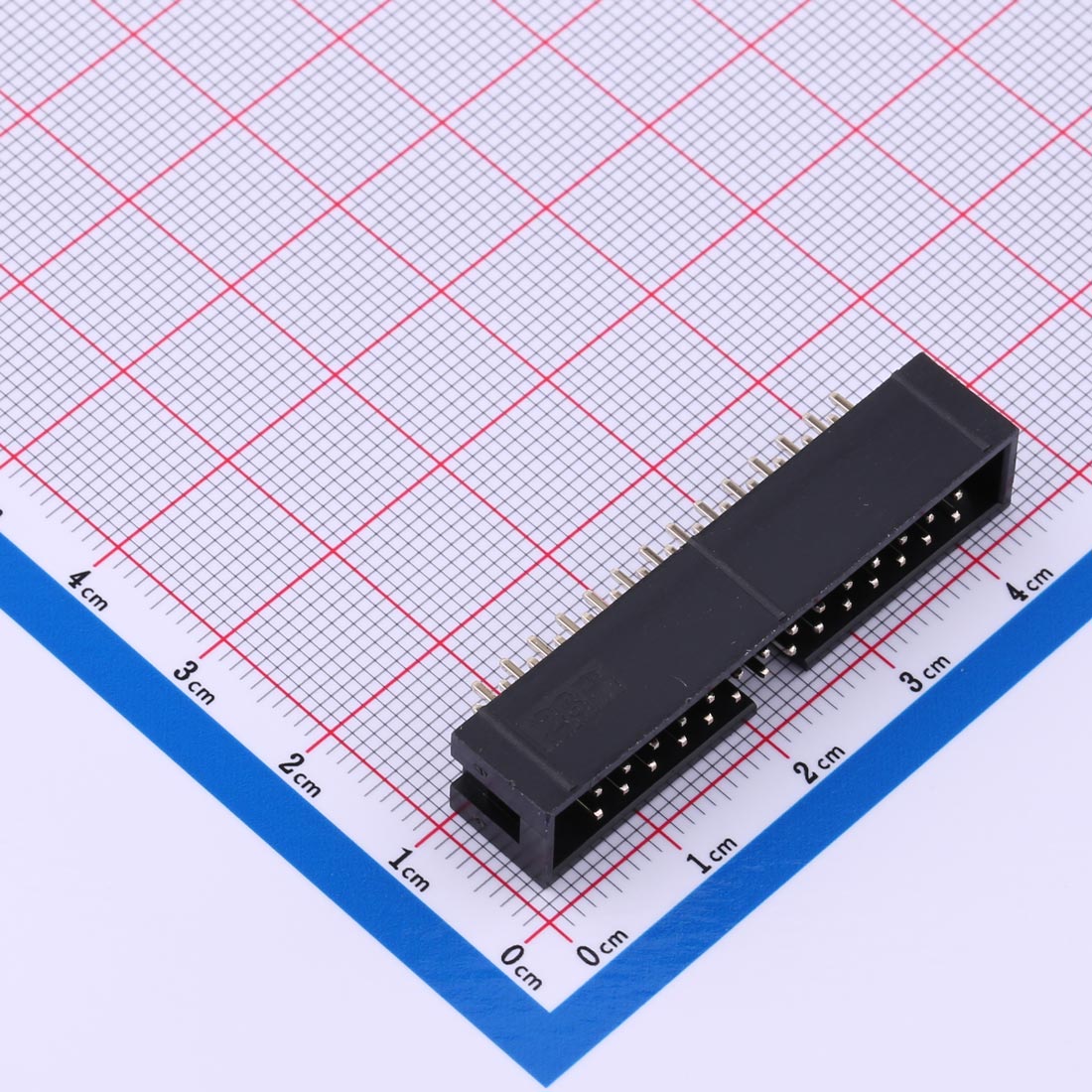

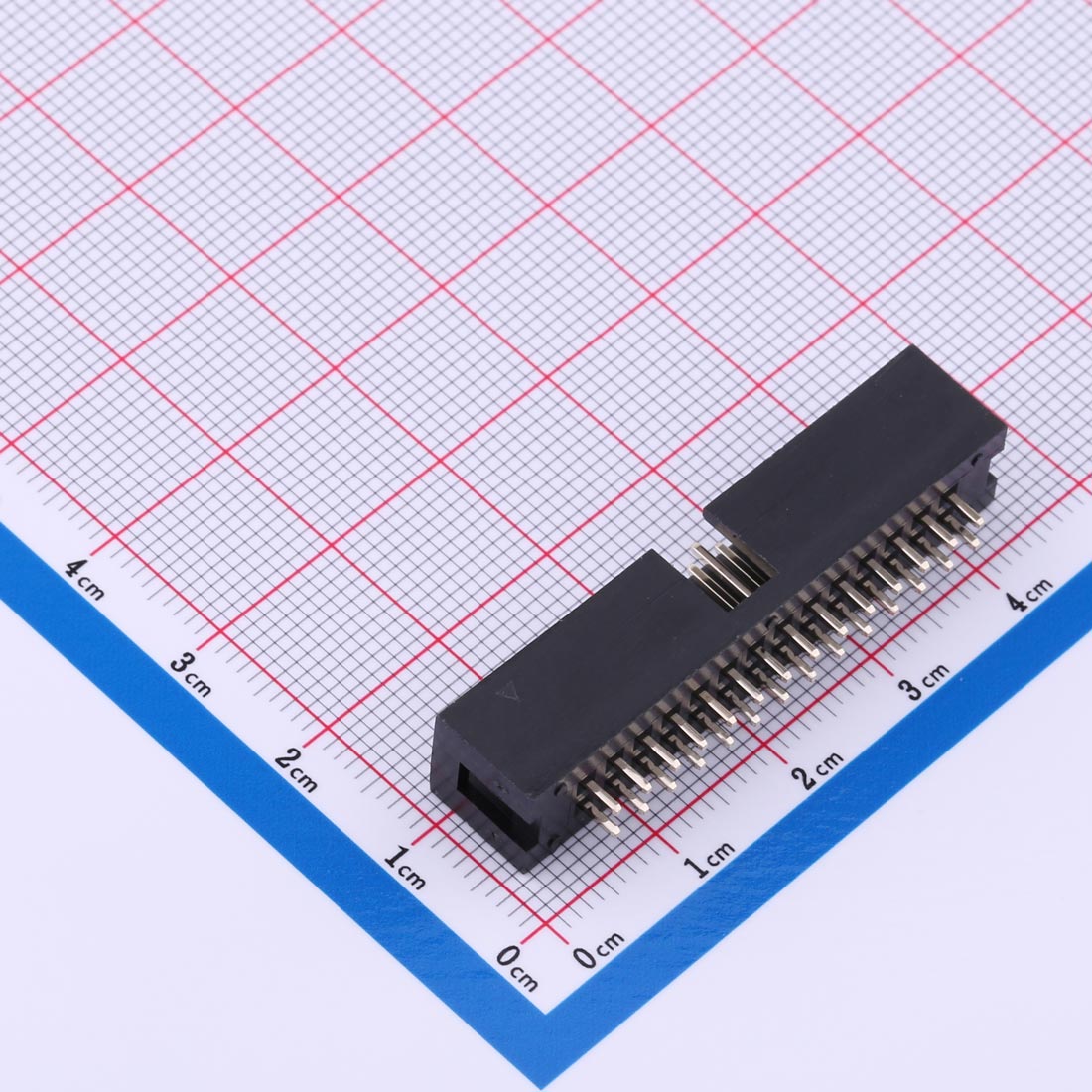

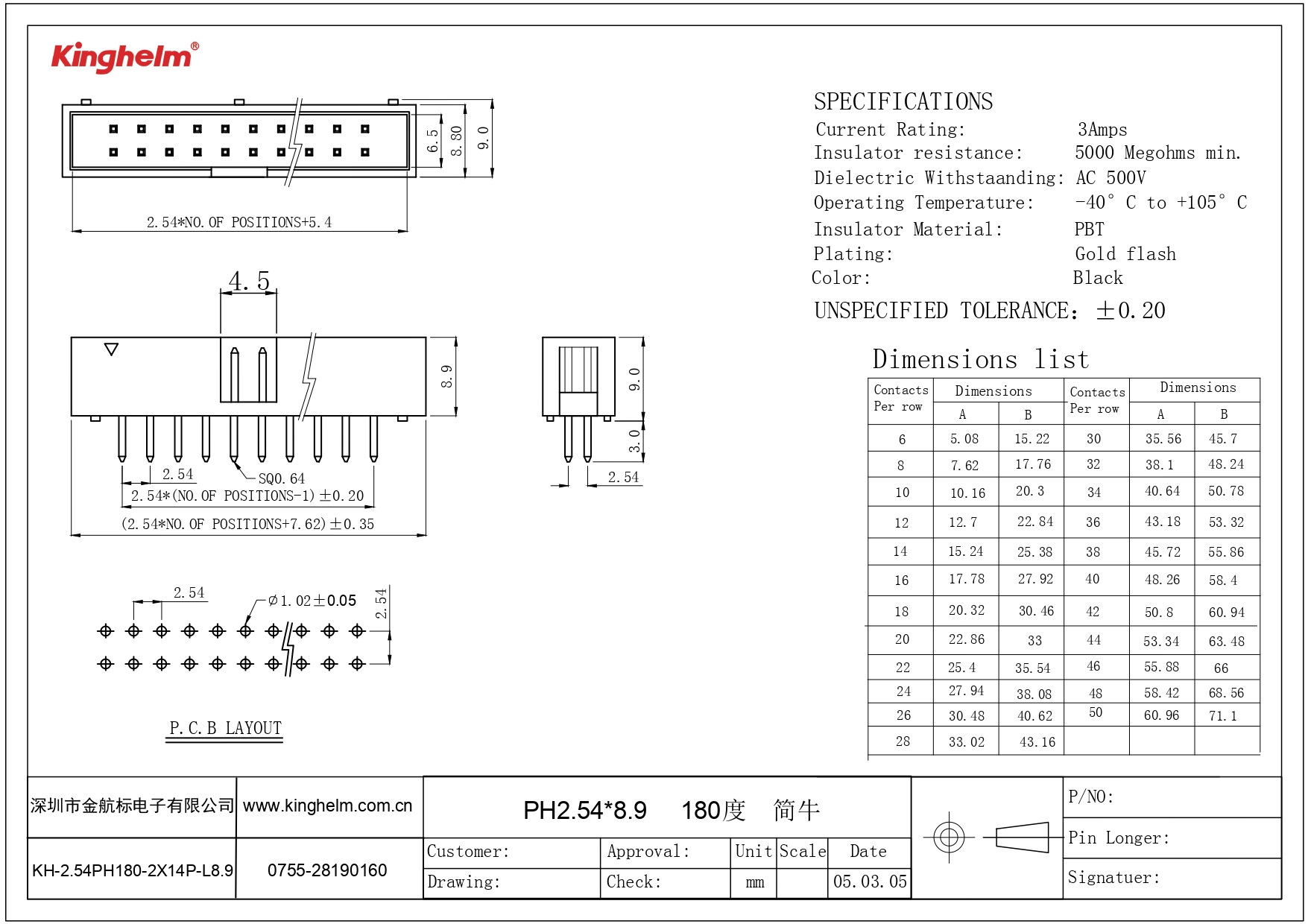

IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash

Product Details

Product Description:

Current Rating: 3 Amps

Insulator Resistance: 5000 Megohms minimum

Dielectric Withstanding: AC 500V

Operating Temperature: -40°C to +105°C

Insulator Material: PBT

Plating: Gold flash

Color: Black

Tolerance: ±0.20


Product Features:

High-performance 4G external suction cup antenna

Reliable and efficient signal transmission

Excellent insulation properties

Withstands AC 500V for enhanced safety

Wide operating temperature range for versatile applications

Durable construction for long-term reliability

Corrosion-resistant gold flash plating

Sleek black color with precise manufacturing standards
