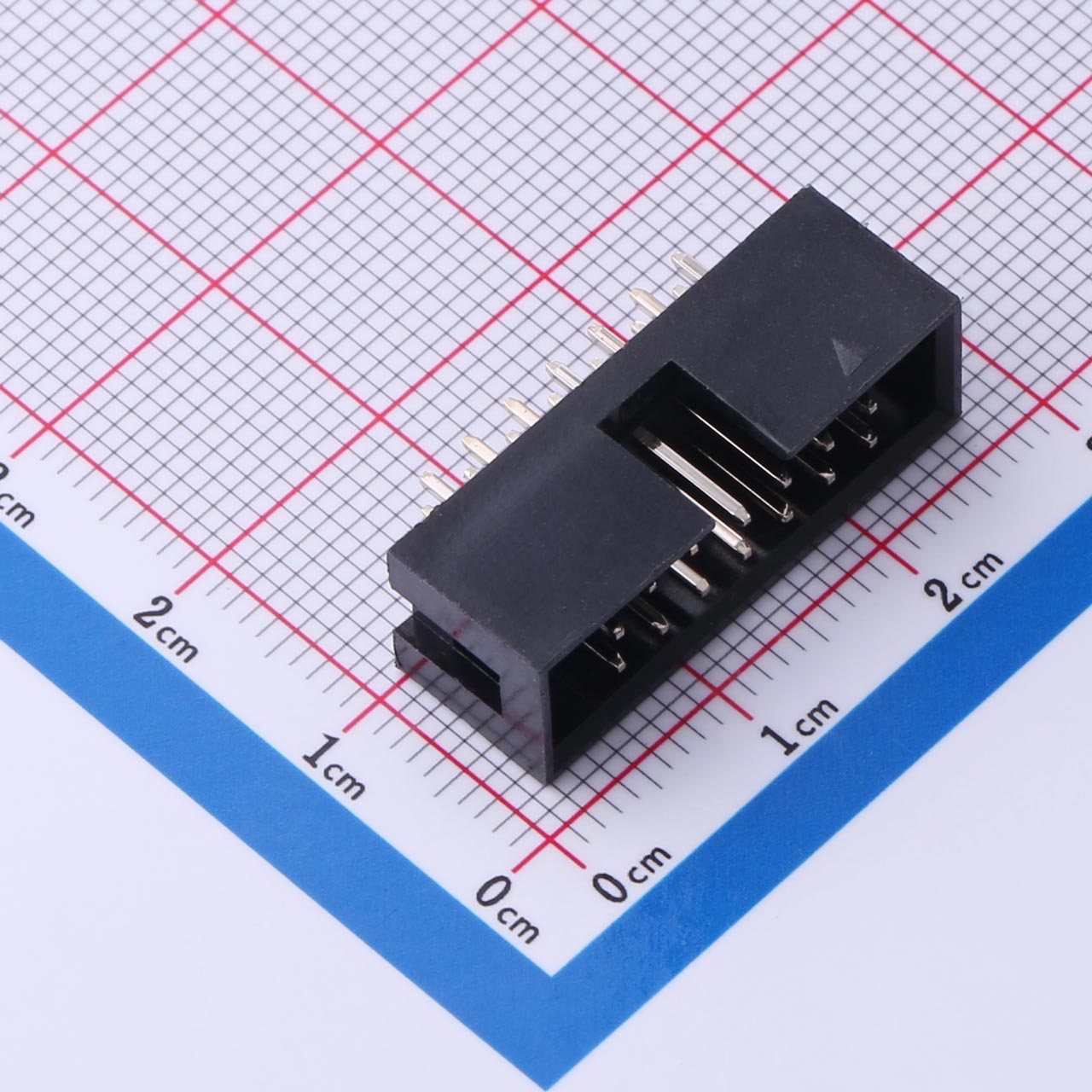

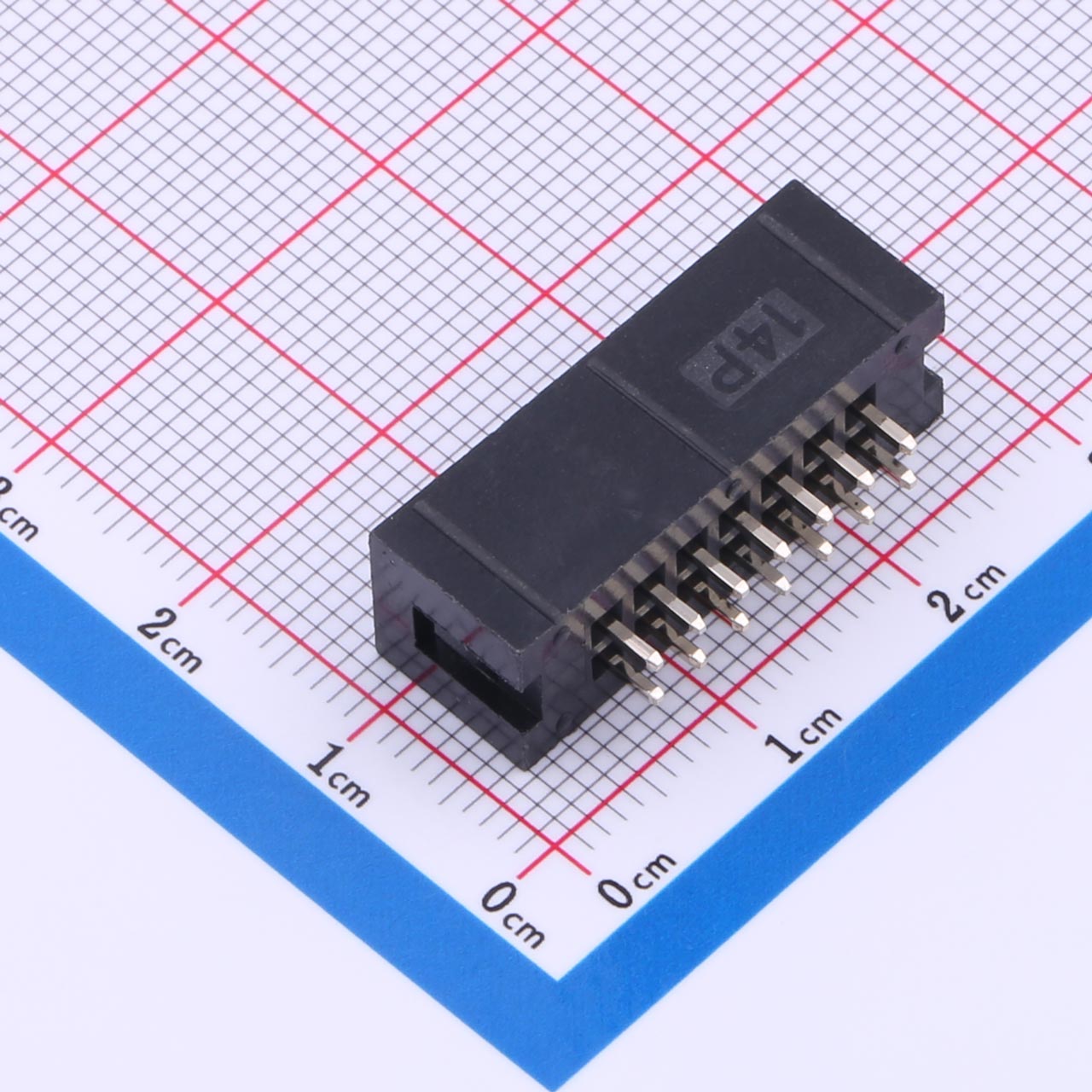

IDC Connector, 2.54mm Pitch, 7-Pin, 2-Row, KH-2.54PH180-2X7P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 7-pin layout
● 180° straight insertion for easy PCB integration
● Gold flash plating for stable conductivity
● Durable PBT housing for heat and wear resistance
● Operates reliably from -40℃ to +105℃
Product Application
● IDC cable connections
● Consumer and industrial electronics
● Embedded control systems
● Communication devices
● Signal and power transmission
