RF Cable Assembly, SMA Female to Stripped End Cable, RF1.37, 180mm, KH-122-137SMA-180

Voltage rating: DCV 300V 10ms
Conductance resistance: 3.0 ohm/max
Insulation resistance: 5.0M ohm/min
Coaxial Cable: RF 1.37 Black Wire, OD: 1.37mm

Inquiry Datasheet

Product Details

Product Description:

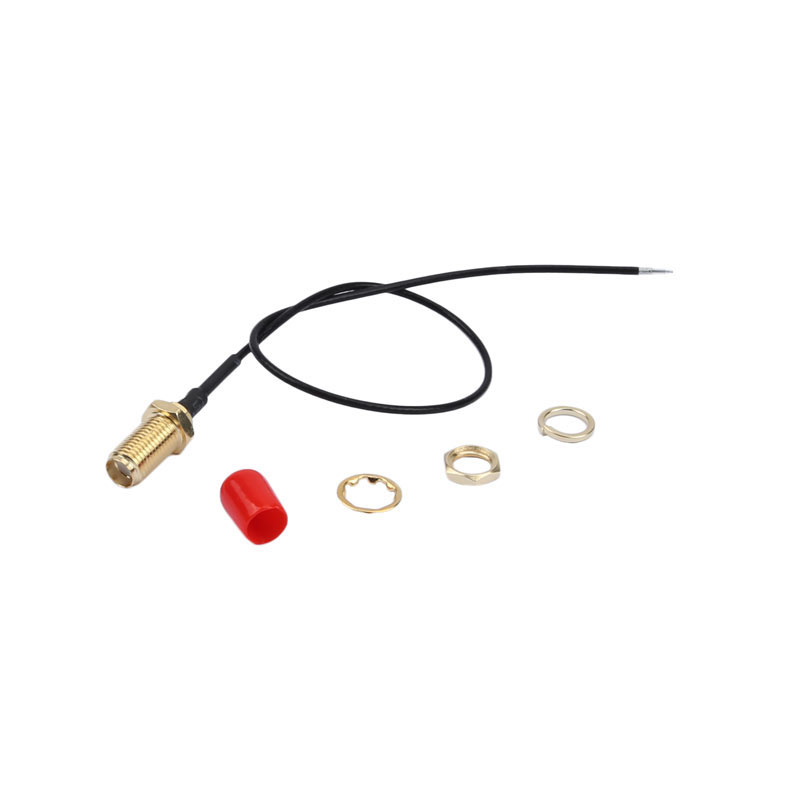

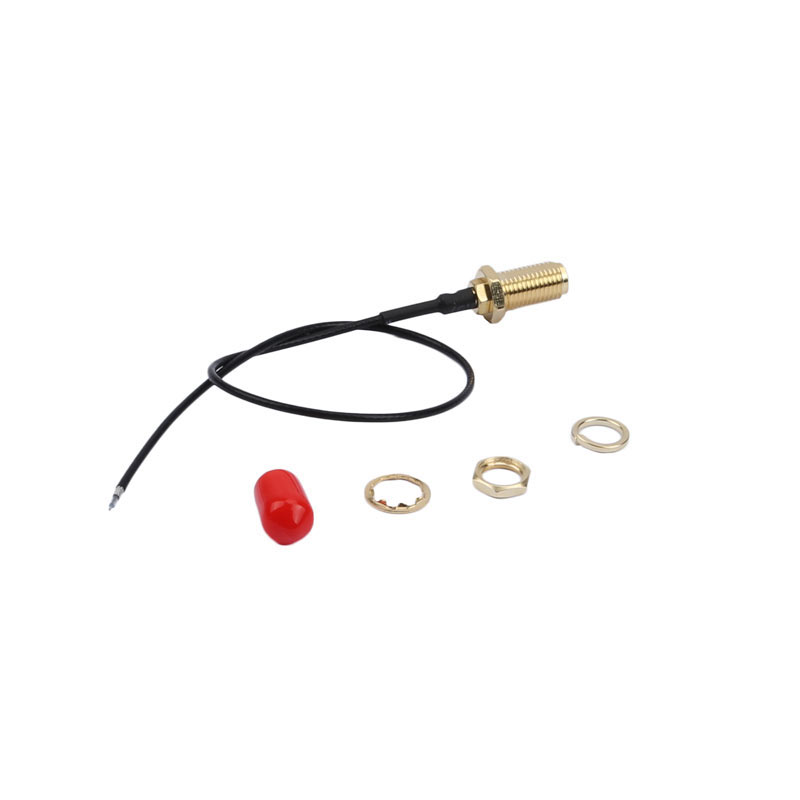

The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-180 is a high-quality coaxial connector designed for use in various applications. It features a black heat-shrink tubing with an outer diameter of 2.0mm, an SMA female connector with 11 gold-plated teeth, and a 1.37mm OD RF cable. This product is RoHS compliant and has been tested to ensure 100% electrical performance.

Product Features:

--Black heat-shrink tubing with an outer diameter of 2.0mm

--SMA female connector with 11 gold-plated teeth

--1.37mm OD RF cable

--RoHS compliant

--100% electrical performance tested

Product Specifications:

Voltage Rating	DCV 300V 10MS
Conductance Resistance	3.0 OHM/MAX
Insulation Resistance	5.0M OHM/MIN
Cable Type	RF 1.37 black cable
Cable OD	1.37mm

Application Fields:
The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-180 is suitable for use in various applications, including telecommunications, wireless communication systems, and other electronic devices.

Brand Certificate:
Kinghelm is a trusted brand in the electronics industry, known for producing high-quality products that meet international standards.

Product Packaging:
The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-180 is packaged in a secure and durable packaging to ensure safe delivery to customers.
