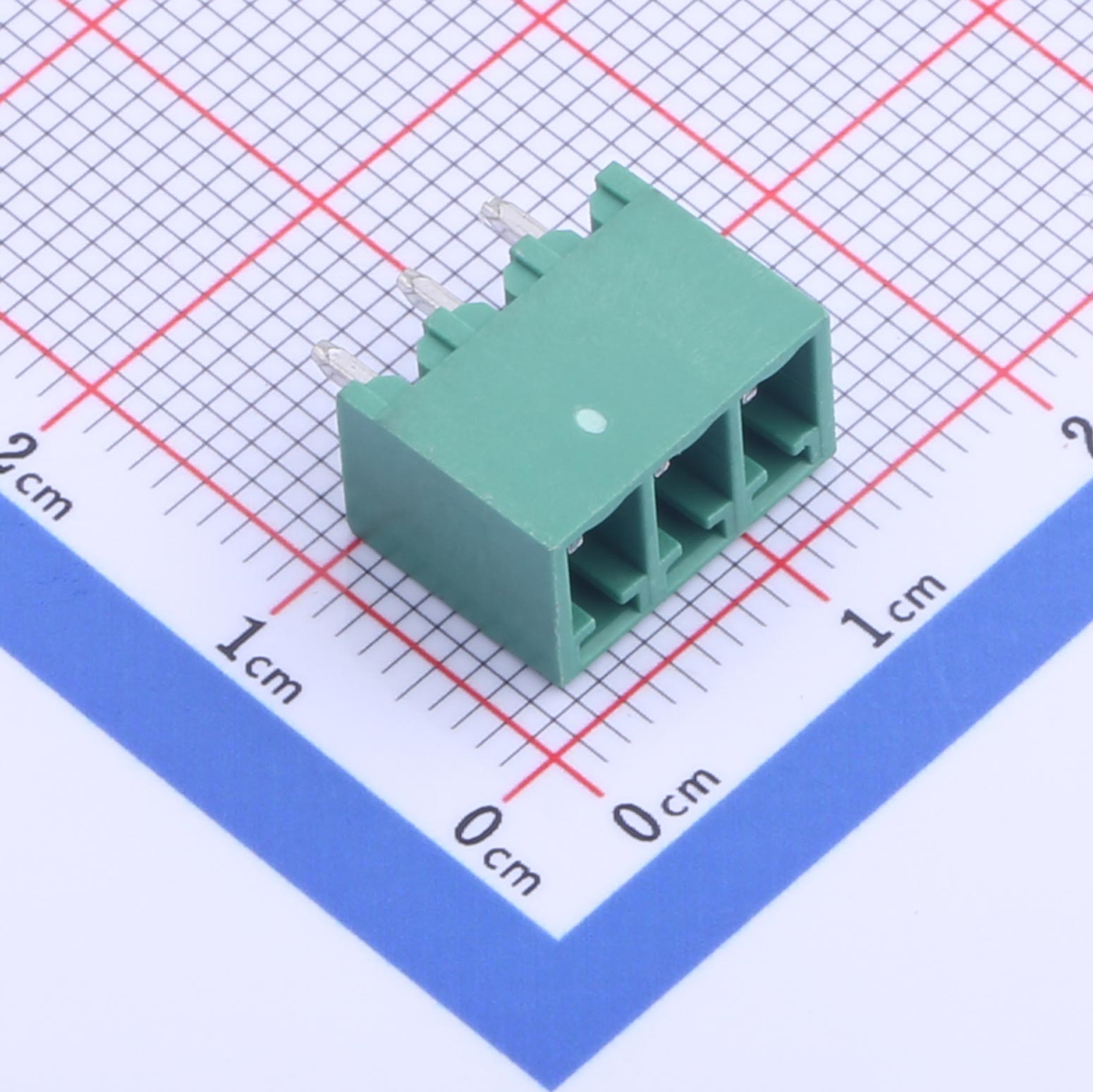

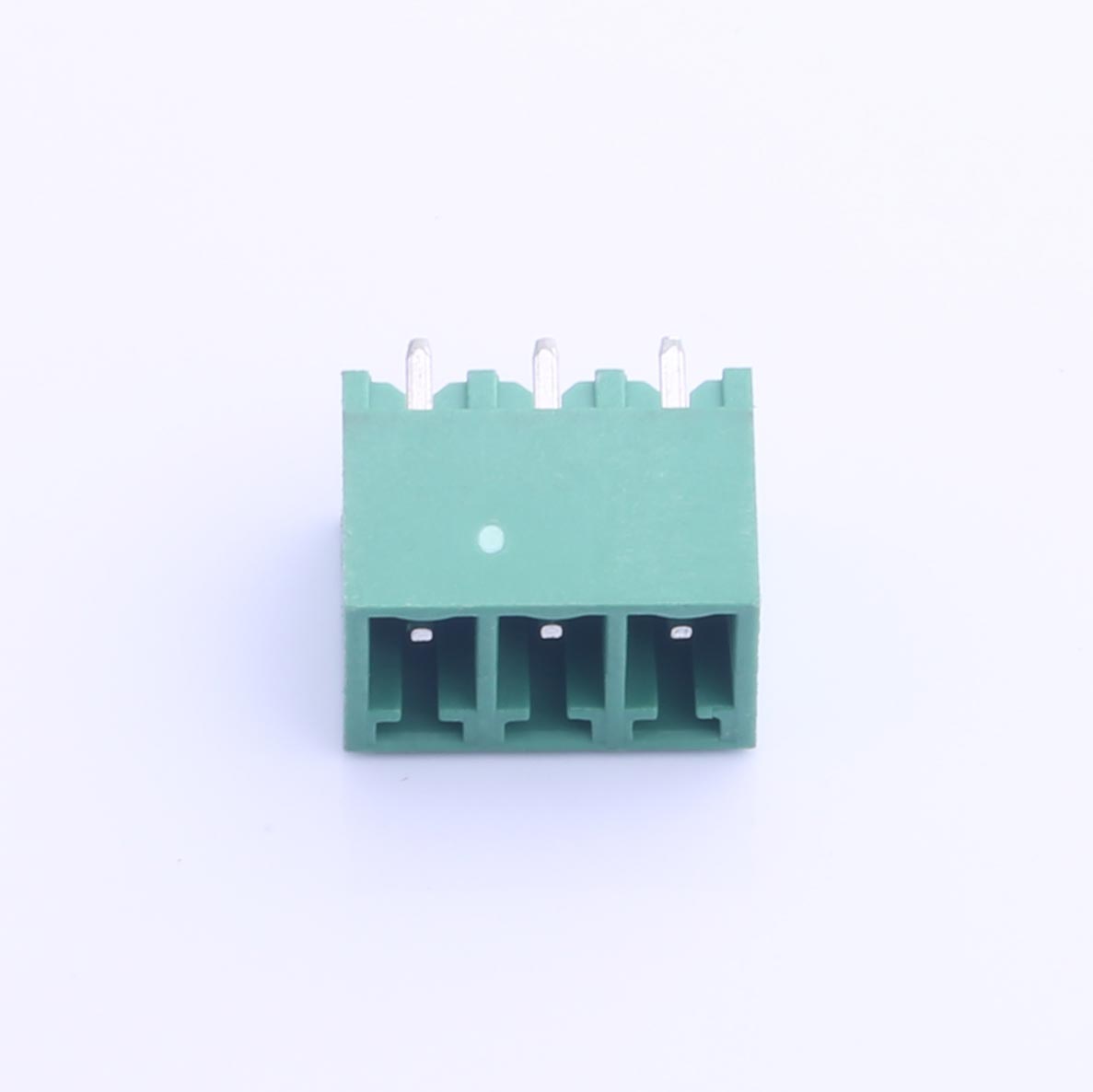

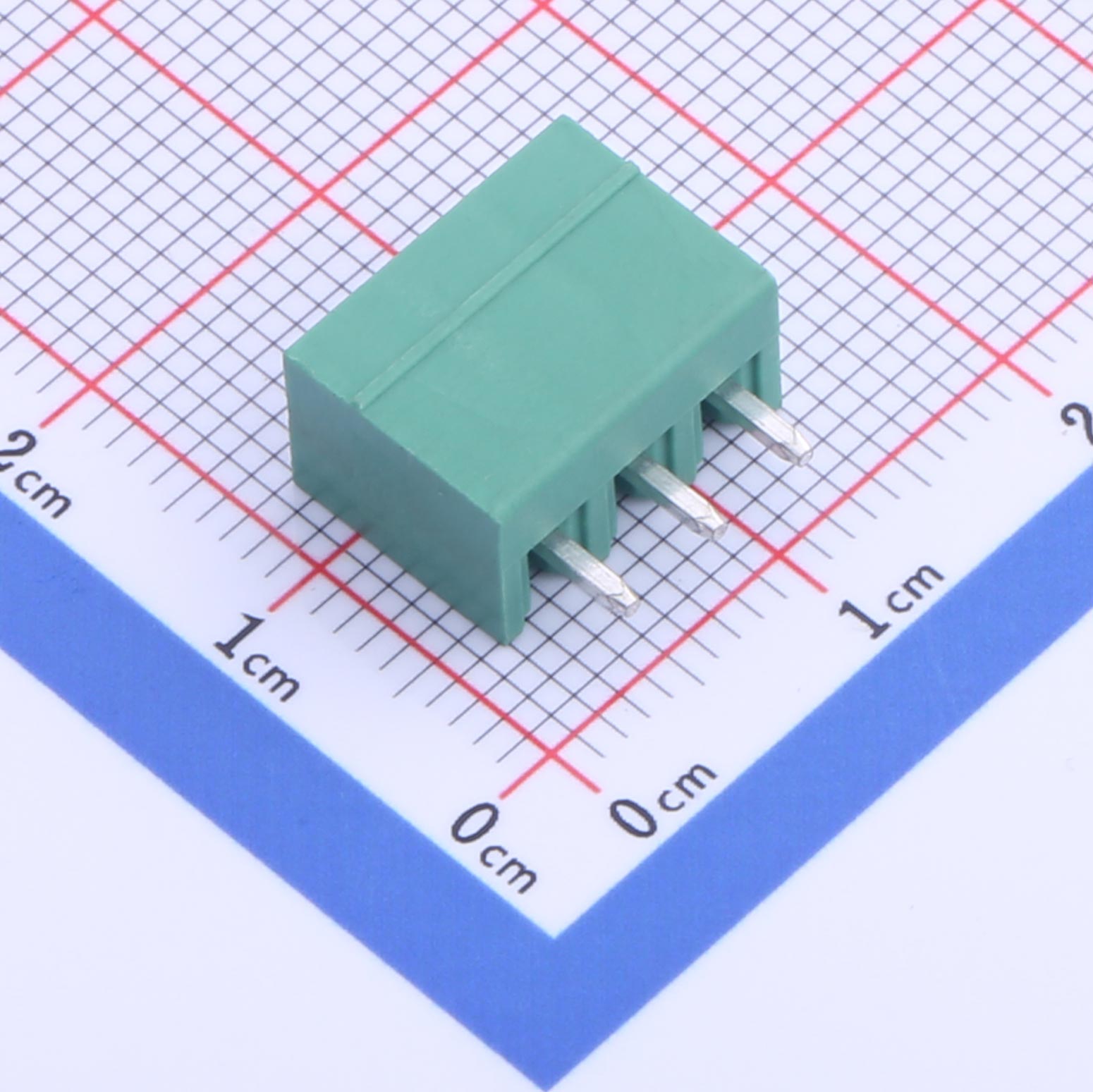

Pluggable Terminal Block, 3.81mm pitch, 3 pin, 8A 300V, KH-ZBF200V-3P-G

Pluggable Terminal Block, 3.81mm pitch, 3 pin, 8A 300V, KH-ZBF200V-3P-G

Rated Voltage & Current: 300V, 8A (CE)
Insulation Strength: AC 1500V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Twisting Force: 0.2 N·m/Max

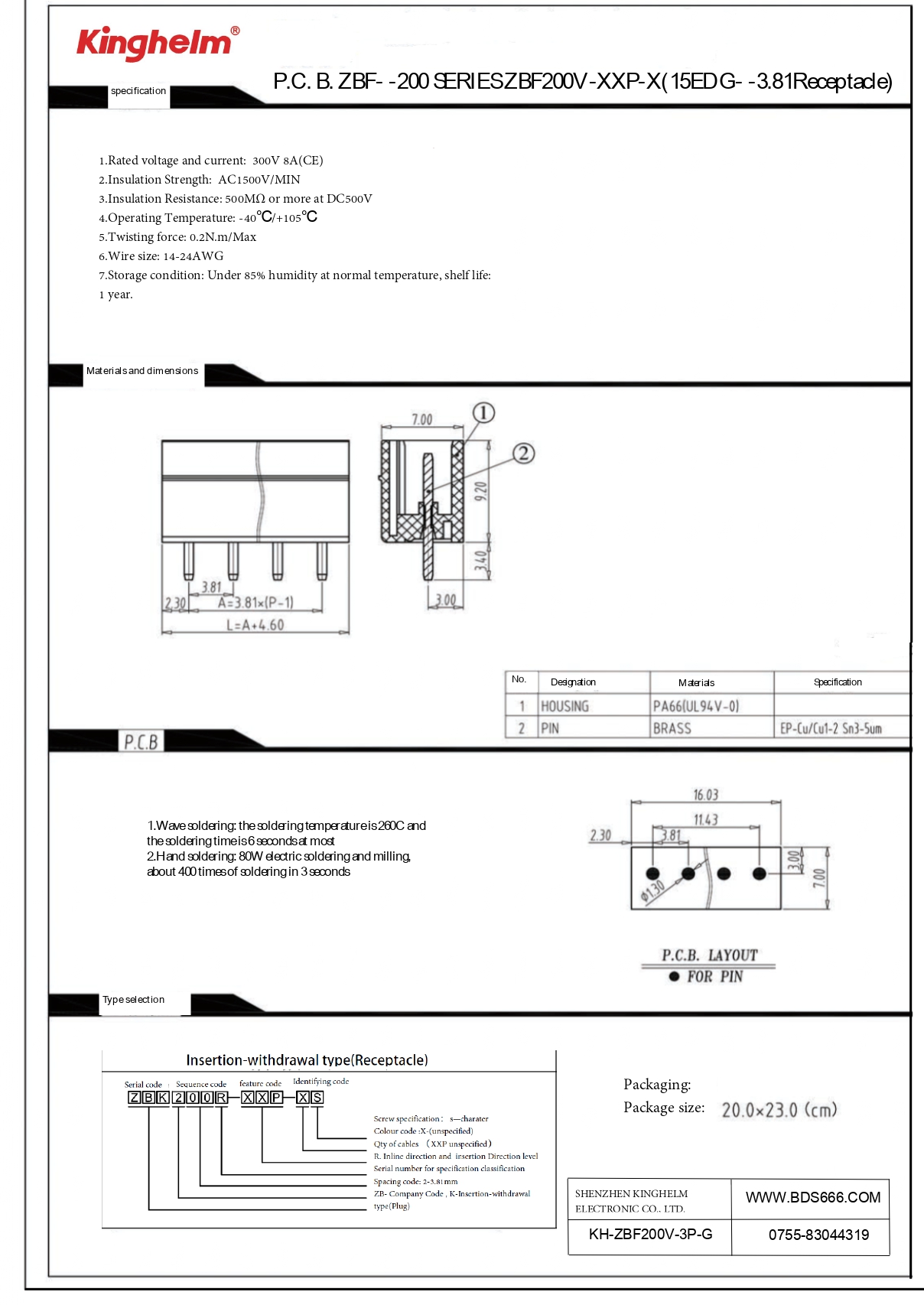

Inquiry Datasheet

Product Details

Product Features
● Connector Type Board Mount / Socket - Closed End
● Pitch 3.81 mm
● Color Green
● Mounting Type Straight Pin
● Total Pin Count 3P
● Number of Rows 1

Product Benefits
● Compact 3-pin design for space-efficient applications
● 8A current rating for reliable and stable power transfer
● High voltage rating of 300V suitable for diverse connections
● Wide operating temperature range from -40℃ to +105℃
● Easy-to-use pluggable design for secure and quick connections
● Durable construction for long-term reliability

Product Applications
● Low-power electrical circuits
● Home appliances
● Power adapters
● Small control systems
● Sensors and actuators
● Communication equipment
