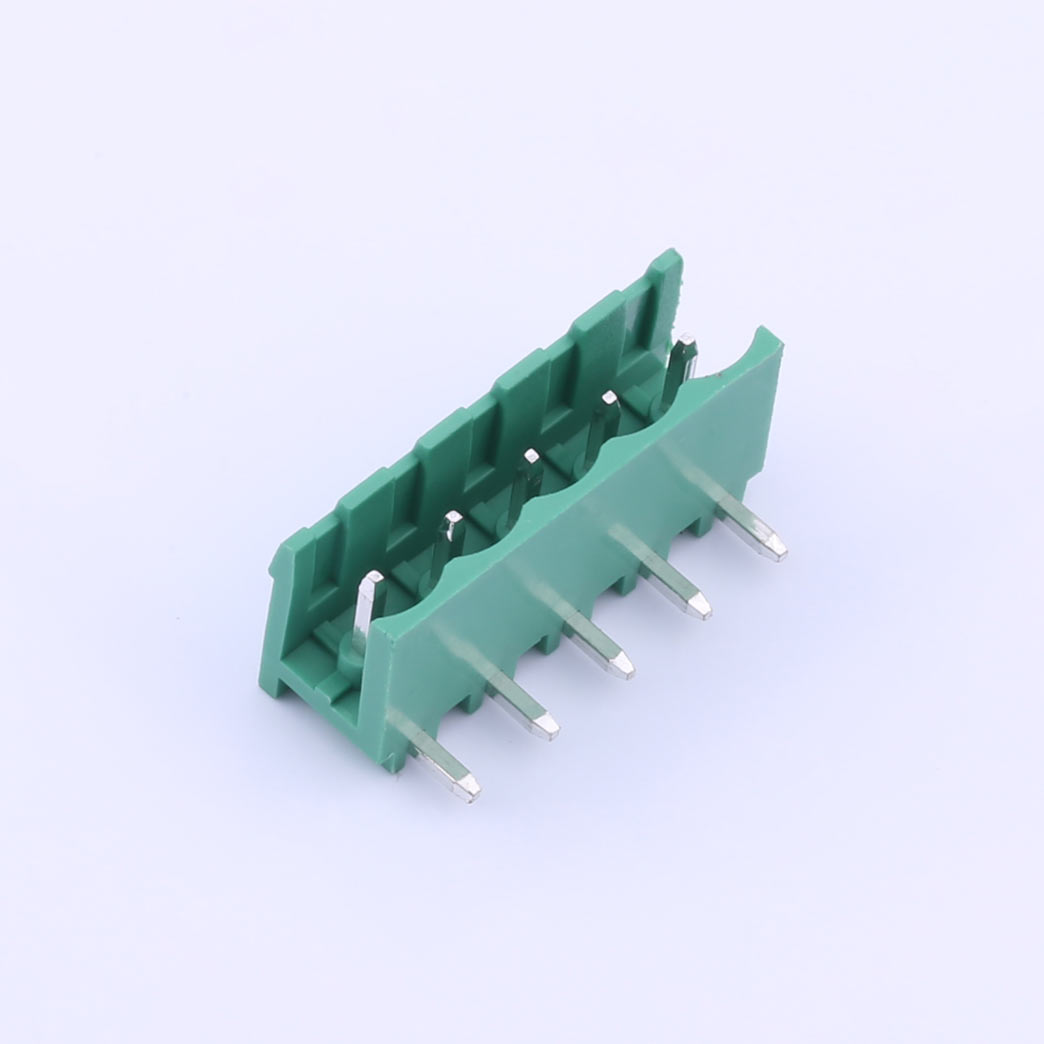

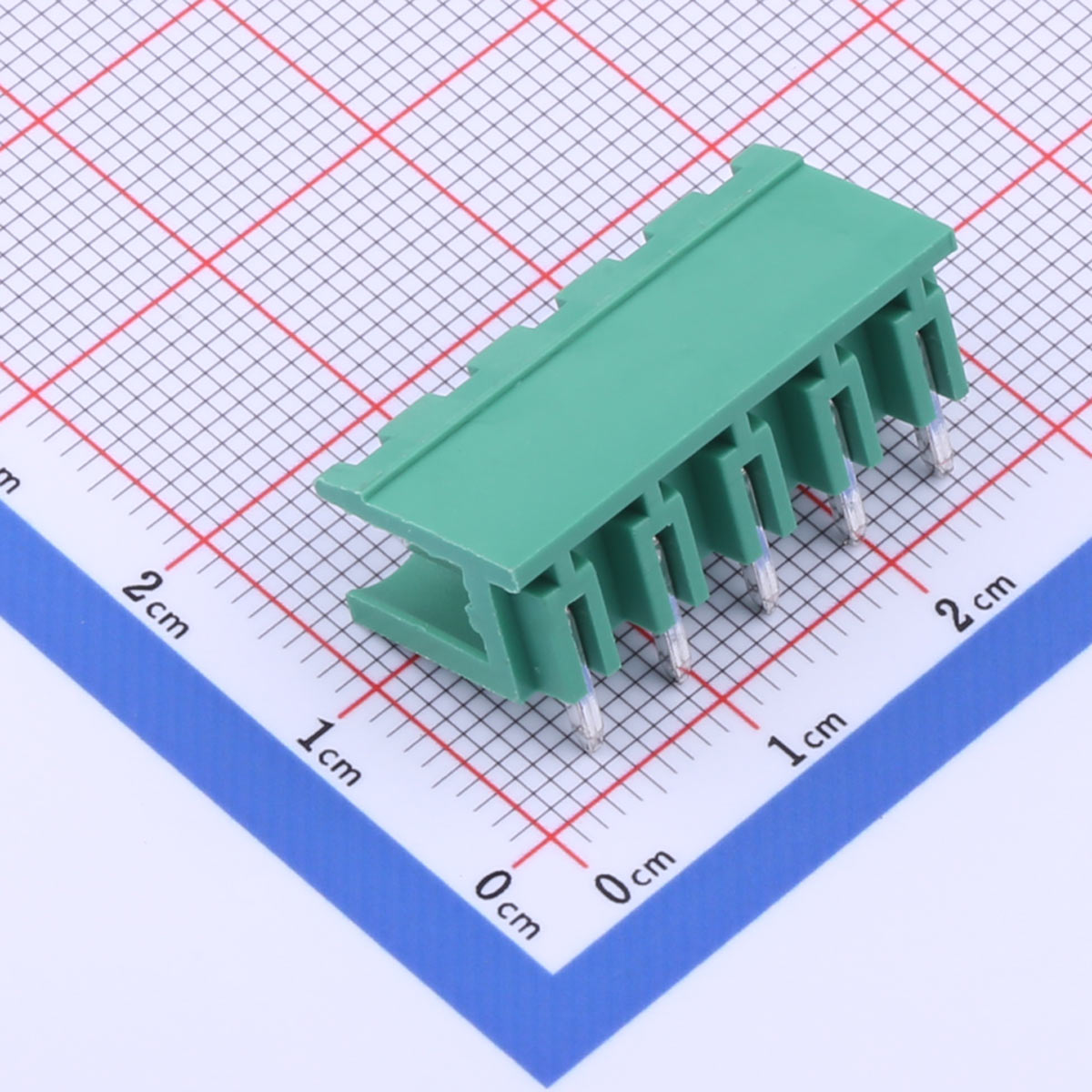

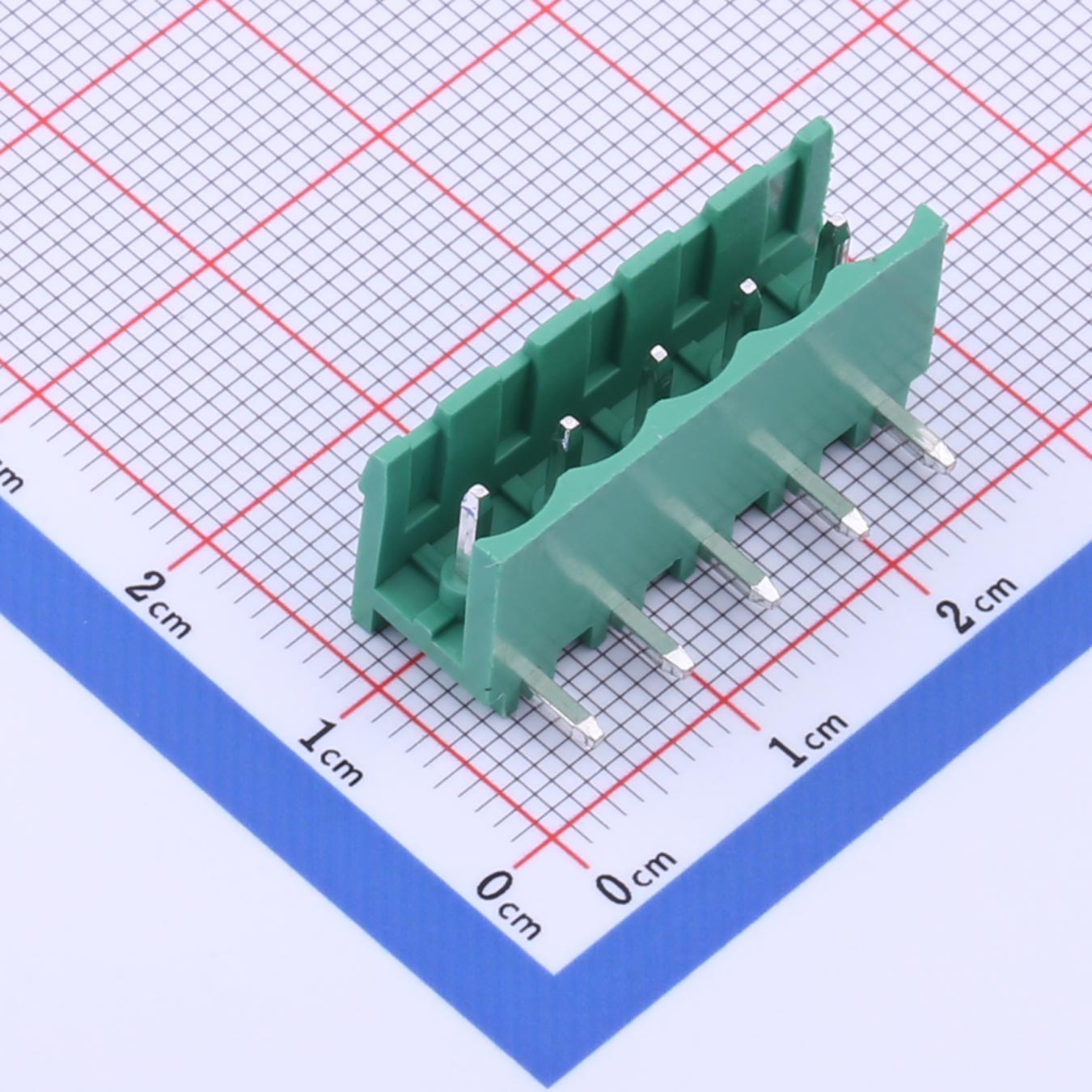

Pluggable Terminal Block, 5.08mm pitch, 5 pin, 12A 300V, KH-ZBF4000R-5P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 5 pin, 12A 300V, KH-ZBF4000R-5P-5.08G

Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature: -40°C to +105°C

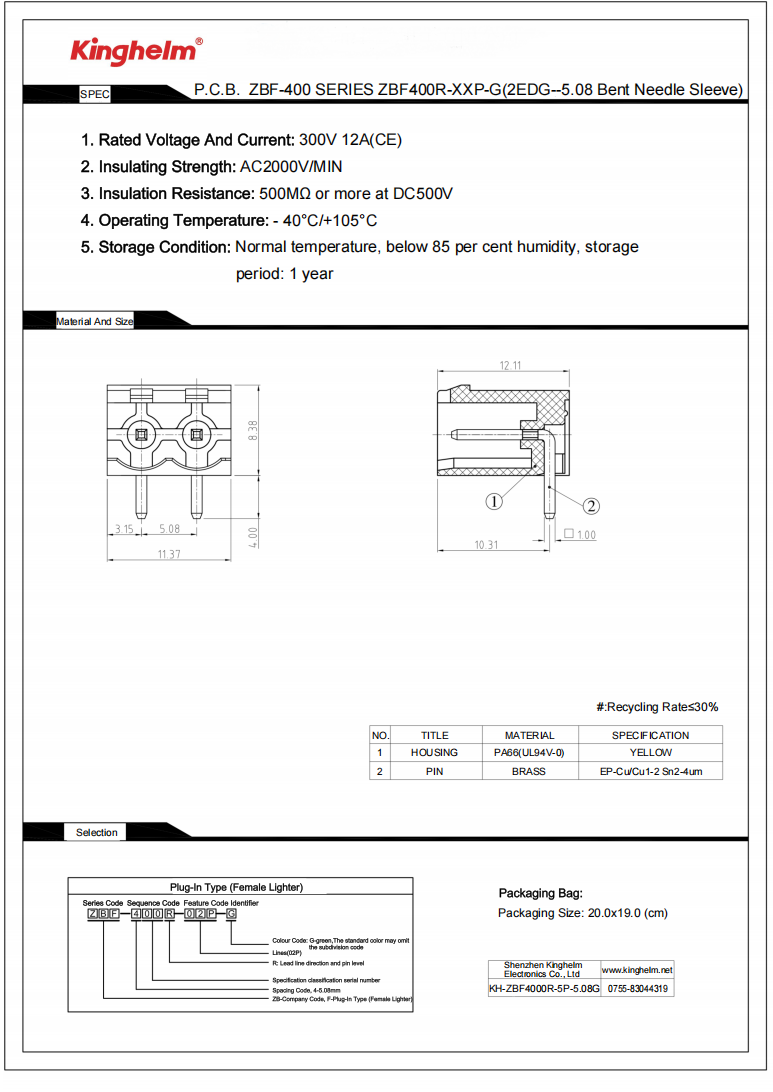

Inquiry Datasheet

Product Details

Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 5-pin single row configuration
● Board mount socket open end
● Durable green thermoplastic housing
● High current capacity up to 12A
● Rated voltage up to 300V
● Stable performance from -40℃ to +105℃

Product Benefits
● Space-saving right-angle design
● Easy and secure wire connection
● Reliable electrical conductivity
● High resistance to heat and vibration
● Simplifies board-level wiring
● Long service life in demanding conditions

Product Applications
● Industrial control systems
● Power distribution equipment
● Automation machinery
● HVAC systems
● Lighting systems
● Communication devices
