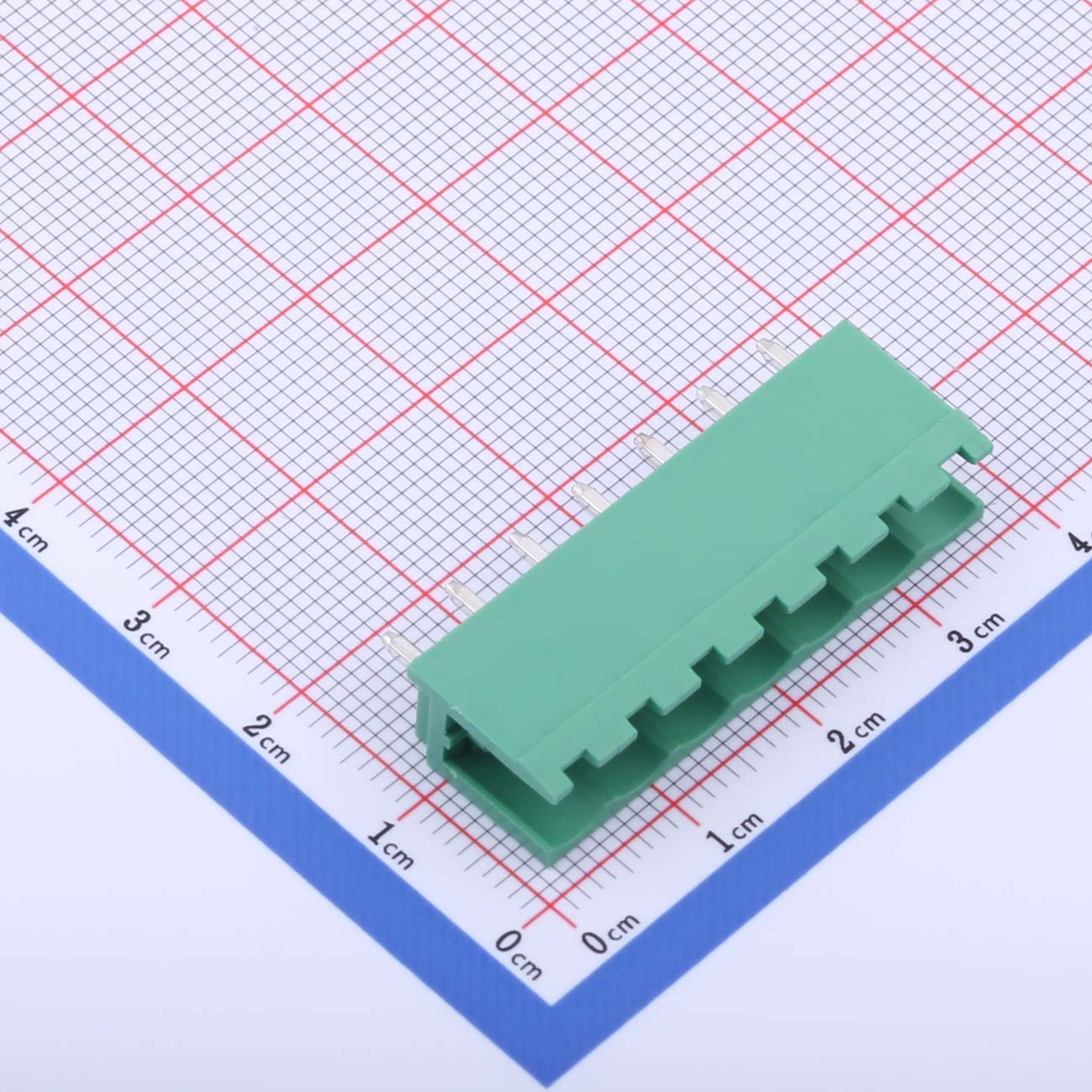

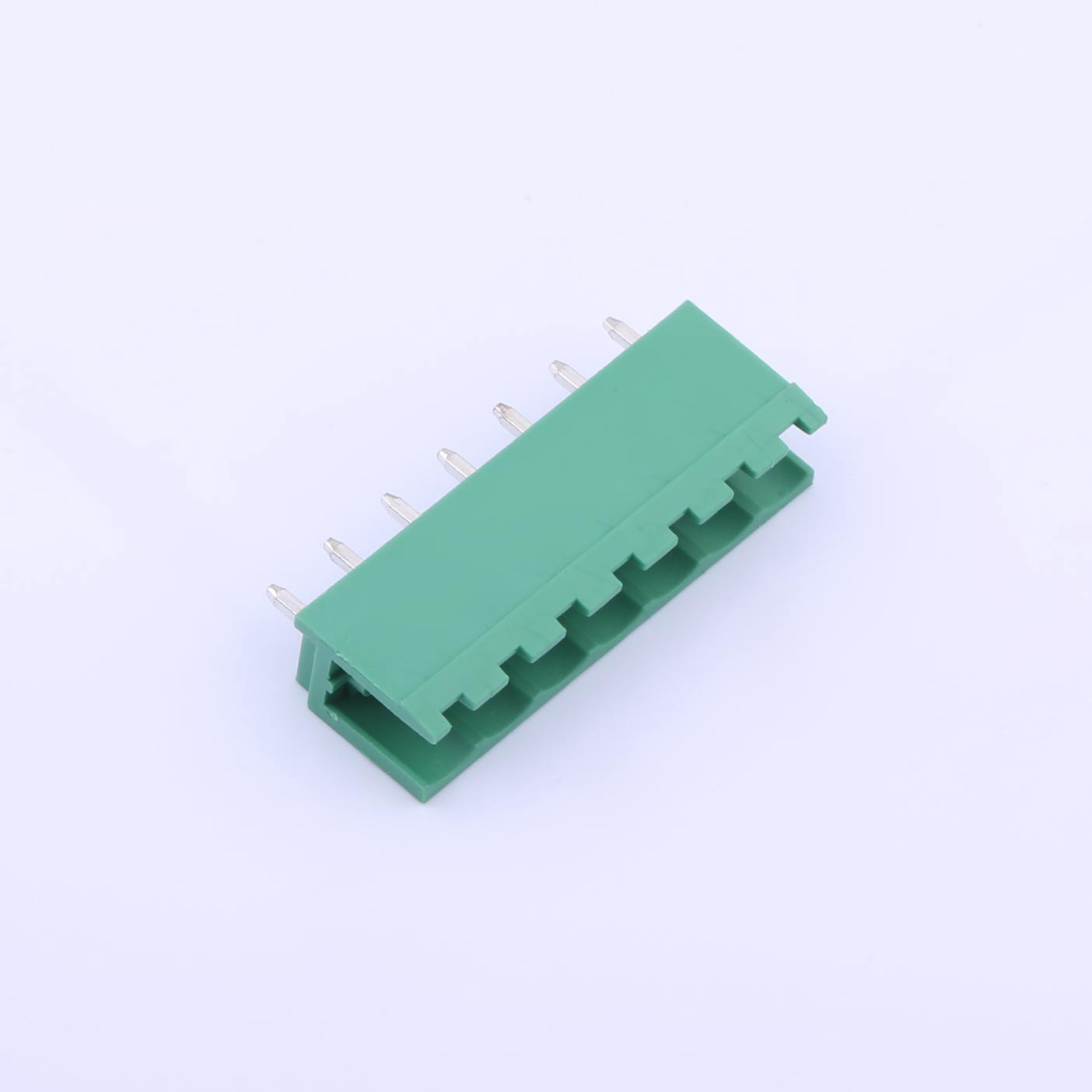

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 15A 300V, KH-F400V-7P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 15A 300V, KH-F400V-7P-5.08G

Rating: 300V, 15A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant

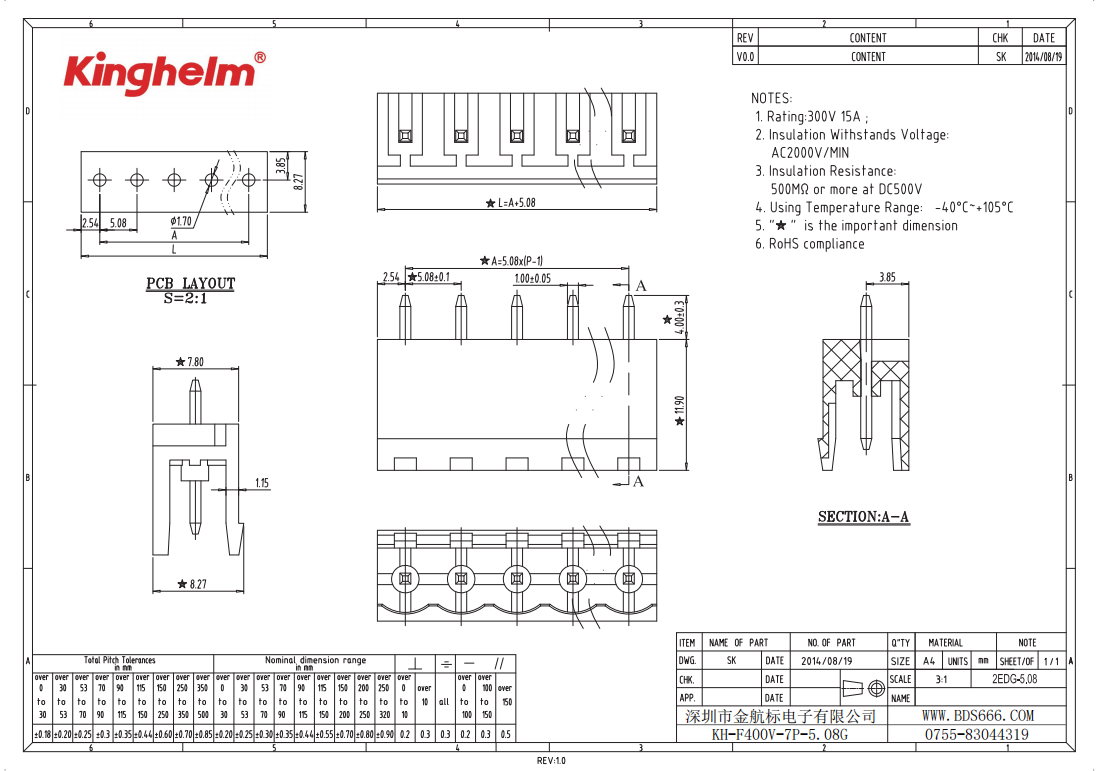

Inquiry Datasheet

Product Details

Product Features
● Pluggable terminal block for easy connection
● 5.08 mm pitch for standard compatibility
● Green color for easy identification
● Straight pin mounting type for simple installation
● 7P pin count for flexible connections

Product Benefits
● Quick and easy installation to save time
● Reliable performance with 15A rated current
● Wide 300V voltage range for diverse applications
● Operates in a broad temperature range from -40℃ to +105℃
● Compact and space-saving design

Product Application
● Used in industrial control systems
● Common in power distribution and electrical panels
● Ideal for telecommunications equipment wiring
● Applied in HVAC systems for secure connections
● Suitable for robotics and automation applications
