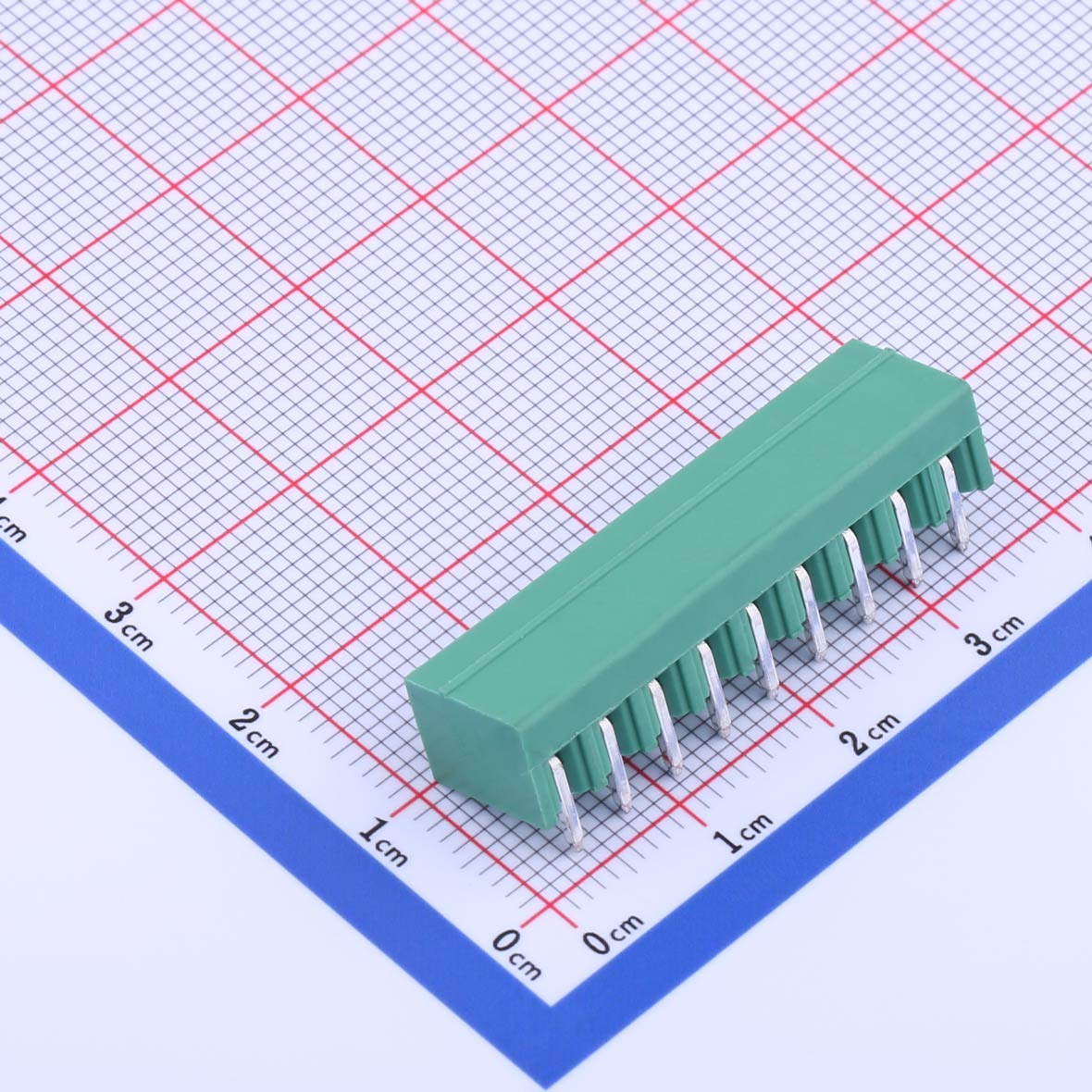

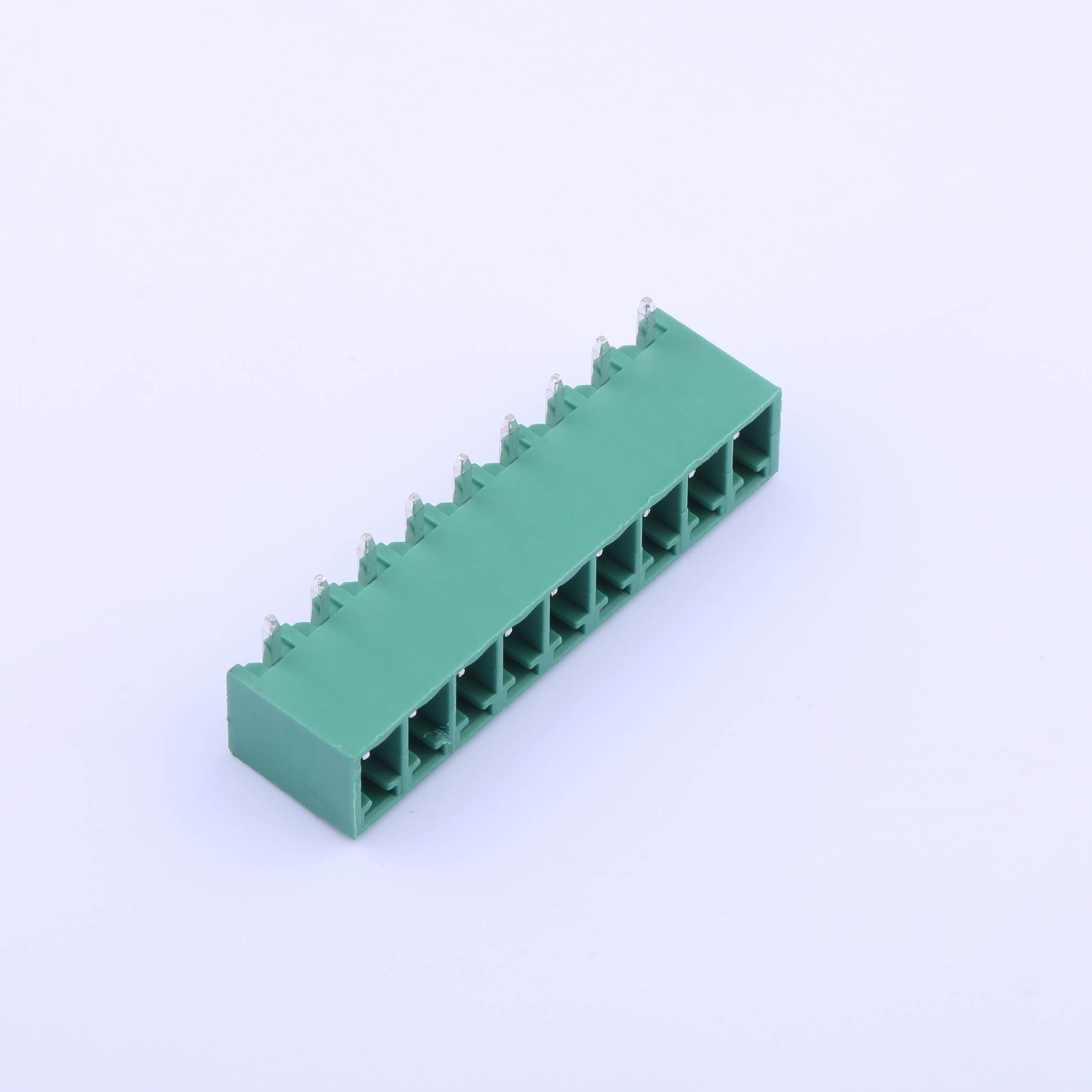

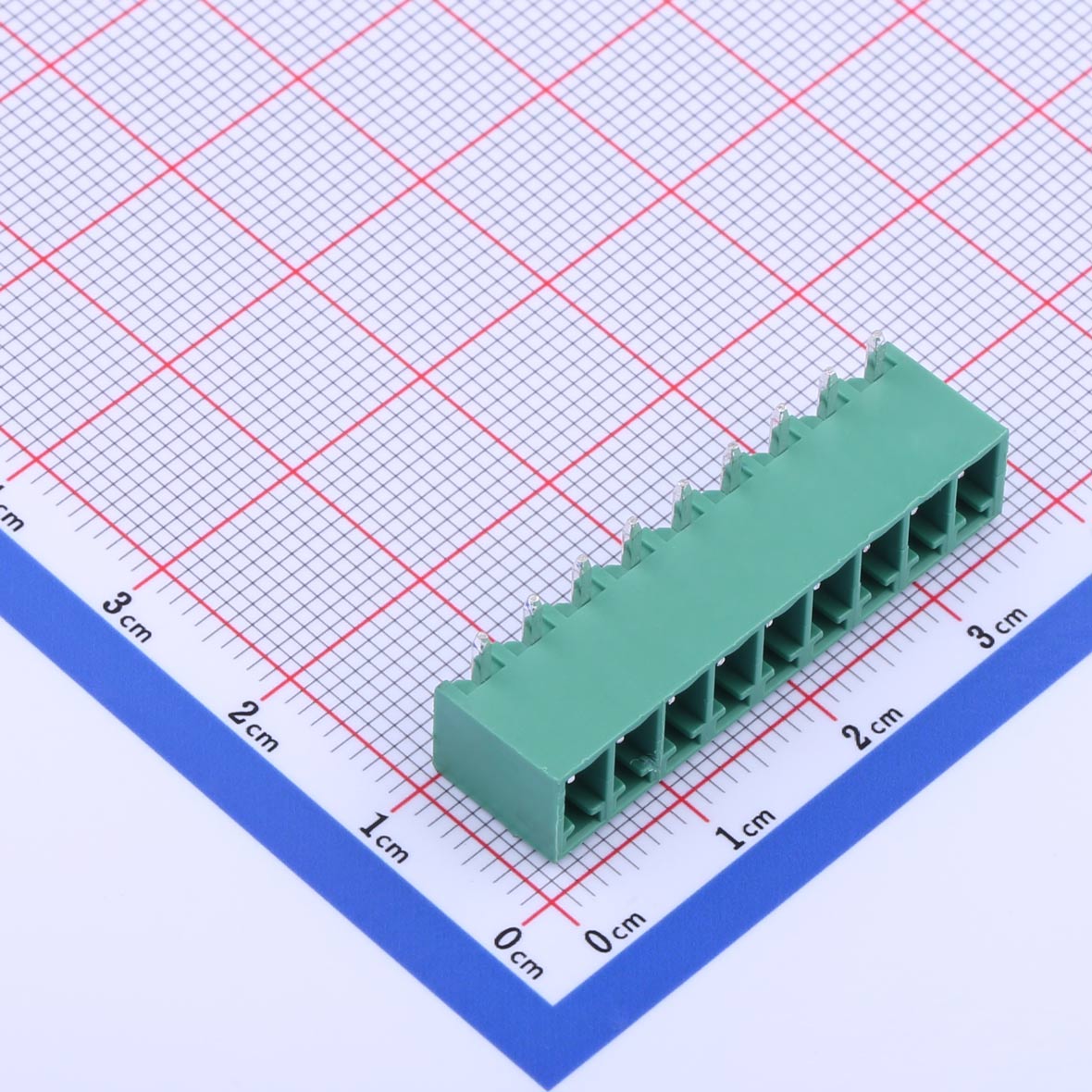

Pluggable Terminal Block, 3.81mm pitch, 9 pin, 8A 300V, KH-15EDGRC-3.81-9PG

Pluggable Terminal Block, 3.81mm pitch, 9 pin, 8A 300V, KH-15EDGRC-3.81-9PG

Rated Voltage & Current: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant

Inquiry Datasheet

Product Details

Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 9 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃

Product Benefits
● Compact design saves board space
● Secure and stable electrical connection
● Easy plug and unplug functionality
● Durable under wide temperature range
● Clear color coding for circuit identification

Product Application
● Industrial control systems
● Automation equipment
● Power distribution units
● Signal and data connections
● Building management systems

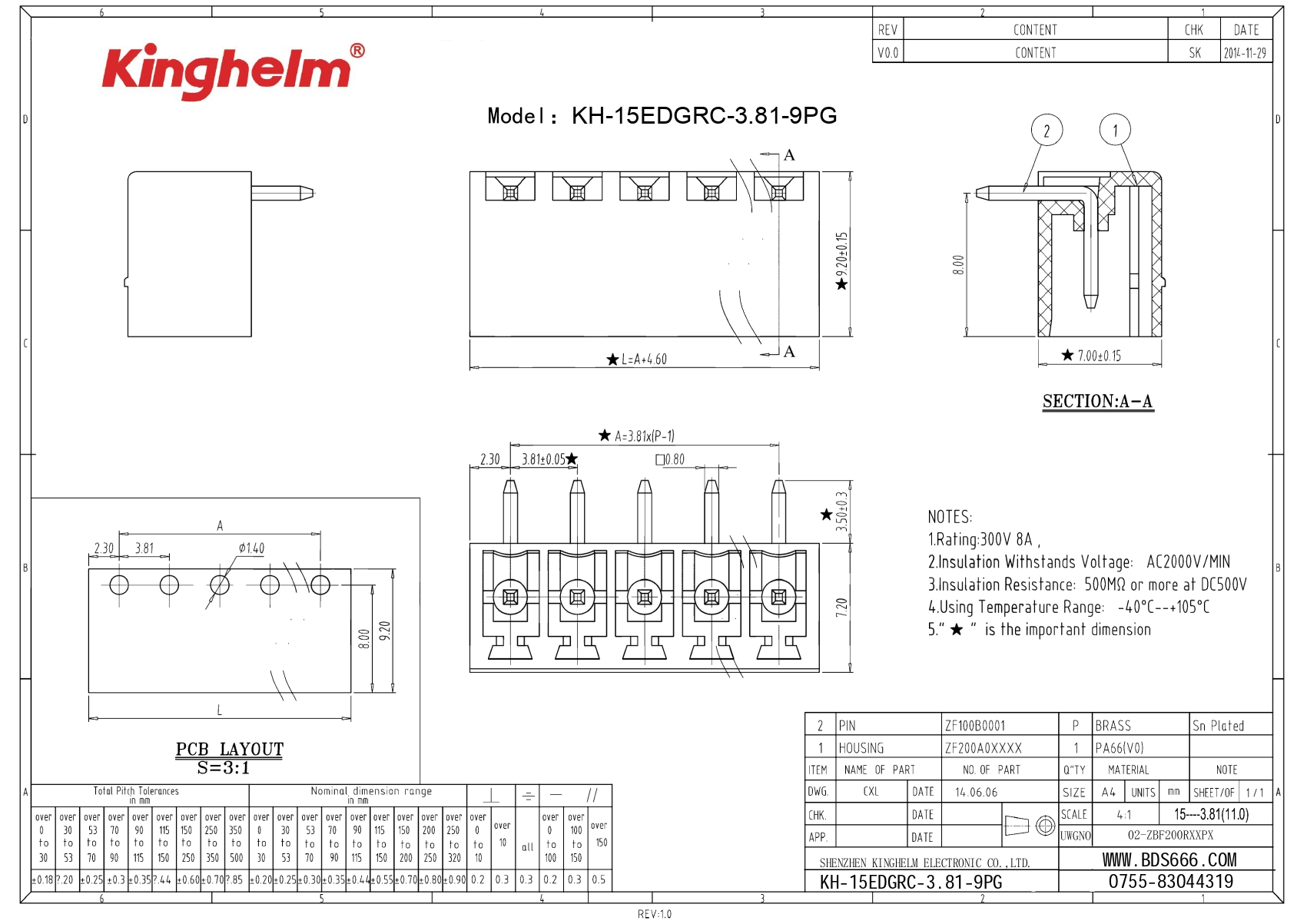

KH-15EDGRC-3.81-9PG_page-0001 (1).jpg
