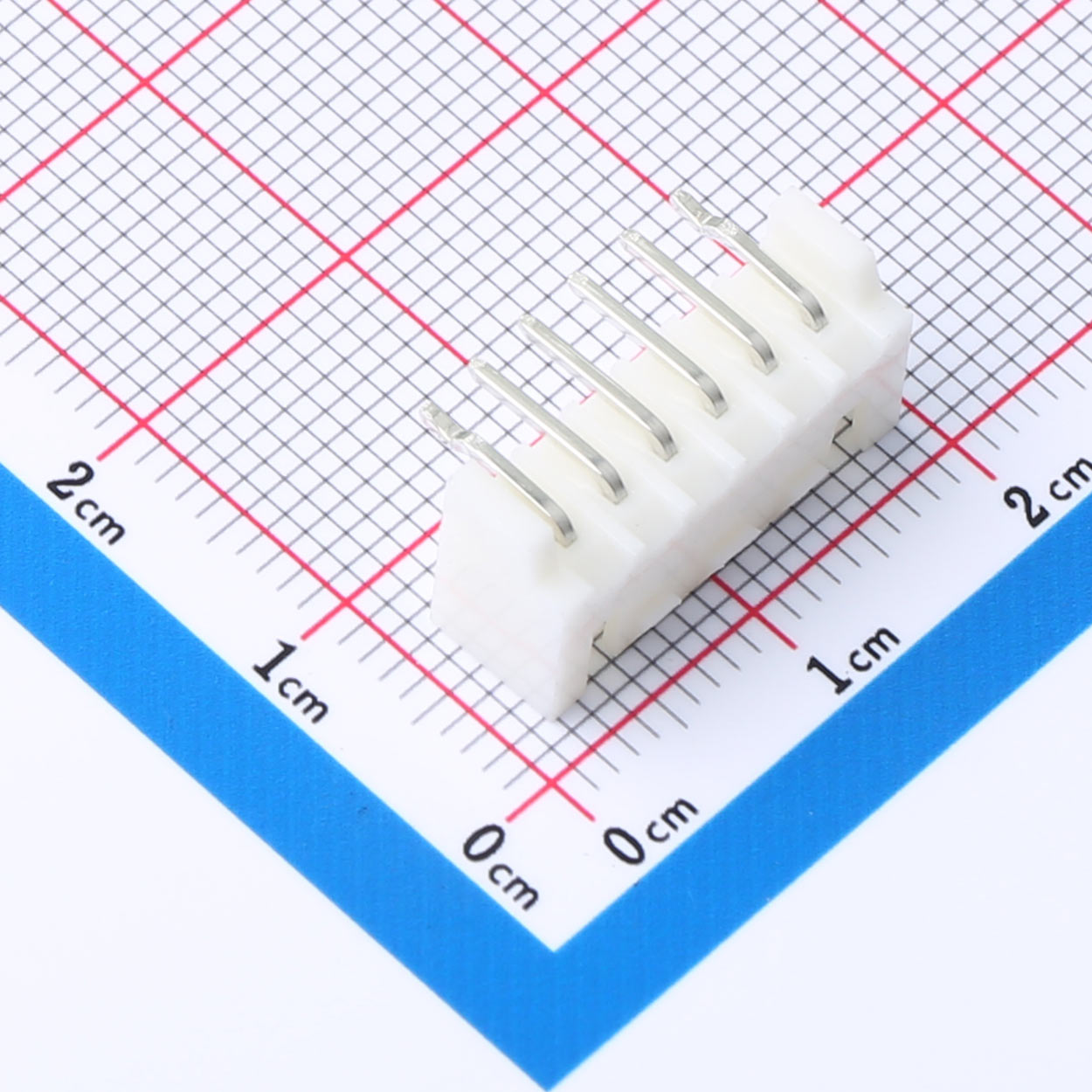

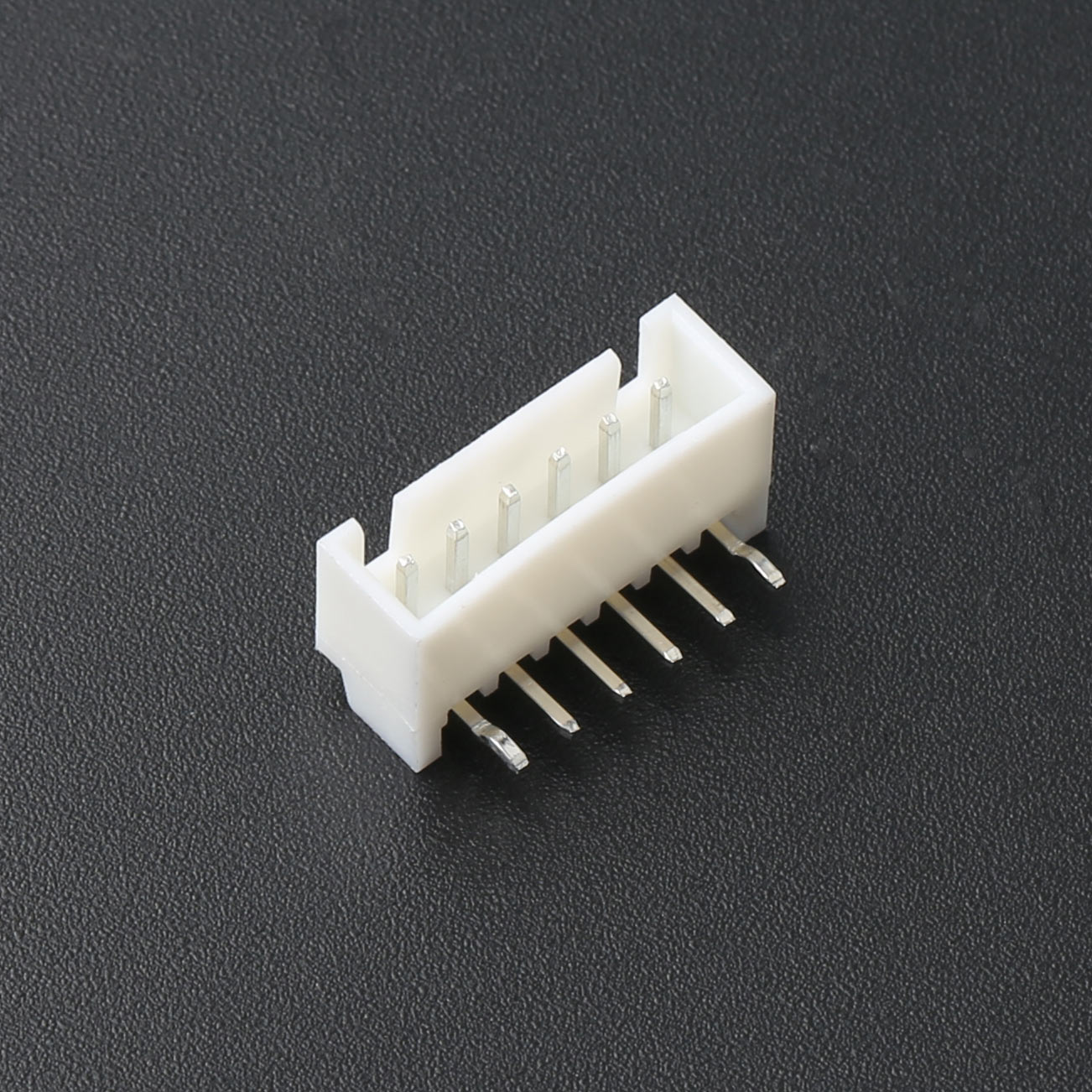

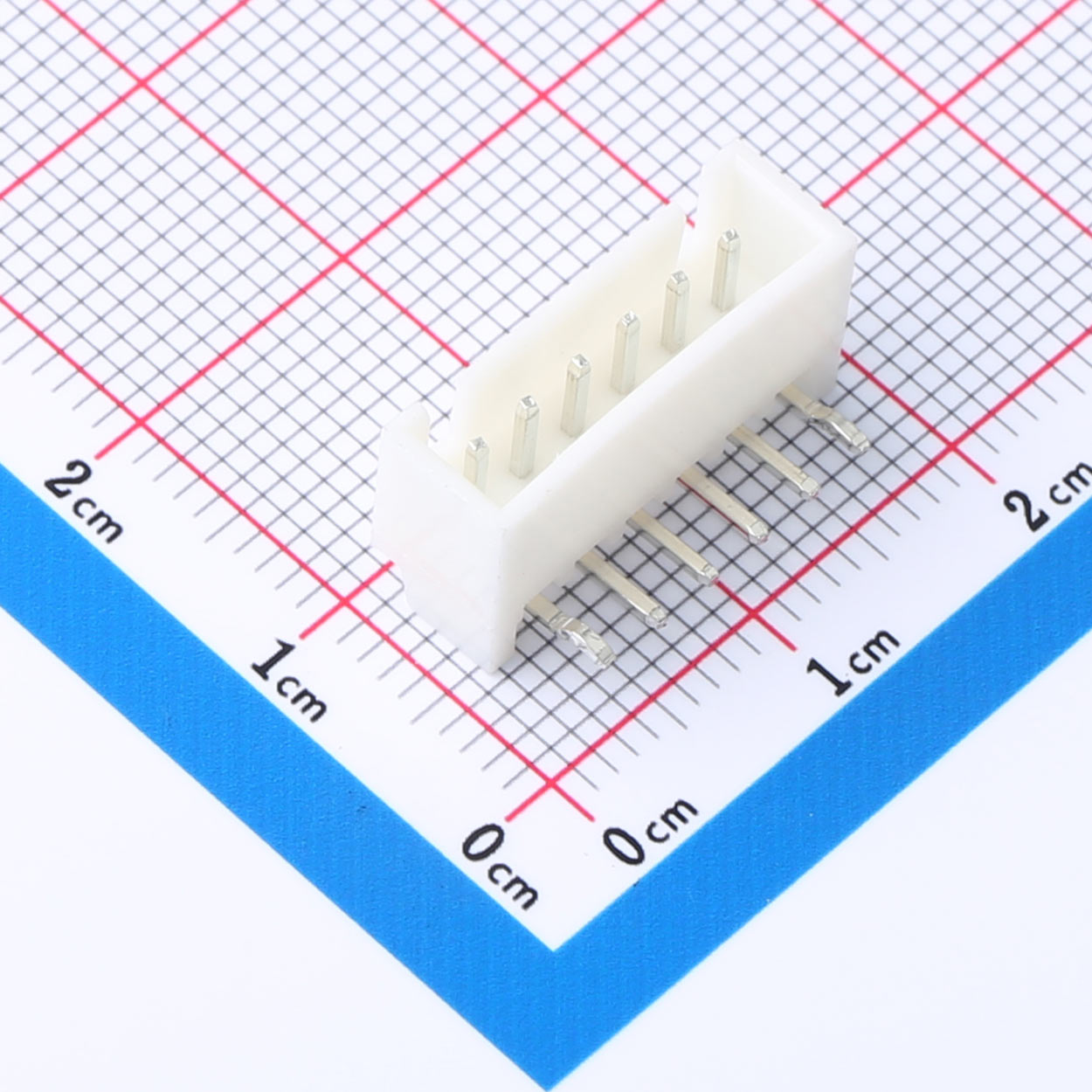

2.54mm Pitch Wire-to-Board Connector, 1x6P, Locating Angled Pin, KH-A2504-R-06AWD

2.54mm Pitch Wire-to-Board Connector, 1x6P, Locating Angled Pin, KH-A2504-R-06AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch for reliable wire-to-board connections
● 1x6P configuration for compact integration
● Angled locating pin for improved stability
● DIP type for easy PCB insertion
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● Temperature range: -25℃ to +85℃
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance

Product Benefits
● Dependable, stable connections
● Efficient design for space optimization
● Handles higher currents and voltages
● Operates in various temperature conditions
● Low contact resistance for better efficiency
● High insulation resistance for electrical safety

Product Applications
● Consumer electronics
● Automotive electronics
● Industrial equipment
● Power supply systems
● Home appliances
● Medical devices
