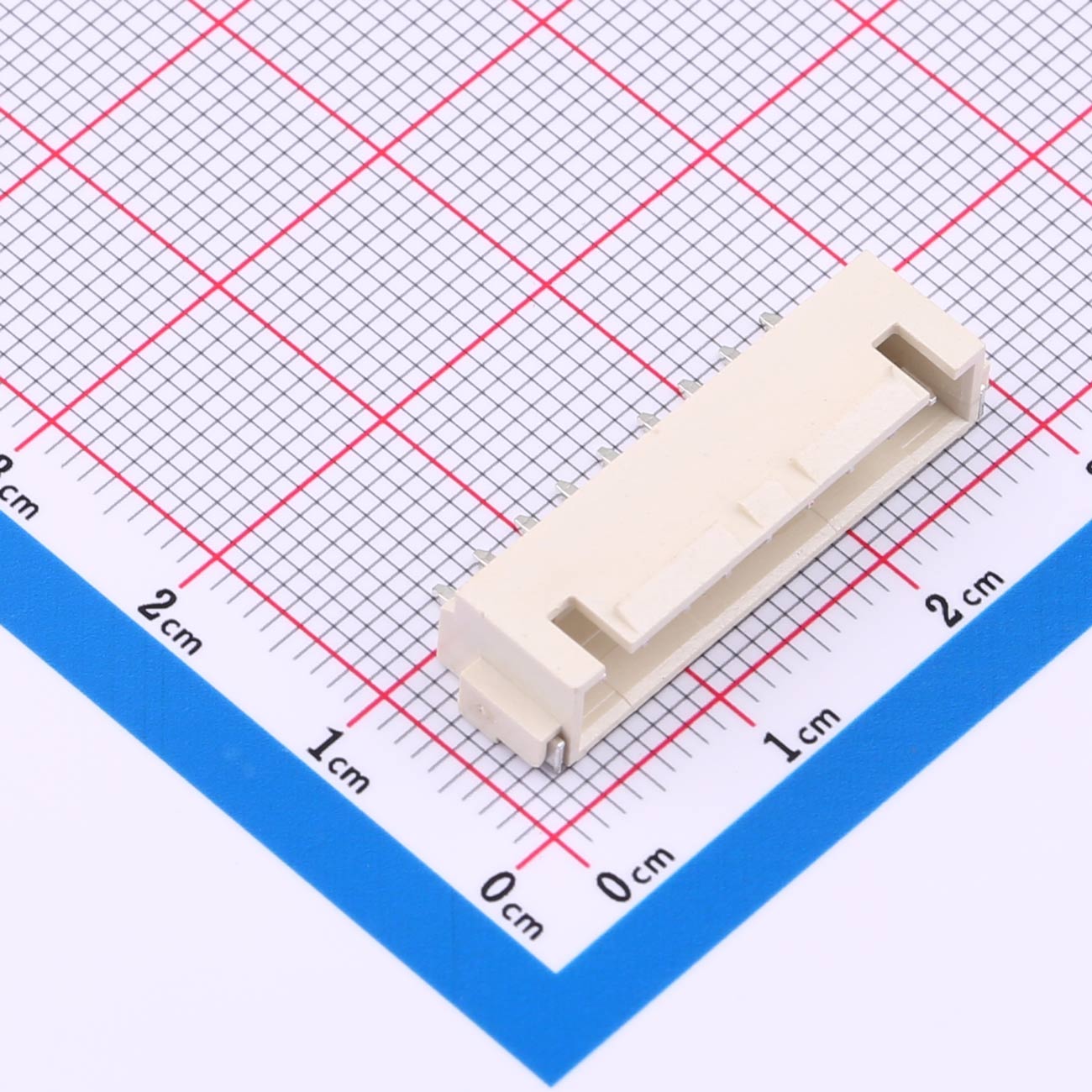

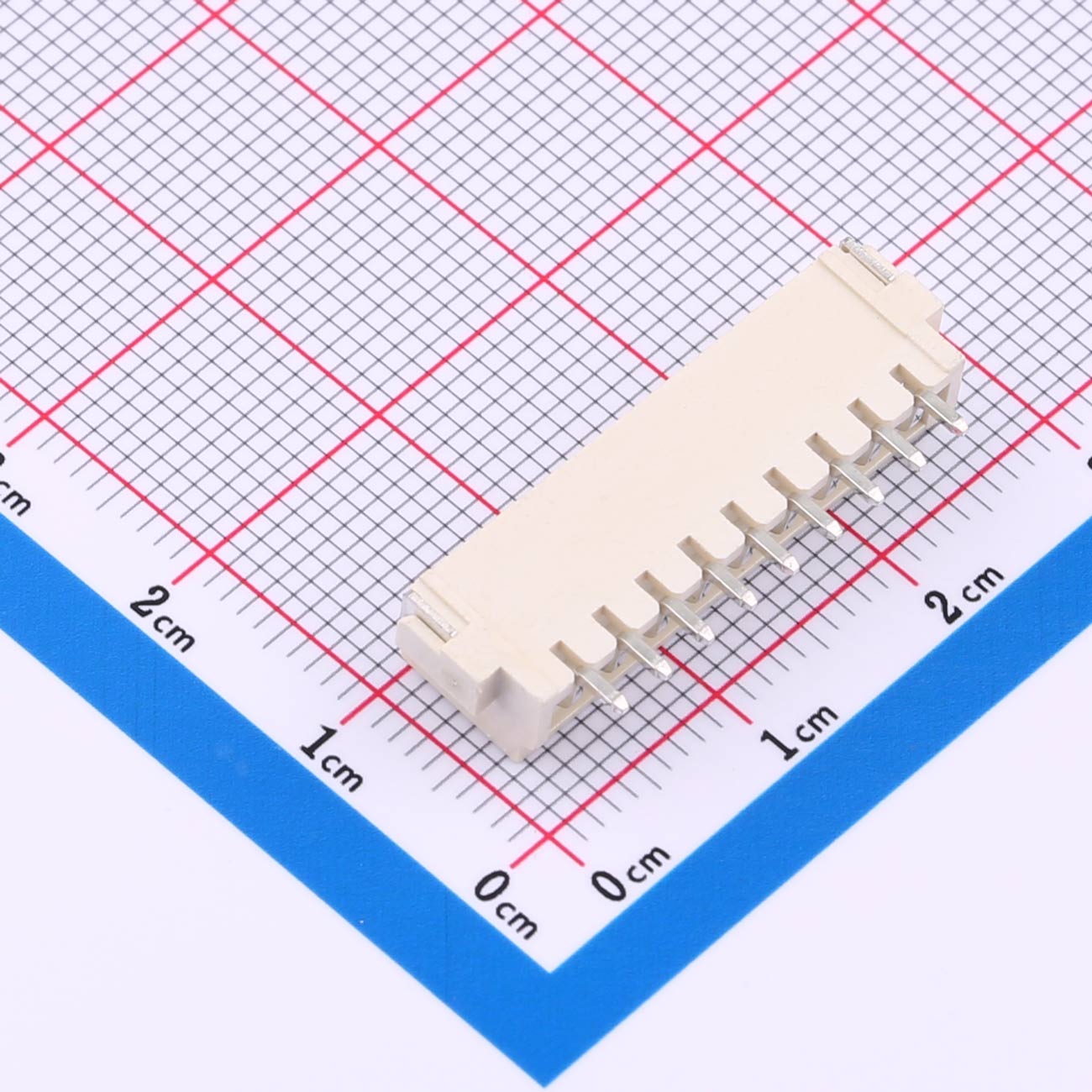

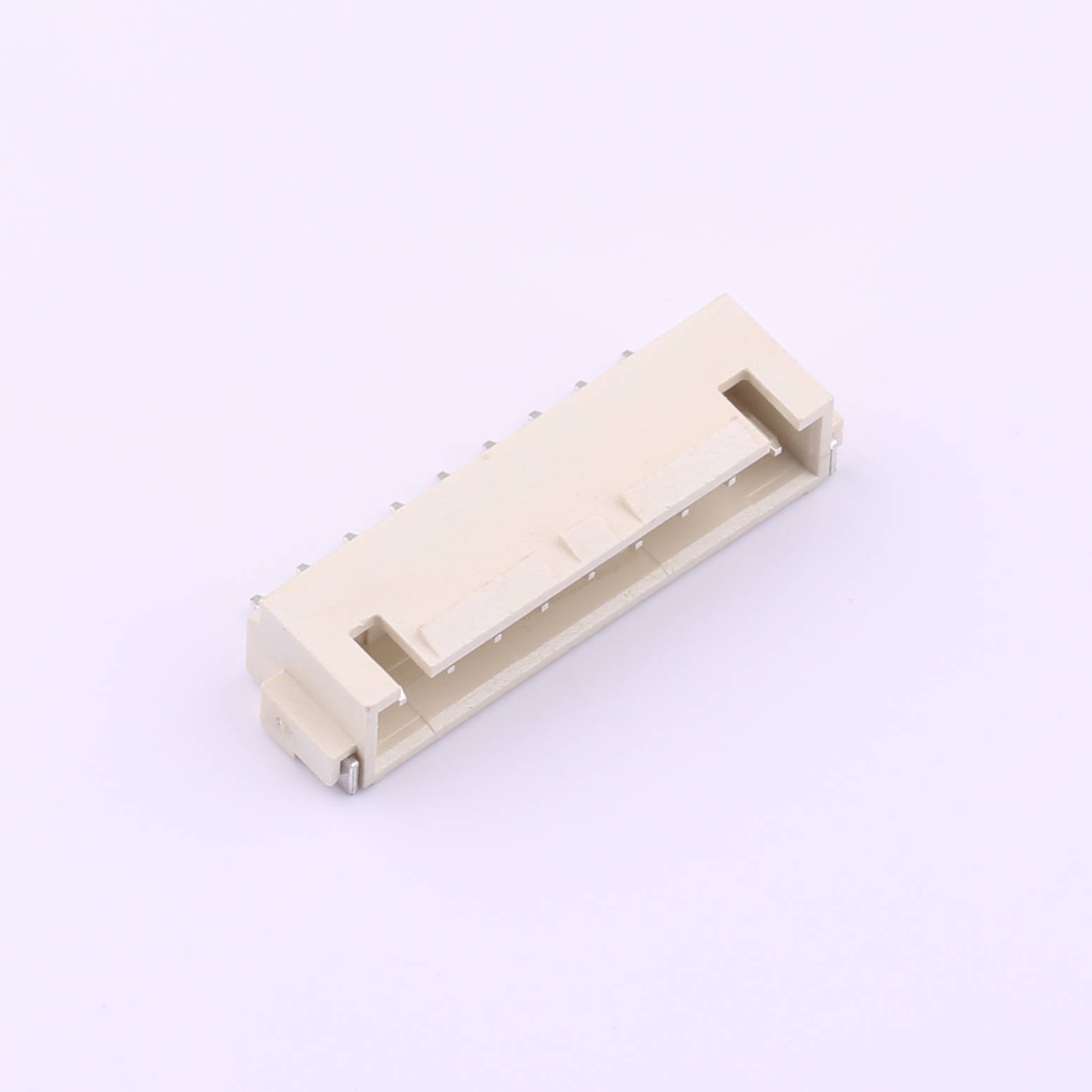

2.54mm Pitch Wire-to-Board Connector, 1x9P, SMD, KH-A2504-09AWB

2.54mm Pitch Wire-to-Board Connector, 1x9P, SMD, KH-A2504-09AWB

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm standard pitch
● 9-pin single-row configuration
● Horizontal SMT design (flat-mounted on PCB)
● Rated 3A current, 250V AC/DC
● Operating temperature: -25℃ to +85℃

Product Benefits
● Space-efficient for medium-density layouts
● Low-profile design for compact devices
● Reliable signal and power transmission
● Compatible with automated SMT production
● High insulation resistance and durability

Product Application
● Consumer electronics
● Industrial modules
● Communication interfaces
● Signal transmission systems
● Embedded applications
