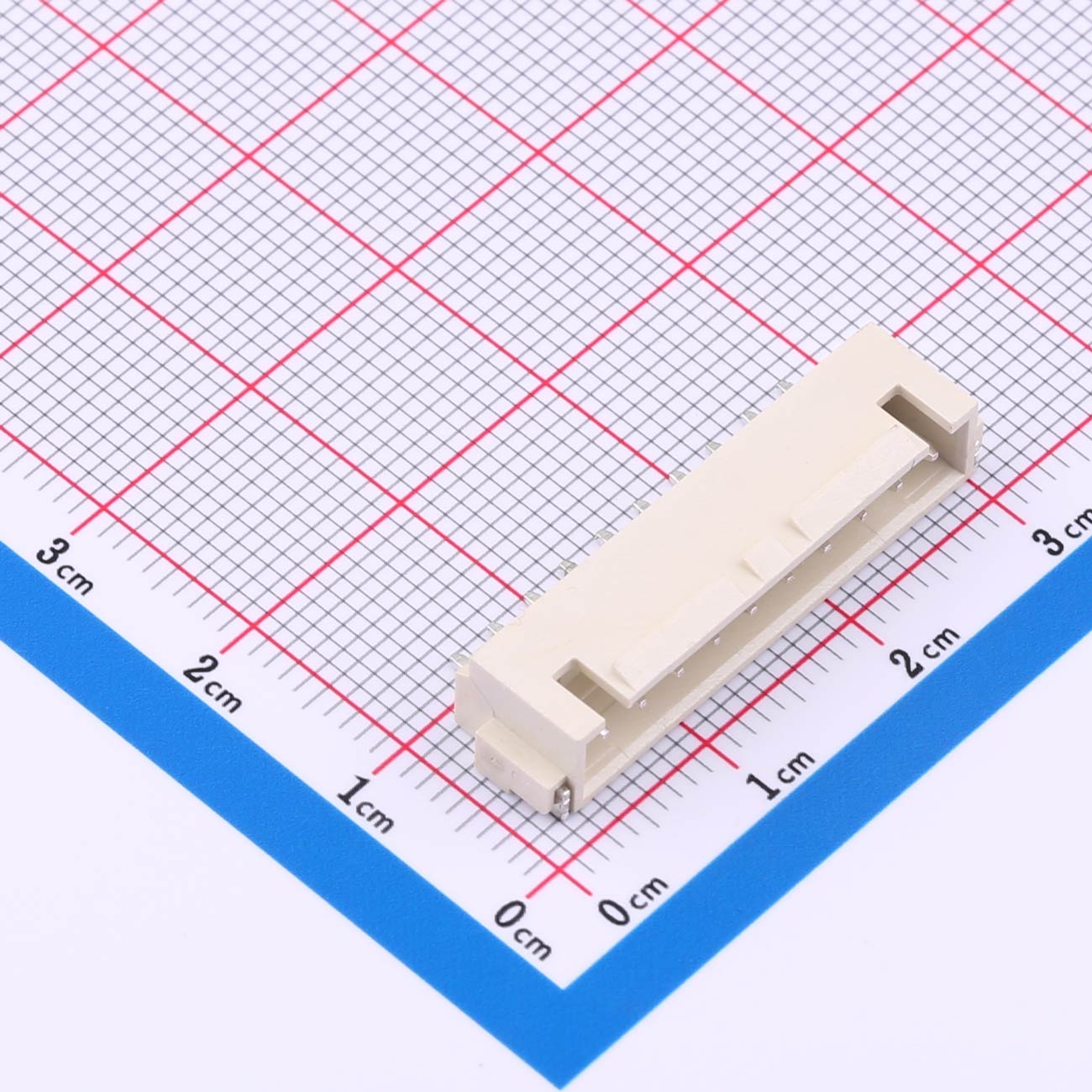

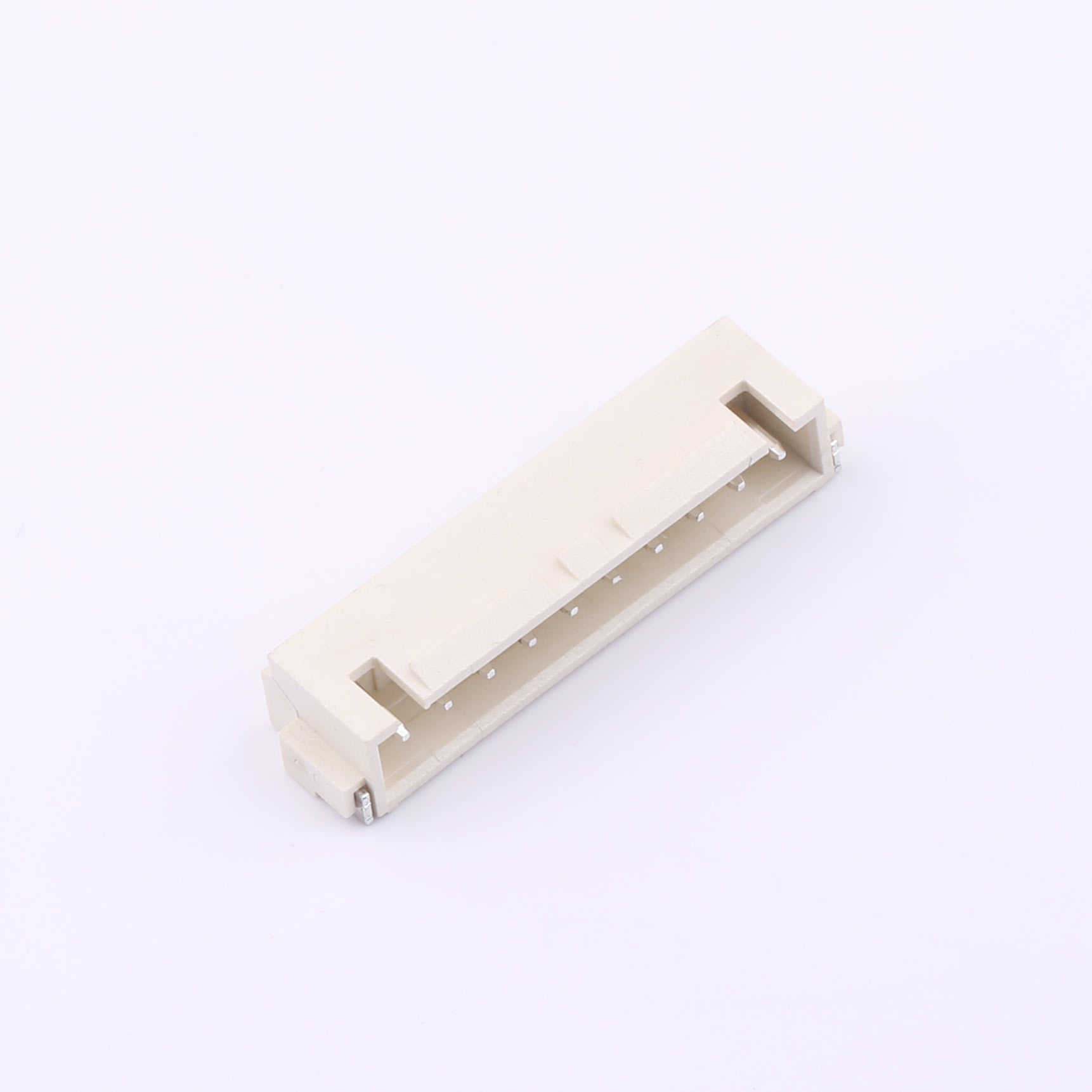

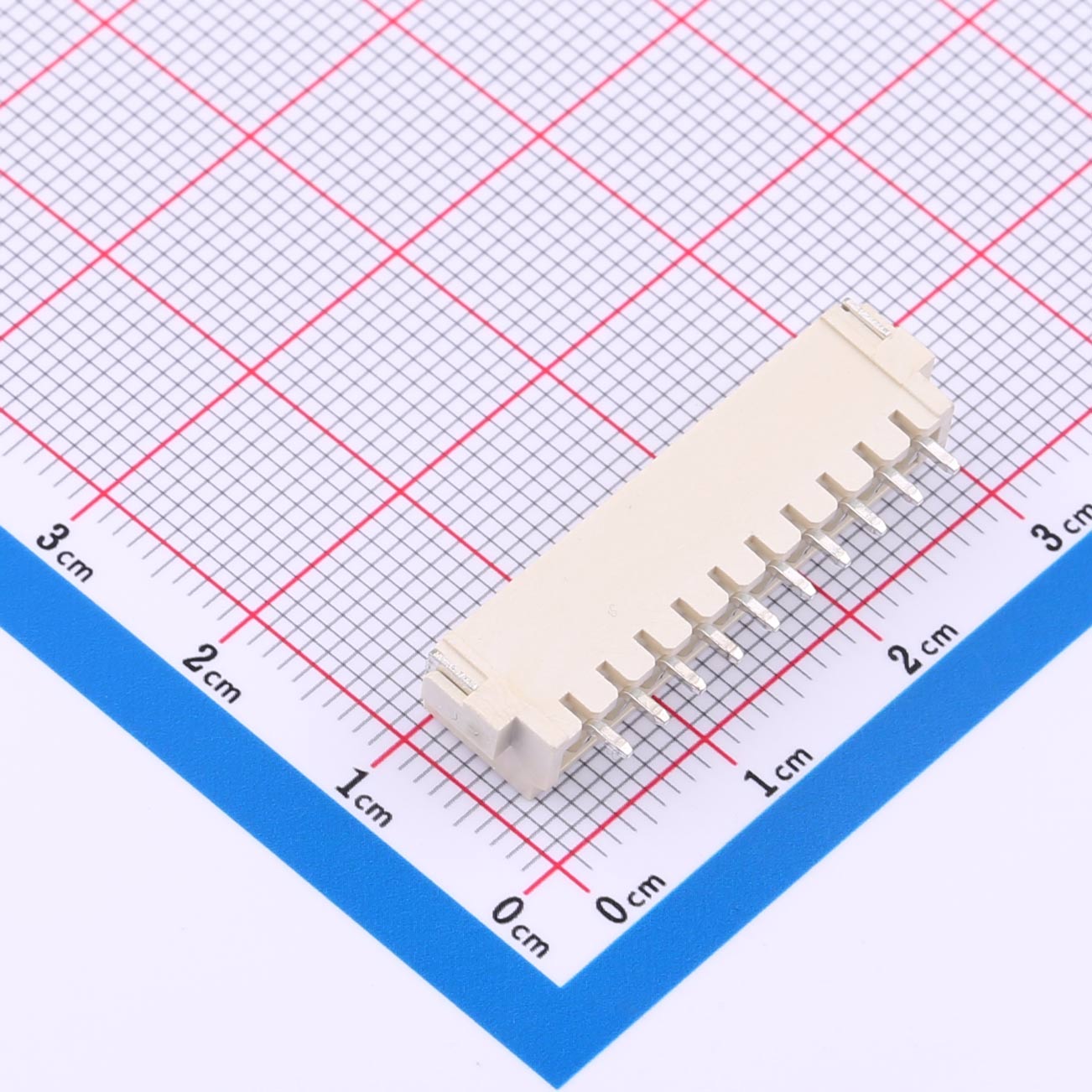

2.54mm Pitch Wire-to-Board Connector, 1x10P, SMD, KH-A2504-10AWB

2.54mm Pitch Wire-to-Board Connector, 1x10P, SMD, KH-A2504-10AWB

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm standard pitch
● 10-pin single-row configuration
● Horizontal SMT design (flat-mounted on PCB)
● Rated 3A current, 250V AC/DC
● Operating temperature: -25℃ to +85℃

Product Benefits
● Compact and space-efficient for slim designs
● Reliable electrical performance with low contact resistance
● Compatible with automated SMT assembly processes
● High insulation resistance for stable long-term use
● Ideal for space-constrained electronic systems

Product Application
● Consumer electronics
● Power distribution modules
● Industrial electronics
● Communication systems
● Embedded control circuits
