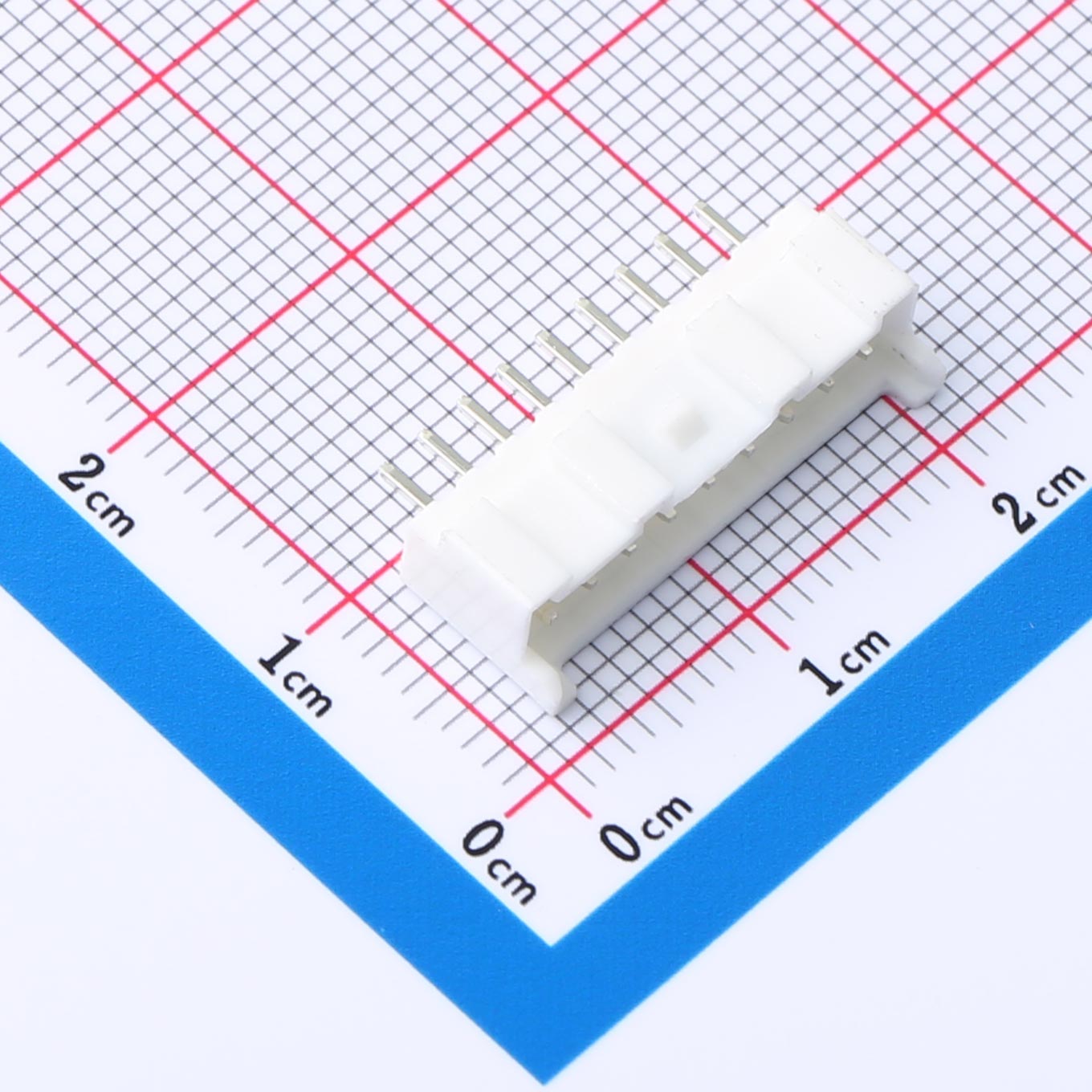

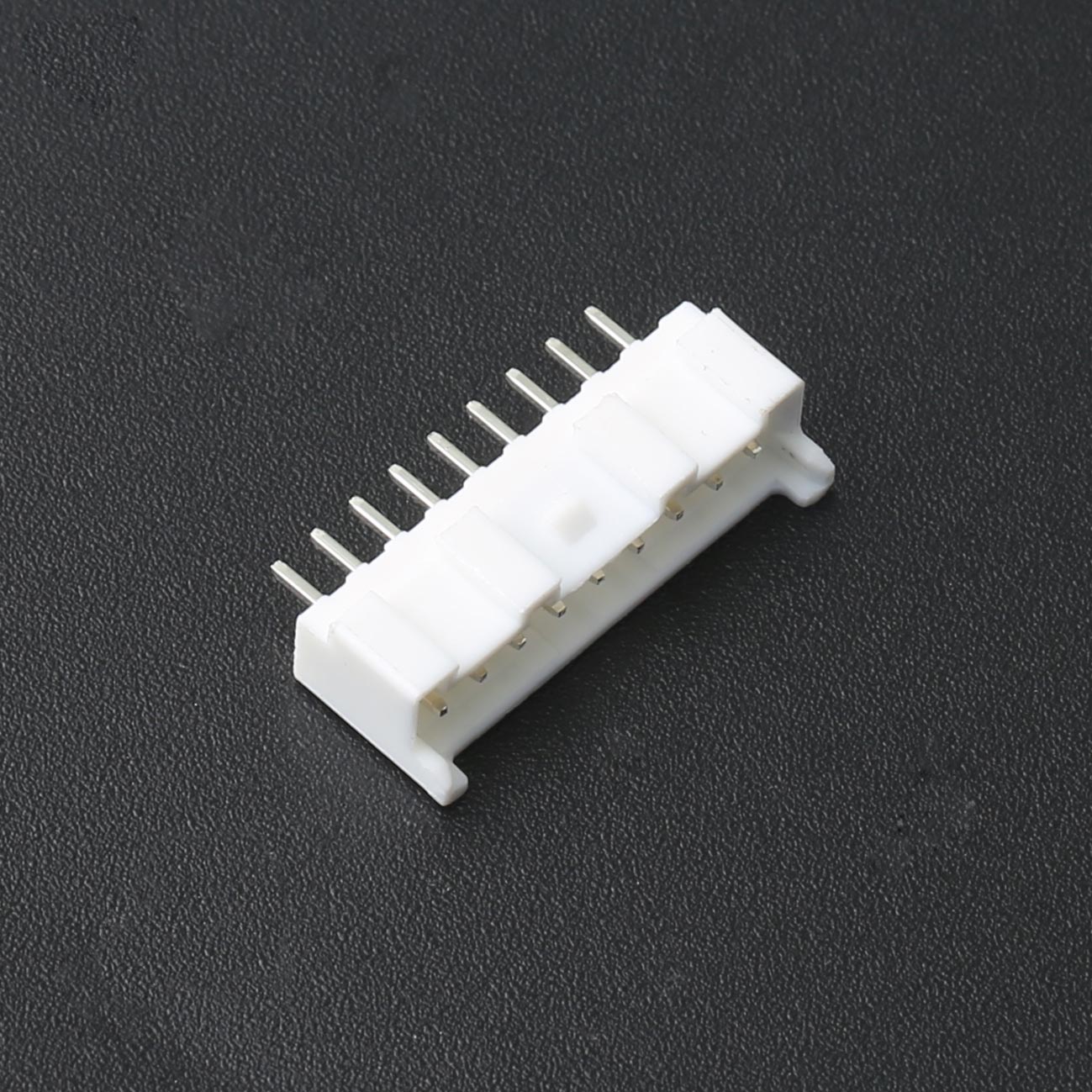

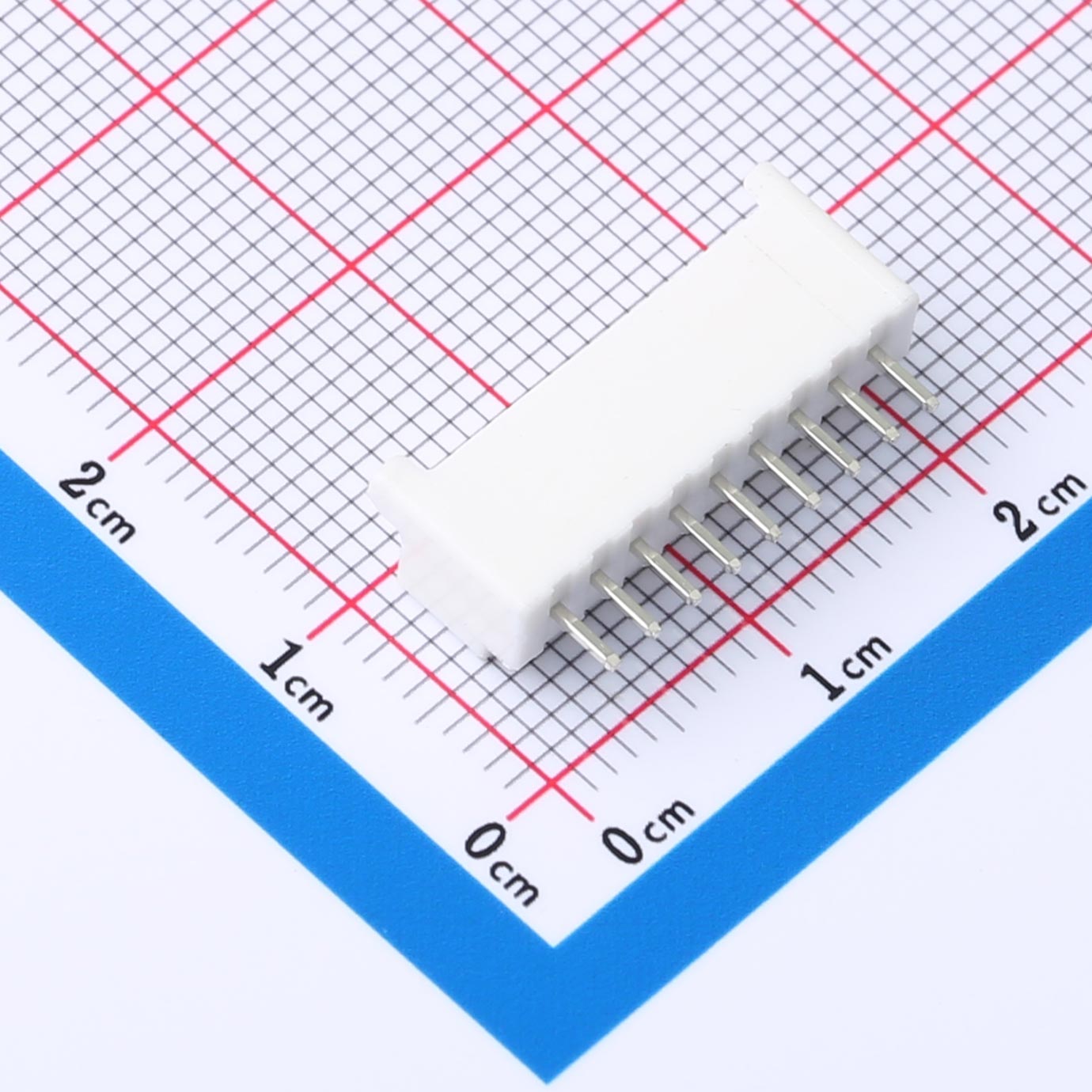

2mm Pitch Wire-to-Board Connector, 1x9P, Straight Pin, KH-A2026-09A

2mm Pitch Wire-to-Board Connector, 1x9P, Straight Pin, KH-A2026-09A

Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

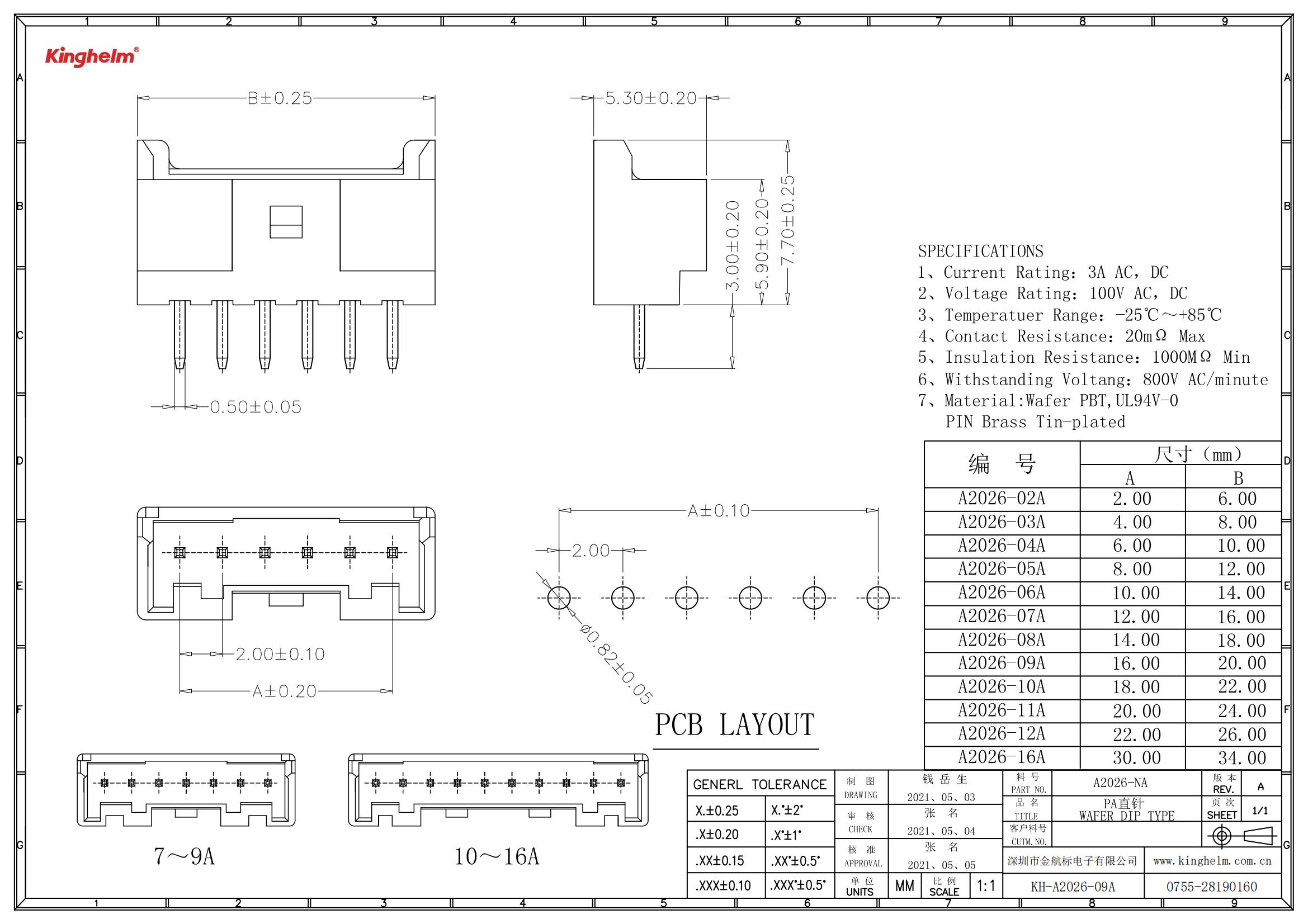

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 1x9P configuration
● Through-hole vertical pin header
● Straight pin style for upright connections
● Anti-corrosive tin plating on brass pins
● Matches PA series connectors

Product Benefits
● Saves horizontal PCB space
● Durable contact under frequent use
● Ideal for vertical jumper configurations
● Easy to solder with strong mechanical hold
● Compact, lightweight footprint

Product Applications
● Interface connections in embedded boards
● Low-profile control units
● Compact signal distribution boards
● Sensor modules
● DIY electronics kits
