Kinghelm connectors have the following applications in the 5G communication field:

1) Internal Connections in Base Station Equipment

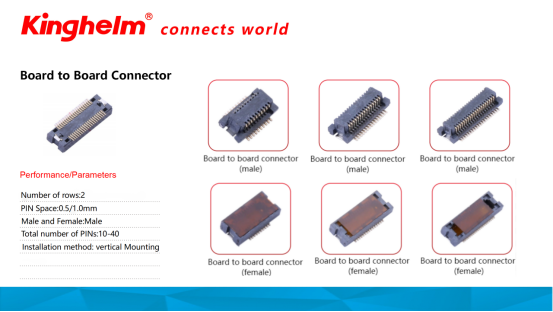

Board-to-Board Connections: In 5G base stations, board-to-board connectors are used to connect different printed circuit boards (PCBs), such as baseband boards, RF boards, and power boards. These connectors ensure high-speed and stable signal transmission and power supply between different functional modules, enabling seamless coordination within the base station.

RF Connections: RF connectors link the RF front-end module with antennas, filters, power amplifiers, and other components inside the base station. They ensure low-loss and high-fidelity RF signal transmission, facilitating the efficient transmission and reception of 5G signals.

2) Antenna System Connections

Antenna-to-Feeder Connection: In 5G base station antenna systems, connectors provide reliable connections between antennas and feeders, transmitting RF signals from the base station to the antenna for radiation and carrying received signals back to the base station for processing. For example, the Kinghelm KH1C-48-XP 5G suction cup antenna features an FAKRA interface, ensuring stable connections between antennas and transmission lines for reliable and efficient signal transmission.

Antenna Array Connections: In large-scale MIMO (Massive Multiple-Input Multiple-Output) antenna systems, connectors play a role in linking antenna elements. They enable signal distribution and combination among multiple antenna elements, improving antenna gain, directionality, and overall 5G signal coverage and transmission quality.

3) Terminal Device Connections

Internal Smartphone Connections: In 5G smartphones, board-to-board connectors connect the mainboard with auxiliary boards, displays, cameras, batteries, and other components, ensuring seamless signal transmission and power distribution. RF connectors link the phone's antenna to the RF front-end module, ensuring stable 5G signal reception and transmission.

Other Terminal Device Connections: In 5G routers, CPE (Customer Premises Equipment), and other 5G-enabled devices, Kinghelm connectors play an essential role. Board-to-board connectors establish internal connections between different functional modules, while RF connectors link the device to external antennas, ensuring a stable and high-speed 5G network connection.

4) Transmission Line Connections

Optical Fiber Connections: In the transmission phase of 5G networks, fiber optic connectors connect fiber optic cables, enabling high-speed optical signal transmission between base stations and between base stations and the core network. This ensures that 5G networks meet the high-capacity and ultra-fast data transmission demands.

Coaxial Cable Connections: Coaxial connectors are used to connect coaxial cables, which are commonly deployed for short-distance signal transmission within base stations and for linking base stations to outdoor equipment, such as Remote Radio Units (RRUs).

About Kinghelm

Kinghelm is a leading provider of high-quality electronic components,including RoHS-compliant antennas, wires, plug-ins, switches, and connectors. With over 17 years of experience, the company serves industries including automotive, telecommunications, industrial automation, medical devices, and consumer electronics. Kinghelm is known for its durable, reliable components that meet international standards and are used in applications ranging from renewable energy to IoT devices.
